Automatic high speed thread rolling machine for wire nails, screw nails
- Category: Thread Rolling Machines >>>
- Supplier: Wuxi Tripod Machinery Imp. & Exp. Co. Ltd.
Share on (433350045):
Product Overview
Description
Product Description

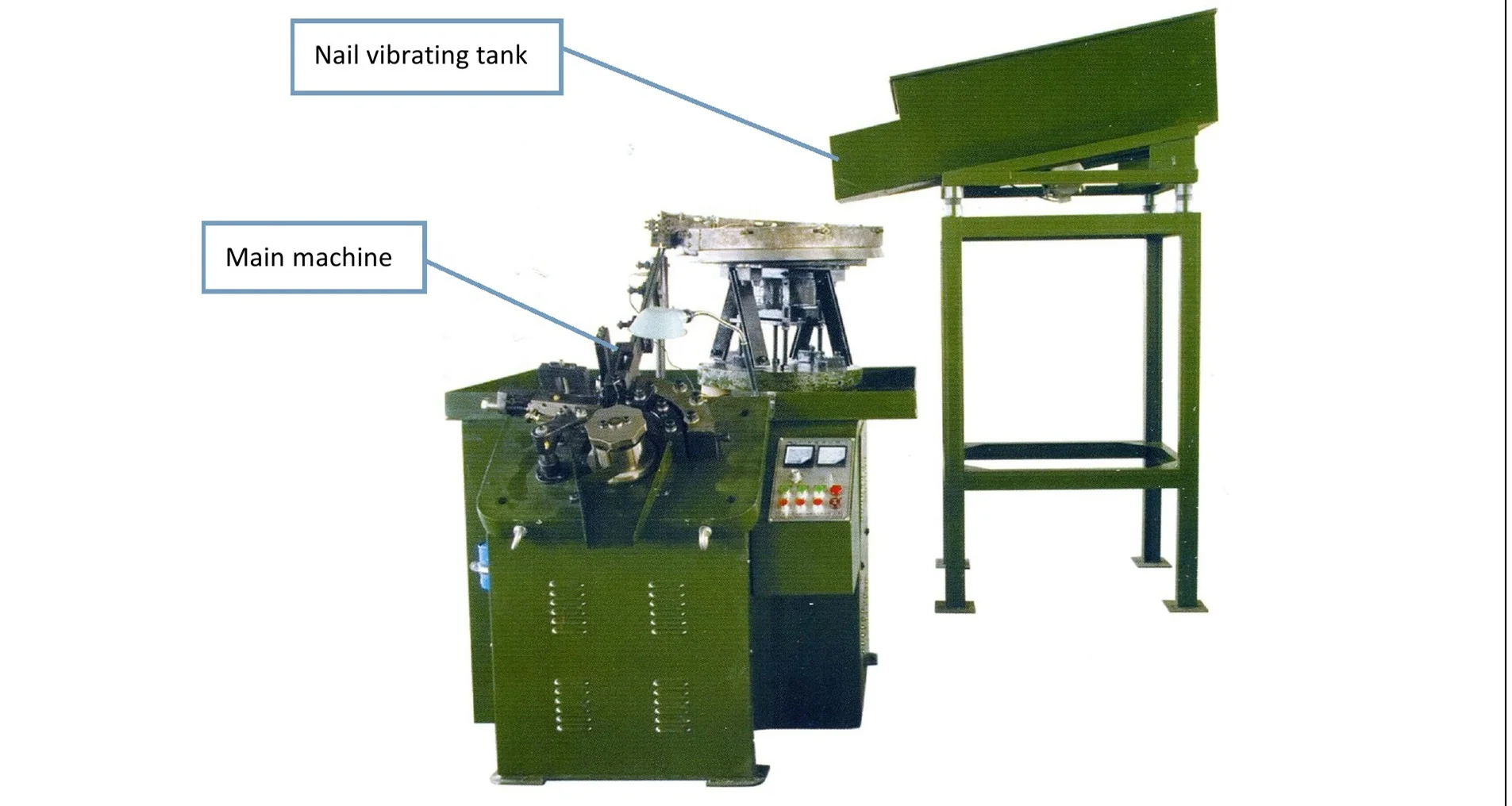

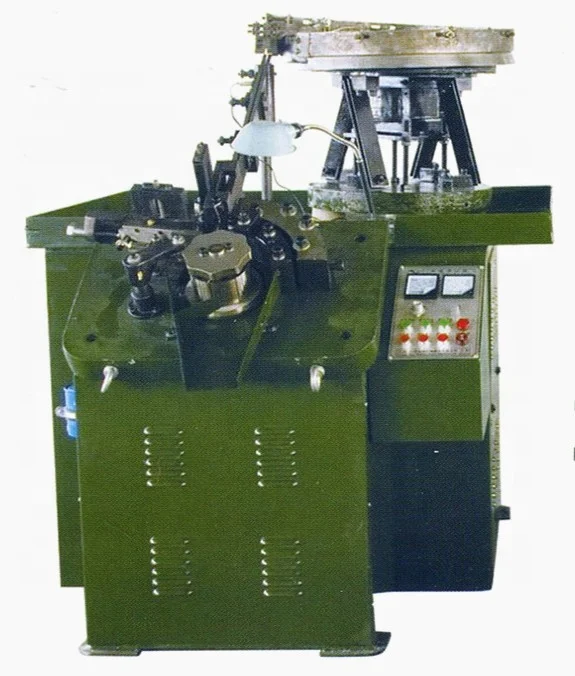

HIGH SPEED THREAD ROLLING MACHINE FOR SCREW NAILS' PRODUCTION
This well-improved model specially fits for processing the twisted shank and annular thread shank of wire nails, roofing nails. Higher nail threading speed and 20 times longer service life of vibrating arms bring about a much more cost-effective production.
No. | Model | GS-B9-1/2 |
1 | Rolled range of nail’s shank diameter | Ø1.8 – 4.8mm |
2 | Nails’ thread length range | 16 – 130 mm |
3 | Capacity | 500 – 1000 pcs/min. |
4 | Model: GS-B9-1 Nail shank dia.: 1.8 – 3.4mm Threading length: 16 – 70mm Nail length: 16 - 100mm | Main motor power - 5.5KW (nail shank dia. < 3.4mm ) - 5.5KW (nail threaded length ≤ 70mm) |
Speed adjustment: by 5.5KW VF inverter | ||
5 | Model: GS-B9-2 Nail shank dia.: 3.1 – 4.8mm Threading length: 25 - 100mm Nail length: 25 - 130mm | Main motor power - 7.5KW ( 4.8mm ≥nail shank dia. ≥ 3.1 mm ) - 7.5KW (nail threaded length:70-100 mm ) |
Speed adjustment: by 7.5KW electromagnetic adjustable speed motor. | ||

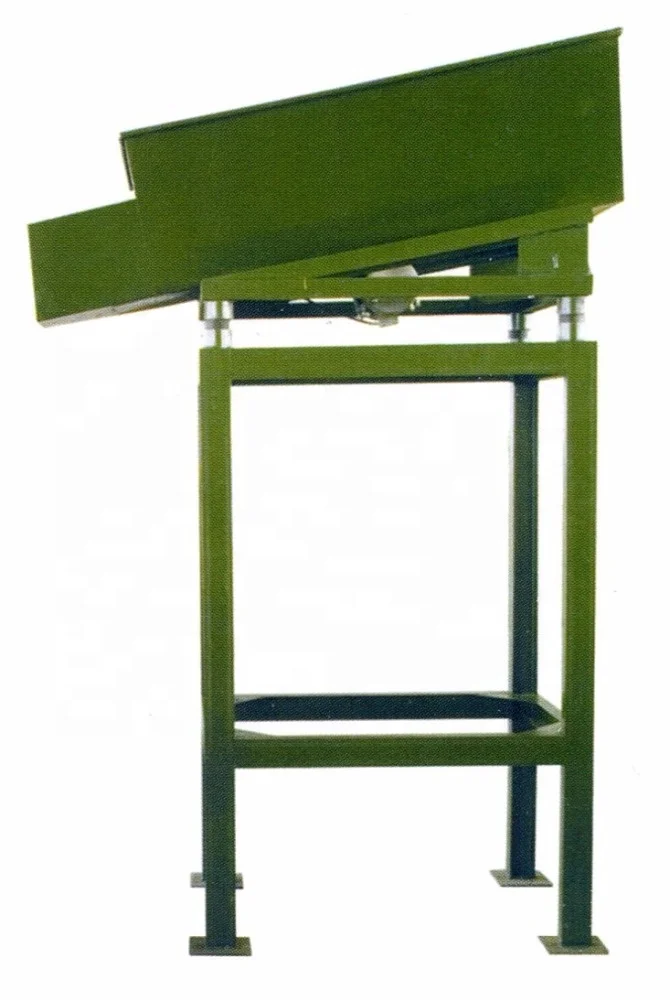

6 | Loading capacity of vibrating bowl | 7.0 kg |
7 | Net weight | Approx. 1200/1300kgs |
8 | Overall dimensions ( L x W x H ) | 1400 x 15300 x 1600 (mm) |
