Стальной бункер с дном подачи корма для птицефабрики, 10 т/20 т/30 т/50 т

Product Overview

Description

All silos include

Boda silo itself includes these components that come free of charge (the silo diameter should be equal to or more than 5.5m)

l Roof Natural vents

l Roof guardrail

l Roof manhole

l Roof ladders

l Silo door

l Silo door platform

l Inside and outside ladders on silo body







Features of Bulk feed silos:



Nice appearance; small volume; simple structure

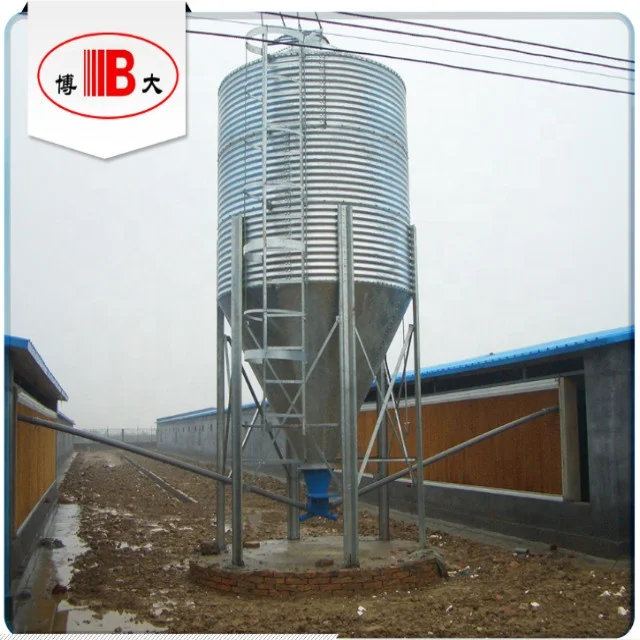

Such small silos are used widely in poultry farms.



Small capacity can satisfy with daily feeding requirement.



Even they can be installed inside of workshop.



For silo loading,users can fill silos by inclined movable screw or belt conveyor.





   Such small silos are used widely in poultry farms.

   Small capacity can satisfy with daily feeding requirement.



   Even they can be installed inside of workshop.



   For silo loading, users can fill silos by inclined movable screw or belt conveyor.

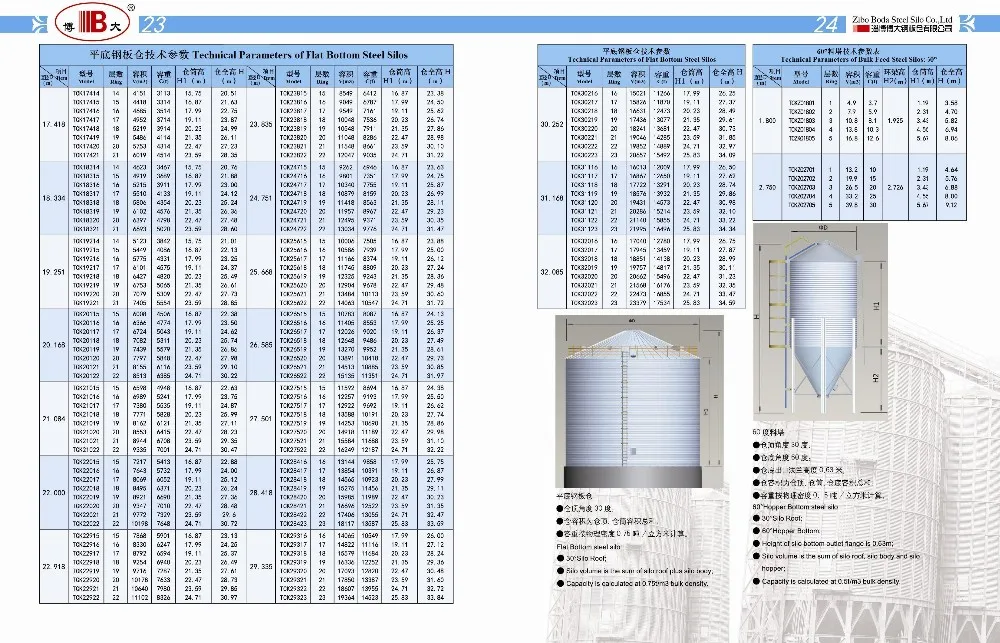

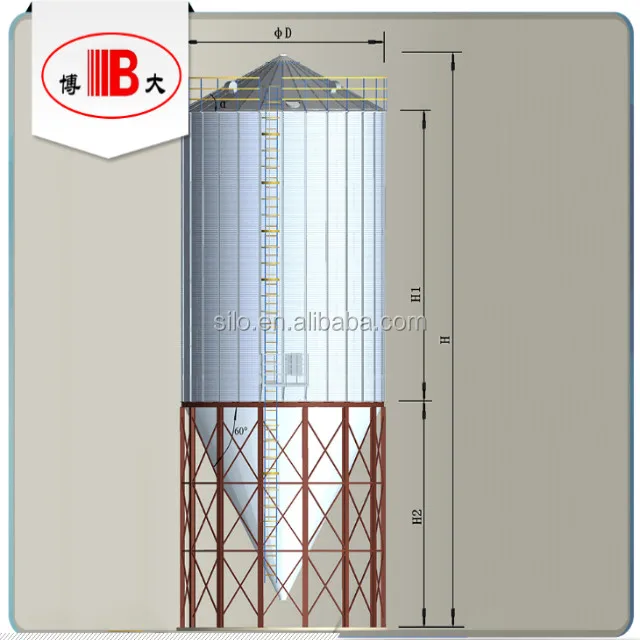

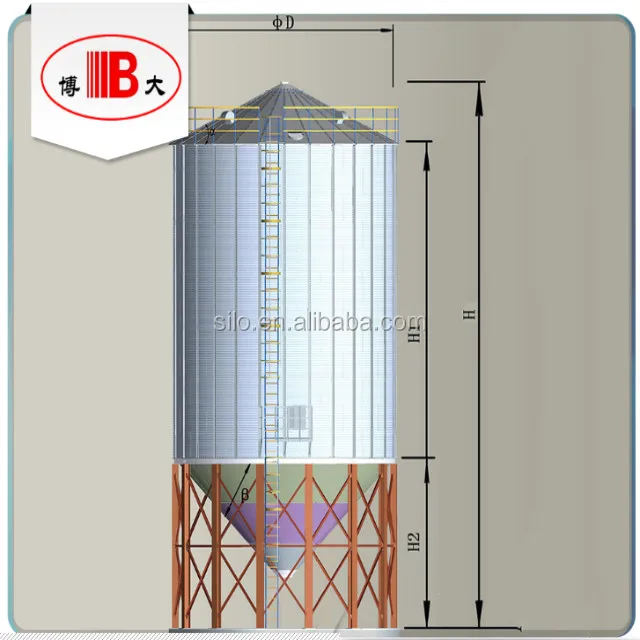

Hopper Bottom Steel Silo Main Technical Specifications (Grain Density:0.75t/m3)
Capacity	50 ton	100 ton	150 ton	200 ton	300 ton	500 ton	1000 ton	1500 ton
Model	TCZK 03605	TCZK 04507	TCZK 05507	TCZK 06406	TCZK 06410	TCZK 08210	TCZK 10013	TCZK 12812
Diameter(m)	3.667	4.584	5.5	6.417	6.417	7.334	10.084	12.834
Total Height(m)	9.56	12.53	13.25	12.85	17.33	18.78	23.58	23.62
Volume(m3)	69	150	222	274	419	718	1380	2139
