Rockwell type 200HR 150 Rockwell Hardness Tester

Product Overview

Description

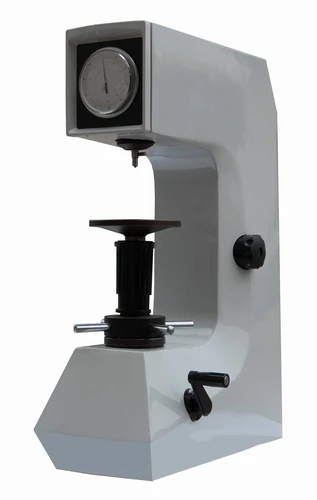

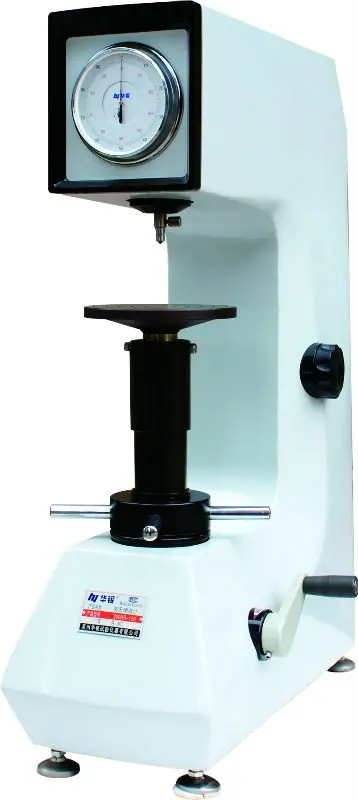

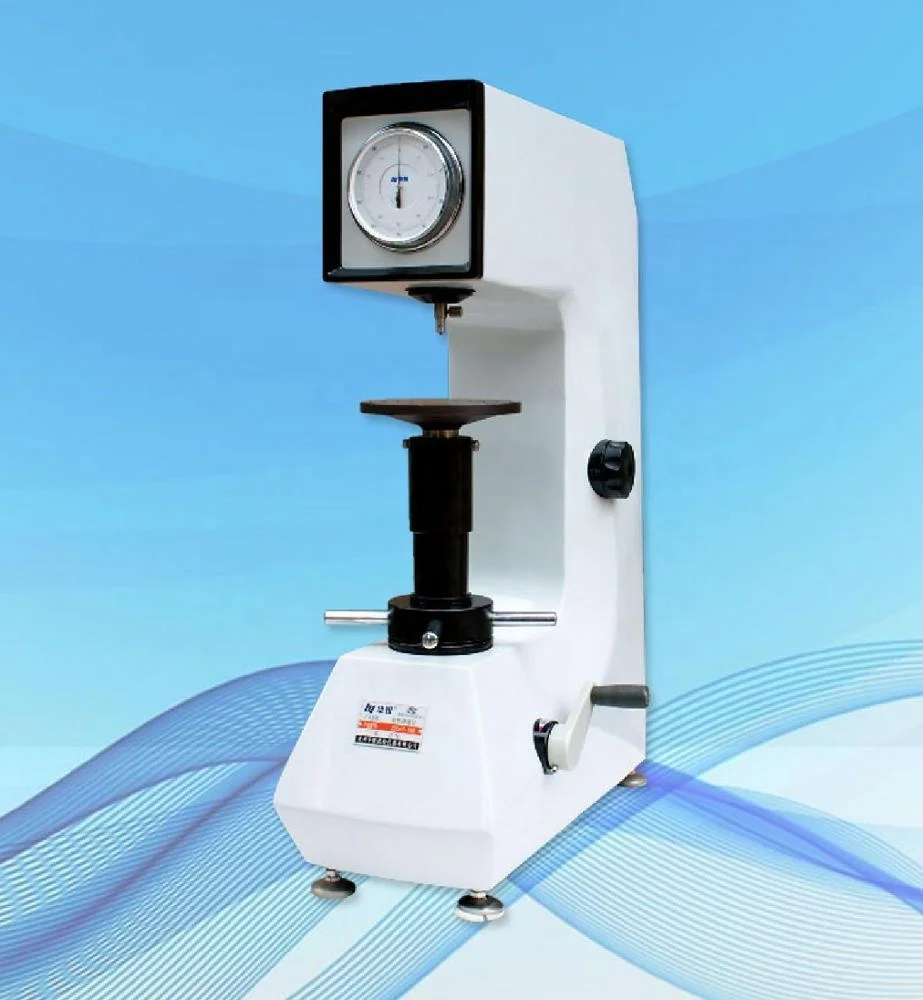

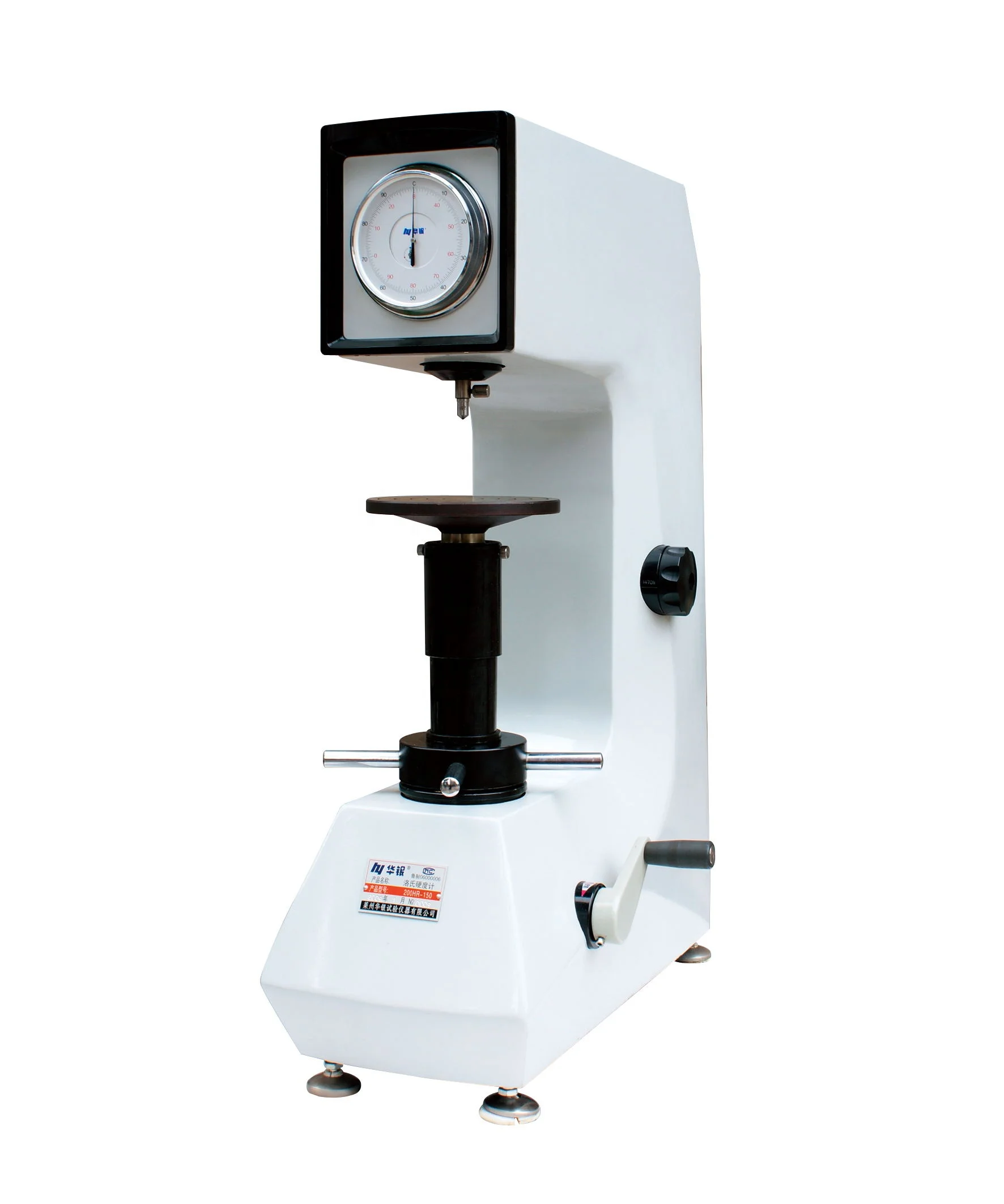

Rockwell type Hardness Tester MODEL 200HR-150 (HR-150C) ROCKWELL HARDNESS TESTER







Feature & Use

•


  Optimized mechanical frame. Manual testing process, no need for electric controlling





•


  Its steady and reliable for testing of curved surface





•


  Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18




      Its suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.







Specifications

   Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

   Test force: 588.4, 980.7, 1471N (60, 100, 150kgf)

   Max. height of test piece: 210mm

   Depth of throat: 165mm

   Min. scale value: 0.5HR

   Dimensions: 522 x 293 x 729mm

   Weight: approx. 98kg









Standard accessories

   Large flat anvil: 1 pc.



   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Diamond cone penetrator: 1 pc.

   1/16 steel ball penetrator: 1 pc.

   Rockwell standardized block: 5 pcs.
