Leeb Hardness Tester HLN200

Product Overview

Description

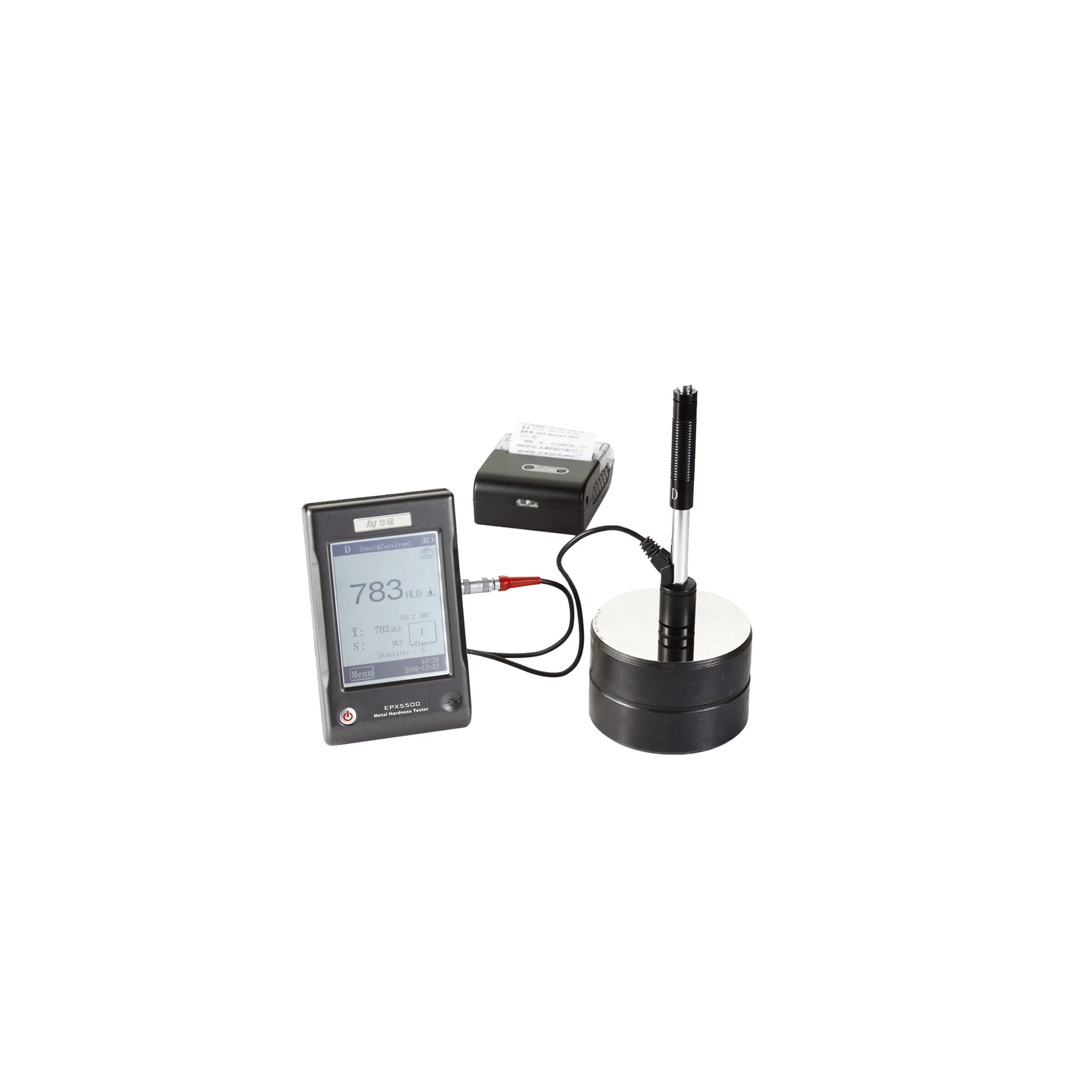

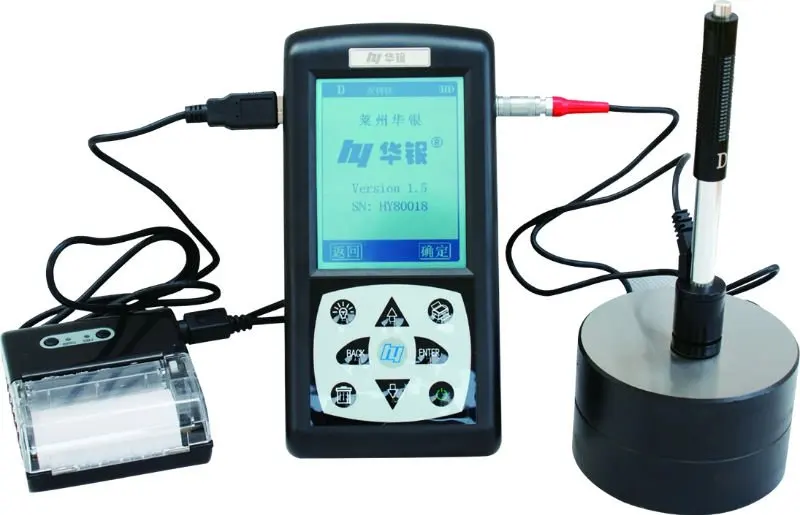

Leeb Hardness Tester MODEL HLN200 MULTIFUNCTIONAL LEEB HARDNESS TESTER

Feature & Use:

Automatic recognition for the type of impact device

Menu operation, easy and convenient

Automatic detecting the impacting direction

The setup can be be saved automatically

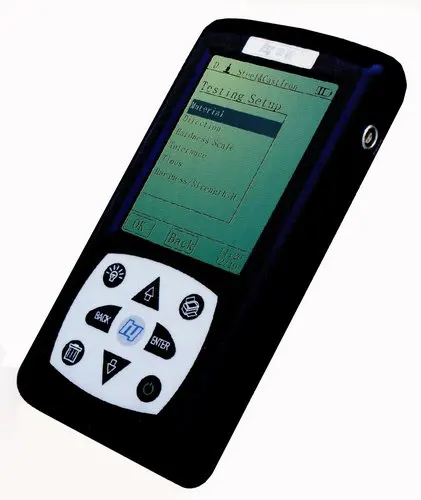

Dual-operation both by keys or touch screen

Automatic storage for 800 groups of testing data



Its suitable to determine the Leeb hardness of ferrous and non-ferrous metals precisely.



Specifications

   Measuring accuracy: ± 4 HLD

   Hardness repeatability: ± 4 HLD

   Measuring range: 170960 HLD

   Testing direction: arbitrary

   Hardness conversion: HRC, HRB, HB, HV, HSD & tensile strength

   LCD display: 3.9" LCD, 240 x 320 pixels resolution (touch screen)

   Data storage: 800 groups

   Upper & lower limit range: same as measuring range

   Working voltage: 3.7V (lithium rechargeable battery)

   Working time: 4-8 hours

   Charging power: DC 5.5V/1A

   Continuous working time after one charging: about 30 hours (backlight not on)

   Working temperature: 0 °C ~+50°C

   Working humidity: 20%~85%

   Storage temperature: -30 °C ~+70 °C

   Working humidity: 5%~95%



   Dimensions: 180 x 90 x 30mm

   Weight: 350g (including impact device)

   Packing dimensions:  368 x 247 x 87mm

   Total weight: Approx. 5.5Kg



   Heatsensitive printer:

   Width of print paper: 57.5± 0.5mm

   Diameter of paper roll: ≤30mm (Heatsensitive print paper)

   Printing speed: 5cm/sec. (when power is enough)

   Printing resolution: 203dpi (8dot/mm)

   Working power supply: 650mAh 7.2V rechargeable NiMH

   Recharging power supply: DC 12V/1A

   Dimensions: 90 x 76 x 36mm

   Weight: 220g (not including paper roll)

   Working temperature: -20 °C ~+50 °C

   Working humidity: 20%~85%

   Storage temperature: -30 °C~ +70 °C

   Working humidity: 5%~95%



Standard accessories

   Heatsensitive printer: 1 pc.

   D type impact device: 1 pc.

   Small support ring: 1 pc.

   Leeb standardized block: 1 pc.

   Charger: 1 pc. (For both main machine and printer)
