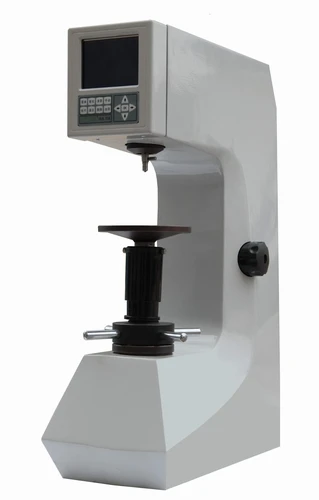

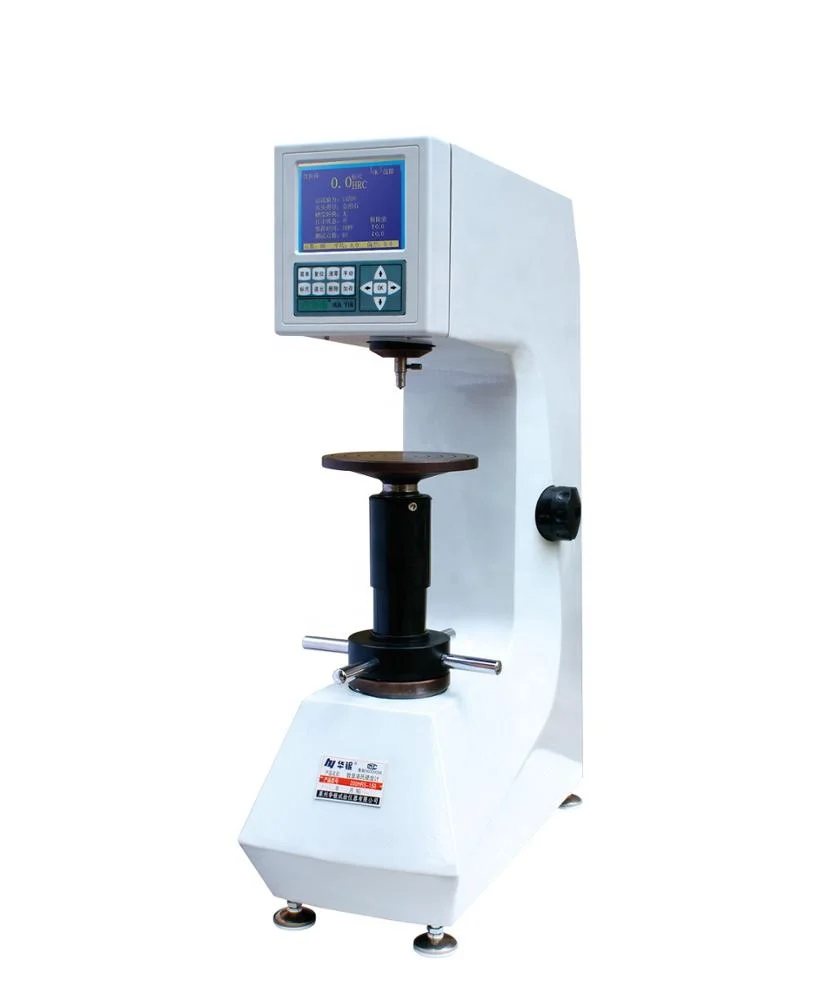

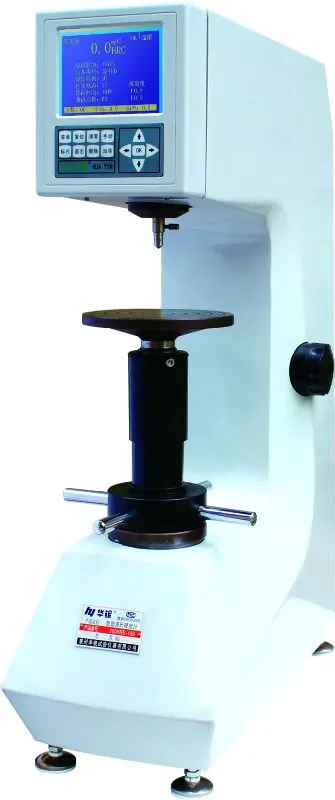

NEW Rockwell hardness tester 200HRS 150 Digital Display Rockwell Hardness Tester

Rockwell hardness tester MODEL 200HRS-150 DIGITAL DISPLAY ROCKWELL HARDNESS TESTER

Feature & Use

• Optimized mechanical frame, automatic testing process, large LCD digital display

• RS232 data interface

• It's steady and reliable for testing of curved surface

• Precision conforms to the Standards of GB/T 230.2, ISO 6508-2 and ASTM E18

     It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials, such as quenching, hardening and tempering, etc.

Specifications

   Measuring range: 20-88HRA, 20-100HRB, 20-70HRC

   Test force: 588.4, 980.7, 1471N (60,100,150kgf)

   Max. height of test piece: 210mm

   Depth of throat: 165mm

   Unit for display: 0.1HR

   Power supply: 220V AC or 110V AC, 50 or 60Hz

   Dimensions: 522 x 220 x 729mm

   Weight: approx. 98kg

Standard accessories

   Large flat anvil: 1 pc.

   Small flat anvil: 1 pc.

   V-notch anvil: 1 pc.

   Diamond cone penetrator: 1 pc.

   1/16" steel ball penetrator: 1 pc.

   Rockwell standardized block: 5 pcs.

   Printer: 1 pc.
