Горизонтальный водяной насос
- Category: Pumps & Parts >>>
- Supplier: Zhejiang Xiandai Pump Co. Ltd.
Share on (442878699):
Product Overview
Description
Product Description

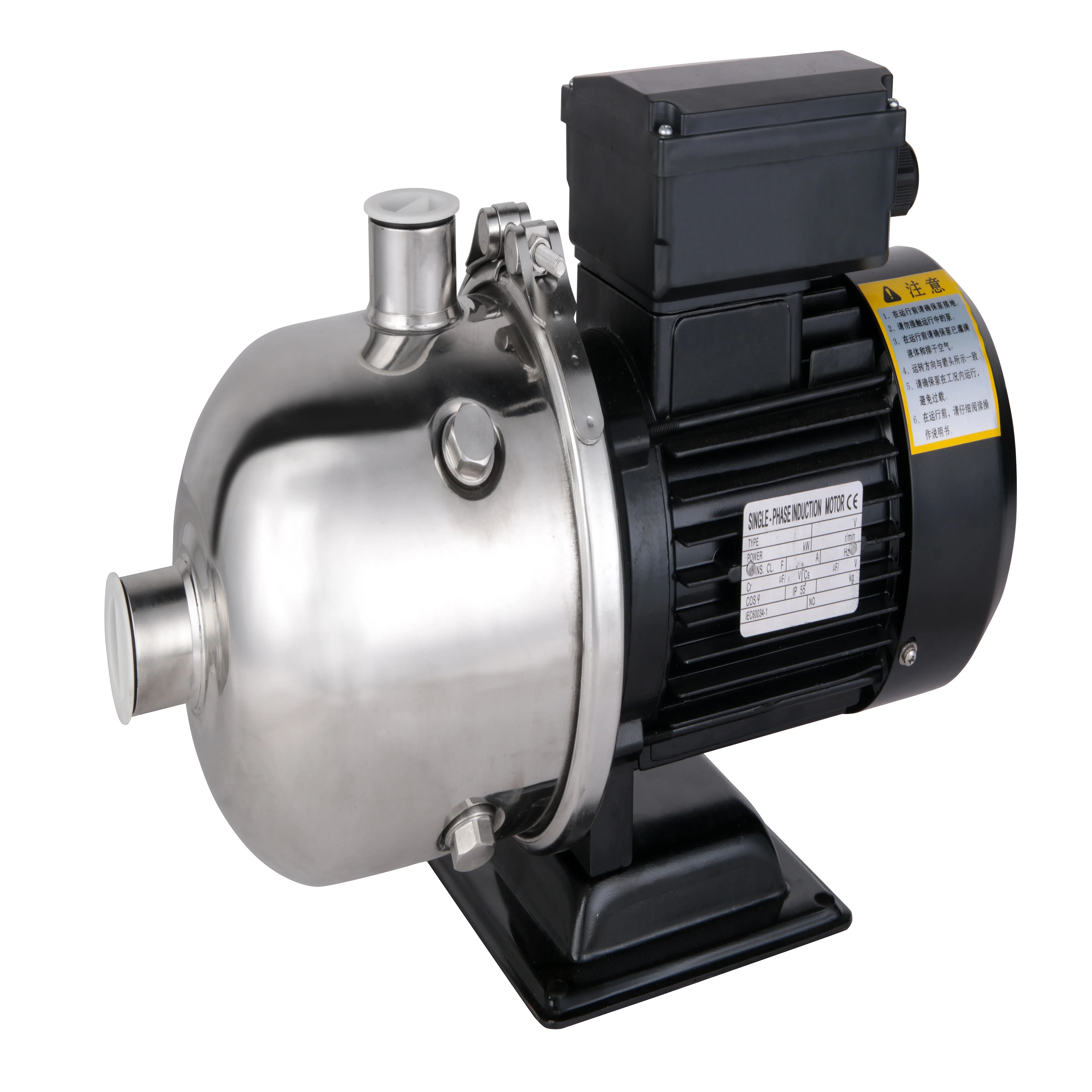

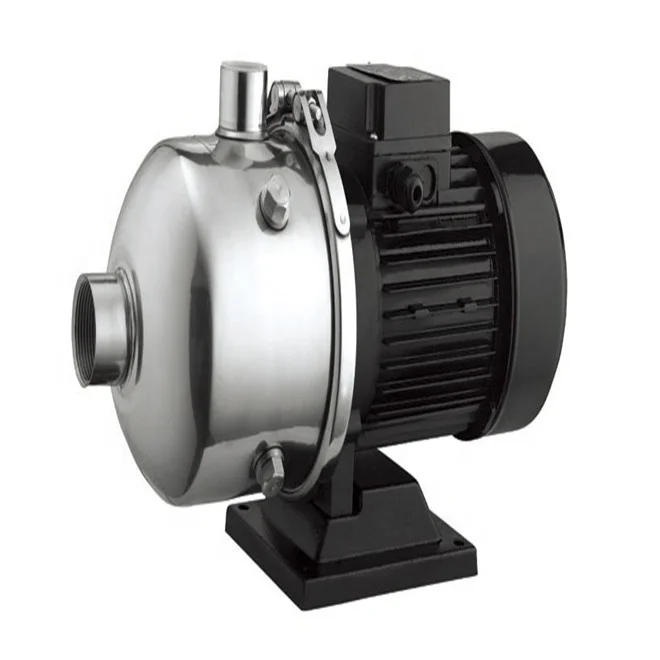

Horizontal water booster pump
CHDF/CHL pump are multi-functional products .it can be used to convey various medium from tap water to industrial lliquid at different temperature and with diffrerenr flow rate and pressure .
water supply ;water filter and transport in wateworks ,boosting of main pipeline ,boosting in high rise building
Applications:
- Water supply or boosting
- Air-conditioning system
- Domestic and industrial cleaning
- Water treatment and water purification
- Cooling system
- Other special applications
Features:
- High efficiency
- Easy installation and maintenance
- Power saving and low noise
- Small land occupancy
- Prevent producing second pollution
Medium:
- Hot and cold clean, non-flammable non-explosive liquid without solid grain and fiber
- Mineral water, soft water, pure water, edible vegetable oil and other light chemical mediums
- When the density or viscosity of liquid is larger than that of water, it is necessary to select a driving motor of high-power
Technical data:
- Rated flow: 2 - 16cbm/h
- Head: 8 - 66m
- Liquid temperature: -15°C ~ +110°
- Ambient temperature: up to +40°
- Max. pressure: 1.0MPa
Electric motor:
- Full-enclosed air-blast two-pole standard motor
- Single-phase or three-phase, standard voltage, 50Hz or 60Hz
- Protection class: IP55, Insulation class: F
50HZ Pump Performance Scope
Model | CHDF2 | CHDF4 | CHDF8 | CHDF16 |
Rated flow[m3/h] | 2 | 4 | 8 | 16 |
Flow range[m3/h] | 1-3.5 | 1.5-8 | 5-12 | 8-22 |
Max.Pressure[bar] | 5.5 | 5 | 5 | 4 |
Motor power[Kw] | 0.37-0.75 | 0.37-0.75 | 0.75-2.2 | 2.2-3 |
Head range[m] | 14-42 | 15-45 | 8.5-42.5 | 10-43 |
Temperature range[] | -15 -+110 | |||
Max.Efficiency[%] | 46 | 59 | 64 | 70 |
Packaging & Shipping
Our Services
Company Information
Founded in 1989, registered capital 50 million RMB, “Zhejiang Xiandai Pump Co.,Ltd” is a national high-tech enterprise on researching and selling stainless steel multistage centrifugal pumps. The Company covers an area of 17 000 squire meter.
The pumps is applied to industrial and mining enterprises, municipal water supply, farm irrigation, petrochemical engineering, domestic water and fire water supply of high buildings, industrial water treatment, water purification, pharmaceutical industry, boiler, air-conditioning system, etc.
FAQ
1. How to get our quotation in time, pls answer following questions:
(1)What medium do you transfer? Water, Food,Chemical liquid and oil and so on~
(2) What's the flow or capcity (m3/h, L/S)?
(3) What's the head (m, bar )
2.Q: What is your MOQ of this item?
A: 1 PCS
3.Q: What is the delivery time?
A: 1-15 days
4.Q: Where is your Loading Port?
A: Shanghai/Ningbo, China Port.
5.Q: What is your company's available production capacity?
A: 2000 pieces per month
