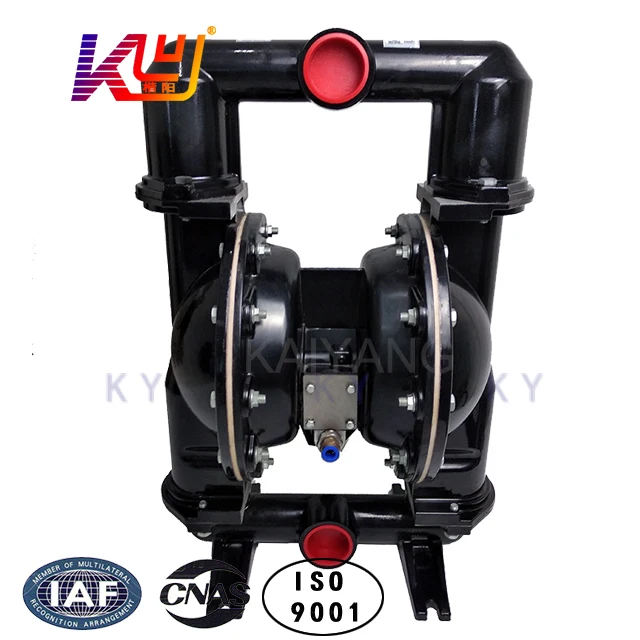

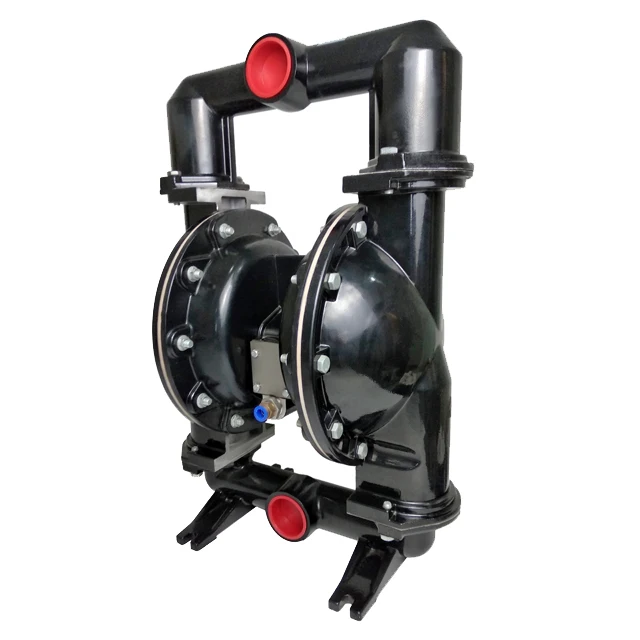

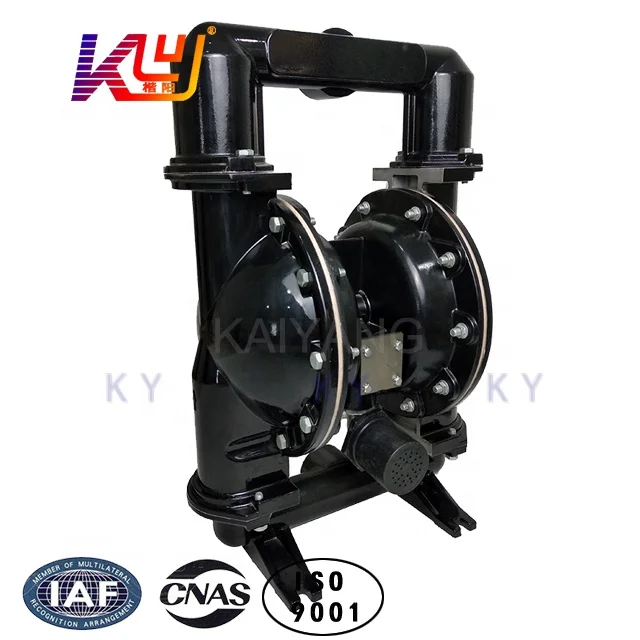

pneumatic aluminum diaphragm pumps KY50LL diaphragm paint pump


KY50LL enhanced aluminum alloy pneumatic diaphragm pump is a new efficient pneumatic diaphragm pump developed successfully by improving the motor structure of pneumatic diaphragm pump in Shanghai kaiyang pump industry. The intermediate of KY enhanced pneumatic diaphragm pump and the septum are integrated. The supporting shaft and the supporting slide block have been changed into one-piece production, which greatly improves the air utilization efficiency and avoids the crash and shutdown caused by unstable air pressure. Truly achieve the characteristics of non-crash, high efficiency, strong suction and automatic mechanical equipment to achieve seamless connection. Widely used in pharmaceutical, sewage treatment, food, chemical, automobile, paint and other industries. The KY enhanced pump is made of cast iron, aluminum alloy pneumatic diaphragm pump, stainless steel 304, stainless steel 316L, fluorine plastic PVDF, polypropylene, etc. The diaphragm is made of mountain road rubber and teflon.
Aluminum alloy pneumatic diaphragm pump for other metal pneumatic diaphragm pump weight can be reduced by about half, as long as there is a gas source, air pipe to aluminum alloy pneumatic diaphragm pump intake valve, it can work. , showing the superior mobility of diaphragm pump; The over-flow pump body of aluminum alloy pneumatic diaphragm pump is made of aluminum alloy, free from rust and pollution, which greatly protects the cleanliness of medium. It is an excellent choice for some medical units, food processing enterprises and beverage industry.

1. The over-flow pump body of aluminum alloy pneumatic diaphragm pump is made of aluminum alloy, which is rust free and pollution-free and greatly protects the cleanliness of conveying liquid.
2. Compared with other metal pneumatic diaphragm pumps, its weight can be reduced by half
3. The aerodynamic pump is powered by air, which ensures its unparalleled safety and quiet performance.
4. Don't worry about the danger caused by wires and engines, and don't take any protective measures when operating in flammable and explosive environment, not to mention the annoyance of noise;
5. The KY aluminum alloy pneumatic diaphragm pump does not generate electric spark or generate and accumulate heat during operation
6. KY pneumatic diaphragm pump has no dynamic seal structure and is completely separated from the outside world, with absolutely no material leakage
7. KY aluminum alloy pneumatic diaphragm pump does not need lubrication, and there is no worry about lubricant contaminating materials
8. The shear force of aluminum alloy pneumatic diaphragm pump on materials is extremely low and does not damage the structure of materials
9. The overall structure is more optimized, with obvious enhancement of self-absorption function and flow head
10. Arbitrary stepless speed change, arbitrary adjustment of flow can be made at the output end without additional device
11. It can deliver complex media such as viscosity and particles

Q1: what is the packaging of your product?
Answer: standard exports plywood box or carton to be decided according to specific product.
Q2: how about the quality and service of your company?
Answer: we are a professional manufacturer of diaphragm pump, to quality survival, welcome your use and inspection; We are China Great Wall quality system certification enterprise, please feel free to use.
Q3: what kind of diaphragm pumps do you produce?
Answer: my company is an experienced diaphragm pump manufacturer, materials have cast steel, aluminum alloy, stainless steel, polypropylene, fluorine plastics, lining teflon; Diaphragm pump caliber is 1/2 "3/4" 1 "1.5" 2 "2.5" 3 "4", the power mode is divided into pneumatic and electric.
Q4: can your company guarantee our healthy cooperation?
Answer :1. Our company guarantees our good long-term cooperation with the guarantee of product quality and the assistance of professional receiving services.

2. We hope to establish good cooperative relations with friends around the world. The process of cooperation is not only business, but also the process of making friends.
Q5: when is your delivery time?
A: most of our products are in stock, depending on type and quantity. We'll deliver the goods as soon as possible.
