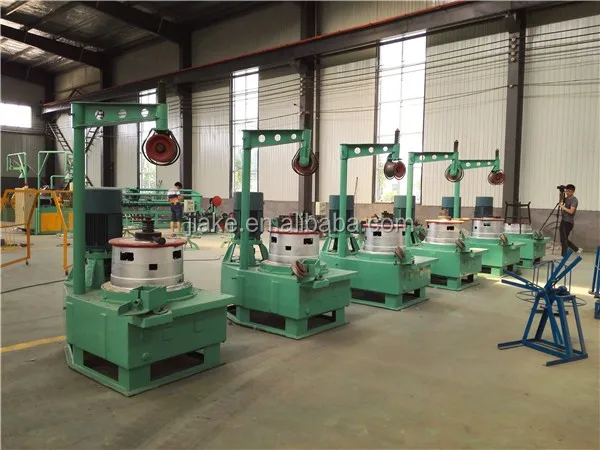

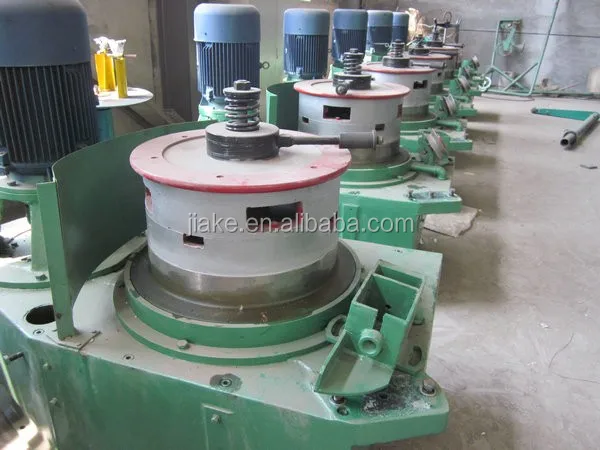

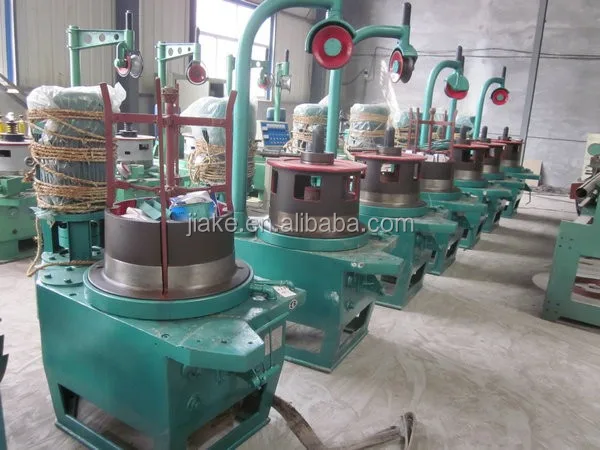

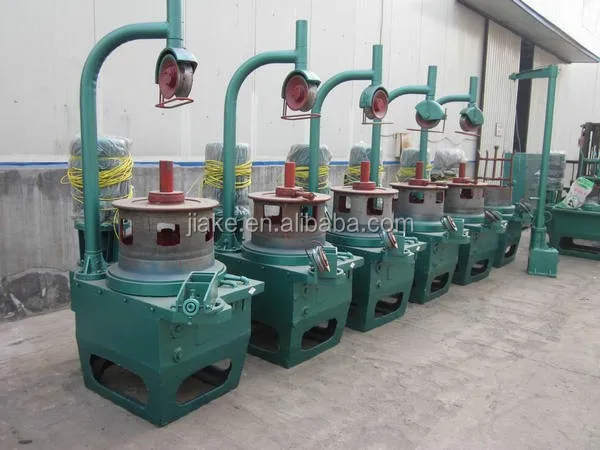

Automatic pully type wire drawing machine
- Category: Wire Drawing Machines >>>
- Supplier: Hebei Jiake Welding Equipment Co. Ltd.
Share on (447271889):
Product Overview
Description

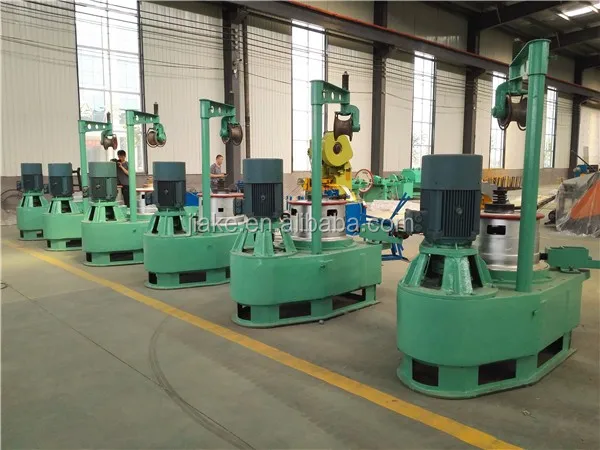

Wire drawing machine
Product Description
Suitable materials: low-carbon steel, copper, aluminum, etc.
Application:
The product is extensively used to produce standard parts (e.g. welding rod, wire nail, screw, etc.).
Advantages:

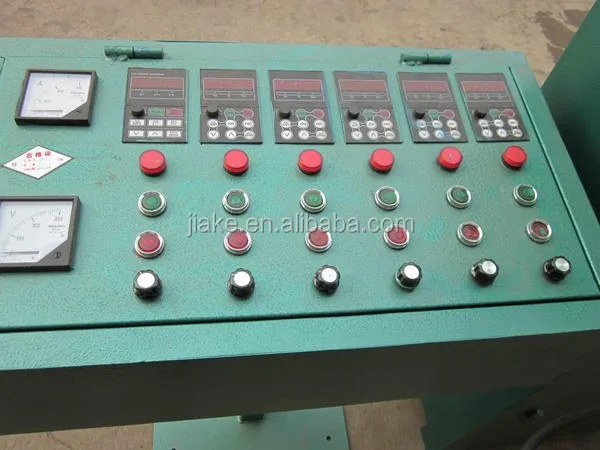

The machine has perfect electrical system, protection system, and water seal system, featured by easy combination, high production and convenient operation and management.
Technical parameter
| Model size | Rotational speed (r/min) | Motor capacity (KW) | Type of motor | productivity |
1st | 6.2mm+5.5mm | 58 | 18.5 | 4-Level motor | 240*Dπ=377 |
2nd | 4.7mm | 78 | |||
3rd | 4.1mm | 100 | |||
4th | 3.5mm | 128 | |||
5th | 2.9mm | 160 | |||
6th | 2.4mm | 204 | |||
7th | 2.0mm | 240 | |||
Note: 1. The rotational speed of 4-level motor: 1440r/min 2. The max. diameter of inlet wire: 6.5mm 3. Suitable material: low-carbon iron wire. E.g. Q195, Q215, and Q 235 (annealing) 4. 8mm high quality low-carbon iron wire could be drawn by Model 560 drawing machine with 9pots, and needs 6-level motor and the capacity (22KW). | |||||
Our Wire Drawing Machine is used to draw wire of low, medium and high steel, copper and aluminum,etc.

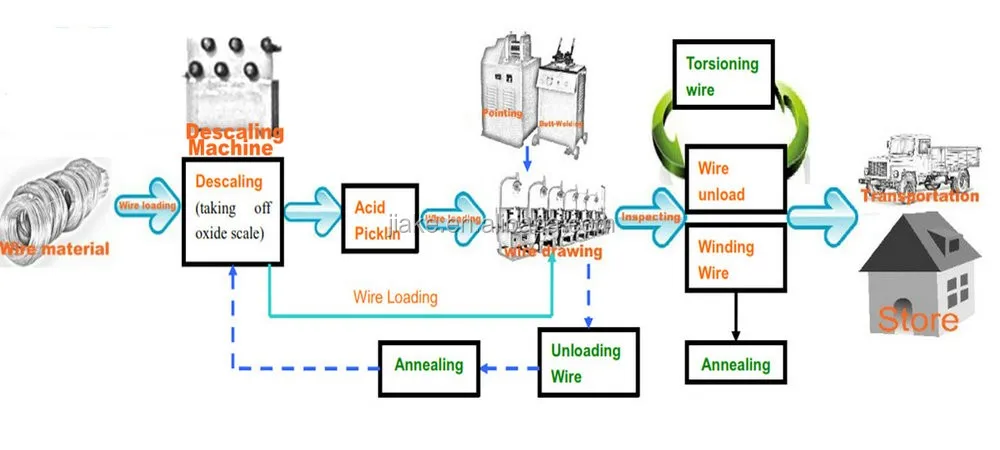

Auxiliary Equipment
Name | Model | Range of Dia. |
Discharging Machine |
|
|

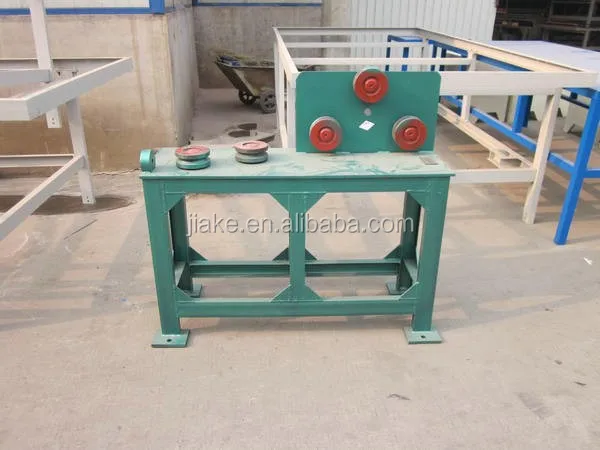

Pointing Machine | F-96 | 6.5-1.5mm |
Pointing Machine | F-80 | 3.5-1.0mm |

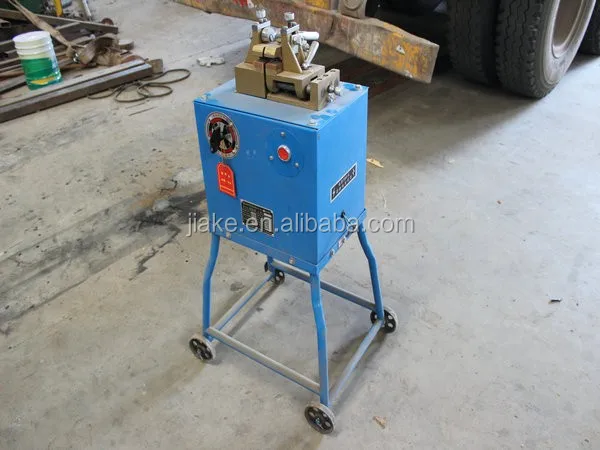

Butt-Welding Machine | UN-10 | 8--2mm |
Butt-Welding Machine | UN-3 | 6.5-1.5mm |
Butt-Welding Machine | UN-1 | 3.5-1.0mm |
Automatic Discharging Machine | XB-600 | capacity 800kg |
Automatic Discharging Machine | XB-360 | capacity 400kg |
Removable Spool Reeling Mahine | SG-800 | capacity 800kg |
Removable Spool Reeling Mahine | SG-630 | capacity 500kg |
Descaling Machine | SW650 |
|
Descaling Machine | with steel brush |
|
Well Type Furnace | RJ-90-9 |
|

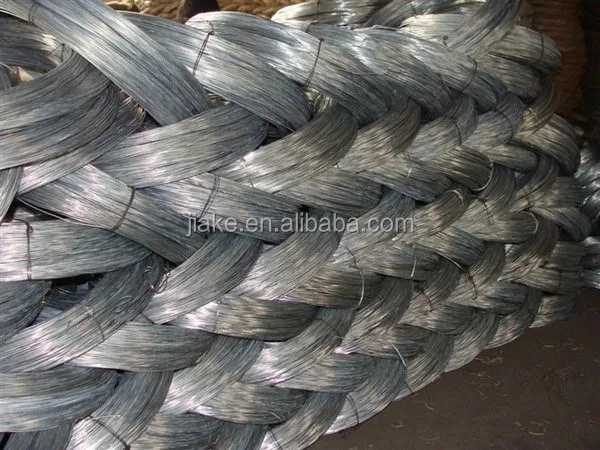

Finished Products

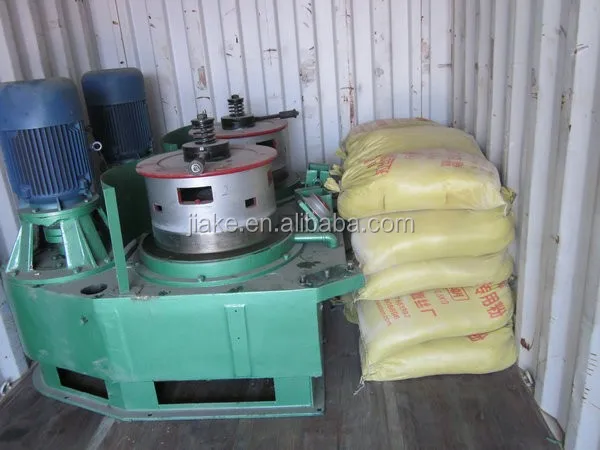

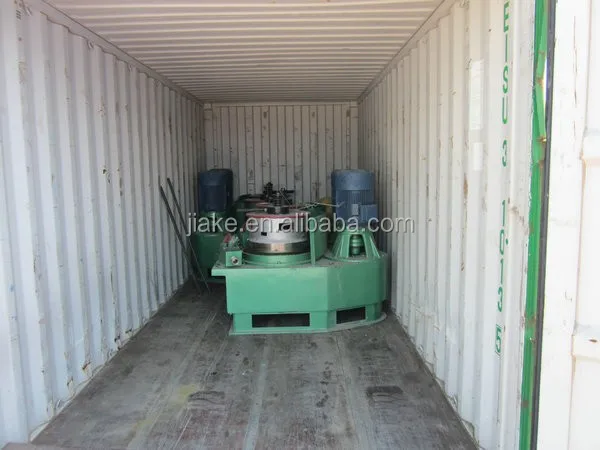

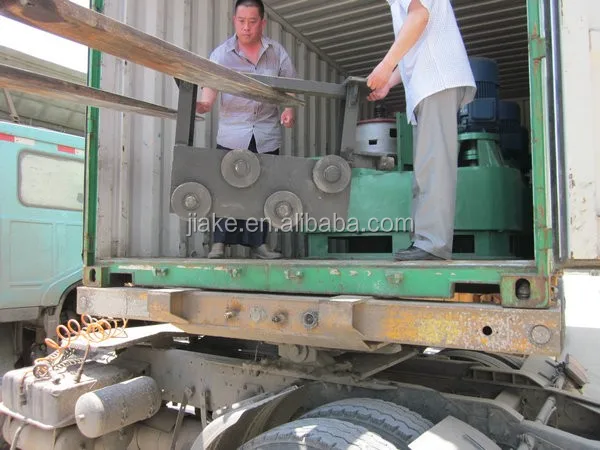

Packaging & Shipping
