Rack And Pinion Mast Lifting Construction Elevator Material Hoist
US $13000-$45000
Inclined construction hoist curved steel building machinery
- Category: Construction Lifter >>>
- Supplier: Langfang CABR Construction Machinery Technology Co. Ltd.
Share on (447528635):
Product Overview
Description
SCQ40 curve hoist can meet the demand of material and personnel transportation for some buildings with special exteriors, as the cooling tower of power plant, of which the building shaping a hyperbola along the tower wall. To solve this problem, we developed the first curved building hoist in China.
·The track of this construction hoist is in curved shape and parallel to the exterior of the building.
·The floating leveling mechanism ensures the level of cage while the hoist is moving along the curved line.
·The inclined building hoist is applied in construction of buildings with an inclined exterior.
·The curved and inclined building hoists are widely used in construction of chimneys, water towers and bridges.
Specification:
Rated Capacity | 400 kg |
Quantity of cage | 1 |
Height | Upon your requirement. |
Lifting Speed | 33m/min or VFD+PLC |
Counter weight | Without |
Mast Section | Painted or hot dip galvanized 650mm x 650mm x 1508mm Or 450mmx450mmx1508mm |
Cage Inner Dimension | 2.0m x 1.0m x 2.2m or customized |
Voltage | 415V - 50 HZ or 380V, 50HZ |

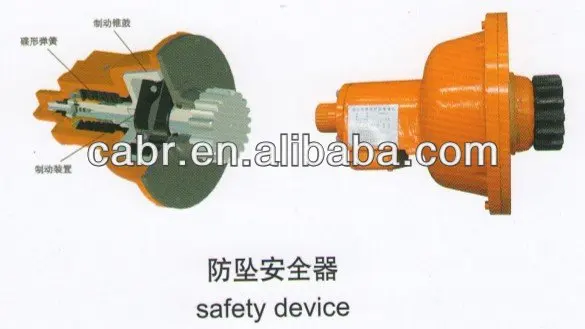

Safety Device Model | SAJ30-1.2 or SAJ30-1.4 |
