Rockwell hardness testing machine HARTIP1800 with high accuracy at +/-2 HLD with calibration function

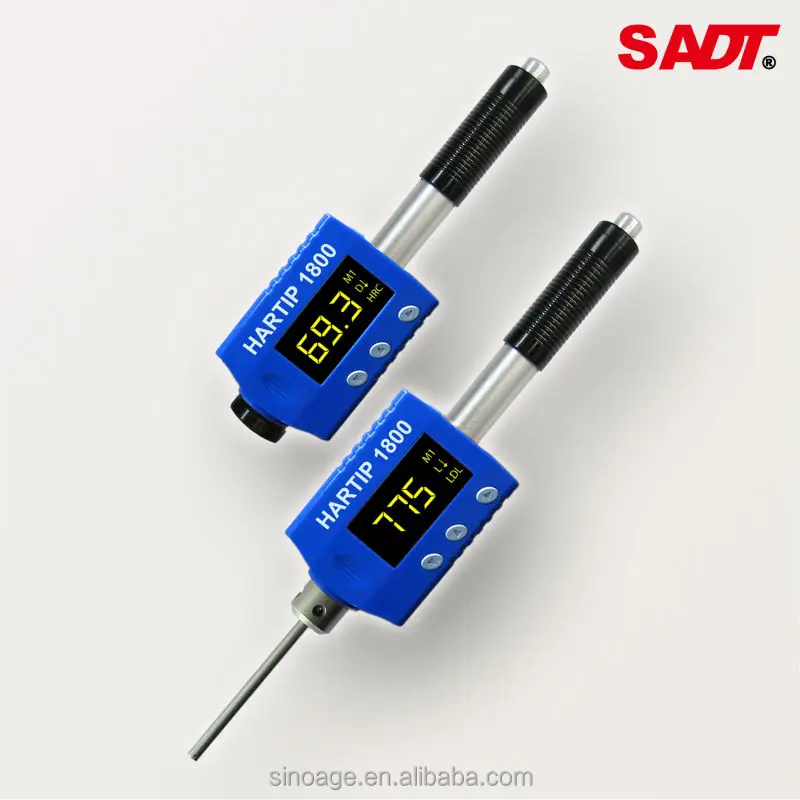

HARTIP1800 pen type hardness tester is an advanced state-of-the-art palm sized metal hardness tester with many new features. Which is light weight, easy operation, integrated design, high contrast display, low operating temperature, auto compensating for impact direction and etc.





HARTIP 1800 can be widely used for measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C & B, Brinell, Vickers, Shore and Strength. HARTIP 1800 has a memory capacity of 3000 data which can be download to computer via USB. The 3.7V Li-ion rechargeable battery inside HARTIP 1800 can be charged via USB from PC or via individual battery charger from mains wall power. With data software for PC, customers can download measuring values from HARTIP 1800 to PC and make process such as save, delete, create testing report and export them to Excel.






HARTIP1800 D&DL is equipped with two-in-one probe. With unique two-in-one probe, HARTIP1800 D&DL can convert between probe D and probe DL simply by changing impact body. It’s more economic than buying them individually. It has the same configuration with HARTIP1800 except two-in-one probe.



  • Palm sized and easy operation

  • High contrast OLED display

  • Wide operating temperature:-40°C~+60°C

  • Auto switch on & off

  • It can recognize impact direction automatically

  • Duplex readings on display: HLD value and correspond scale

  • Large digits and more readings alternatively

  • Four display orientations

  • Vast memory capacity: 400K data can be saved

  • USB/RS232 interface

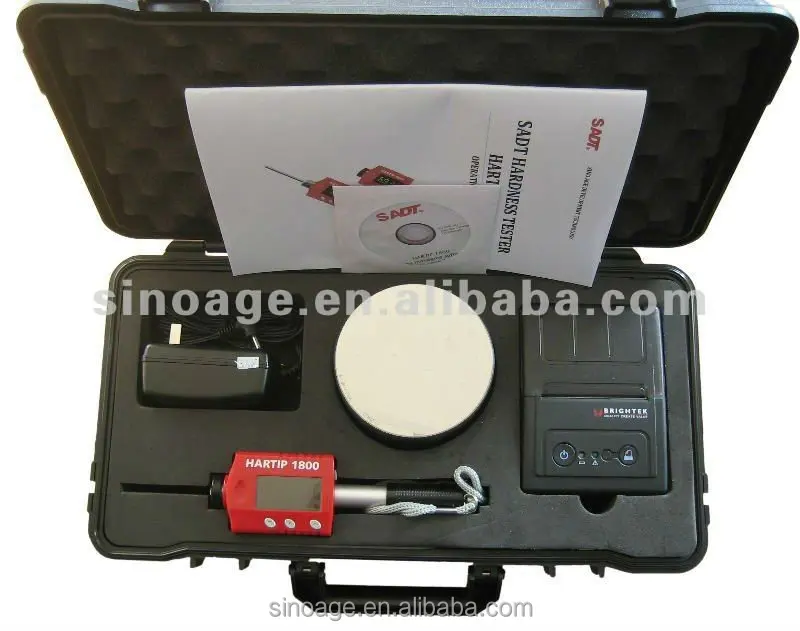

  • Micro-printer can be used on site

  • Recalibration allowed by user

  • Liner compensate for angle measurement

  • LI-ion rechargeable battery charged by USB port or mains power

  • Statics value calculated automatically

  • 10 language
























































































Model


HARTIP 1800 D/DL Hardness teseter Durometer



Principle


Leeb hardness measurement



Accuracy


±0.3% @ HL=800 / ±2HL



Display


digital with high contrast LED



Display mode


                                            Normal or flip


Hardness scale


HL/HRC/HRB/HB/HV/HS/σb



Measruing range


HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm2



Impact device


D (Internal)
D/DL 2-in-1 (Internal, optional)



Materials


11 common metal materials



Memory


3,000 data



Statistics function


Average / Max. / Min. / value



Recalibration


Allowed by user



Interface


           USB for data transferring to PC and charging battery


Indicator


Low battery



Power on/off


Auto



Power supply


                              3.7v Li-ion rechargeable battery


Working environment


-40~+70°C



Standard


                            ASTM A956, DIN 50156, GB/T 17394-1998


Dimension (mm)


148x44x22



Net weight (g)


110
