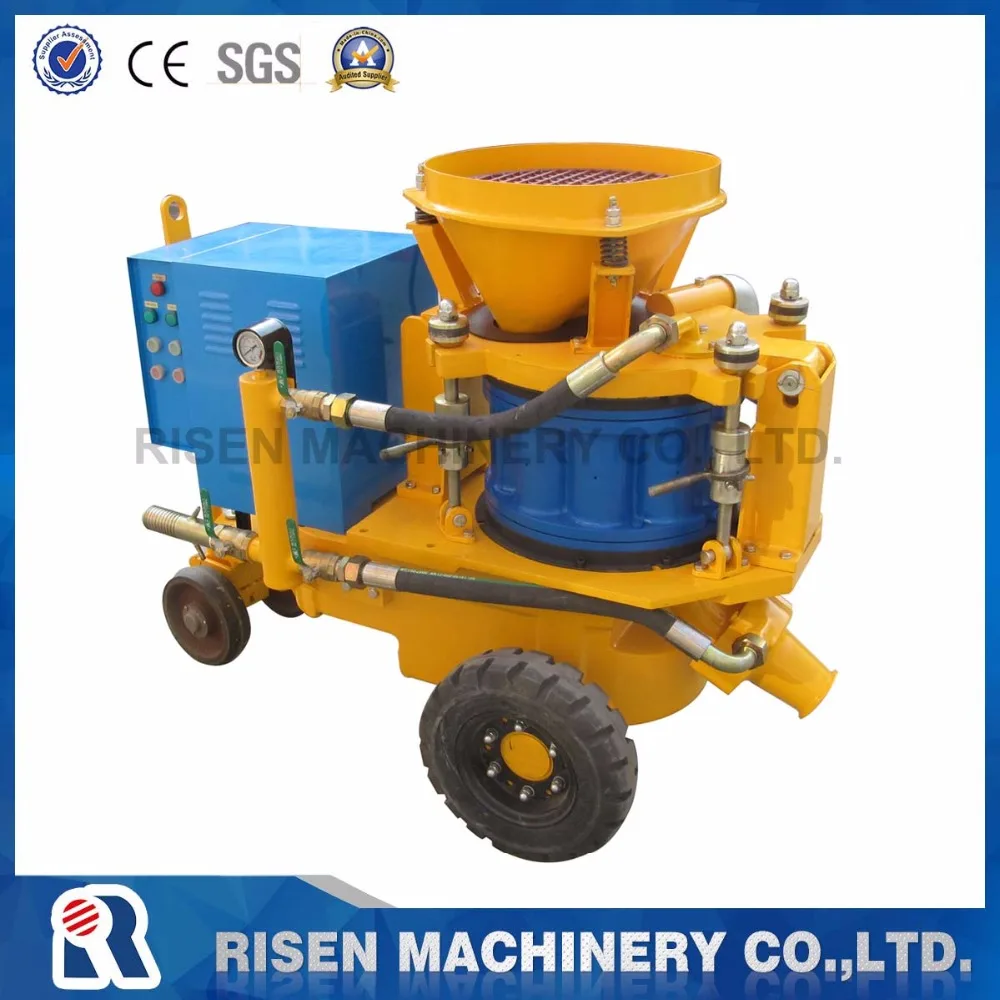

Hot selling gunite machine dry, damp mix guniting machine RISEN PZ 9 for slope engineering

RISEN has engaged in the manufacturing and export of RISEN PZ-9 hot selling gunite machine / dry, damp mix guniting machine since 2004. Among RISEN PZ series, the PZ-9 is a large-size model with output 9m3/hour and is a very popular model, mainly applied for dry or damp mix shotcreting.
Based on the excellent quality, mature work principle and competitive price, RISEN PZ-9 has been exported to many countries, such as, Malaysia, Singpore, philppines, Sri Lanka, Lebanon, South Afrida, French, Oman, Australia, Peru, etc, widely applied in the construction, railway and super highway engineering, underground engineering, tunneling, mining operations, hydropower projects and slope stabilization, etc.

SPECIFICATIONS FOR RISEN PZ-9
Engine	Electric motor power	Kw	7.5 (10.2hp)
Main performance parameters	Output capacity	m3/hour	9
	Maximum Conveying Distance	m	150
	Suitable Mix Ratio		Cement/sand and gravel <=35
	Maximum Aggregate Size	mm	20
	Conveying Hose Inner Diameter	mm	64
	Working Compressed Air Pressure	MPa	0.2~0.6
	Conveying Air Consumption	m3/min	9~10 (320~350 cfm )
	Ideal Rotor Speed	rpm	11
	Noise	dB	<=80
	Chasis		rubber wheel (railway wheel or steel skid is optional

Main Features

 Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
 Thin follow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
 Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
 Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.

Advantages

 High-accuracy Gearbox, high clean degree inside;
 High wear resistance and longer use life consumable parts;
 Military standard solid wheels for different construction site;
 IP55 100% new electrical motor, standard Schneider electrical elements and electrical control box strictly as the CE safety standard;
 National standard bearing, valve and screw etc.;
 All the casting units manufactured as our special design to ensure the enough strength and some key parts are the welded parts not the casting;
 The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and electrical control box;
 Serious handle for details, such as, protector for pressure gauge, special part for dust escaping down to the ground;
 Painted after sandblasting for a pretty appearance;

Certifications

Detailed Images

Machine Parts

Name: Sealing Plate

Brand: RISEN

Original: CHINA

There are two plates (upper and lower) on the opposite sides of rotor. Both of the upper and lower plates are made of anti-abrasive special rubber and can handle concrete 200-300m3 during its working period.

Main Features

Name: Electrical Elements
Brand: Schneider
Original: Schneider (CHINA) Co.
RISEN machine is installed the standard Schneider elements, which are the safe and trustable electrical elements.

Machine Parts

Name: Rotor Disk
Brand: RISEN
Original: CHINA
There are two rotor plates on the opposite sides of rotor, it is made of high-qualified alloy steel and can handle concrete 1500~2000m3 during its working period.

Main Features

Name: Rubber Wheel
Brand: RISEN
Original: CHINA
RISEN uses the military standard solid wheels, high adaptable for different construction site.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

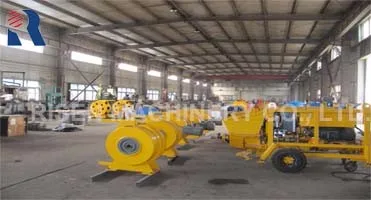

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1700 (L) * 1220 (W) * 1550(H)mm
Weight	1100KGS G.W.
Packaging Details	The normal package is plywood crate (Estimated Size: L1700*W1220*H1550mm). If container is too tigher, we will use the pallet for packing or pack it according to customers special request.

Packaging
Size	1700 (L) * 1220 (W) * 1550(H)mm
Weight	1100KGS G.W.
Packaging Details	The normal package is plywood crate (Estimated Size: L1700*W1220*H1550mm). If container is too tigher, we will use the pallet for packing or pack it according to customers special request.

Related Products

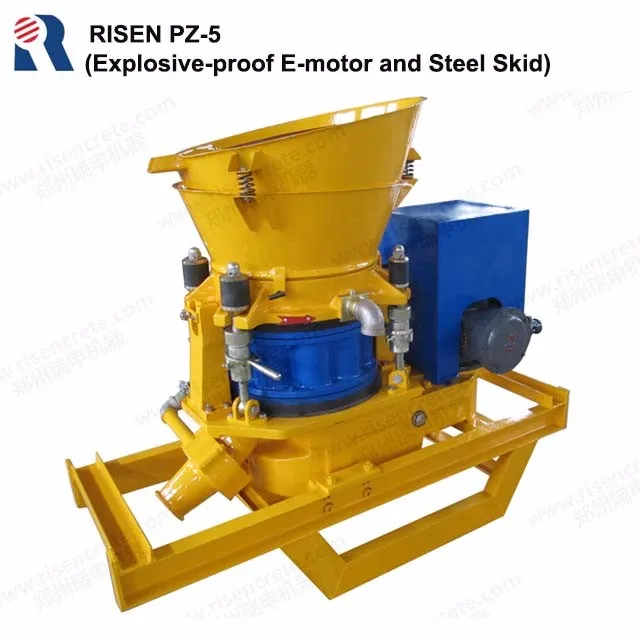

RISEN PZ-5

91.8% Response Rate

RISEN PZ-3

91.8% Response Rate

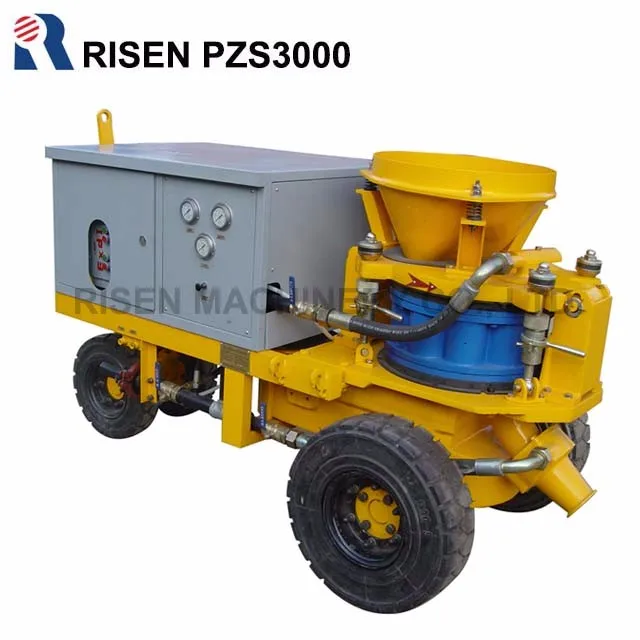

RISEN PZS3000
