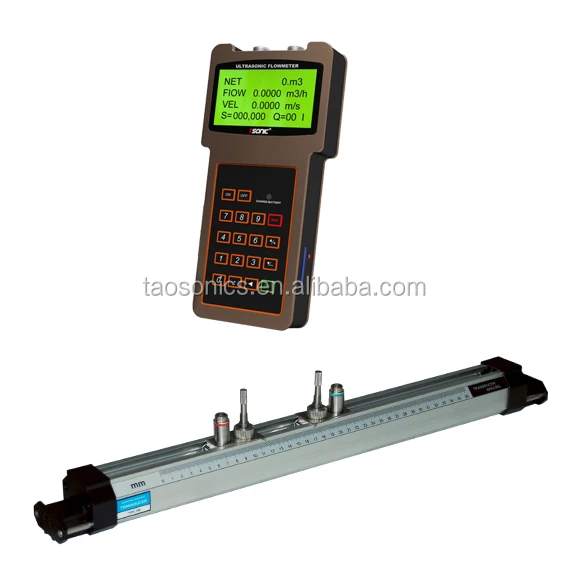

TUF 2000H series handheld ultrasonic flow meter

Product Overview

Description

Handheld flow meter china

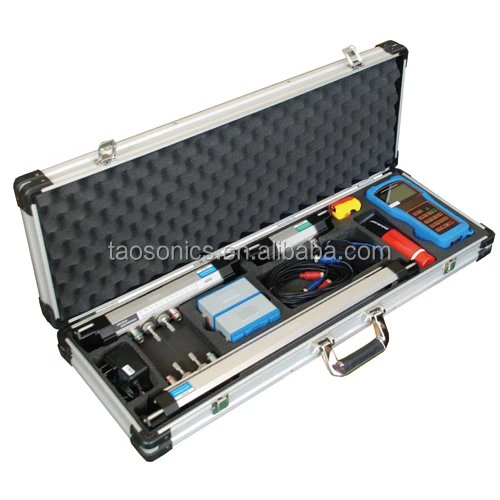

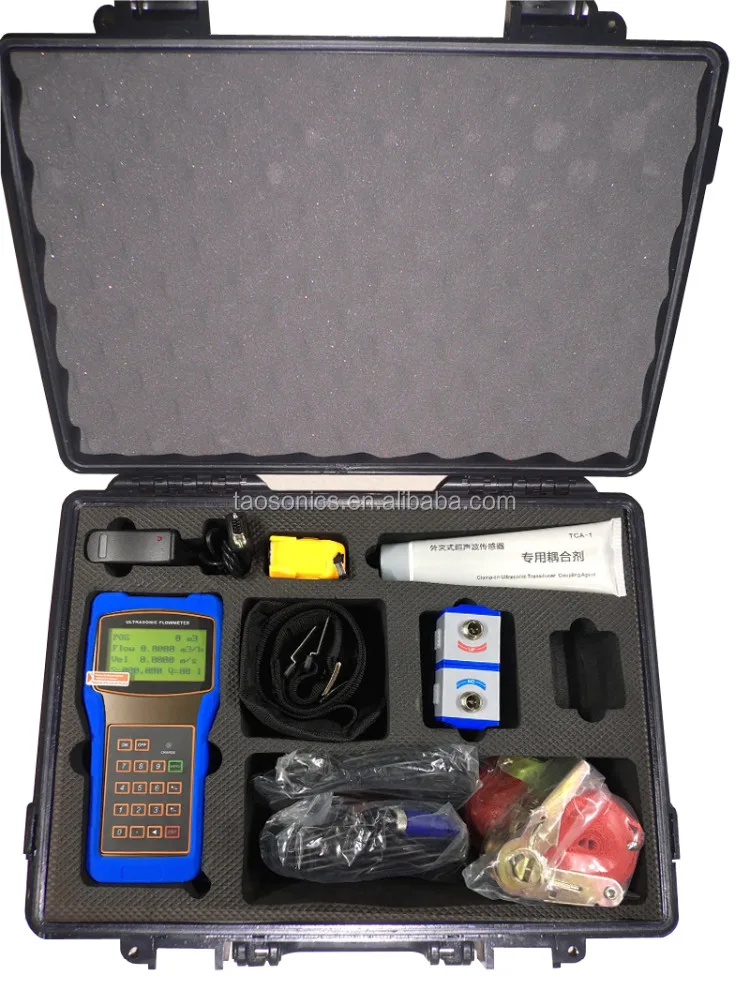

What will be included



               clamp on transducer packaging                mounting bracket transducer packaging





1. TUF-2000H flow meter with batteries

2. Clamp on transducers or mounting bracket transducers.

3. Singnal cable

4. Data cable

5. Couplant

6. Charger

7. Ruler

8. Carring box







                      To know TUF-2000H well

Advantages:

High accuracy measuring: Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%

Wide measuring range: DN15~DN6000

Large capacity battery: Ni-MH battery, operate over 12 hours

Non-intrusive measuring: clamp on transducer, no pressure drop

Support multiple language menu: Chinese, English, Italian and other language can be customized.

Large LCD display: show varieties of results like accumulated flow rate, velocity, working status etc.

Built-in data logger: store over 2000 lines measuring data



Features:



Items		Performance & Parameter
Meter	Principle	Transit time ultrasonic flowmeter
	Accuracy	± 1%
	Display	4×16 character LCD with backlight, support the language  of Chinese, English and Italian
	Signal Output	1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms)
	Data Interface	Insulate RS232 serial interface, upgrade the flowmeter  software by computer
Pipe Installation Condition	Pipe Material	Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC,  Aluminum, Glass steel product, liner is allowed.
	Pipe Diameter	15~6000mm
	Straight Pipe	Transducer installation should be satisfied: upstream 10D,  downstream 5D, 30D from the pump.
Measuring Medium	Type of Liquid	Single liquid can transmit sound wave, such as water, sewage,  oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc.
	Temperature	-30~160℃
	Turbidity	Less than 10000ppm and little bubble
	Flowrate	0 ~ ±7m/s
Working Environment	Temperature	main unit: -20~60℃; Transducer: -30~160℃
	Humidity	main unit: 85%RH; Transducer protection level: IP67
Power Supply	3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation).  Achieve to continuous measurement by connecting AC 90V - 260V adapter.
Power Consumption	1.5W
Housing Material	Inflaming retarding ABS
Main unit Weight	390g

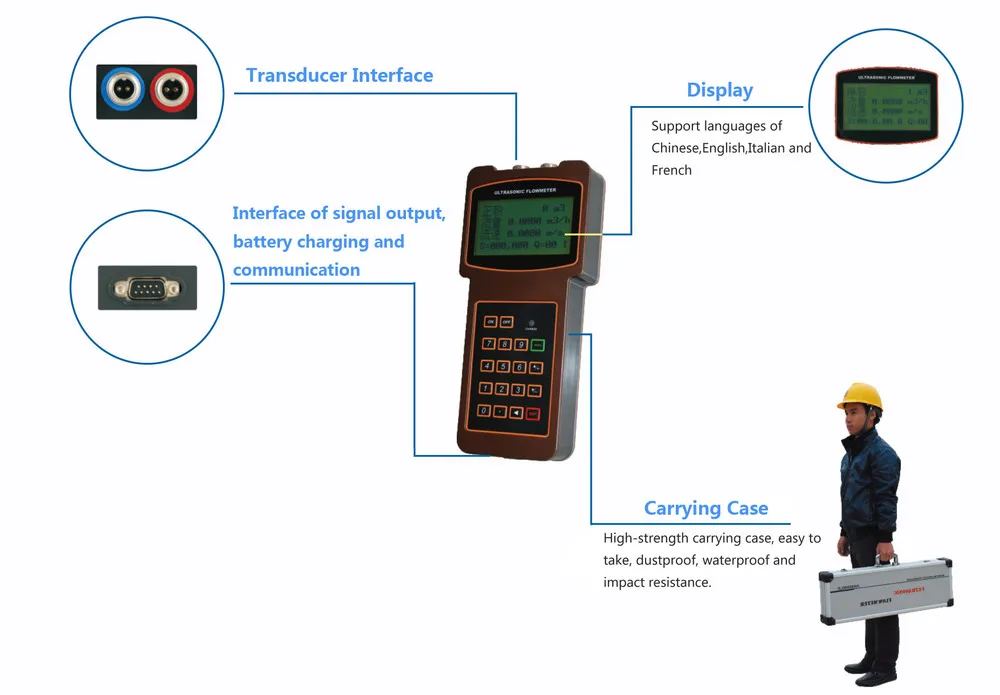

Parts Description:



                                                             To Select Proper Transducers

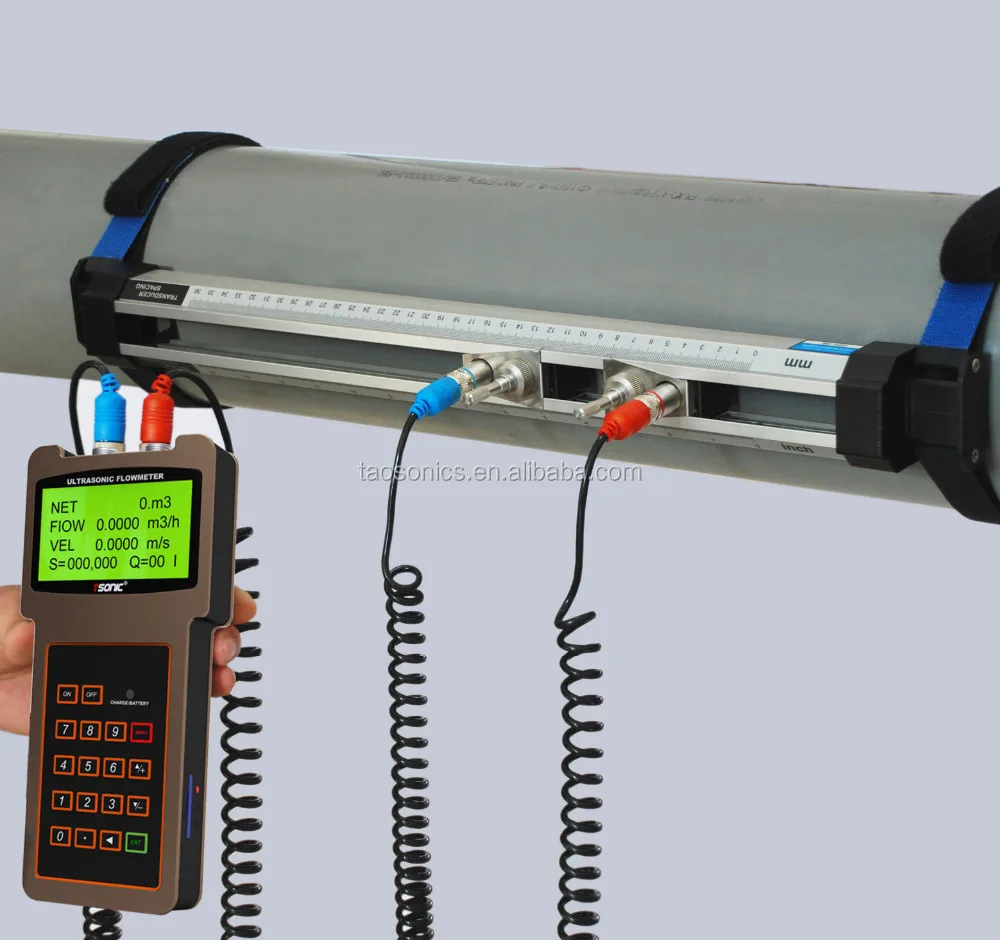

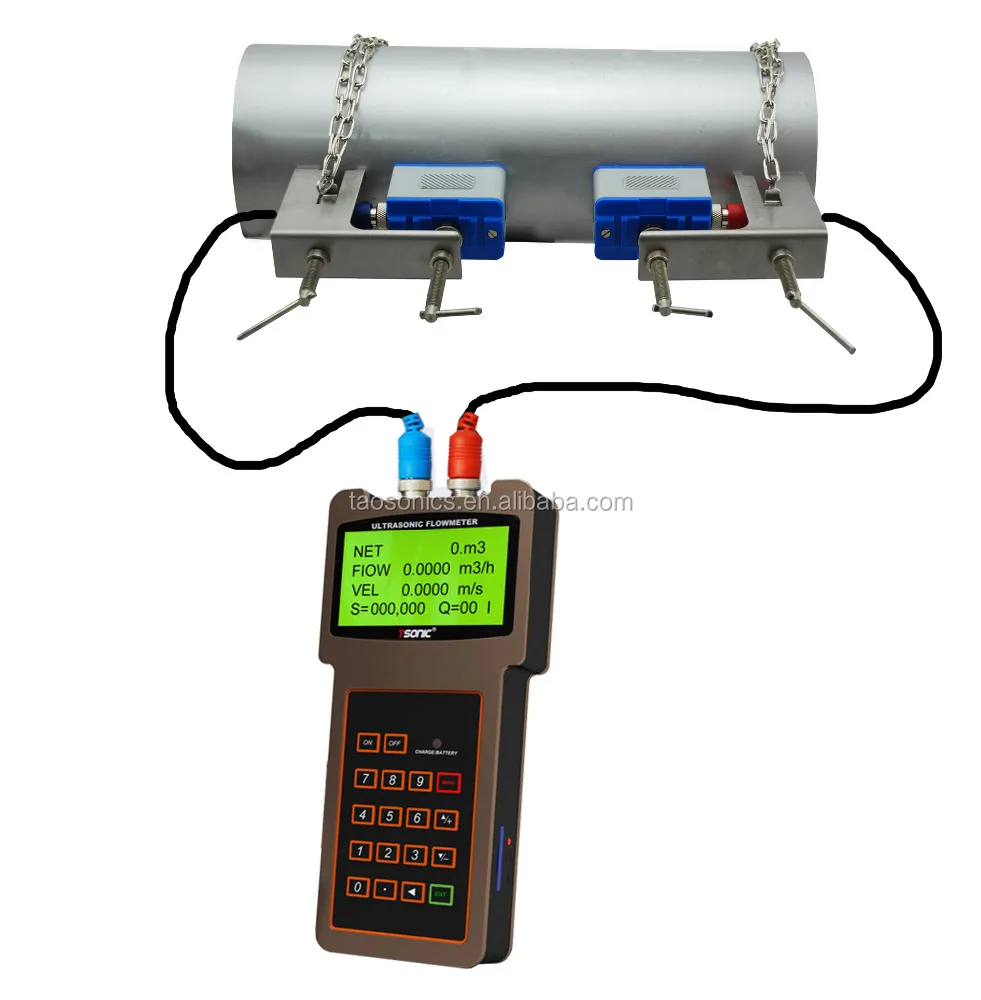

Measuring Diagram:



No need to cutoff water, no pressure loss Measuring range: DN35~DN6000 Fluid temperature:-30~160 °C	No need to cutoff water, no pressure loss Measuring range: DN35~DN6000 Fluid temperature:-30~160 °C Improve installation accuracy, shorten installation time







 Optional Transducers:



Types	Spec.	Model	Measure range(mm)	Temperature	Size
Clamp on	Small	TS-2	DN15~100	-30~90℃	42×25×32mm
	Medium	TM-1	DN50~700	-30~90℃	69×39×44mm
	Large	TL-1	DN300~6000	-30~90℃	97×54×53mm
High  temperature  clamp on	Small	TS-2-HT	DN15~100	-40~160℃	45×25×32mm
	Medium	TM-1-HT	DN50~700	-40~160℃	64×39×44mm
	Large	TL-1- HT	DN300~6000	-40~160℃	97×54×53mm
Mounting bracket  clamp on	Small	HS	DN15~100	-30~90℃	318×59×85mm
	Medium	HM	DN50~300	-30~90℃	568×59×85mm
	Extended	EB-1	DN300~700	-30~90℃	188×59×49mm
High temperature  mounting  bracket  clamp on	Small	HS-HT	DN15~100	-40~160℃	318×59×110mm
	medium	HM-HT	DN50~300	-40~160℃	568×59×110mm
	extended	EB-1-HT	DN300~700	-40~160℃	188×59×49mm
