Small Hydraulic Double piston Concrete Pump / Concrete Grouting Machines Refractory Grouting Pump

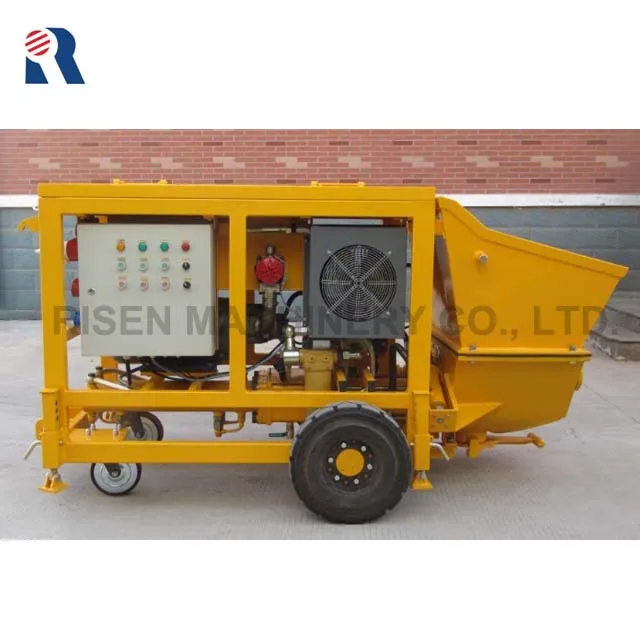

RISEN RPB7 is a small size hydraulic double-piston concrete pump /concrete grouting machines. It  is widely applied for the pumping and grouting of the wet ready-mixed mortar, concrete, refractory materials or other similar slurries. The RPB7 was designed to be extremely simple in structure and operation. It is very compact, durable and versatile enough for the different construction size.

Note: Equipped with accelerator dosing pump system and nozzle spraying system, the RPB7 can be a concrete shotcrete pump.

• A high efficiency machine with a longer conveying distance, horizontal 120m and vertical 50m.
• Simple& standard electrical system controls provide the safe and simple operation
• Two independent oil pressure circuits.
• Double-cylinder piston pump with S-tube for a positive action
• Self-sealing, super hard sealing ring and plate
• Suitable for the fiber concrete pumping
• Low weight & small size both are the advantages for transport.

• Concrete cylinder’s inner wall with super thick electroplated coating 0.3mm;
• Famous domestic or international brand hydraulic elements;
• IP55 100% new electrical motor or 100% new diesel engine;
• Standard Schneider electrical elements;
• The sheet metal parts made of the thicker steel plate to have a stronger quality, such as the hopper and control box;
• High hardness and wear resistance consumable parts, such as glasses plate and cut ring;
• Painted after sandblasting for a pretty appearance;

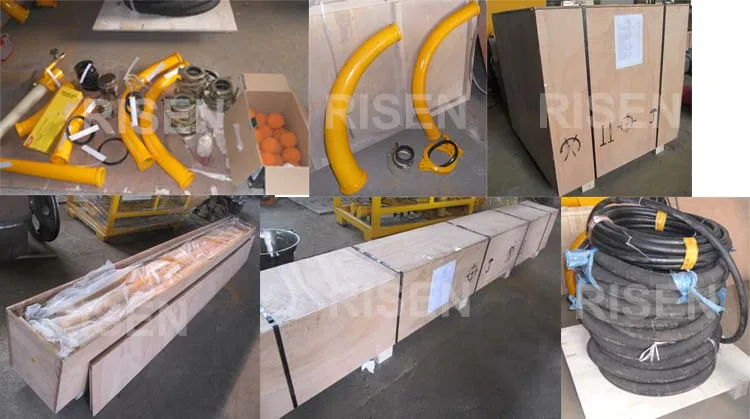

• Enough Accessories together with the main unit.

RISEN MACHINERY CO., LTD. is a manufacturer. Since 2004, RISEN has engaged in the design & manufacture of different kinds of shotcrete machines, grout pumps, mixer, hose pump, mortar pumps etc. And, RISEN is committed to develop new products to meet the customers’ need, with the ability to provide the necessary technical support and engineering experience required. Today, RISEN products are widely working in China, Australia, Finland, Spain, Egypt, Lebanon, Mexico, Peru, Malaysia, Philippines, Sri Lanka etc. and got the customers’ satisfaction based on the high-quality and competitive price.

Most of RISEN employees have worked in the design and production of the above machines for about twenty years. RISEN can provide the customers with sincere, friendly, timely technical consultation, technical support and after-sale service. RISEN employees are also capable of providing customers the solutions to the site-specific problems in cooperation with the customers.
