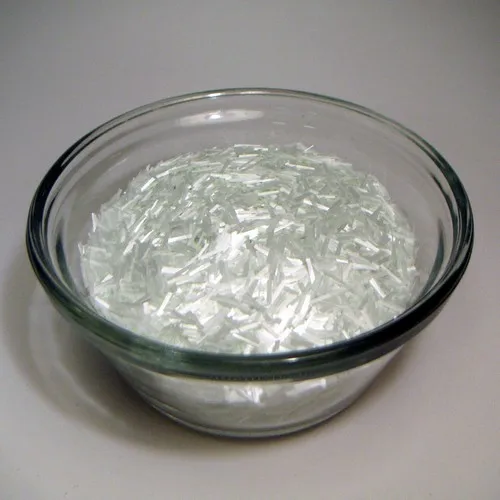

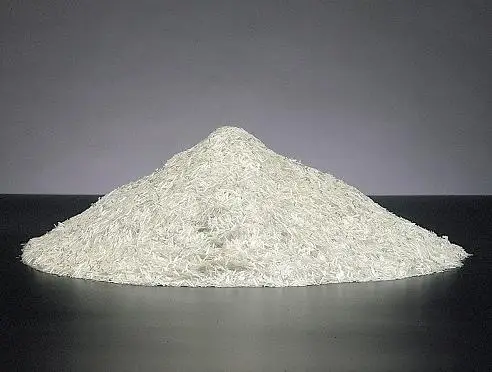

Chopped Fiberglass for Thermoset and Thermoplastic for BMC and Extrusion E glass C glass 6mm 48mm

Product Overview

Description

BMC DMC Fiberglass Chopped Strands for DMC/BMC(Dough/bulk molding compounds) is cutting from long fiberglass roving which was treated by special sizing.This chopped strands has good compound ablility with unsaturated polyester resin(economic type,ordinary low shrinkage type,ordinary low shrinkage reinforced type,electrical flame retardant type,electrical flame retardant reinforced type),epoxy and phenolic resin. It can increase products' mechanical properties(impact,tensile,compressive,flexural,high temperature resistant,abrasion resistant.etc.) and improve dimensional stability and minimize distortion at elevated temperature.Finished products have excellent physical and mechanical properties and surface appearance.

SPECIFICATIONS:

Model: ECS-13-6.0
Glass type: E-glass
Filament diameter  (μm):13
Fiber length (mm): 6.0±1
Moisture (%): ≤0.20
R2O(%): ≤0.80
LOI(%): 0.8±0.20




PRODUCT PROPERTIES:

• Good bundle integrity: good integrity to ensure that the chopped strands do not fluff into a ball in long way transportation,to facilitate the feeding process and not clog the feeder of twin screw extruder.


• Good flowability: good flowability and bundle integrity are closely related, which also created favorable conditions for the smooth automatic feeding process.


• Excellent physical and chemical properties: this chopped strands has high tensile strength,elastic modulus,so it can reinforce the polyamide 6 or 66,and improve its impact,tensile,compressive and flexural properties,improve dimensional stability and minimize distortion at elevated temperature.



STORAGE:

Chopped Fiberglass should be stored in its original packing in a dry and cool place. Best conditions are at temperatures from 15 to 35°C and humidity between 35 to 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layer, care should be taken to correctly and smoothly move the top pallet.







The product can be packed into bulk bags and pallet.

Bag Weight (kg)	25
Bag No. per Pallet	36
Pallet Size (mm)	1140x1140x1100
Pallet Net Weight (kg)	900
