Product Overview

Description

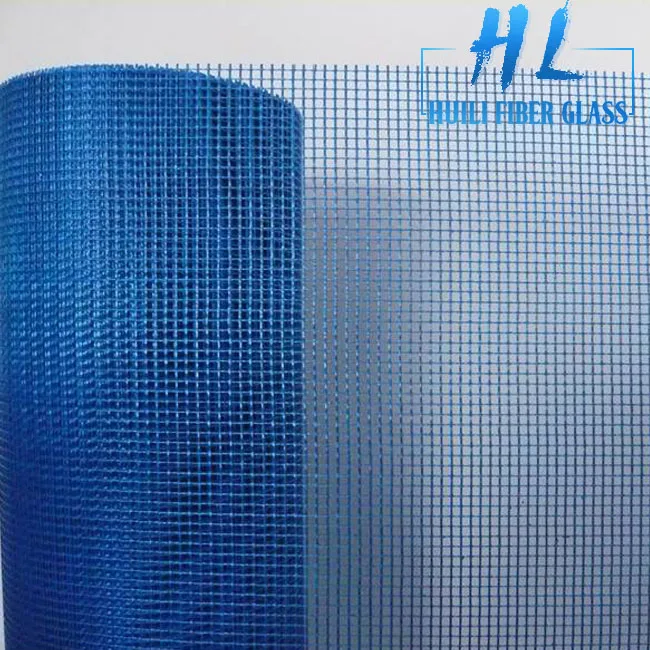

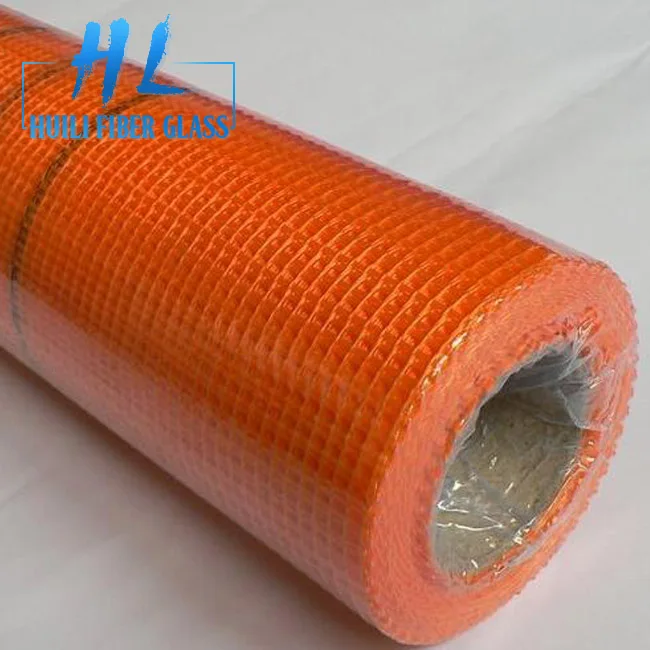

80g 4x4mm fiberglass mesh 160g  fabric 110g heat insulation leno weave fiber glass mesh

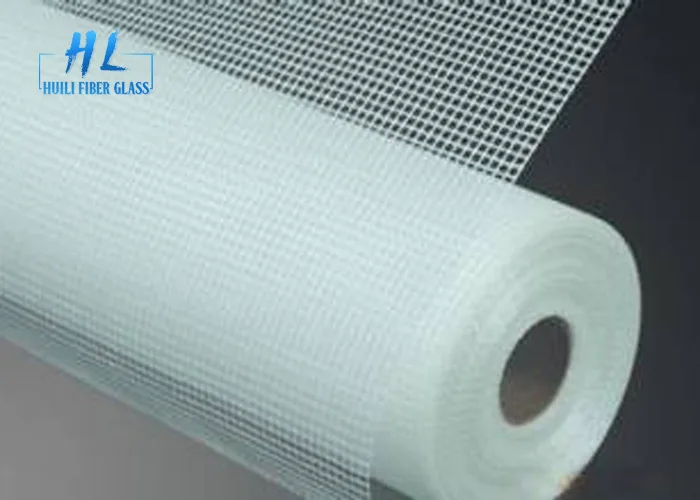

Introduction of Fiberglass mesh



Fiberglass mesh is mainly alkali-resistant fiberglass or E-glass fabric, then coated by alkaline resistant latex. It has high alkaline-resistant, high strength, etc. As an ideal engineering materilas is construction it is mainly used to reinforce cemetn, stone, wall materials, roofing, amd gypsum and so. Due to the special nature of the material is more sturdy than other common cloth.



Fiberglass mesh on the basis of C-glass or E-glass fiberglass woven mesh, then coated with alkali resistant liquid. It possesses properties of high strength, good cohesion, and anti alkali. Fiberglass mesh is woven by fiberglass yarn as its basis mesh, and then coated by alkaline resistant latex. It has fine alkaline-resistant, high strength, etc. As an ideal engineering material in construction, it is mainly used to reinforce cement, stone, wall materials, roofing, and gypsum and so on.



Specification of Fiberglass mesh



Material of the base:Fiberglass yarn

Type of weave (name):Leno

Hole Size:2.8x2.8mm,4x4mm,5x5mm,10x10mm

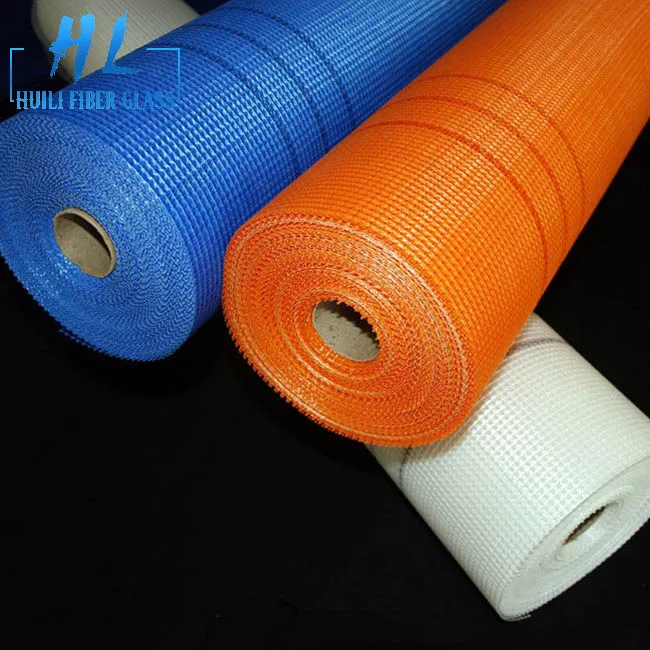

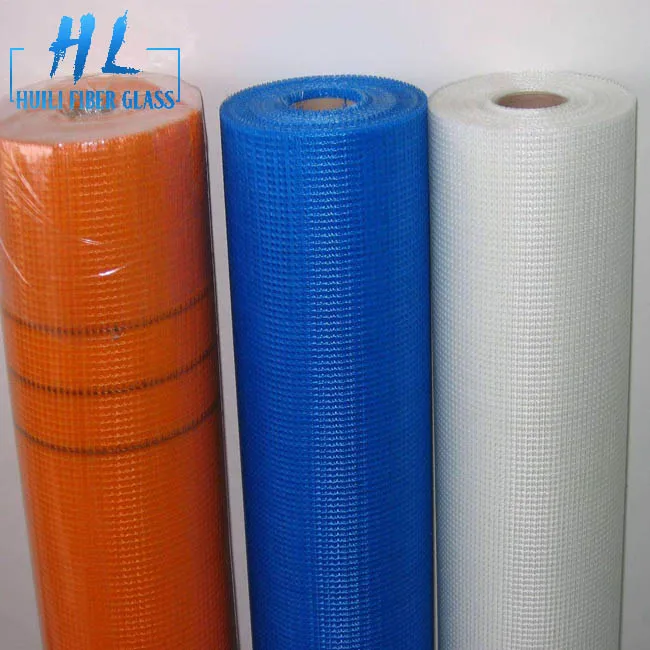

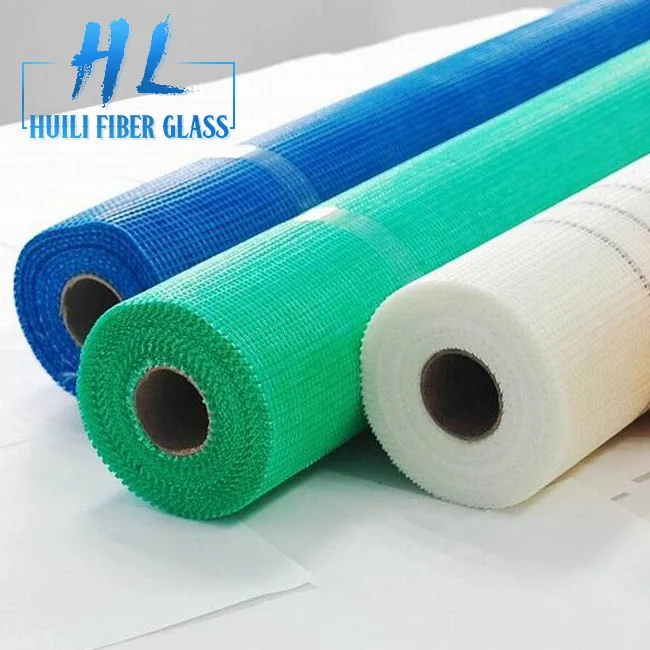

Colored fibers woven:White,Green,Blue,Orange,and any color

Coating:Latex Coating, Urea Coating

Length of the roll:30m,50m,100m.

Height of the roll:0.2m,0.5m,1m,1.2m,1.5m,1.8m,

Weighting:45g,80g,100g,110g,120g,150g,160g and so on.





1. 75g / m2 or less: Used in the reinforcement of thin slurry, to eliminate small cracks and scattered throughout the surface pressure.

2. 110g / m2 or about: Widely used in indoor and outdoor walls, prevent the various materials (such as brick, light wood, prefabricated structure) of treatment or caused by a variety of expansion coefficient of wall crack and break .

3. 145g/m2 or about: Used in the wall and be mixed in various materials (such as brick, light wood, prefabricated structures), to prevent cracking and scatter the whole surface pressure, especially in the external wall insulation system (EIFS ).

4. 160g / m2 or about: Used in insulator layer of reinforcement in the mortar, through shrinkage and temperature changes by providing a space to maintain movement between the layers, prevent crack and rupture due to shrinkage or temperature

Quality A: Emulsion coated, flexible, high strength, top quality. (emulsion)

Quality B: Emulsion coated, but lower strength than quality A.(emulsion)

Quality C: Urea resin coated, normal quality.(urine)



Feature of Fiberglass mesh



1. Good alkali resistance corrosion resistance

2. High tensile strength and resistance to impact

3. Godd stability and resistance to deformation capacity

4. Temperature stability and resistance

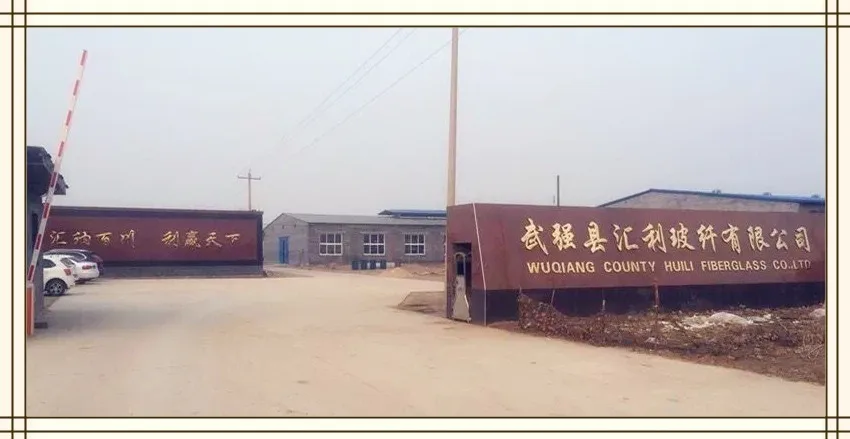

Factory
