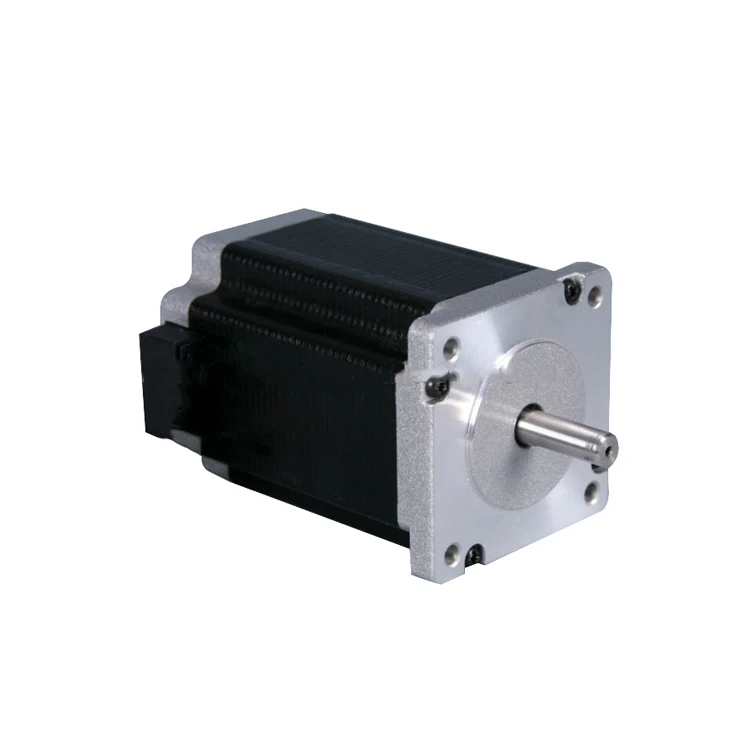

57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00

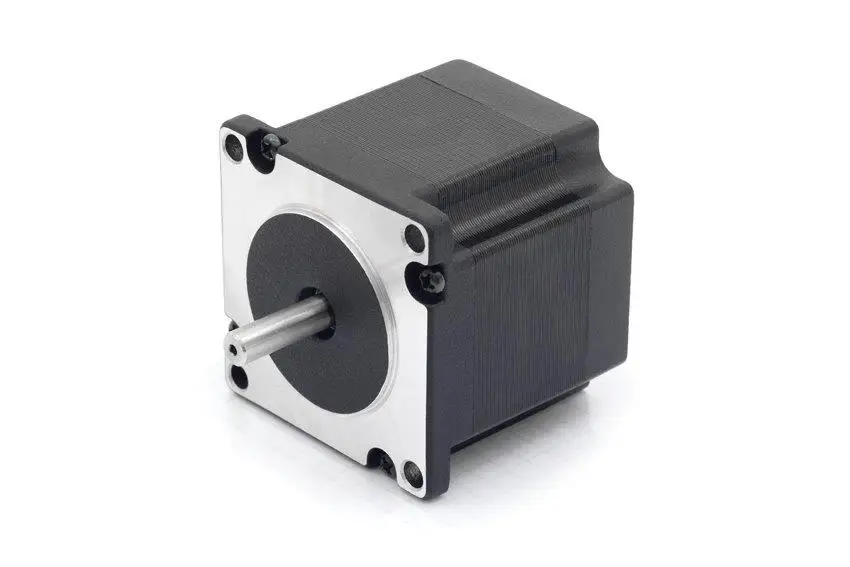

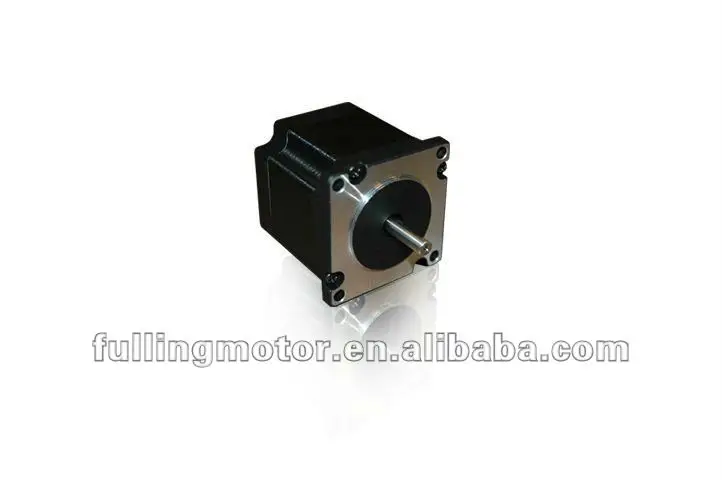

NEMA23 57 мм 2 Фаза гибридный шаговый двигатель с высоким крутящим моментом (1,8 градусов) 24 вольтовый шаговый двигатель
- Category: Stepper Motor >>>
- Supplier: Changzhou Fulling Motor Co. Ltd.
Share on (462499690):
Product Overview
Description
Product Description
1.8 .Size 57mm High Torque 2 phase Stepper Motor
Stepper motors,Stepping Motor,Step Motor 24 volt stepper motor
1) CE and RoHS approved
2) TS16949
3) We can develop customer design version
Item | Specifications |
Step Angle | 1.8. |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10%(20°C) |
Inductance Accuracy | ±20%(1KHz) |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.02Max. (450 g-load) |
Shaft Axial Play | 0.08Max. (450 g-load) |
Max. radial force | 75N (20mm from the flange) |
Max. axial force | 15N |
Rotation | CW( See from Front Flange) |
l Size 57mm High Torque Hybrid Stepping Motor Specifications
Model No. | Rated Voltage | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Rotor Inertia | Weight | Detent Torque | Length | |
Single Shaft | Double Shaft | V | A | Ω | mH | kg-cm |
| g-cm2 | kg | kg-cm | mm |
FL57STH41-1006A | FL57STH41-1006B | 5.7 | 1 | 5.7 | 5.4 | 3.9 | 6 | 120 | 0.45 | 0.21 | 41 |
FL57STH41-2006A | FL57STH41-2006B | 2.8 | 2 | 1.4 | 1.4 | 3.9 | 6 | ||||
FL57STH41-3006A | FL57STH41-3006B | 1.9 | 3 | 0.63 | 0.6 | 3.9 | 6 | ||||
FL57STH41-2804A | FL57STH41-2804B | 2 | 2.8 | 0.7 | 1.4 | 5.5 | 4 | ||||
FL57STH51-1006A | FL57STH51-1006B | 6.6 | 1 | 6.6 | 8.2 | 7.2 | 6 | 275 | 0.65 | 0.36 | 51 |
FL57STH51-2006A | FL57STH51-2006B | 3.3 | 2 | 1.65 | 2.2 | 7.2 | 6 | ||||
FL57STH51-3006A | FL57STH51-3006B | 2.2 | 3 | 0.74 | 0.9 | 7.2 | 6 | ||||
FL57STH51-2804A | FL57STH51-2804B | 2.3 | 2.8 | 0.83 | 2.2 | 10.1 | 4 | ||||
FL57STH56-1006A | FL57STH56-1006B | 7.4 | 1 | 7.4 | 10 | 9.0 | 6 | 300 | 0.7 | 0.4 | 56 |
FL57STH56-2006A | FL57STH56-2006B | 3.6 | 2 | 1.8 | 2.5 | 9.0 | 6 | ||||
FL57STH56-3006A | FL57STH56-3006B | 2.3 | 3 | 0.75 | 1.1 | 9.0 | 6 | ||||
FL57STH56-2804A | FL57STH56-2804B | 2.5 | 2.8 | 0.9 | 2.5 | 12.6 | 4 | ||||
FL57STH76-1006A | FL57STH76-1006B | 8.6 | 1 | 8.6 | 14 | 13.5 | 6 | 480 | 1 | 0.68 | 76 |
FL57STH76-2006A | FL57STH76-2006B | 4.5 | 2 | 2.25 | 3.6 | 13.5 | 6 | ||||
FL57STH76-3006A | FL57STH76-3006B | 3 | 3 | 1 | 1.6 | 13.5 | 6 | ||||
FL57STH76-2804A | FL57STH76-2804B | 3.2 | 2.8 | 1.13 | 3.6 | 18.9 | 4 | ||||
FL57STH84-4006A | FL57STH84-4006B | 2.8 | 4.0 | 0.7 | 1.5 | 18 | 6 | 520 | 1.2 | 0.8 | 84 |
FL57STH115-2804A φ8 SHAFT | 5.88 | 2.8 | 2.1 | 10 | 30 | 4 | 650 | 1.8 | 1.0 | 115 | |
We can make Customer Desige Motors
