30 512MHz 28VDC RF gsm signal power amplifier
- Category: Repeater >>>
- Supplier: Xiangyu Communication Technology Co. Ltd. [Guangdong China]Xiangyu
Share on (463934442):
Product Overview
Description
Product Description

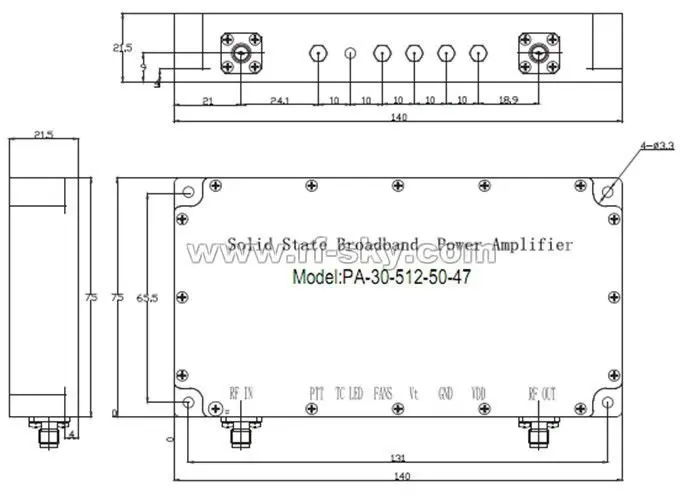

| Model:PA-30-512-50-47 | |||||
| Parameter | Symbol | Min | Type | Max | Unit |
| Operating Frequency | BW | 30 | 512 | MHz | |
| Power Output CW | Psat | 50 | W | ||
| Power Output @ 1dB | P1dB | 70 | W | ||
| Power Gain @ CW | G1dB | 47 | 55 | dB | |
| Input Power | Pin | 0 | dBm | ||
| Auto Level Contron Voltage | Valc | -5 | 5 | 10 | Volt |
| Modulation | M | 70 | 80 | 95 | % |
| Distortion@ AM Pc=60W | r | 5 | 8 | % | |
| Small Signal Gain Flatness | G | ±2.0 | ±2.5 | dB | |
| Input VSWR | S11 | 1.5:1 | |||
| Third order intermodulation@ CW | IMD3 | -25 | dBc | ||
| Harmonics @ CW | H | -12 | dBc | ||
| Harmonics @ CW | H | -15 | dBc | ||
| Noise Figure | NF | 8 | 10 | dB | |
| Spurious Signals | Spur | -80 | -60 | dBc | |
| OperatingVoltage | VDC | 18 | 28 | 34 | Volt |
| Current Consumption@ Po=20W | ID | 7 | 8 | Amp | |
| Operating Temperature | Tc | -55 | 70 | °C | |
| Non-perating Temperature | Tstg | -60 | 80 | °C | |
| Outline Drawing | L*W*H | 100 | 50 | 25 | mm |
| Electrical Specifications@ T=25°C, VDD=+28VDC; 50Ω System | |||||
