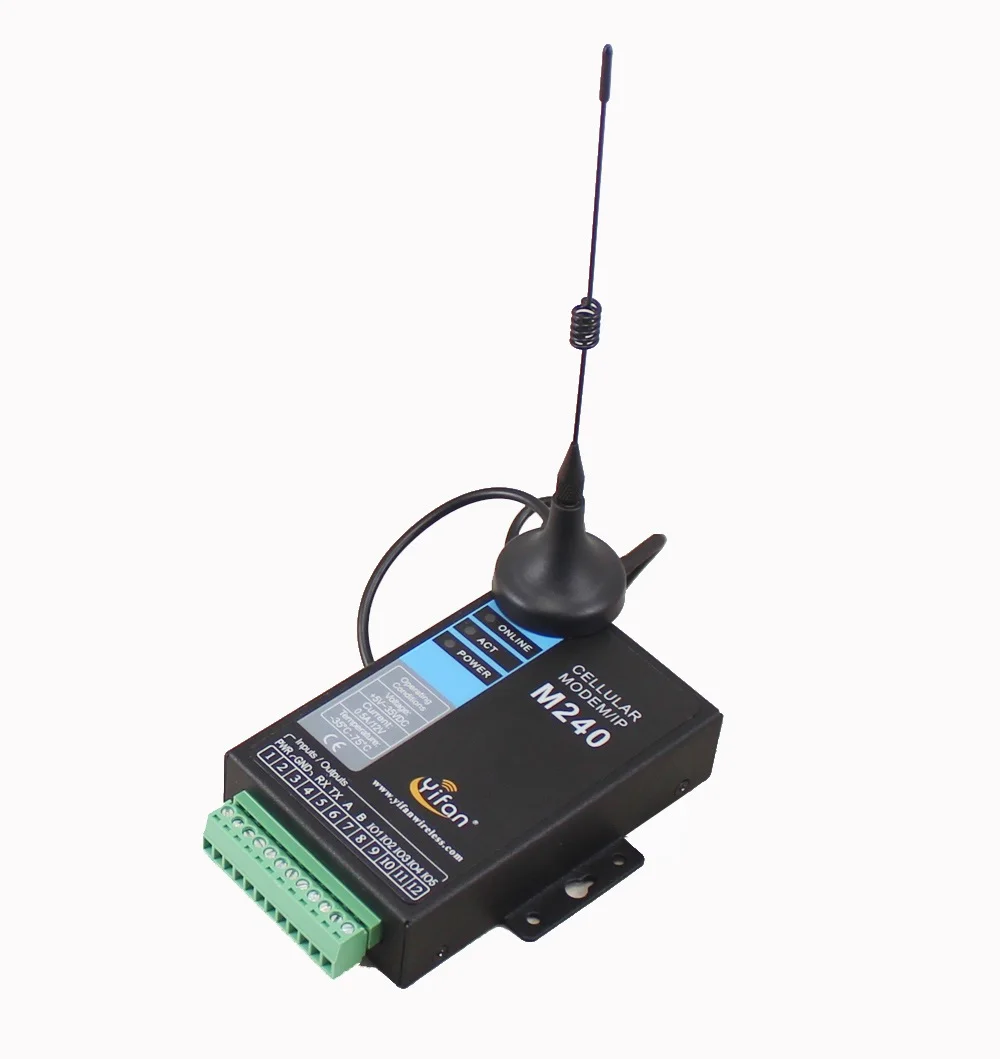

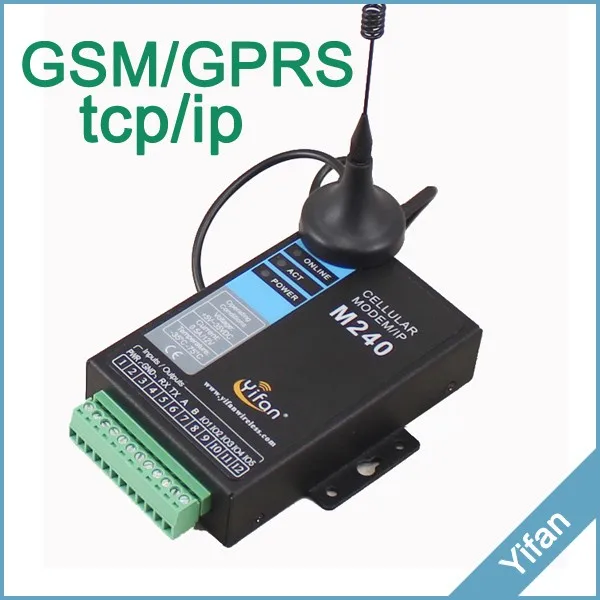

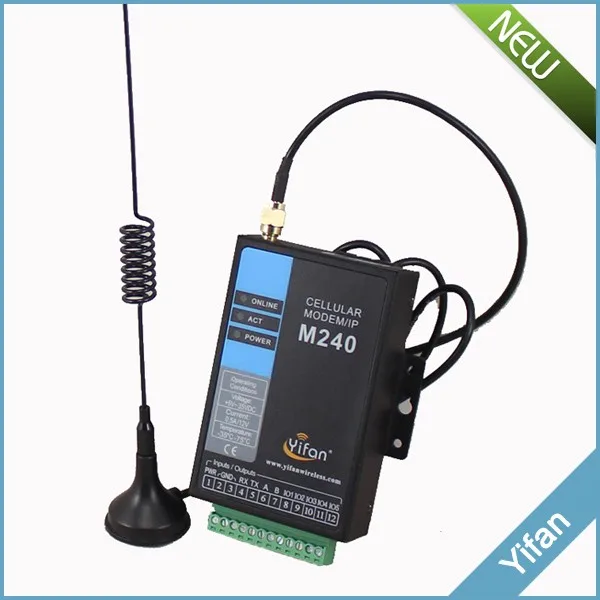

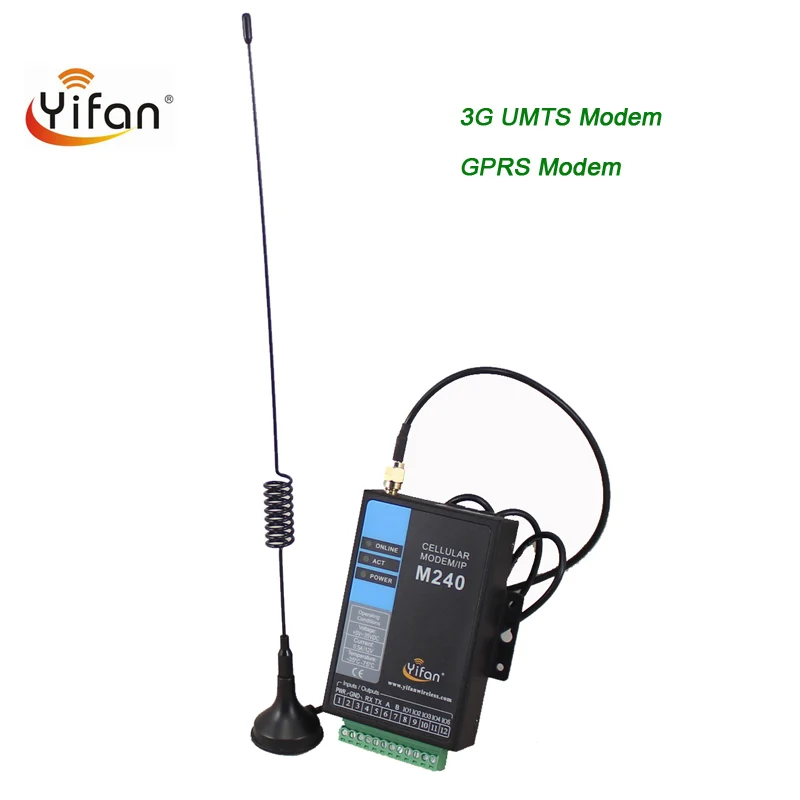

M240 Series Din Rail mounting serial port RS232 RS485 gprs gsm modem for SCADA AMR PLC

          M240 series serial port RS232 RS485 gprs gsm modem (DTU) with I/O

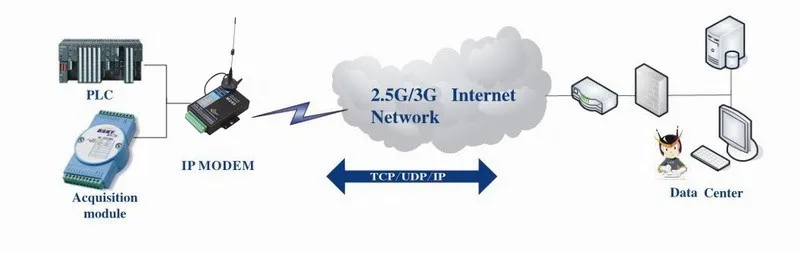

M240 series GPRS GSM IP MODEM is a kind of cellular terminal device that provides data transfer function by public GPRS network.
It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports RS232 and RS485 (or RS422) port that can conveniently and transparently connect one device to a cellular network, allowing you to connect to your existing serial devices with only basic configuration. It has low power consumption, 1ower than 1mA@12VDC. It has compatible digital I/O channel, ADC, input pulse counter and pulse wave output function.

Ideal for M2M fields, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, etc.

Product Specification

Design for Industrial Application

u       High-powered industrial cellular module

u       High-powered industrial 32 bits CPU

u       Low power consumption design, support multi-sleep and trigger modes to reduce the power dissipation farthest

u       Embedded Real Time Clock(RTC) circuit which can realize timing online/offline function

u       Housing: iron, providing IP30 protection

u       Power range: DC 5~35V

Stability and Reliability

u       Support hardware and software WDT

u       Support auto recovery mechanism, including online detect, auto redial when offline to make it always online

u       RS232/RS485/RS422 ports:15KV ESD protection

u       SIM/UIM port: 15KV ESD protection

u       Power port: reverse-voltage and overvoltage protection

u       Antenna port: lightning protection(optional)

Standard and Convenience

u       Adopt terminal block interface, convenient for industrial application

u       Support standard RS232/RS485 ports that can connect to serial devices directly

u       TTL logic level RS232 interface can be customized

u       Support intellectual mode, enter into communication state automatically when powered

u       Provide management software for remote management

u       Support several work modes

u       Convenient configuration and maintenance interface

High-performance

Support double data centers, one main and another backup

Supply 5 I/O channels, compatible 2 Digital input/output, 2 analog inputs and one pulse input counters.

Support multi data centers and it can support 5 data centers at the same time

Support multi online trigger ways, including SMS, ring and data. Support link disconnection when timeout

Support dynamic domain name(DDNS) and IP access to data center

Design with standard TCP/IP protocol stack

Support APN/VPDN

Cellular Specification

Hardware System

Interface Type

Item	Content
Serial	1 RS232 port and 1 RS485(orRS422) port, 15KV ESD protection Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5, 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps
Indicator	"Power", "ACT", "Online"
Antenna	Standard SMA female interface, 50 ohm, lighting protection(optional)
SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
Power	Terminal block interface, reverse-voltage and overvoltage protection

Power Input

Power Consumption

Physical Characteristics

Environmental Limits
