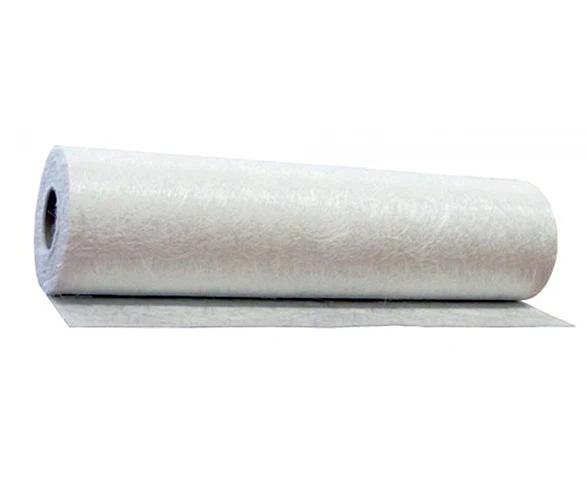

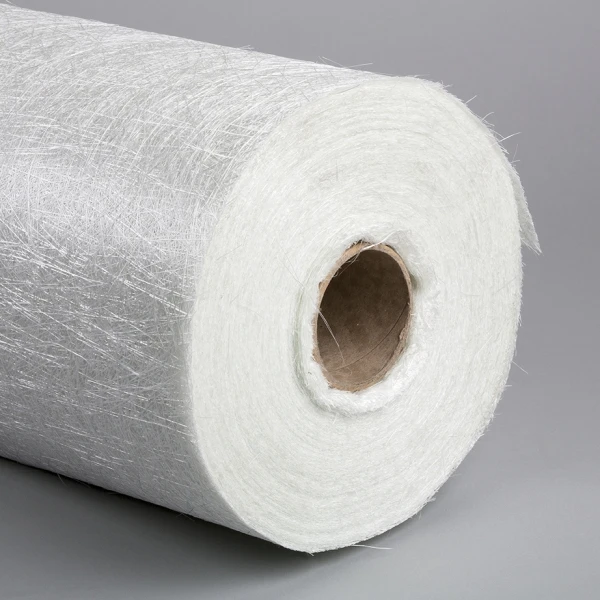

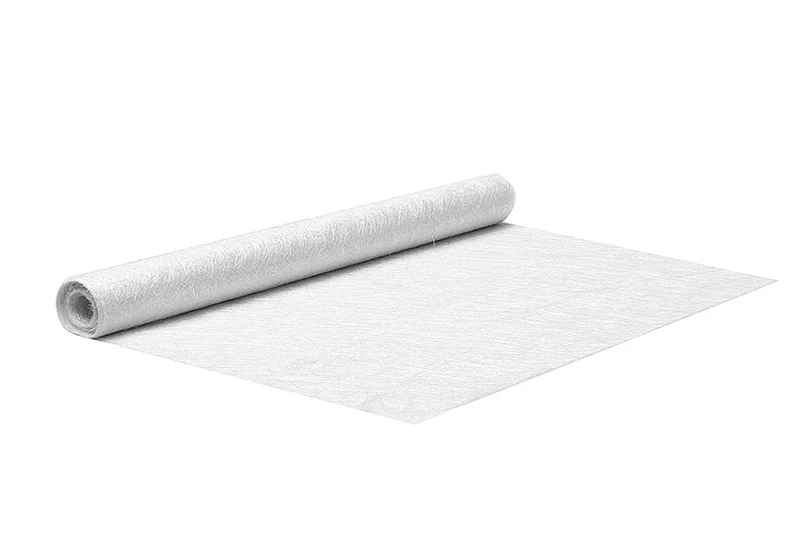

E-Glass Emulsion/Powder Chopped Strand Mat is made of randomly distributed chopped strands held tighter by a emulsion binder. It is compatible with UP, VE, EP resins. It is compatible with UP, VE, EP, PF resins. The roll width ranges from 50mm to 3300mm. Additional demands on wet-out and decomposition time may be available upon request. It is designed for use in hand lay-up, filament winding, compression molding and continuous laminating processes. Its end-use applications include boats, bath equipment, automotive parts, chemical corrosion resistant pipes, tanks, cooling towers and building components
Product Features: Fast breakdown in styrene High tensile strength, allowing for use in hand lay-up process to produce large-area parts Good wet-through and fast wet-out in resins, rapid air lease Superior acid corrosion resistance
E-Glass Emulsion Chopped Strand Mat Specifications:
Property
Area Weight
Moisture Content
Size Content
Breakage Strength
Width
(%)
(%)
(%)
(N)
(mm)
Mathods
IS03374
ISO3344
ISO1887
ISO3342
EMC80E
±7.5
≤0.20
8-12
≥40
50-3300
EMC100E
≥40
EMC120E
≥50
EMC150E
4-8
≥50
EMC180E
≥60
EMC200E
≥60
EMC225E
≥60
EMC300E
3-4
≥90
EMC450E
≥120
EMC600E
≥150
EMC900E
≥200
Special specification can be produce according to customer requirements.
E-Glass Powder Chopped Strand Mat Specifications:
Property
Area Weight
Moisture Content
Size Content
Breakage Strength
Width
(%)
(%)
(%)
(N)
(mm)
Property
IS03374
ISO3344
ISO1887
ISO3342
EMC80P
±7.5
≤0.20
8-12
≥40
50-3300
EMC100P
≥40
EMC120P
≥50
EMC150P
4-8
≥50
EMC180P
≥60
EMC200P
≥60
EMC225P
≥60
EMC300P
3-4
≥90
EMC450P
≥120
EMC600P
≥150
EMC900P
≥200
Special specification can be produce according to customer requirements.
Packaging & Shipping
Each Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 76mm and the mat roll has a diameter of 275mm. The mat roll is wrapped up with plastic film,and then packed in a cardboard box or wrapped up with kraft paper. The rolls can be vertically or horizontally placed. For transportation, the rolls can be loaded into a cantainer directly or on pallets.
Storage: Unless otherwise specified, Chopped Strand Mat should be stored in a dry, cool and rain-proof area. It is recommended that the room temperature and humidity should be always maintained at 15℃~35℃ and 35%~65% respectively.
