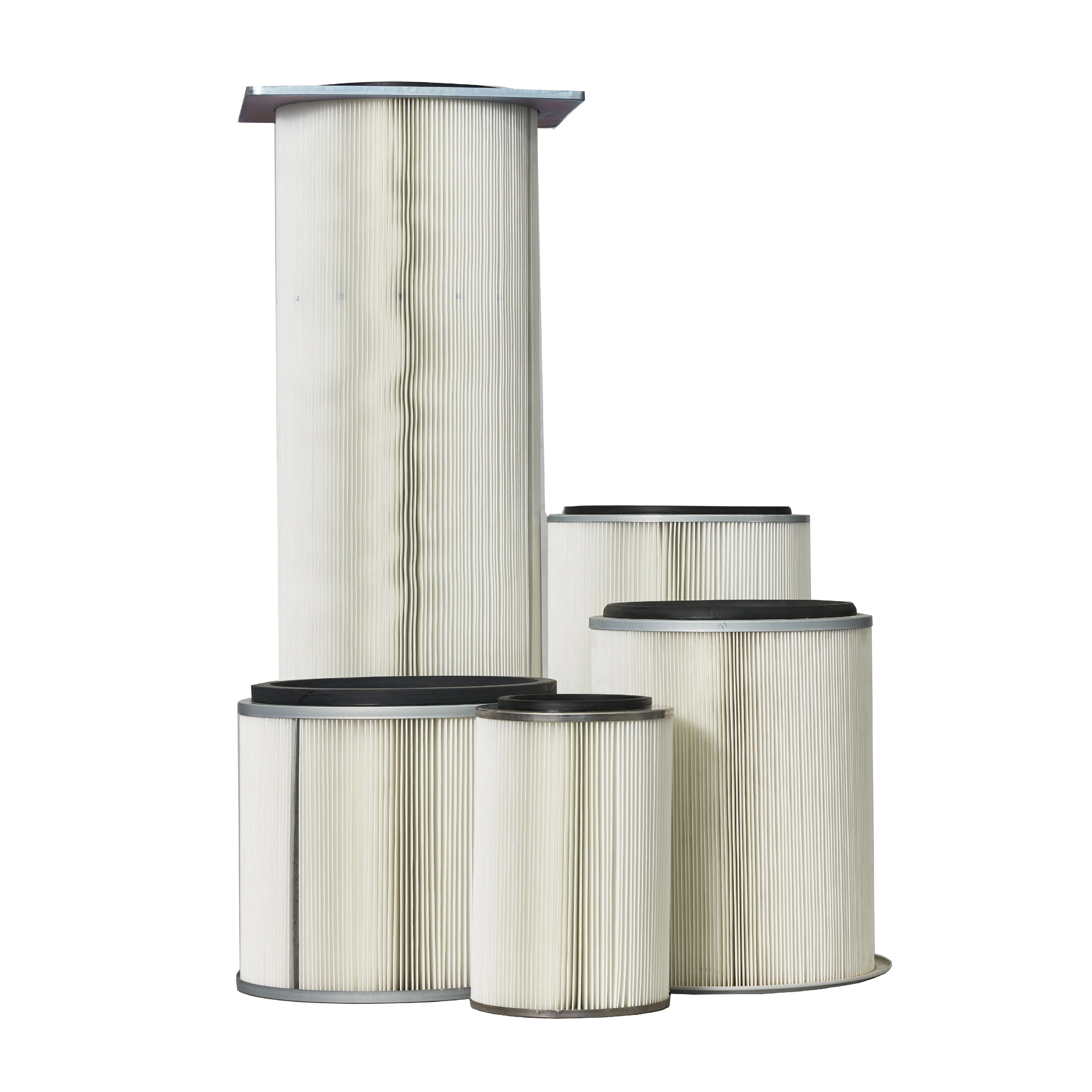

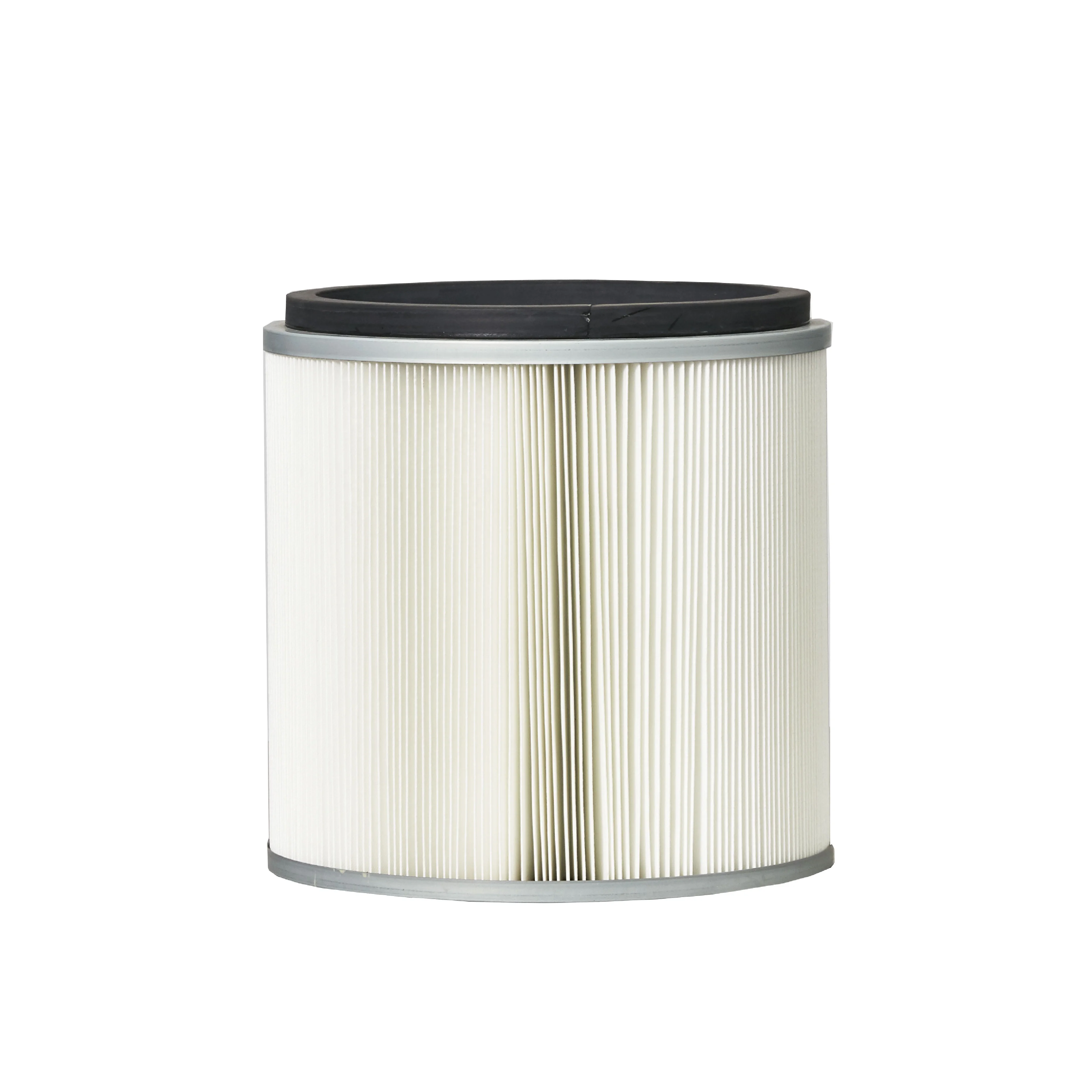

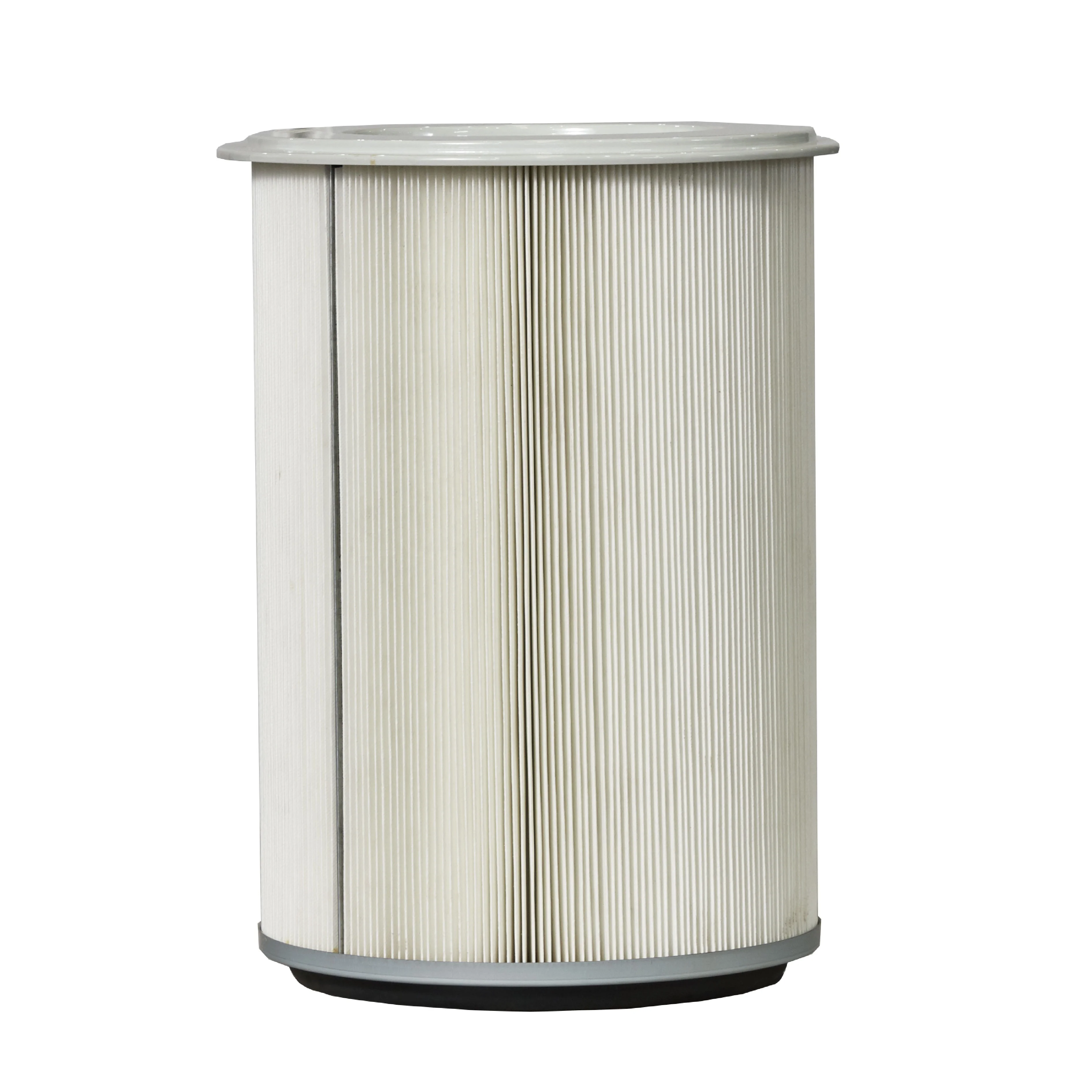

Industrial Pleated Polyester Filter Element Cartridge For Dust Collector Above MERV 15 Level

Product Overview

Description

Industrial Pleated Polyester Filter Element Cartridge For Dust Collector Above MERV 15 Level

Main features

1. Membrane polyester fiber (PTFE) filtering medium
2. The surface filtering design doesn’t form filtering cake, to have high filtering efficiency.
3. Easy cleaning design, it designs the filtering area according to different working conditions. The filter cleaning is very complete, the filter is high clean class, good hardness, good wet resistance and multiple water washing. Finally the cleaning efficiency doesn’t decline. Cleaning pressure is low, saving the air compress.
4. Intercepting the extremely micro fume and dust, make sure the filtering material base original nature. It ensures high air flow under declining the operation resistance.
5. Careful design and making gives the filter longer usage life.
6. Consumption is low, it can save above 45% power than common filtering medium.
7. Almost null discharge, it meets the environment standard and discharging in the roo

 Note: The dust collecting system must equip with the catcher of spark to prevent plenty of spark
            to enter the filter system.

Application: It replaces kinds of foreign brand relevant products.

Filtering efficiency parameter

Filtering status	Initially operating status	Stably operating status
Air speed	3/Min
Difference pressure	317.2Pa	368.5Pa
Dust size	Filtering efficiency
0.3-0.5 μm	99.978%	99.986%
0.5-0.7 μm	99.988%	99.996%
0.7-1.0 μm	99.994%	100%


Dimension parameter

Model	Up cover external DN	Bottom cover external DN	Up cover internal DN	Installation small hole	Height	Filtering area
GDF1.5	φ212 mm	φ212mm	φ108mm	φ13mm	φ371mm	4 m2
JS09	Φ325 mm	Φ325 mm	φ213 mm	φ14mm	φ482mm	8 m2
JS15	Φ325 mm	Φ325 mm	φ213 mm	φ14mm	Φ393mm	10 m2
KS01	Φ325 mm	Φ325 mm	φ213 mm	φ14mm	Φ605mm	10 m2
KS02	Φ325 mm	Φ325 mm	φ213 mm	φ14mm	Φ860mm	15 m2
KS06a	Φ325 mm	Φ325 mm	φ213 mm	φ14mm	Φ1200mm	20 m2
KS01a	Φ405*360mm	Φ325 mm	φ213 mm	φ14mm	Φ605mm	10 m2
KS06	Φ405*360mm	Φ325 mm	φ213 mm	φ14mm	Φ860mm	15 m2
