Силиконовый экструдер для силиконового шланга

Share on (471827452):


Price:1 000,00 $

Quantity:


Product Overview

Description



Product Description


Application:

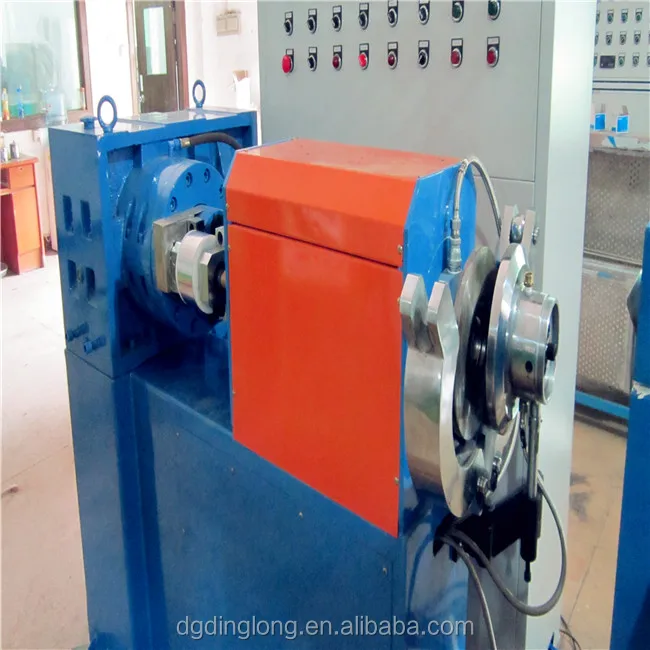

Silicone Tube Extruder: suitable for manufacturing silicone tube/hose or silicone rolled bar


Technical Specification:









































































DL45



DL65



DL80



DL90



Finished hose diameter



1.0-15mm



1.5-30mm



3.0-40mm



5.0-60mm



Line speed (max.)



30m/min



30m/min



30m/min



30m/min



Extrusion output (max.)



40kg/h



70kg/h



100kg/h



150 kg/h



L/D



12:1



12:1



12:1



12:1



Extruder power



7.5KW



11KW



22KW



30KW



High temperature curing length



0.5m-1.3m



0.5m-1.3m



0.8m-1.3m



0.8m-1.3m



Horizontal curing length



4-6m



6-8m



8-10m



8-12m



Capstan power



1.5KW



1.5KW



1.5KW



1.5KW




Product

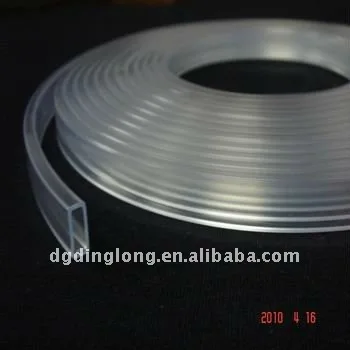

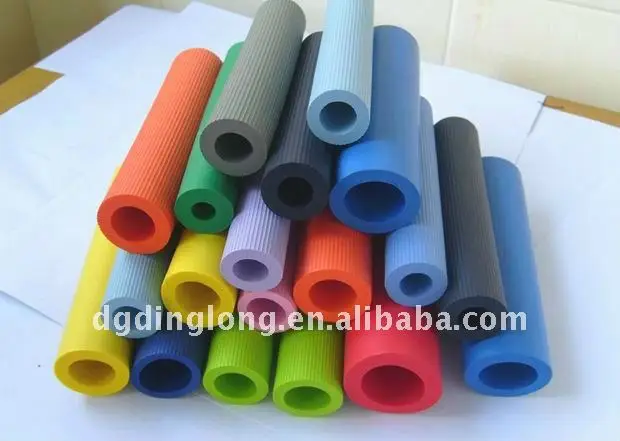

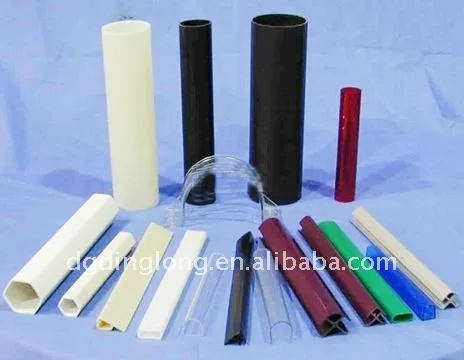

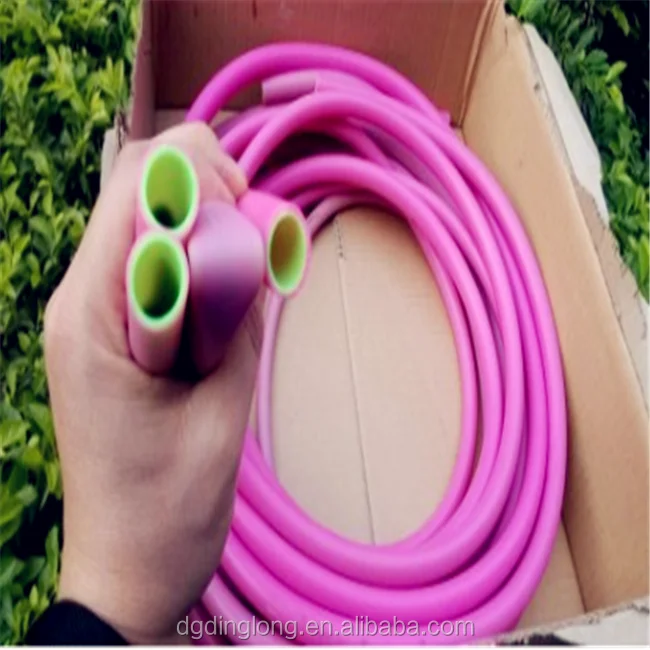

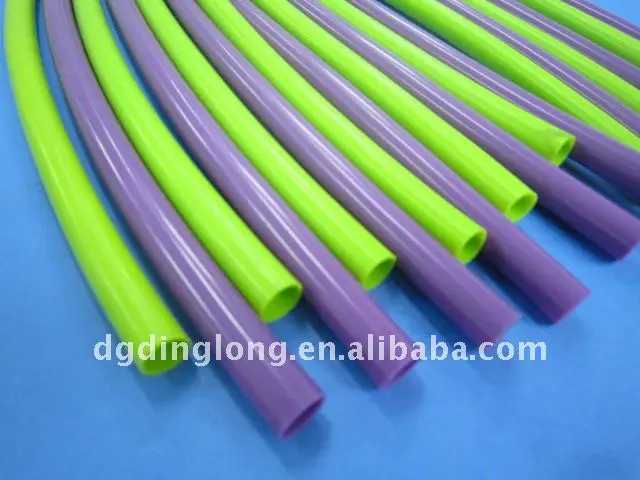

 The product such as below:









20110610131424757549.jpg 8mm.jpg






FAQ1


Q1: How long is the delivery time?
A1: It will take 20 days from the beginning to the end of the production
     It takes more than 30 business days to customize complex mechanical equipment.


Q2:What is terms of payment? MOQ?


A2:  T/T. 1 set.
Q3:How do you gurantee the machine stable operating?
A3:we do Pre-shipment test for every single piece of machine.
     we have seperate QC,delivery,sales and after-sales departments.
     also strict management process from pre-sales to after-sales.

Q4: How is your After-Sales Service?
A4:1 year warranty with 60+ oversea after-service engineers
     (oversea after-service team of high efficient,professional and enough experience
     for various Non-standard project)

Q5:How can I install my machine when it arrives?
A5: For simple and semi auto machine,DingLong would send manual instruction and teaching video.
      For complex operation , we will send the engineers overseas to help client
      installing, operating and training.





Our Services


What to provide customers with after-sales service?


 Pre-sales services:


1.Inquiry and consulting support


2.Customized design program


3.Pre-sale training: In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes


1)Correct operating mode


2)Correct maintenance way


3)Remove simple problem of our product


After-sales service:


Since the shipment date, our company freely assuring period of after-sale maintenance service is :


1)1year for mechanical part


2)6 month for electrical part


3) offer lifetime consultation on problems occurred





Company Information


Dinglong Electrical Machinery Co.Ltd. is a high-tech manufacturer specialized in designing and manufacturingwith CE&ISO9001 certificates.


Our products includ:


1.silicone strip equipment Series


2.3D Printer Filament Extruder Machines


3.LED strip Equipment series


4. Rubber Processing Machines


Since our company was founded, Over the past 10 yeas, our products have been extensively imported from Africa, Southeast Asia, Latin America, Europe and other markets.
