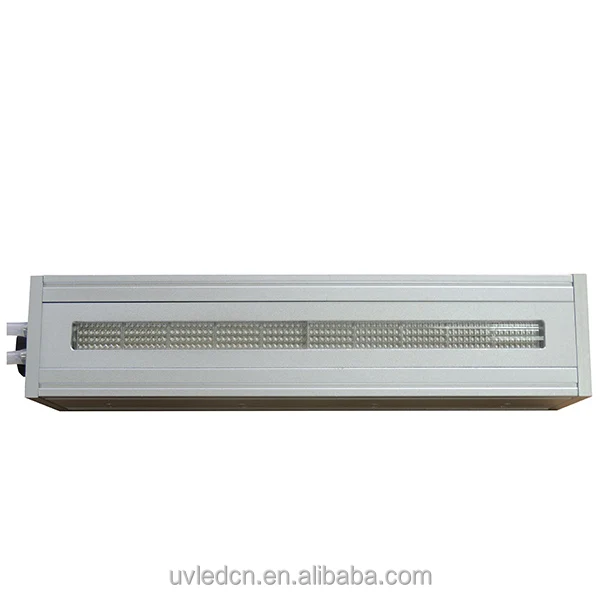

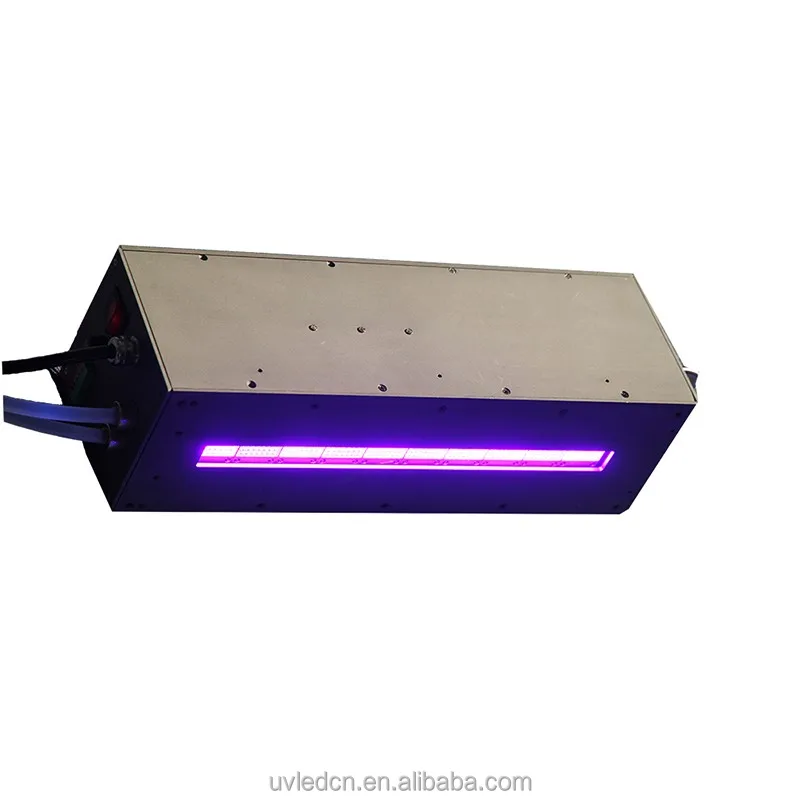

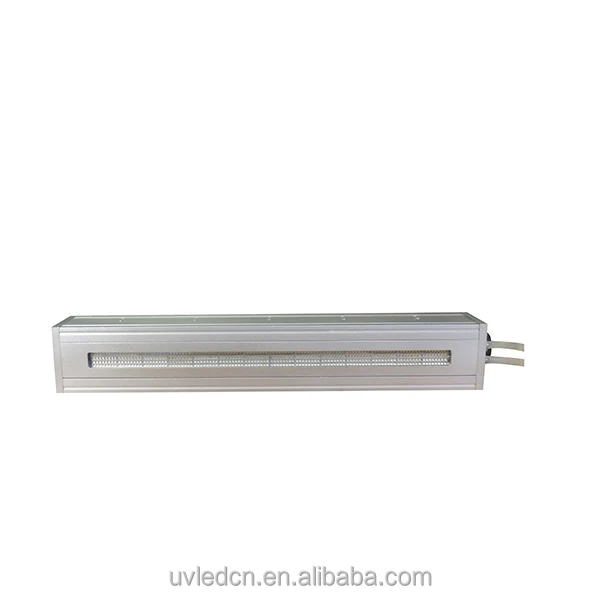

UV LED curing system ink dryer for narrow web label printer

Product Overview

Description

Lamplic have many kind of UV LED curing sytem for label printer according different requirement

Air cooling and water cooling, All-in-one design and controller outside.



Lamplic is the pioneer of All-In-One type LED curing system for Label printer.

The System integrate many test and control function. It simplify the installation process ,save the installation time, minimum the installation space . So the whole LED curing system for Label printer is concise, artistic and practical.



For all-in-one design

Input AC power directly. The LED screen display lighting time, temperature and light intensity also over temperature alarm and lamp bad alarm. The light intensity is auto-dimmable according printer speed. It also can connect PLC and controller panel outside.



 Product Specification



Model	Light area(MM)	Wavelength(NM)	Light intensity(W/CM2)	Cooling Method	Electric Power	Size L*H*W	WEIGHT
LWLA330*20	330*20	385/395	20	Water cooling	1500W
LFLA330*20	330*20	385/395	16	Air cooling	1500W
LFLC330*20	330*20	385/395	16	Air cooling	1500W
LWLA267*20	267*20	385/395	20	Water cooling	1000W
LFLA267*20	267*20	385/395	16	Air cooling	1000W
LFLC267*20	267*20	385/395	16	Air cooling	1000W



Notes:  Lamplic can produce difference lamp size according customer requirement.



Product Feature

Can dry both common UV inks and UV LED inks

Light intensity can be dimmable according printer speed

Light intensity and be adjust and display

light can on/off part or full according different print size

temperature display and over temperature control

Single UV lamp can be controlled independently

Warning while UV LED lamp bad



Product application



Lamplic's UV LED curing system have already successful install on different types of Label printer, see as follows
