265NM SMD5050 UVC светодиоды

Product Overview

Description

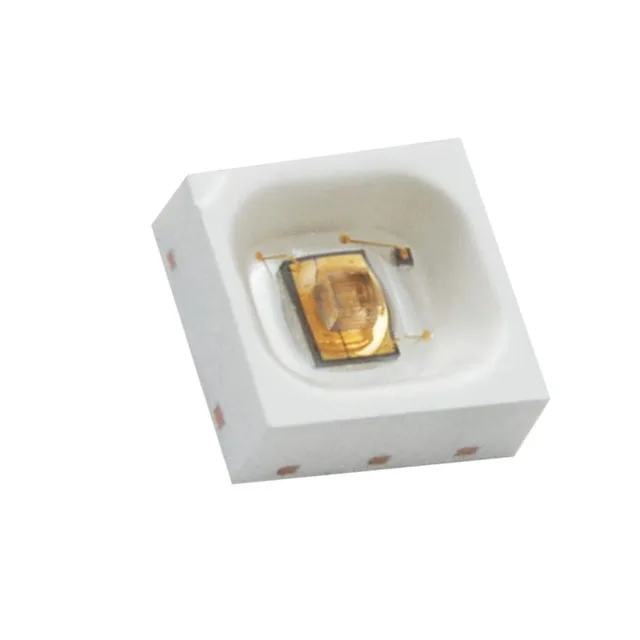

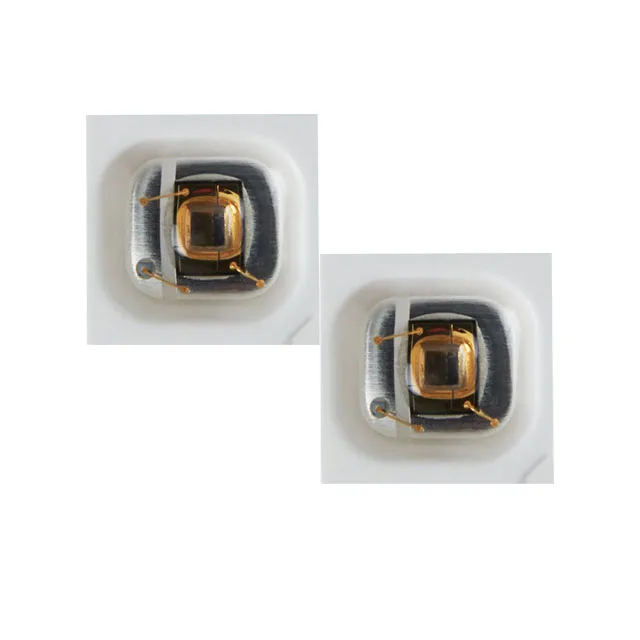

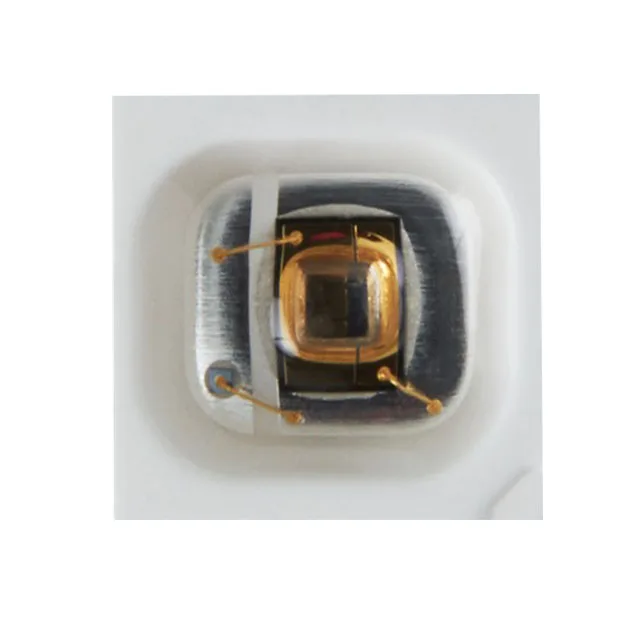

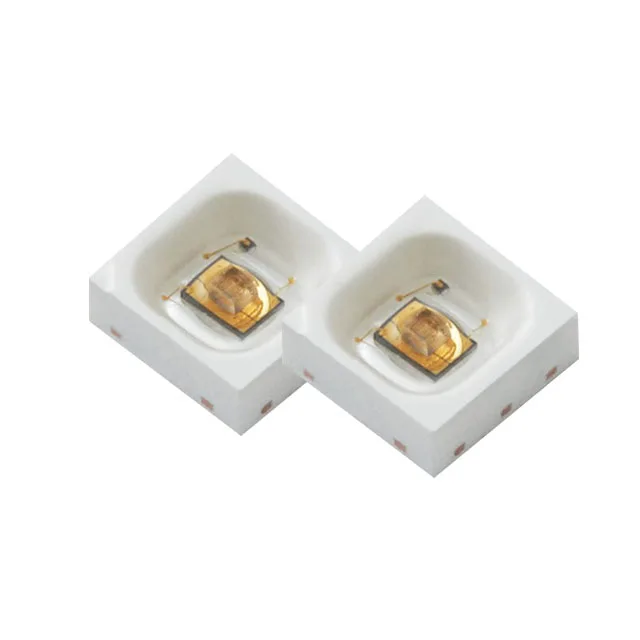

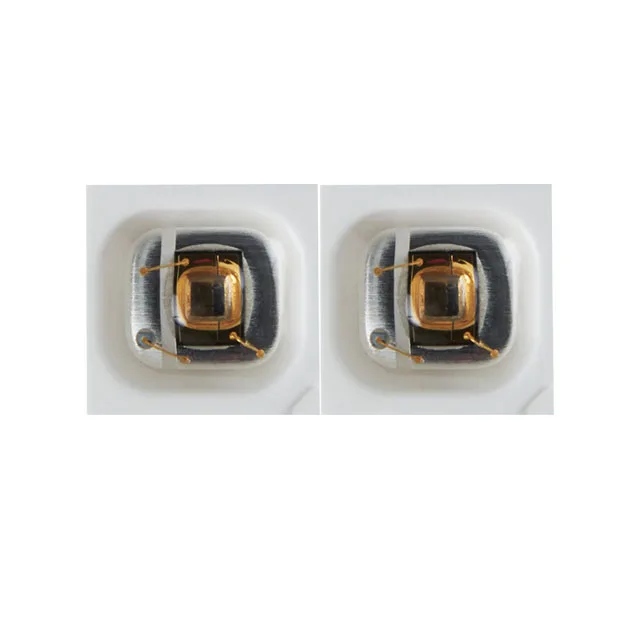

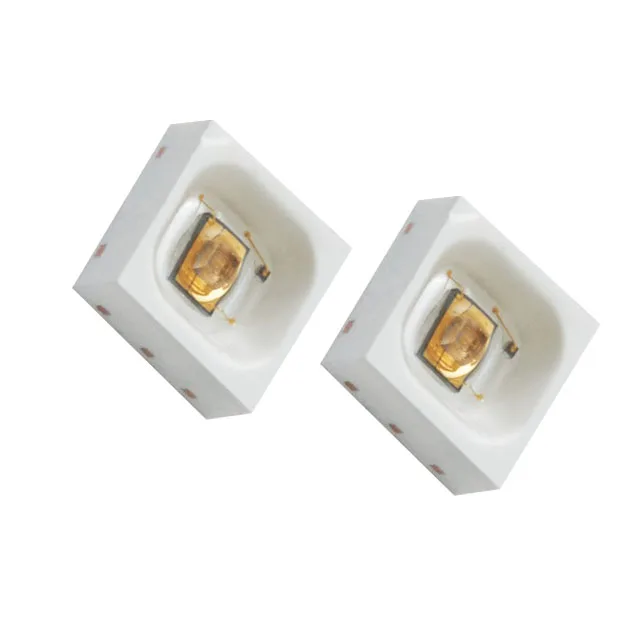

  265NM SMD5050 UVC Leds



 Typical Parameters of LEDs (T=25°C, I_F=20mA)

Part No.	Packaging Type	Working Current (mA)	Forward Voltage VF(V)	Optical Power (mW)	Viewing Angle (o)	FWHM (nm)
TH-UV265-5050-A	SMD5050	20	7.0-8.5	0.3-0.7	140	10











Electro-optical Characteristics (T=25°C;I_F=20mA)











Following the 280nm UVC LEDs, we now hav the new technology UVC LEDs, the shorter wavelength at 260nm and the UVB LEDs at 310nm.





Features :



High Sterilizing rate

Low Energy Consumption

No Polluction

Direct Sterilization

.......









Zhuhai Tianhui Electronic Co., Ltd would like to remind you of the following cautions while operating the uv leds :

1. Do not touch the surface of the led, in case to influence the normal emitting.


2. Make sure the right positive and negative pole.


3. Operating the UV LEDs with the recommended voltage


4. Do not watch closely, it is harmful to your eyes.
