Automatic Biodegradable Plastic Poly Bag making Machine
- Category: Packaging Material Making Machines >>>
- Supplier: Zhejiang Bangtai Machine Co. Ltd.
Share on (474012067):
Product Overview
Description
Banner
Product Description
Automatic Biodegradable Plastic Bag making Machine
Features:
1.Computer control over the entire process.
2.From film roll to final bag, one process flow.
3.Servo motor, makes it easy to adjust the bag length and the production speed.
4.Automatic film feeding, coordination free from tension adjustment.
5.Automatically stop when film feeding blocks or bags jam.
6.High production efficiency to save manpower and time.
7.Equipment with heat sealing and cold cutting device.
Model | SHXJ-E1000 | SHXJ-E1200 | SHXJ-E1500 |
Width of Sealing & Cutting (mm) | 50-260mm | 50-330mm | 50-400mm |
Max Length of Sealing & Cutting(mm) | 800 | 800 | 800 |
Speed of Bag-making (pc/min) | 30-130*6 | 30-130*6 | 30-130*6 |
Number of Strip (pc) | 6 | 6 | 6 |
Power of Motor (kw) | 2.2 | 3 | 4 |
Weight (Ton) | 1.3 | 1.5 | 1.8 |
Outline Dimension (L*W*H)mm | 4800*2200*1800 | 5000*2200*2000 | 5500*2200*2600 |

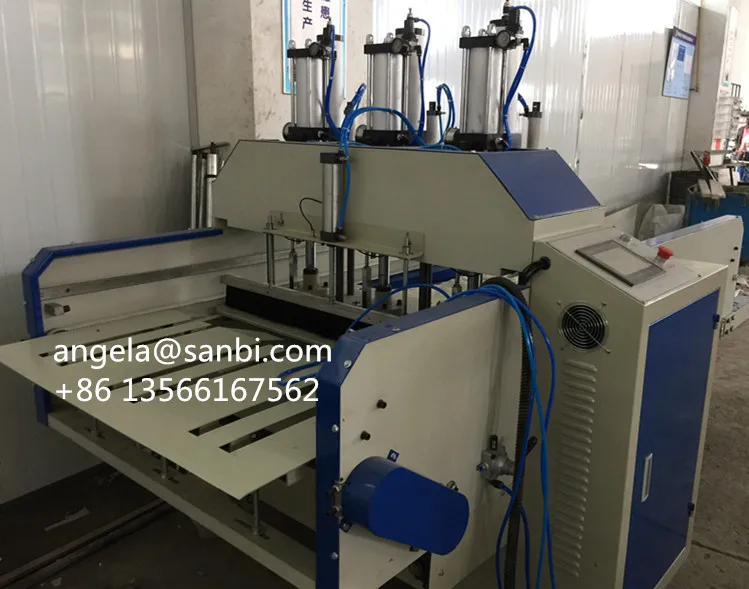

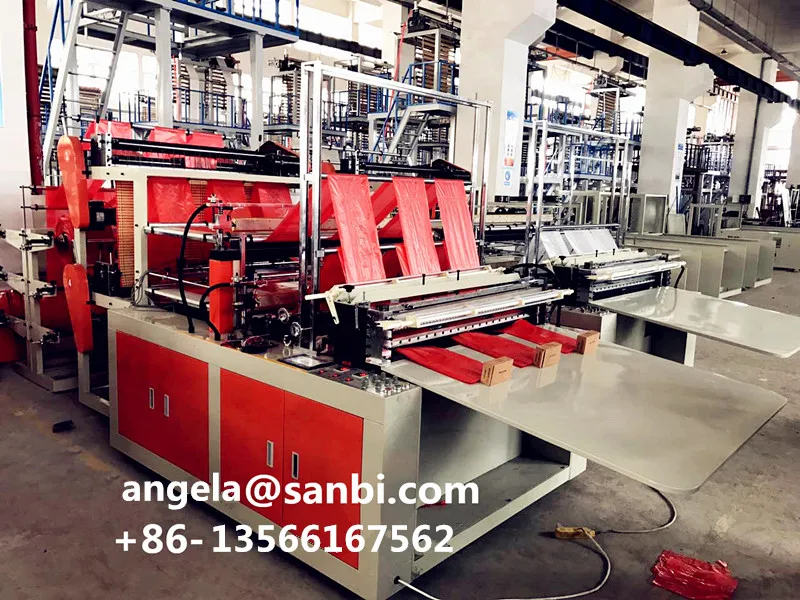

bag making machine to do the sealing and cutting unit .

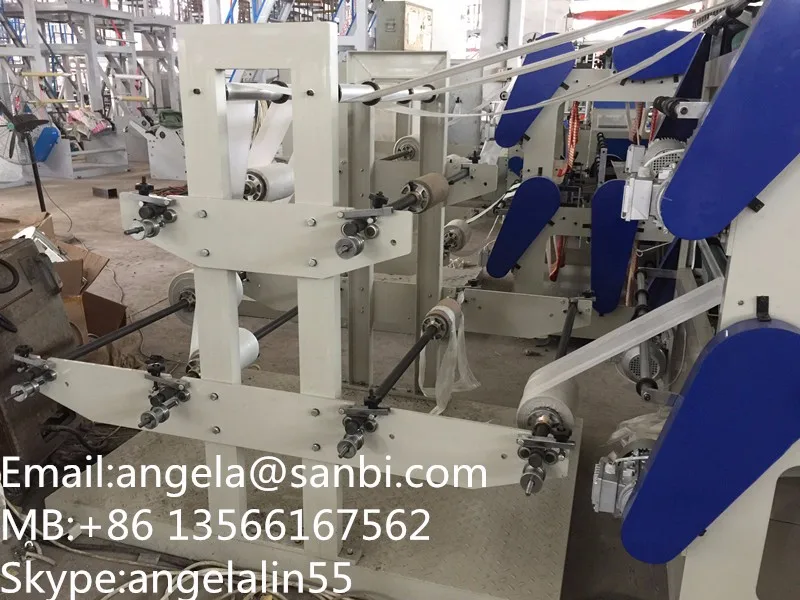

Unwinder station with 6pcs rollers

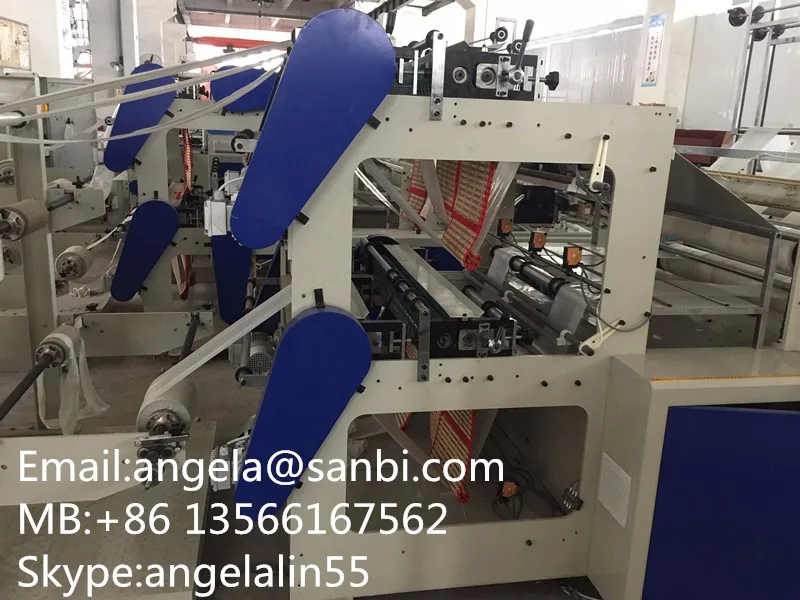

unwinder motor 6pc seperately controlling 6 rolls film

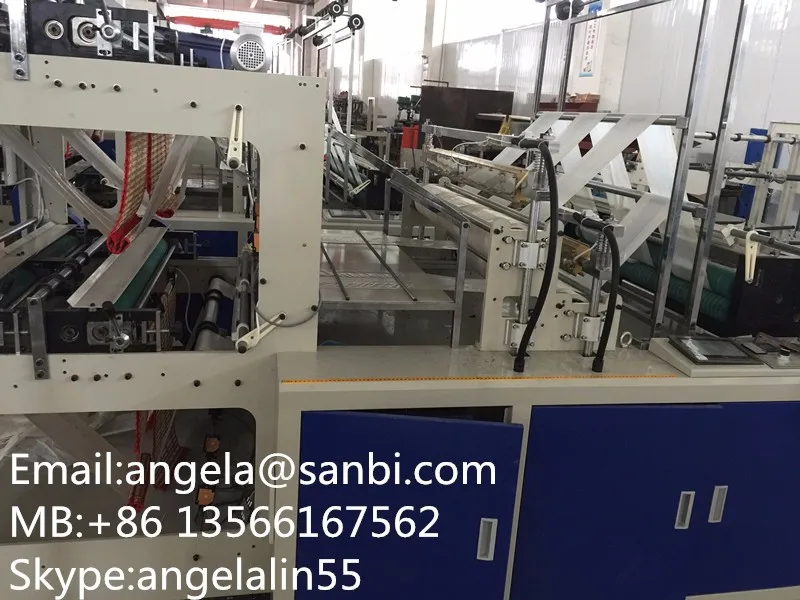

two layer structure with 2 sets sealing knife,equip with silicon sleeve .
total 1 set of Cutting knife ,it equip with PLC with touch screen to control the length ,speed , batch No and etc .
automatic punching with 3 sets punching cylinder to punch 6 pcs bag in one time.
Certifications
Recommend Products
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

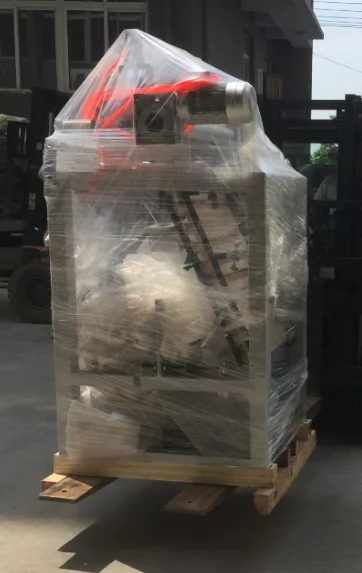

Packing & Delivery
