2022 wood processor firewood processor
US $9000-$10000

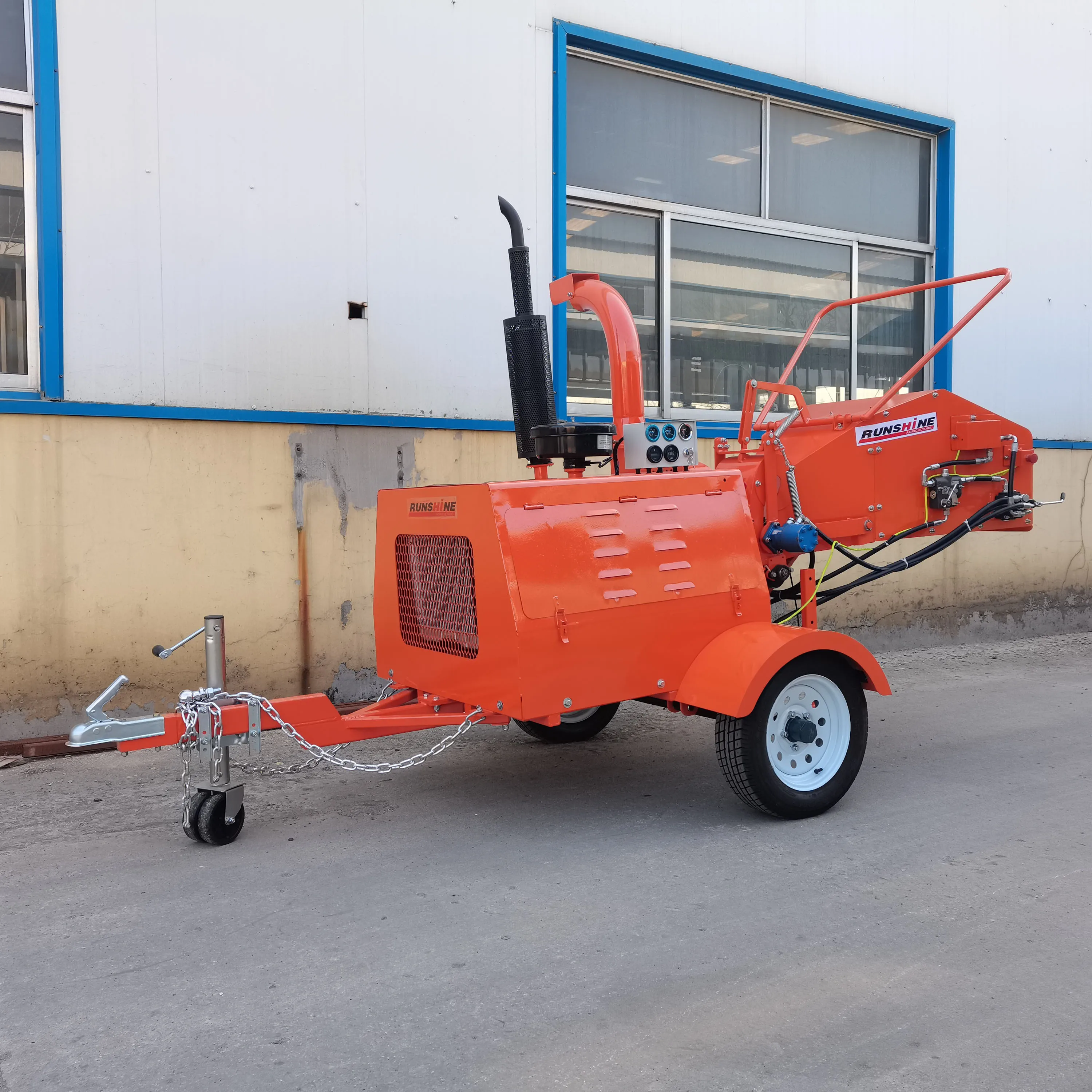

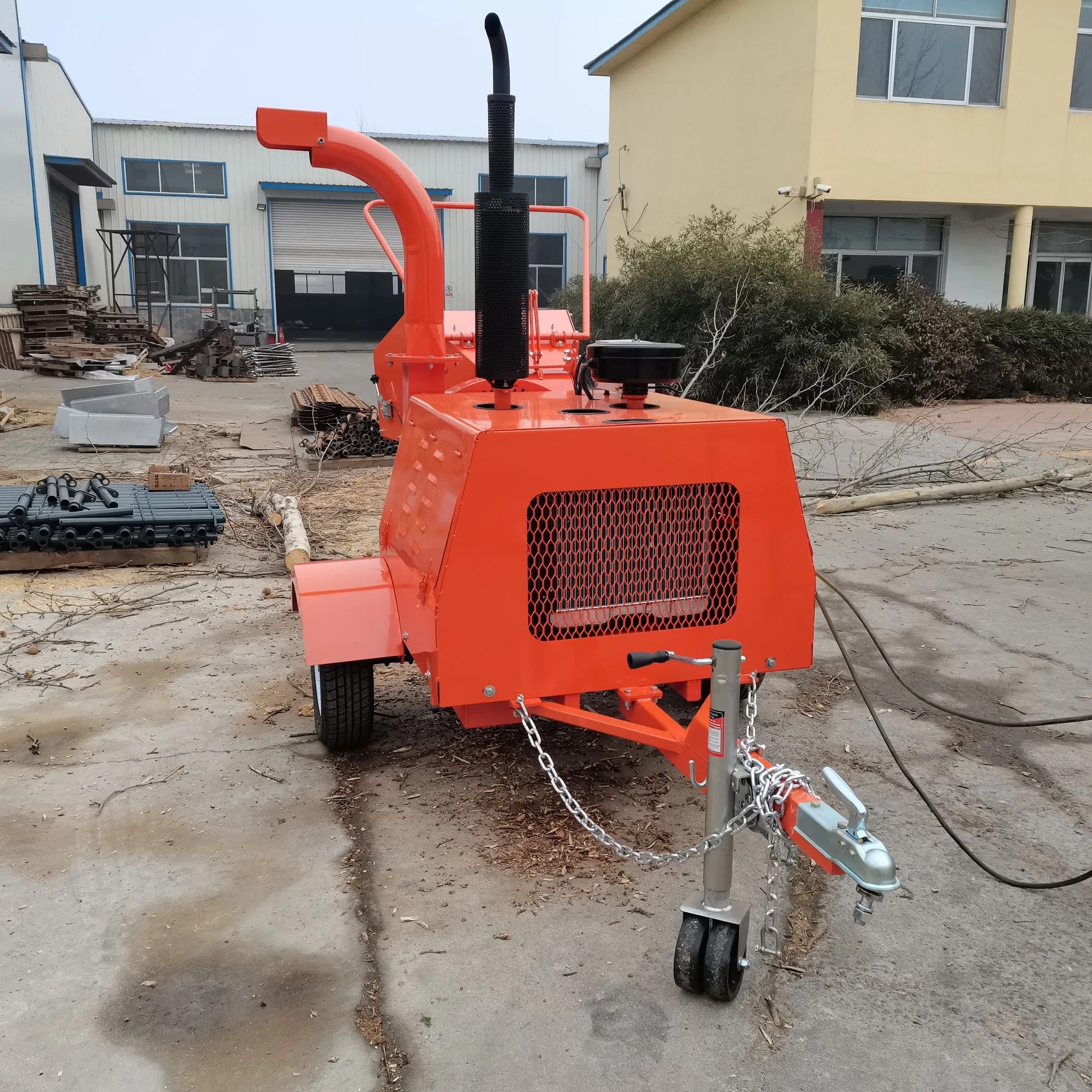

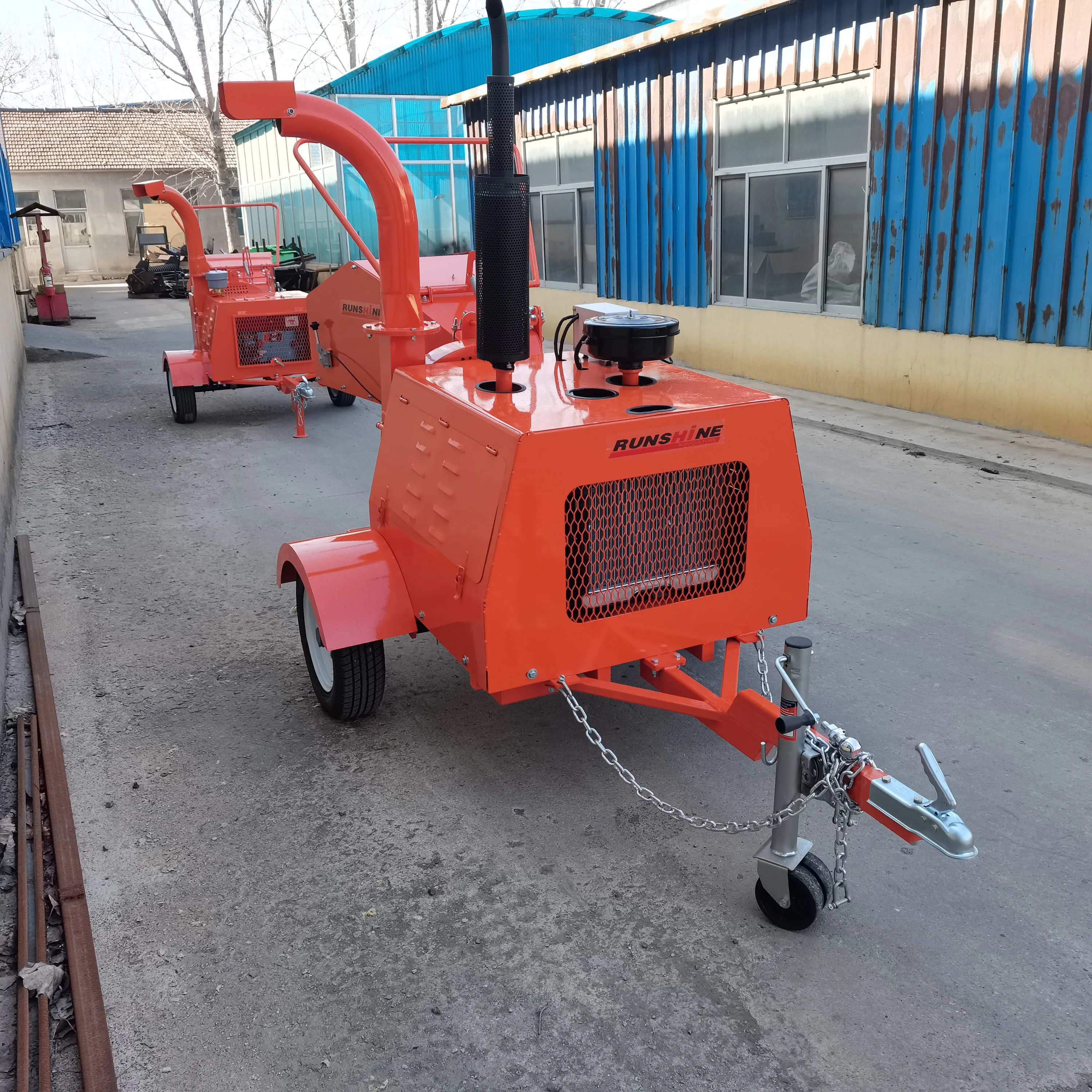

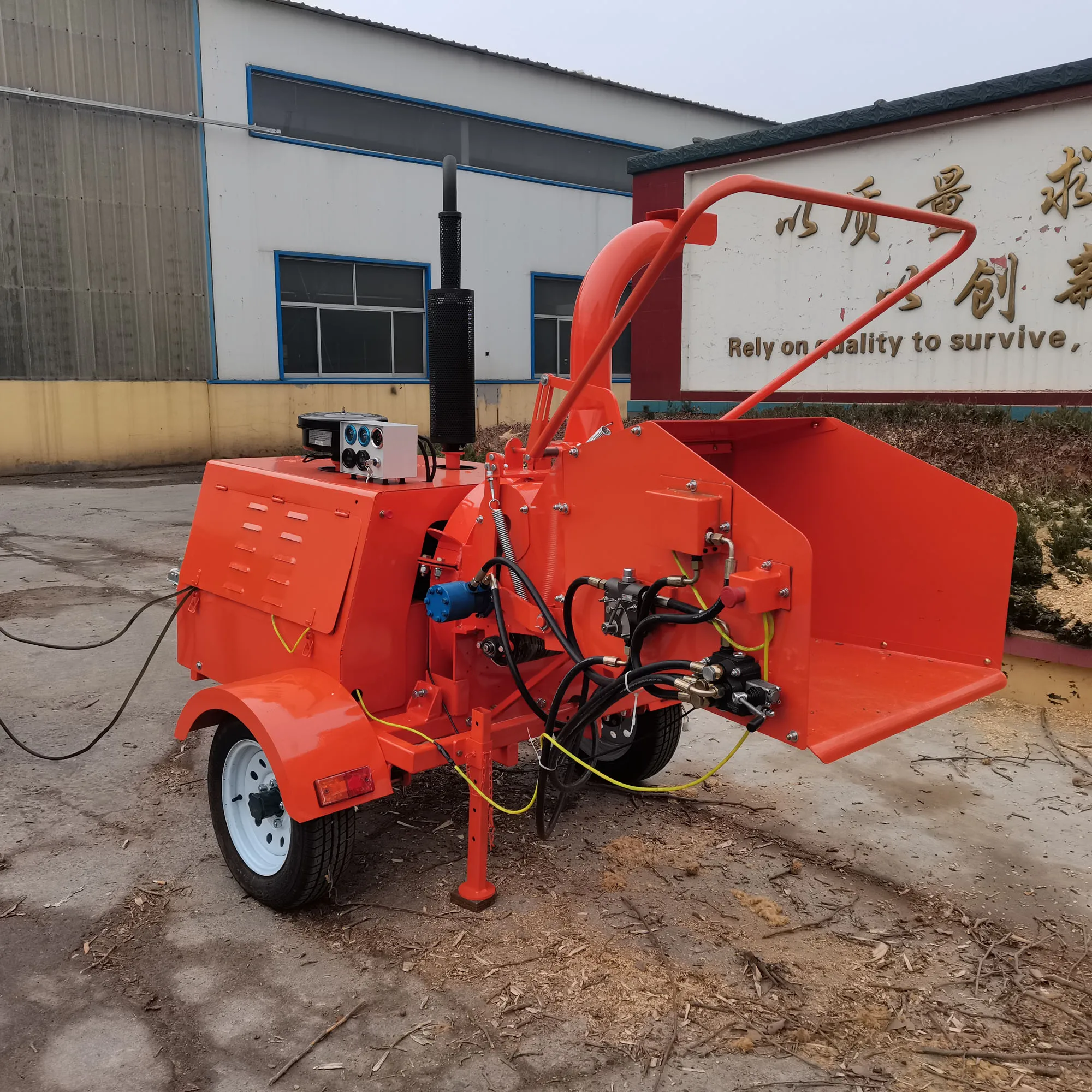

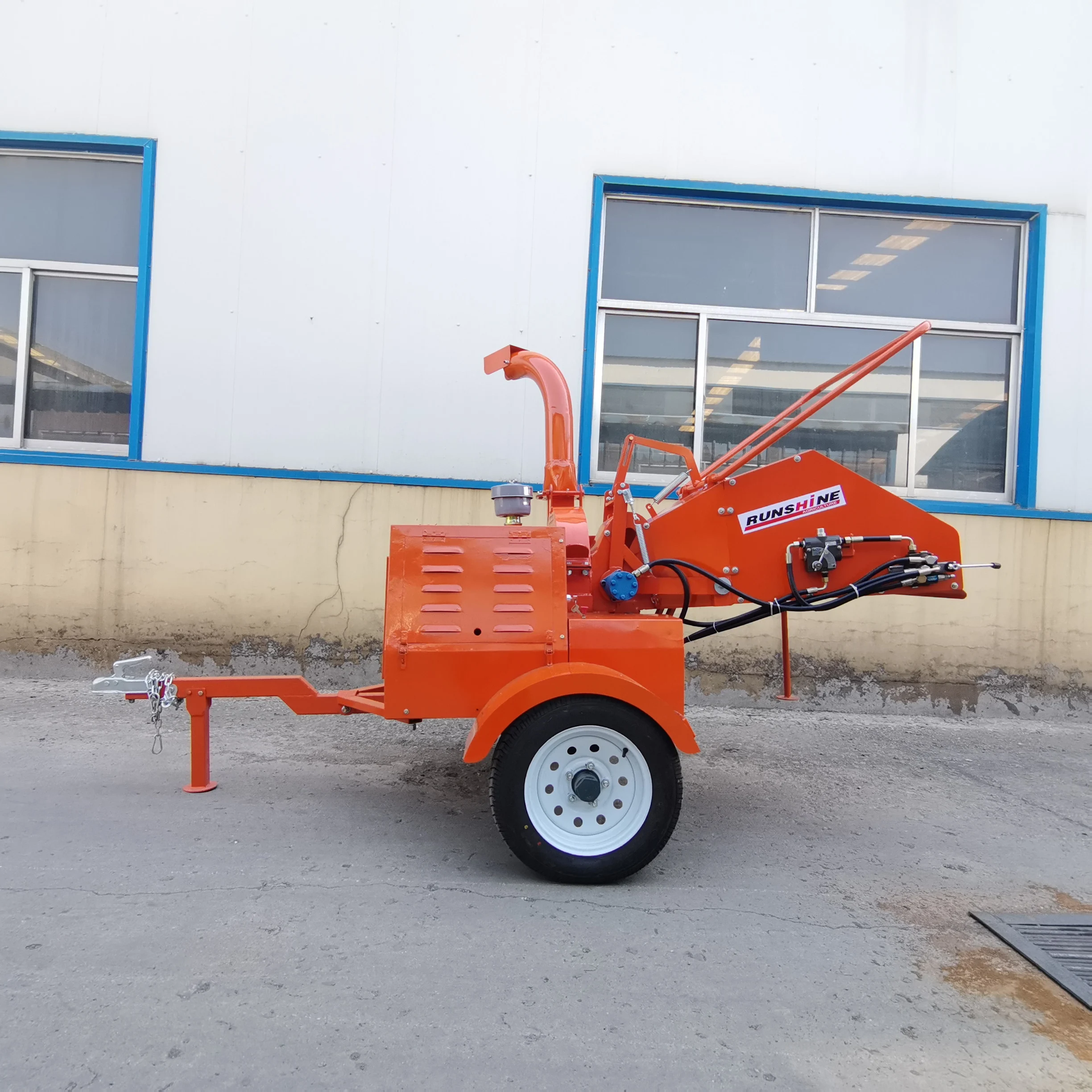

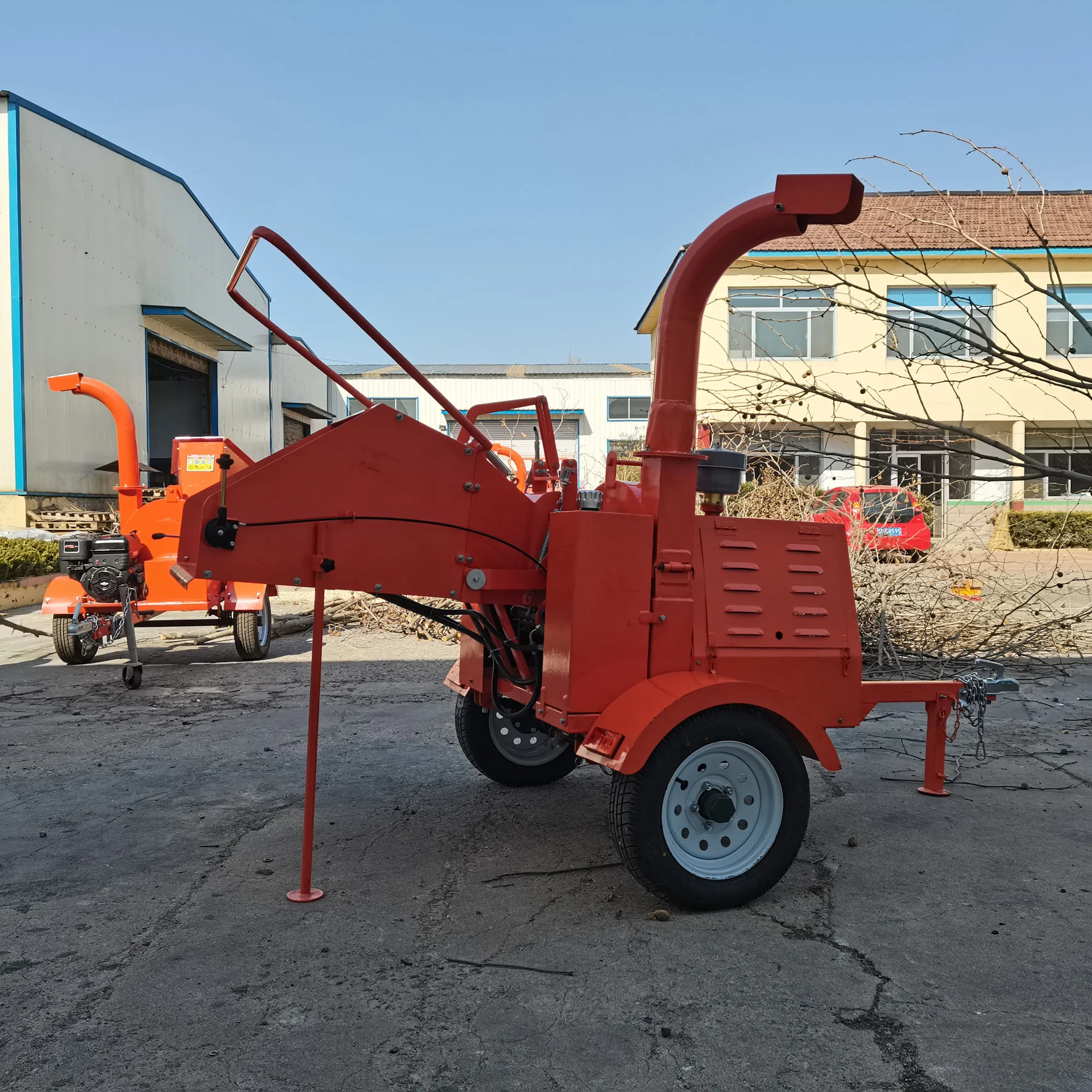

40hp wood chipper DWC 40
- Category: Forestry Machinery >>>
- Supplier: Weifang Runshine Machinery Co. Ltd.
Share on (476917345):
Product Overview
Description
CE approvd wood shredder mobile wood chipper
The mobile wood chipper employ steel disc with rectangle blades mounted upon it and fans upon the other side. While powered by engines, the disc will rotates. the blades cut the wood branch into pieces and the fans blow the chips out from chute.
TECHNICAL PARAMETER
Model | DWC-40 | |
Engine
| model | Changchai 40HP diesel engine |
type | Four cylinders,Horizontal,four-stroke | |
Rated power | 25.7KW/2350rpm | |
Fuel consumption rate | <238g/KW.h | |
Engine oil consumption | <1.5g/KW.h | |
Cooled style | Water-cooled | |
start | Electric start | |
Feeding system | hydraulic | |
Chipper capability | 200mm | |
Flywheel diameter | 640mm | |
Flywheel weight | 85kgs | |
Blades number | 1 stationary blade, 2 rotary blades | |
Feed Hopper inner Opening | 200*220mm | |
Discharge Hood Height | 2000mm | |
Rated RPM | 1280 | |
Weight | 800kgs | |
Working efficiency | 9-13cbm/h | |
PICTURES
