Высокое качество, фабрика, 100 Вт, 909 960 МГц, 6 м, vhf, устройство для сбора полости

Высокое качество, фабрика, 100 Вт, 909 960 МГц, 6 м, vhf, устройство для сбора полости

Name: Высокое качество, фабрика, 100 Вт, 909 960 МГц, 6 м, vhf, устройство для сбора полости
SKU: 483930625
Availability: InStock

Price:

Quantity:

Product Description

Model:DX-909-960-100-B6
Item	Technical
Item	RX	TX
Frequency	909~915 MHz	954~960 MHz
Bandwidth	6 MHz	6 MHz
Insertion Loss	≤1.8(Limit temperature:≤2.0)	≤1.8(Limit temperature:≤2.0)
Ripple	≤0.8(Limit temperature:≤1.0)	≤0.8(Limit temperature:≤1.0)
Isolation	≥88 dB	≥88 dB
Rejection	≥20@Working band from2.5MHz outside (≥17Limit temperature) ≥30d@Working band from5MHz ≥80@960~3000MHz ≥80@300~835MHz	≥20@Working band from2.5MHz outside (≥17Limit temperature) ≥30@Working band from5MHz ≥80@300~909MHz ≥80@1010~3000MHz
Coupling	30±2.0	30±2.0
intersect Rejection	≥62 dB
VSWR	≤1.25
Impedance	50 Ω
Power	100 W
Connector Type	TX/RX:SMA-F;ANT:N-F;TEST:SMA-F
Temperature	-30~+60°C
Size	174×140×40(Don't include tuning screw)

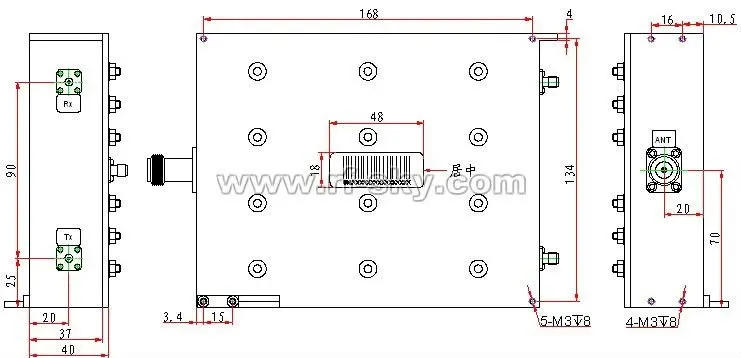

DX-909-960-100-B6-1

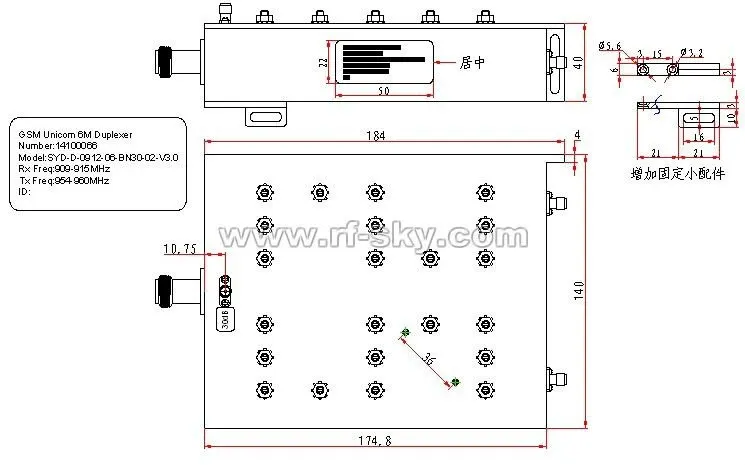

DX-909-960-100-B6-2
