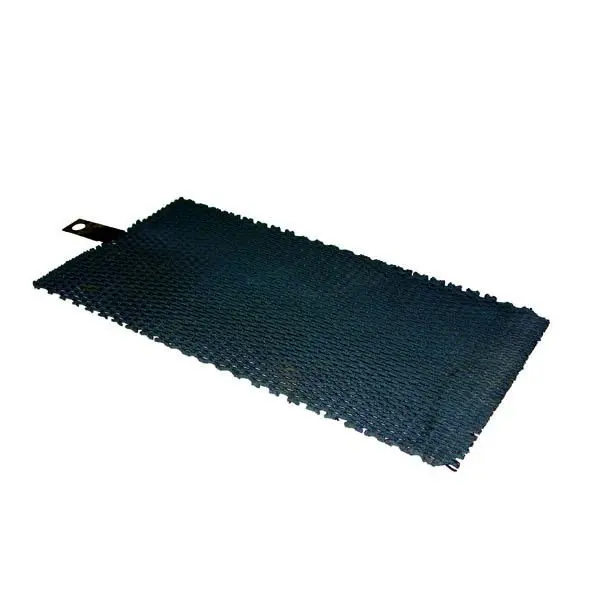

Lead Dioxide Coated Titanium Bar Anode

Product Overview

Description

Name:	PbO2 Lead Dioxide Coated Titanium Mesh Anode
Item No.	MD-069
Specifications:	Floor Metal: Gr1, Gr2,  Coating Material: β-PbO2+X Coating Thickness: 0.5-1.5mm Current Density: <5000A/m2 Vitriol Concentration: <30% Fluorine Ion Concentration: <50mg/L Temperature Scope: <80°C PH Value: 1-12
Features:	1. High erosion-resisting 2. High current efficiency 3. Long durability 4. Floor can circle after electrodes lose activity 5. No pollution to solution
Application:	1. Electrolytic synthesis of organic 2. Electrolytic synthesis of perchlorate 3. Regeneration and cycle of oxidant 4. Electrodialysis 5. Plating industry 6. L-threonine



Name: PbO2 Lead Dioxide Coated Titanium Bar Anode

Item No.: MD-069

Specifications:

Floor Metal: Gr1, Gr2, Ta, Nb

Coating Material: β-PbO2+X

Coating Thickness: 0.5-1.5mm

Current Density: <5000A/m2

Vitriol Concentration: <30%

Fluorine Ion Concentration: <50mg/L

Temperature Scope: <80°C

PH Value: 1-12



Features:

1. High erosion-resisting

2. High current efficiency

3. Long durability

4. Floor can circle after electrodes lose activity

5. No pollution to solution



Application:

1. Electrolytic synthesis of organic

2. Electrolytic synthesis of perchlorate

3. Regeneration and cycle of oxidant

4. Electrodialysis

5. Plating industry

6. L-threonine



Introduction:

In electrochemistry, the anode is where oxidation occurs and is the positive polarity contact in an electrolytic cell. At the anode, anions (negative ions) are forced by the electrical potential to react chemically and give off electrons (oxidation) which then flow up and into the driving circuit. Mnemonics: LEO Red Cat (Loss of Electrons is Oxidation, Reduction occurs at the Cathode), or AnOx Red Cat (Anode Oxidation, Reduction Cathode), or OIL RIG (Oxidation is Loss, Reduction is Gain of electrons), or Roman Catholic and Orthodox (Reduction - Cathode, anode - Oxidation), or LEO the lion says GER (Losing electrons is Oxidation, Gaining electrons is Reduction)

This process is widely used in metals refining. For example, in copper refining, copper anodes, an intermediate product from the furnaces, are electrolysed in an appropriate solution (such as sulfuric acid) to yield high purity (99.99%) cathodes. Copper cathodes produced using this method are also described as electrolytic copper.

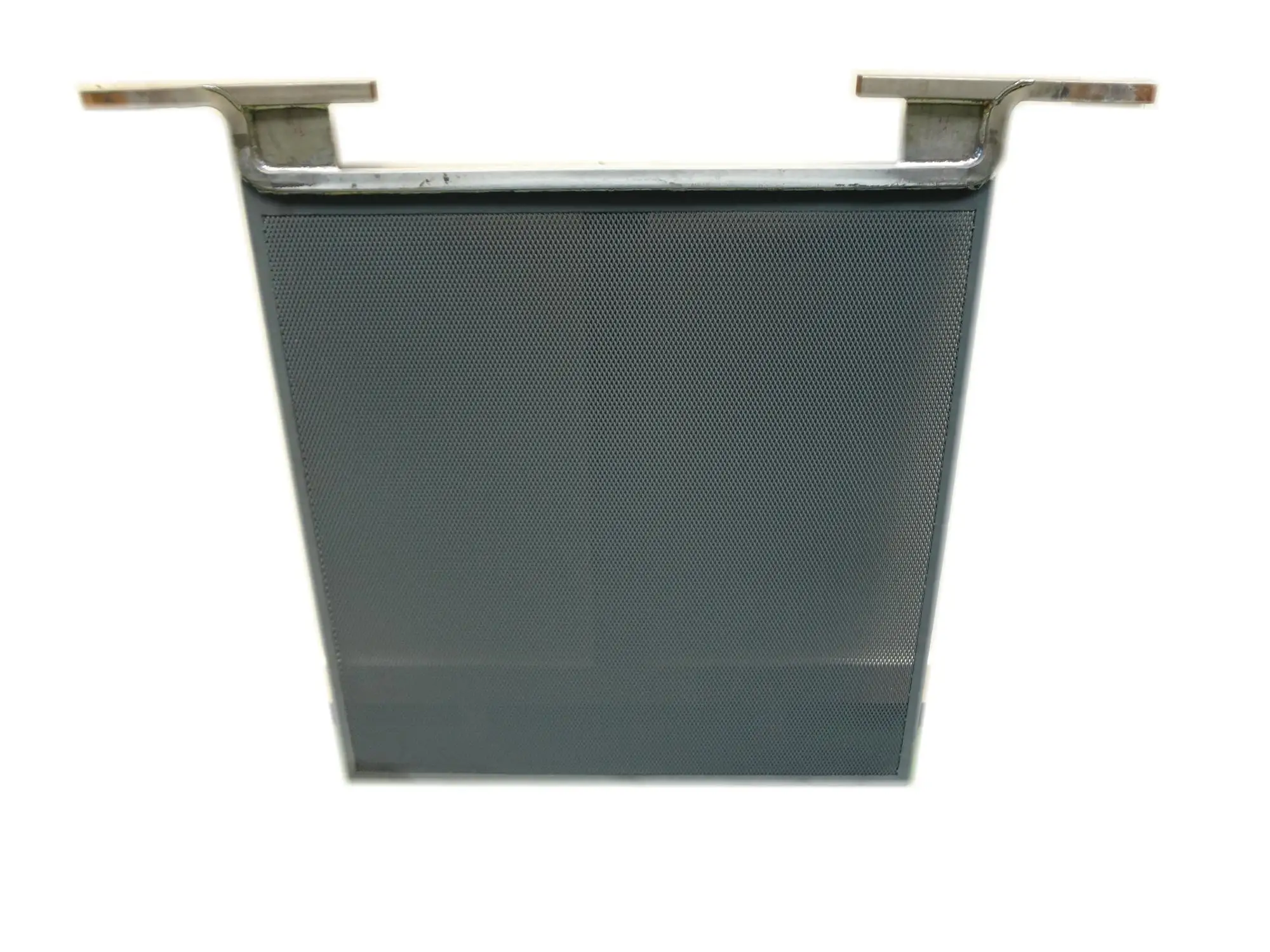

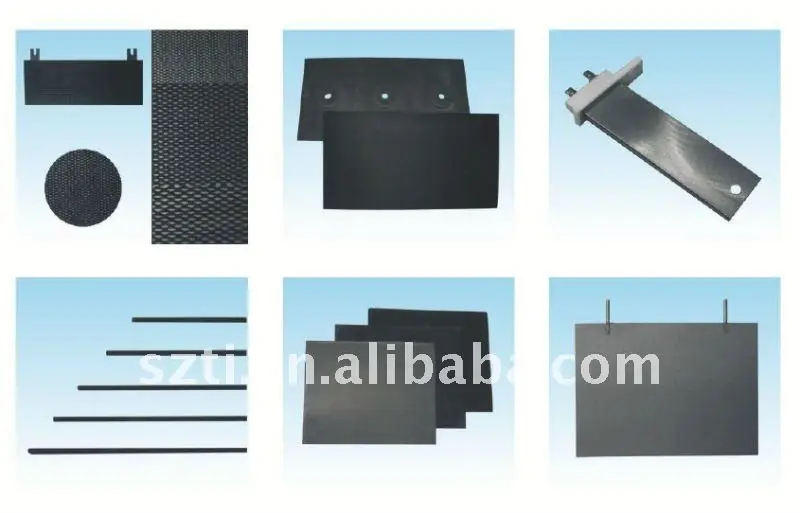

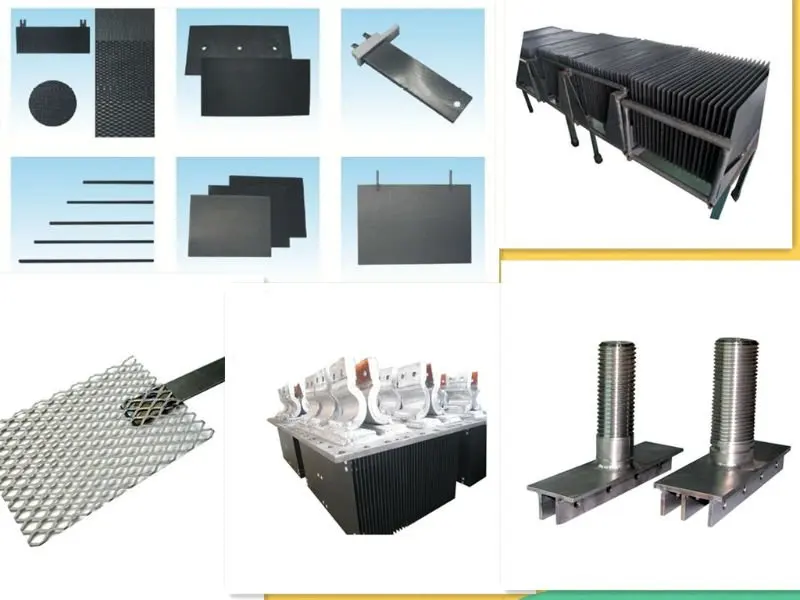

Item's photos:















SUZHOU FENGGANG TITANIUM PRODUCTS AND EQUIPMENT MANUFACTURING CO.,LTD

ADD:NO.368,QIANQIAO RD,FENGQIAO TOWN,NEW DISTRICT,SUZHOU,CHINA

TEL: 0086-512-66629668









We warmly welcome the opportunity of quoting on your needs, whether your requirement is large or small.
