led uv curing system offset printing uv lamp dryer for sheet fed offset press

Product Overview

Description

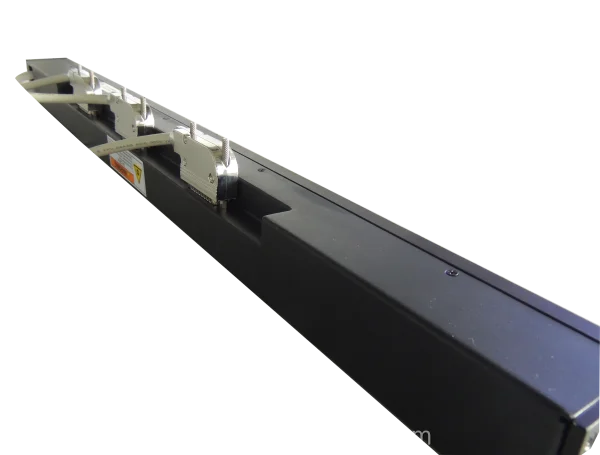

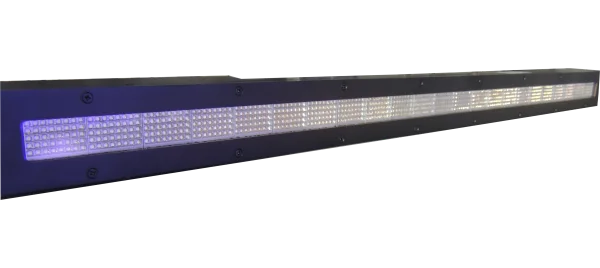

Lamplic's UV LED curing system use seamless splice design, we can produce different size use our stand UV LAMP, also easy for repair and replace. The Max light intensity can be 20W/cm2, the max light intensity can be 6.5W/cm2 at the distance 7MM.





Product Specification



Model	Light area(MM)	Wavelength(NM)	Work distance(MM)	Light intensity(W/CM2)	Cooling Method	Electric Power
LW790*20         LW1050*20	790*20         1050*20	385/395NM	10MM	20	Air/Water cooling	4000W         5600W
			30MM	14
			50MM	9.7
			70MM	6.5
			10MM	20
			30MM	14
			50MM	9.7
			70MM	6.5



Notes:  Lamplic can produce difference lamp size according customer requirement.



 Product Feature

1. High light intensity, can meet the high speed of offset printer. Our UV led curing system can curing well under 10,000sheets/hour

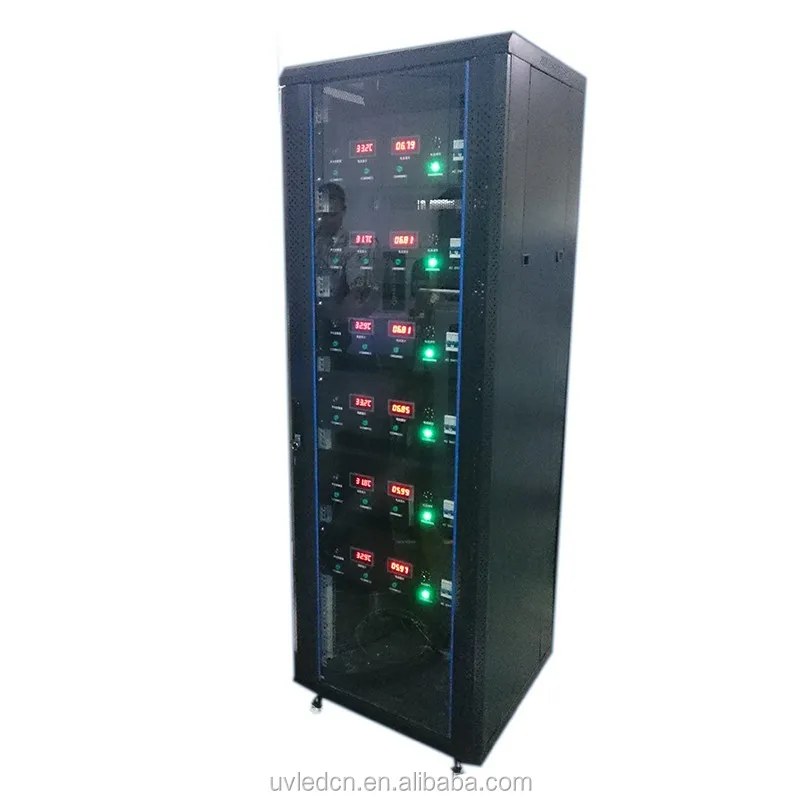

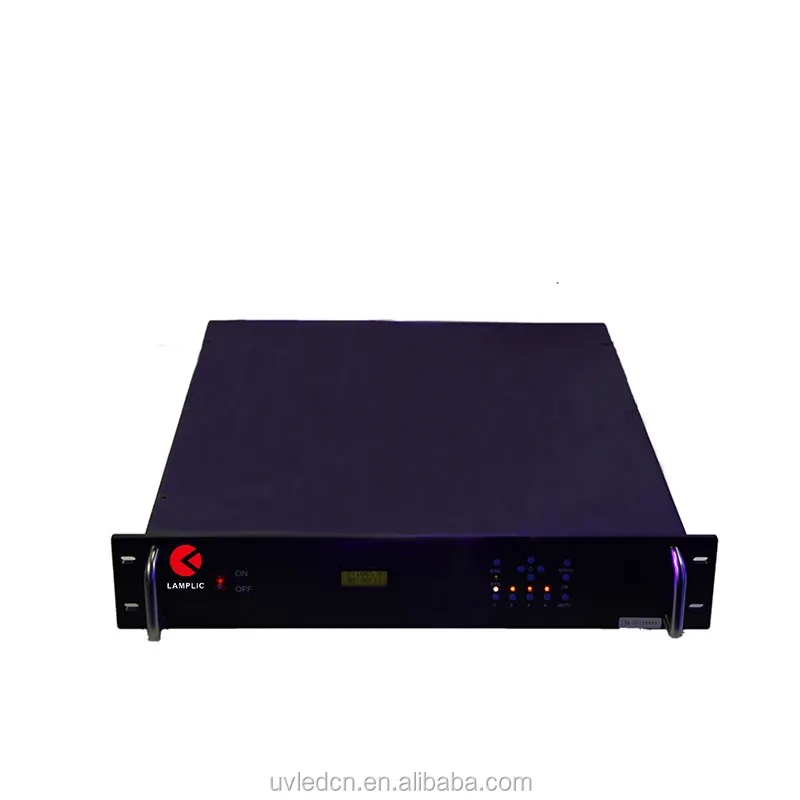

2.   High quality and convenient controller, easy installation and work for different offset printer.



Product application





Lamplic's UV LED CURING system have already successful used in deferent models of offset printer. Including the bellowed model but not all

Man Roland: Roland 500, Roland 700

Heiderberg: CD102,CD105,CD740,MO650

Komori: L440, L428,L429
