High Precision U Shaped Brushless 1590N Coreless Linear Motor
US $528.00-$1020
60ST M01330 400W 220V 3000rpm 1.27nm ac electric motor for printing machine
- Category: AC Motor >>>
- Supplier: Guangzhou Weide Electric Machinery Co. ltd [Guangdong China]Guangzhou
Share on (488423628):
Product Overview
Description
60ST-M15025 400w 220V 3000rpm 1.27nm ac electric motor for printing machine or other cnc system

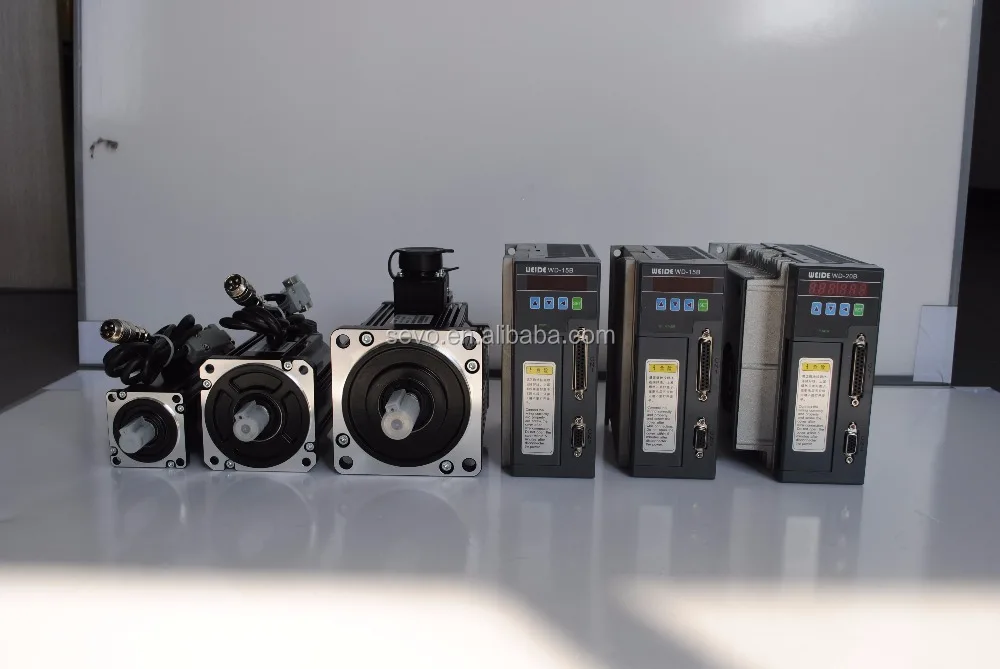

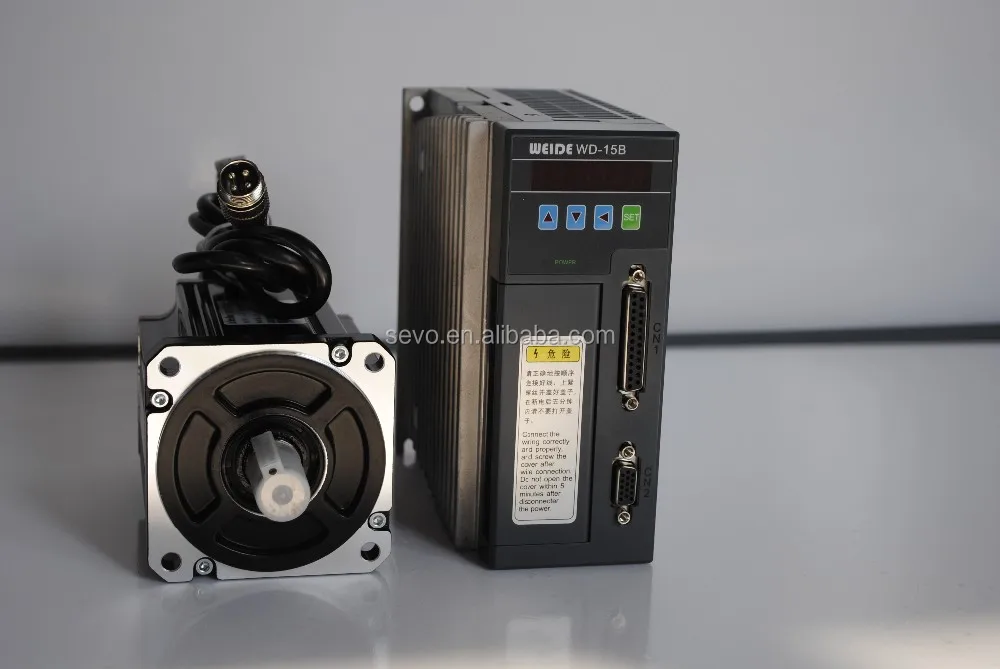

The price is included a set of servo motor and drive.Should you want to have the seperated price, please kindly
contact us!
Selling Points
High speed and torque
Highly stable
Low noise, low vibration
High precision
Beautiful appearance, easy installation
High quality
motor model | 60ST-M00630 | 60ST-M01330 |
Rated power (W) | 200 | 400 |
Rated voltage (V) | 220 | 220 |
Rated current (A) | 1.2 | 2.8 |
Rated speed (rpm) | 3000 | 3000 |
Rated torque (N.m) | 0.637 | 1.27 |
Peak torque (N.m) | 1.91 | 3.9 |
Voltage constant (V/1000r/min) | 30.9 | 29.6 |
Torque coefficient (N.m/A) | 0.53 | 0.45 |
Rotor inertia (Kg.m2) | 0.175×10-4 | 0.29×10-3 |
Phase Resistance(Ω) | 6.18 | 2.35 |
Phase Inductance (mH) | 29.3 | 14.5 |
Machanical time-constant (ms) | 4.74 | 6.17 |
Weight(Kg) | 1.16 | 1.63 |
