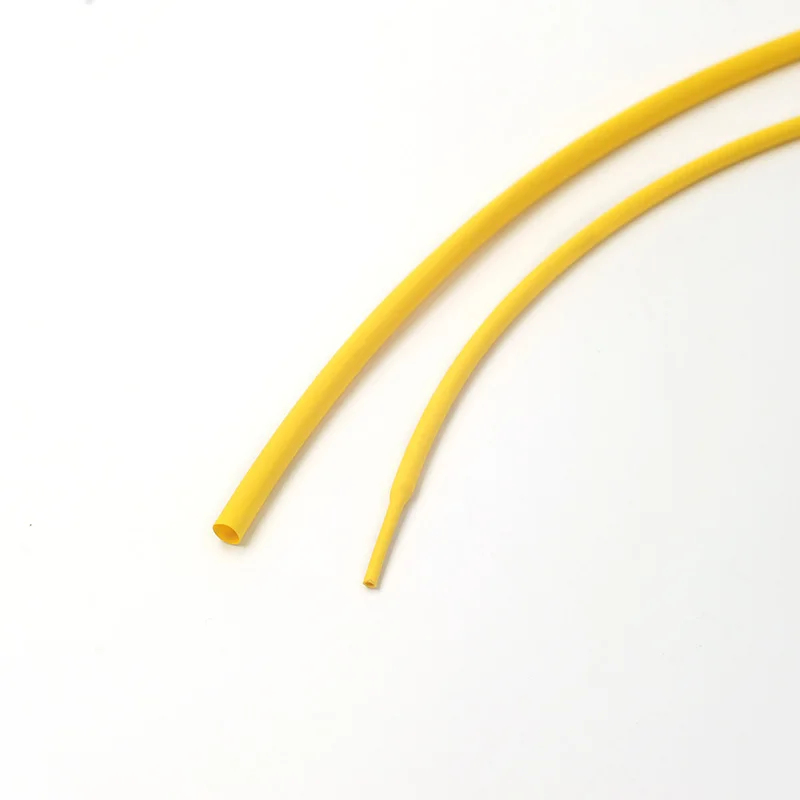

Flexible Flame Retardant Rohs Standard Heat Shrinkable Tubing Colored Polyolefin Heat Shrink Tube PE Heat Shrinking Tube
- Category: Insulation Materials & Elements >>>
- Supplier: Guangzhou Kaiheng K&S Co. Ltd.
Share on (494041448):
Product Overview
Description
UL Standard Heat Shrinkable Tubing
1.Application

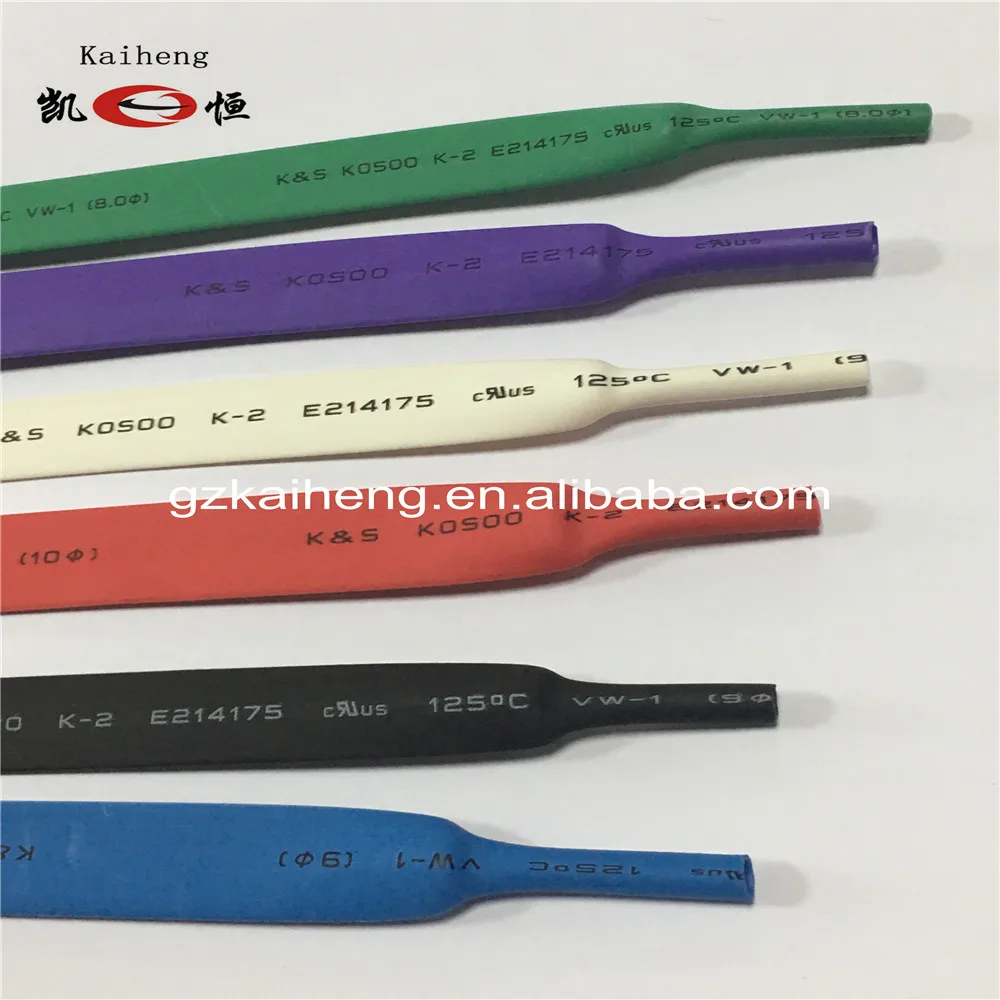

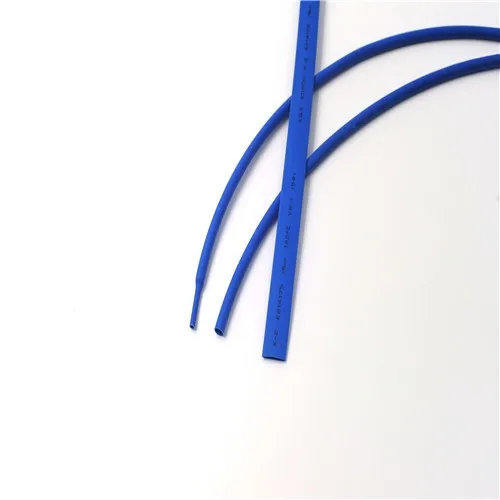

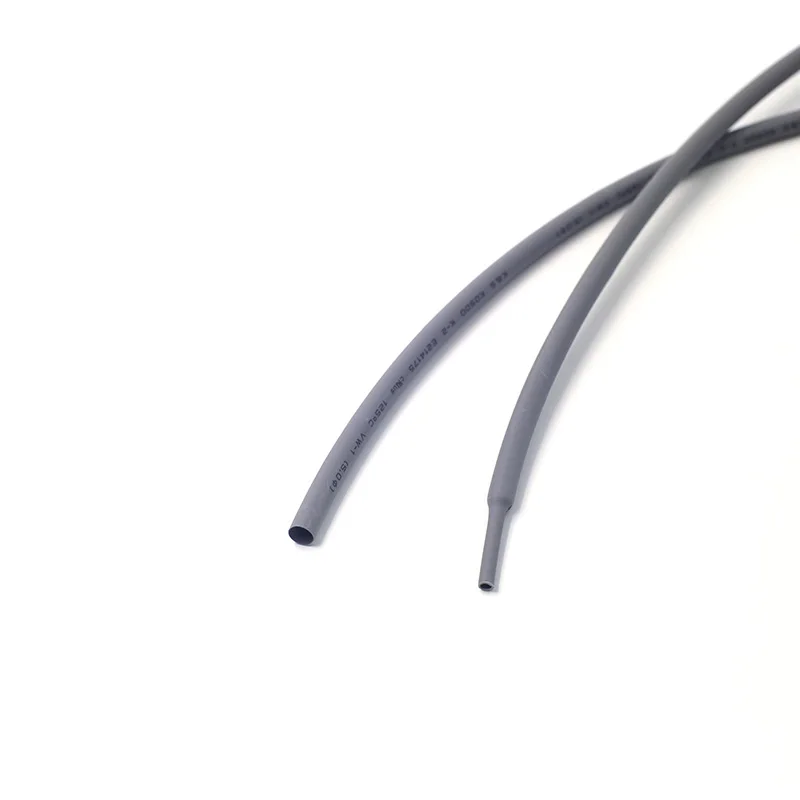

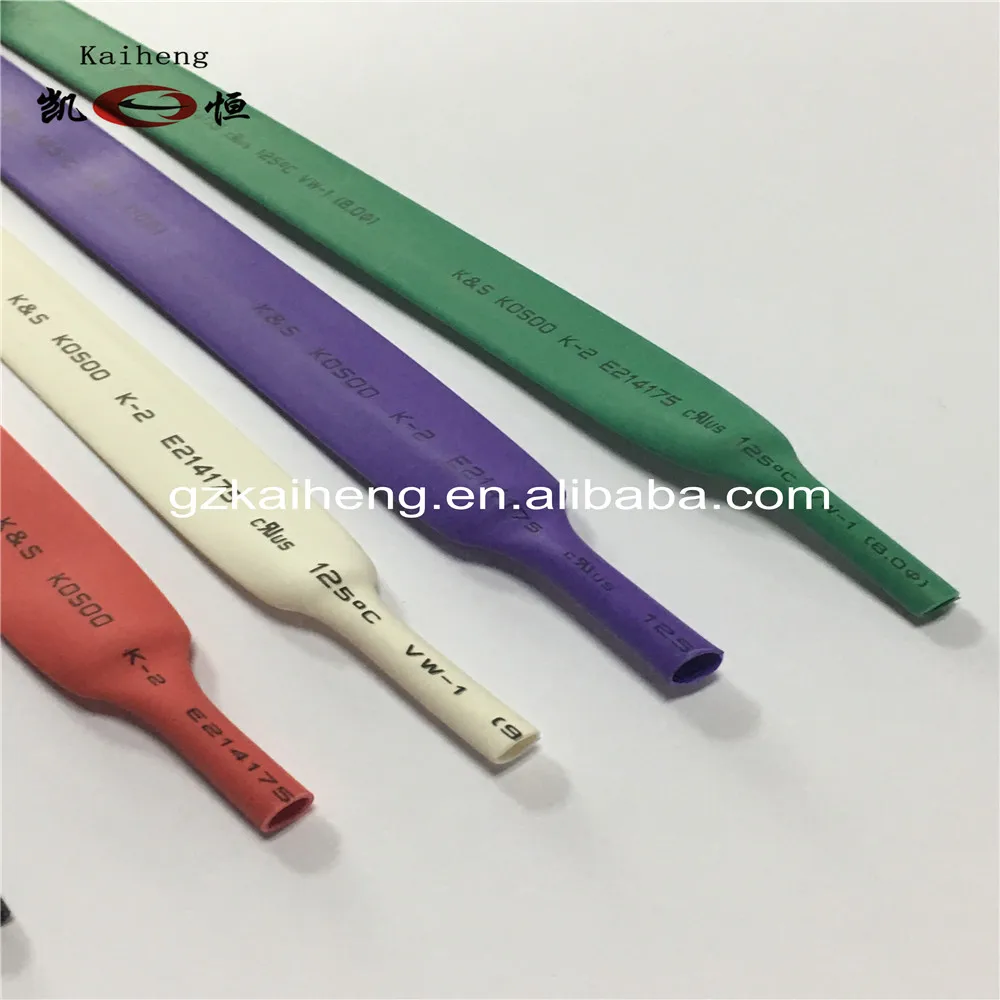

KOSOO K-2 is environment friendly, flexible, flame-retardant, irradiated crosslinking heat-shrinkable modified polyolefin tubing. Unlike other typical flame-retarant tubings,This high-reliability product is widely used for insulation or jacketing of wire harness, strain relief of wire terminations and connections, bundling of wire harness, protection of soldered points, insulation and capsule of electronic components, anti-corrosive protection, identification and color coding,
2.Features/Benefits
·Shrink ratio: 2:1.
·Very flexible, highly flame-retardant.
·Low shrink temperature.
·Good thermal stability.
·Excellent physical, chemical and electrical properties.
3.Operating Temperature Range
Operating temperature range: -55°C~125°C
Minimum shrink temperature: 70°C
Minimum full recovery temperature: 110°C
4.Standards/Approvals
UL224 E214175 125 600V VW-1
CSA C22.2 210475 125 600V VW-1
AMS-DTL-23053/5 class 1 and class 3
5. Product sizes
Size (inch) | Inside diameter (mm/inch) | Wall thickness (mm/inch) | Standard length (m/spool) | |
As supplied(min.) | After recovery(max.) | After recovery | ||
3/64 | 1.20.046 | 0.60.023 | 0.40±0.080.016±0.003 | 200 |
1/16 | 1.60.063 | 0.80.031 | 0.43±0.080.017±0.003 | 200 |
3/32 | 2.40.093 | 1.20.046 | 0.51±0.080.020±0.003 | 200 |
1/8 | 3.20.125 | 1.60.062 | 0.51±0.080.020±0.003 | 200 |
3/16 | 4.80.187 | 2.40.093 | 0.51±0.080.020±0.003 | 100 |
1/4 | 6.40.250 | 3.20.125 | 0.64±0.080.025±0.003 | 100 |
3/8 | 9.50.375 | 4.80.187 | 0.64±0.080.025±0.003 | 100 |
1/2 | 12.70.500 | 6.40.250 | 0.64±0.080.025±0.003 | 100 |
3/4 | 19.10.750 | 9.50.375 | 0.76±0.080.030±0.003 | 50 |
1 | 25.41.000 | 12.70.500 | 0.89±0.120.035±0.005 | 50 |
1 1/4 | 31.81.250 | 15.90.625 | 1.02±0.150.040±0.006 | 50 |
1 1/2 | 38.11.500 | 19.10.750 | 1.02±0.150.040±0.006 | 50 |
2 | 50.82.000 | 25.41.000 | 1.14±0.160.045±0.007 | 50 |
Metric size: ID from 1.0mm to 150mm, all available.
6.Ordering Information

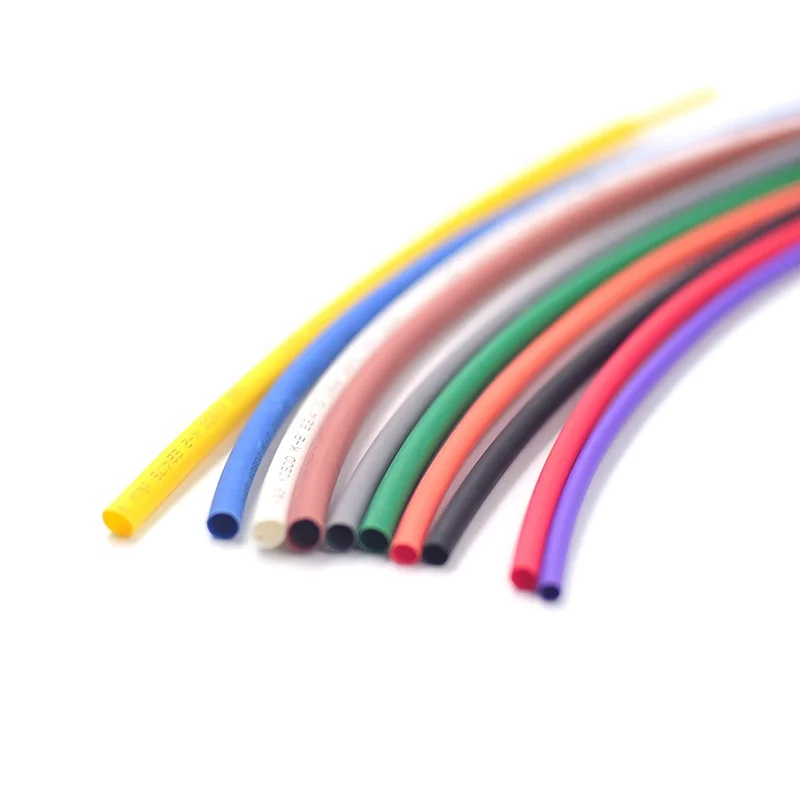

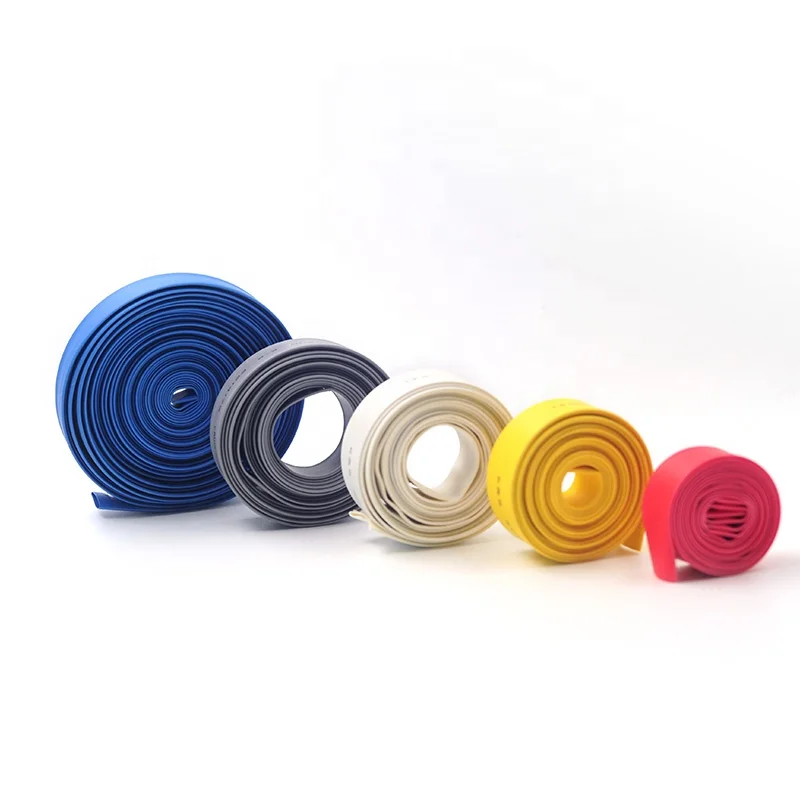

1) Color
Standard: Black (-BK), white (-WH), red (-RD), blue (-BL), yellow (-YL), green (-GR)
Nonstandard: Brown (-BR), orange (-OR), violet (-VT), gray (-GY), yellow & green stripe (-GYS)
Specify product type, size (mm or inch) and color
Company Information
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in KOSOO standard paper rolls and cartons. If you have special request,we could do the OEM packing for you.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q4. How about your delivery time?
A: Generally, it will take 20-30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customer have to pay the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefit ;
B.We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Our Services
1.Reply your inquiry in 24 working hours.
2.Delivery the goods to our customer all over the world with speed and precision.
3.Offer the goods with superior quality.and competitive price.
4.100% QC inspection before shipment.
Why choose KOSOO heat shrink tube?
- Very flexible ,highly flame-retardant
- Low shrink temperature
- Good thermal stability
- Excellent physical,chemical and electrical properties.
- Wide range of sizes and colors
- Confirm to RoHS (2002/95/EC)environmental directive.
- More than 15 years experiences
- Alibaba 9 years gloden supplier
- We are manufacturer we have most competitive price
Little amount free samples could be accepted
Contacts

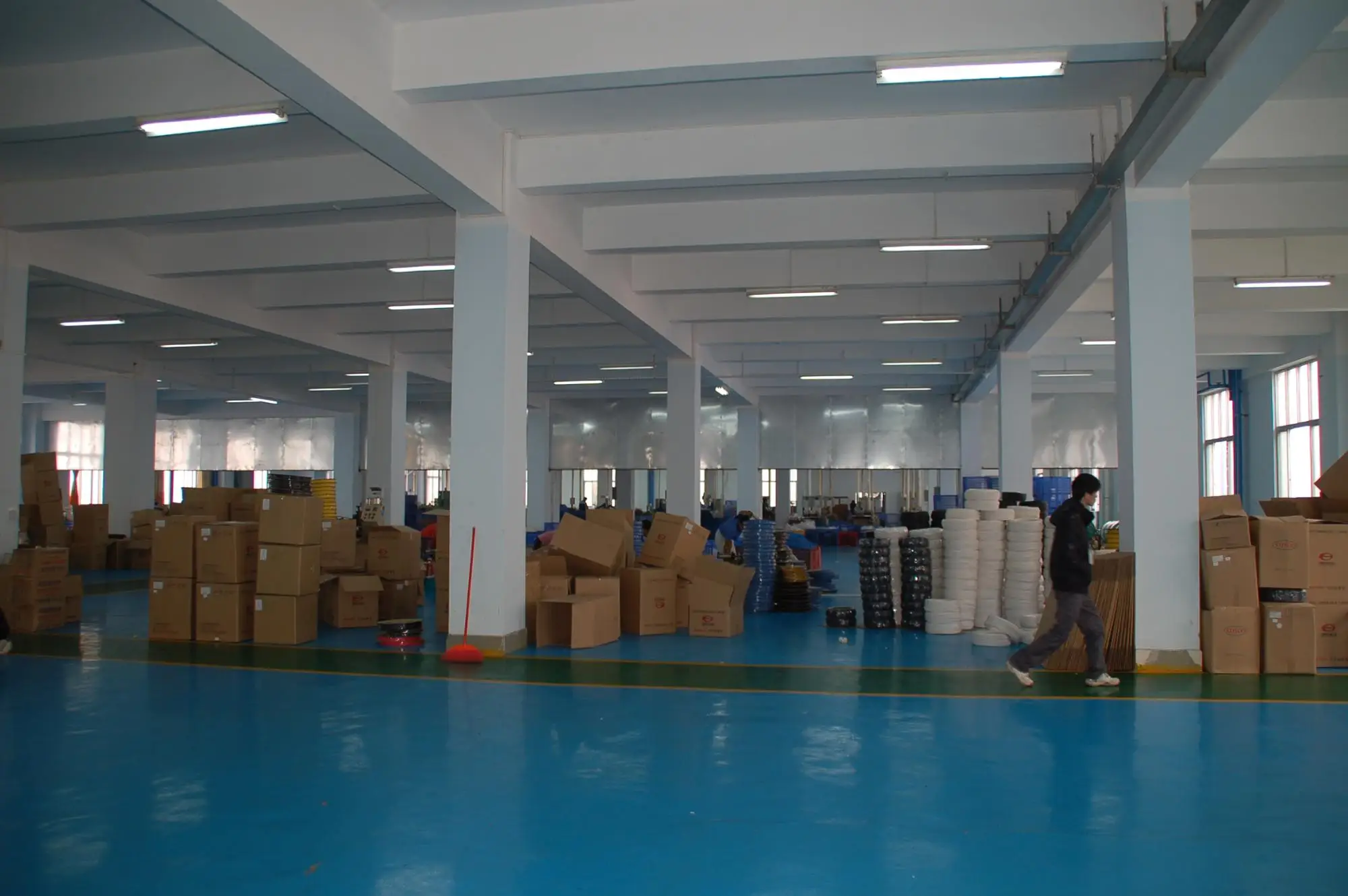

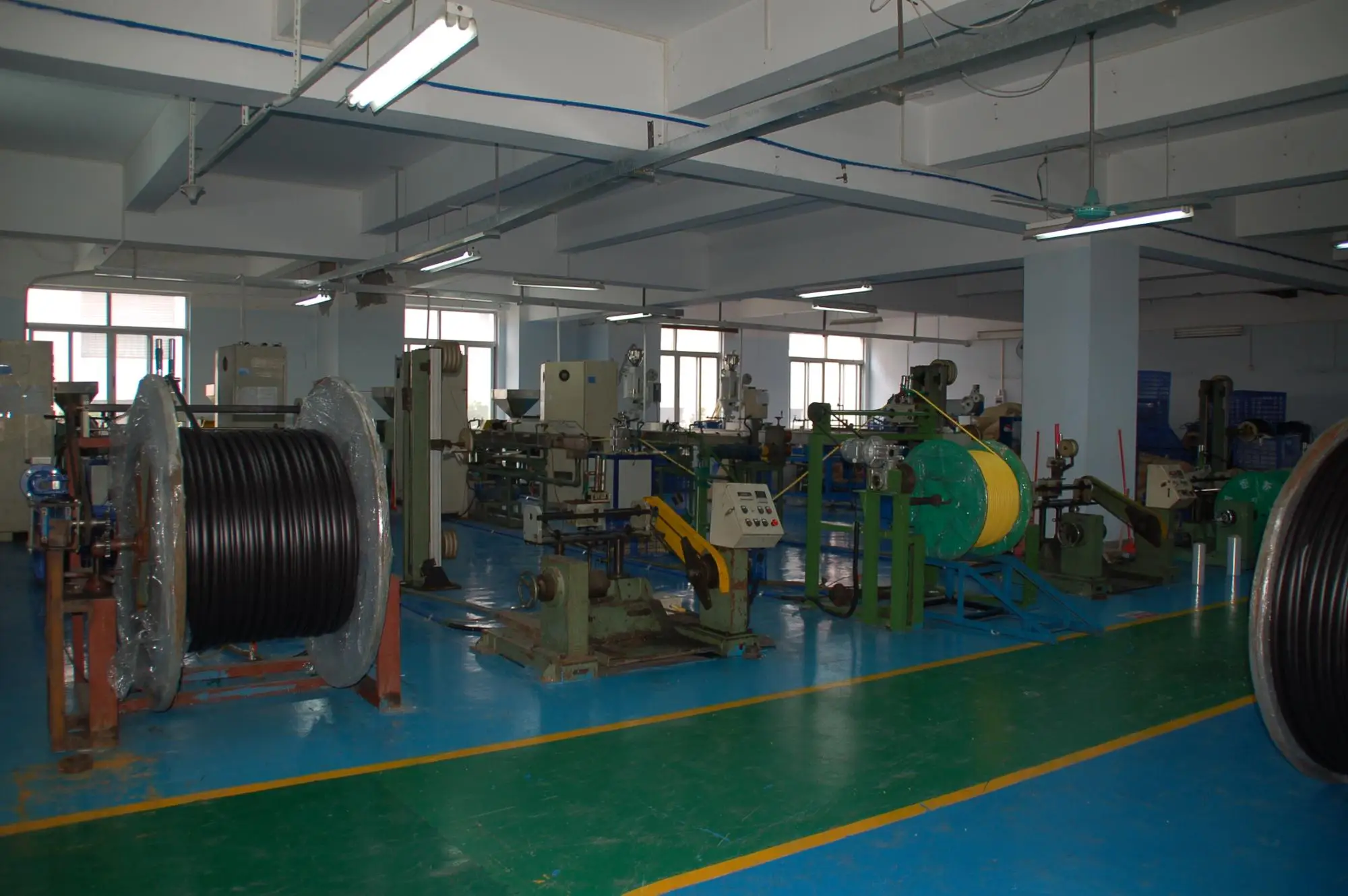

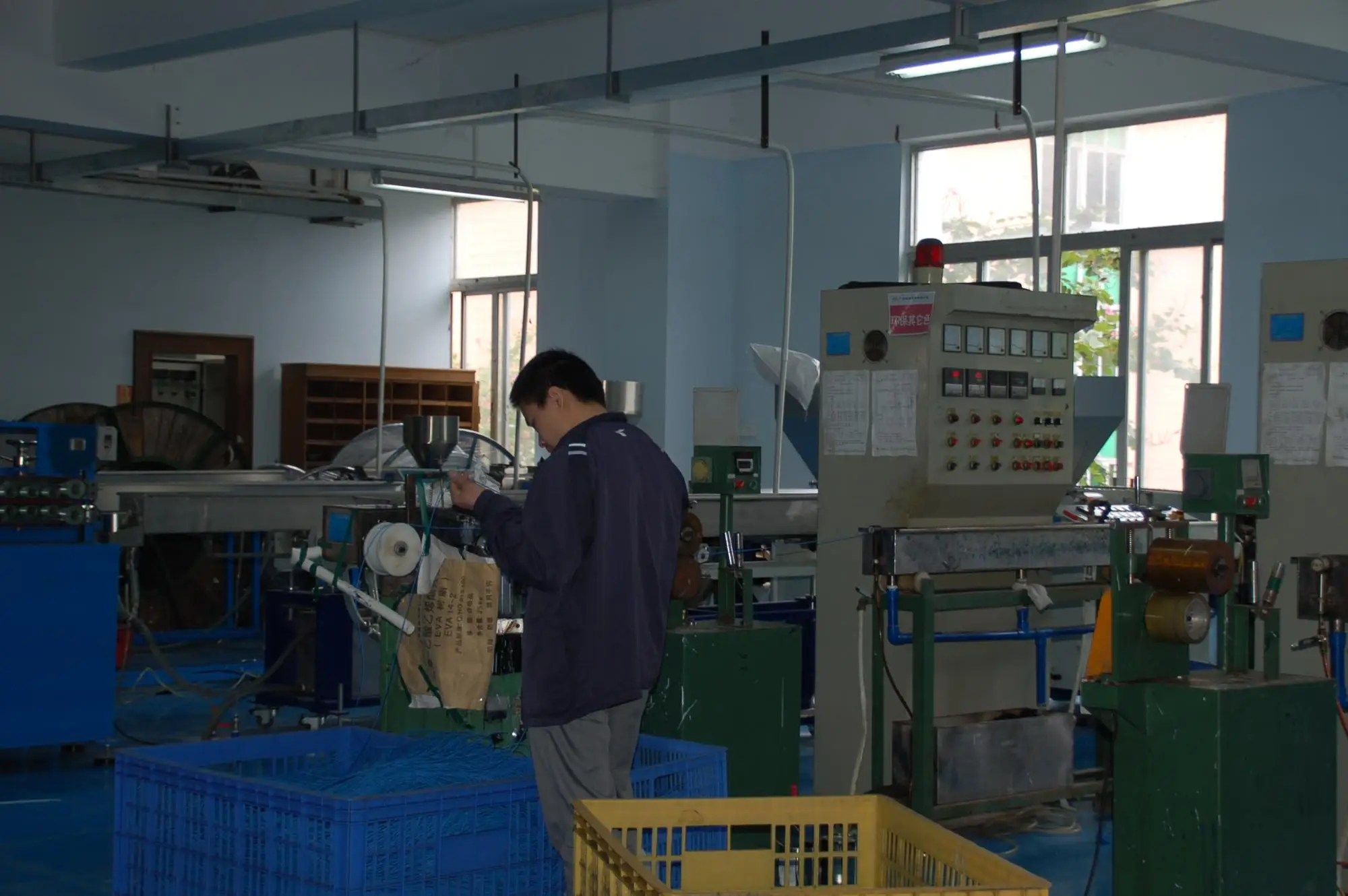

Workshop Show
