sugar grinding machine

Product Overview

Description

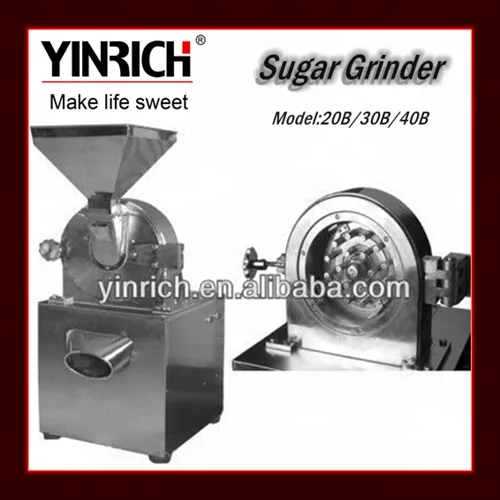

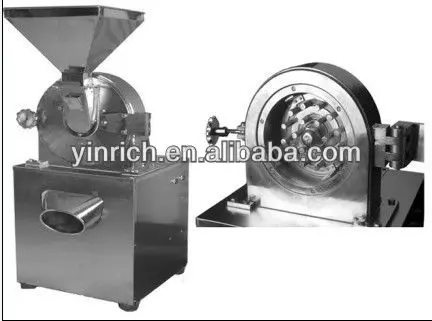

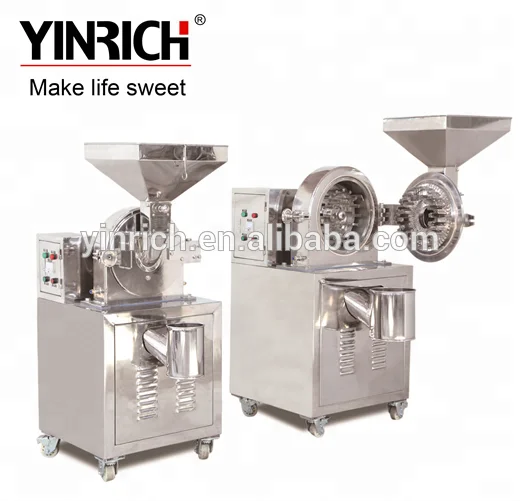

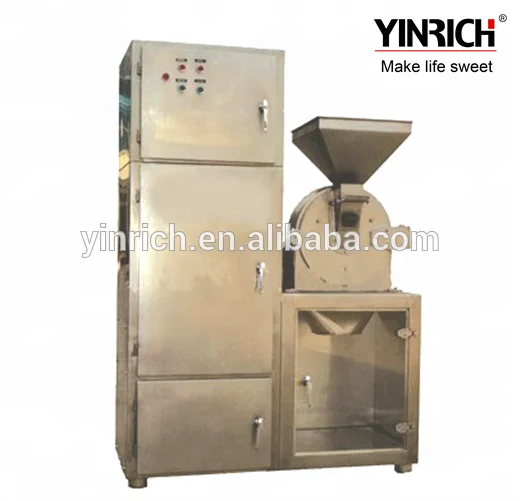

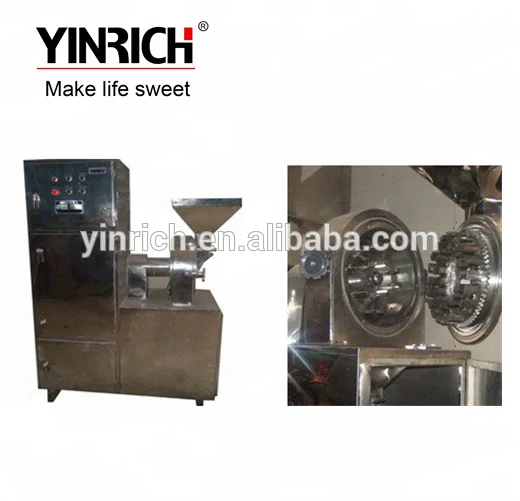

 Sugar grinding machine



Features:

This machine is suitable for material crushing by the industries of Pharmaceutics, chemical, and foodstuff etc.



Working principle

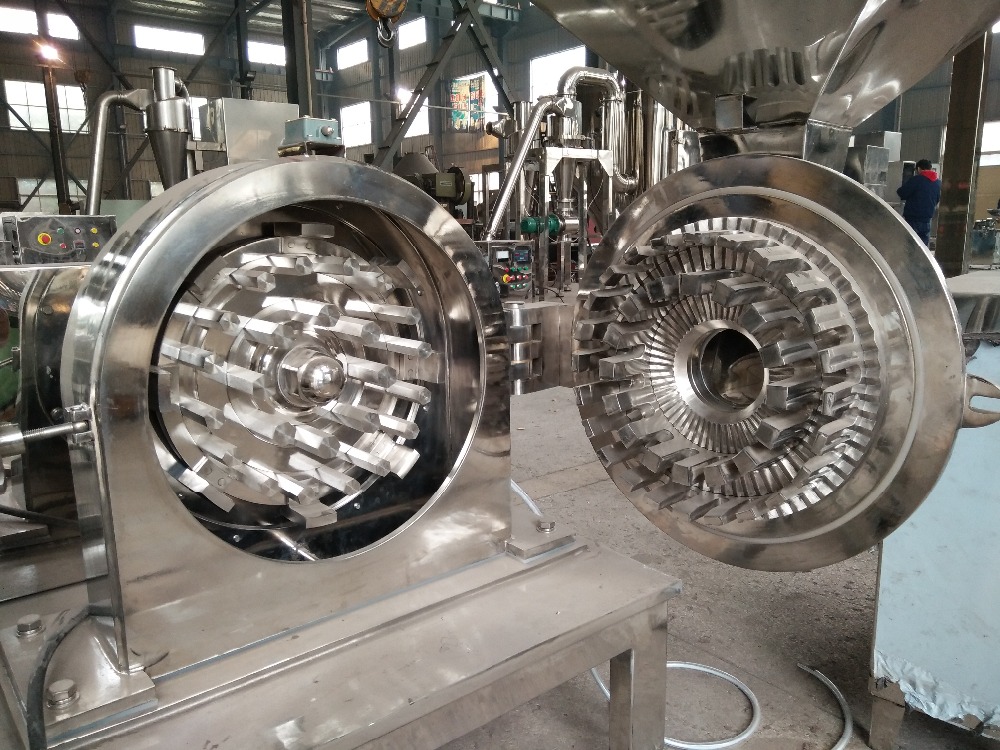

This machine uses the relative movement between the active fluted disc and the fixed to impact, grind and crush the targe materials. The size of granules can be achieved by changing of the screen.



Main technical specifications:

Model	20B	30B	40B
Production Capacity(kg/h)	60-150	80-300	100-400
Size of input granules(mm)	<6	<10	<10
Size of output granules(mesh)	20~150	20~150	20~150
Power of motor(kw)	4	5.5	7.5
Power of Fans(kw)	1.1	1.1	1.1
Speed of principal axis(rpm)	4500	3800	2500
Overall size(L X W X H)(mm)	1280x600x1660	1280x700x1660	1450x700x1800
Weight(kg)	300	450	600



CONTACT INFORMATIONS:

BEIJING YINRICH TECHNOLOGY DEVELOPING CO.,LTD.

Contact Person:   Ms Candice Yu

Cell Phone:  +86-0-13426119109 Tel/Fax: +86-10-56545970

Skype:candice-yuteng

We are looking forward to establishing long-term business relationship with you!
