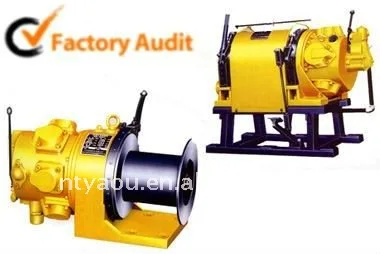

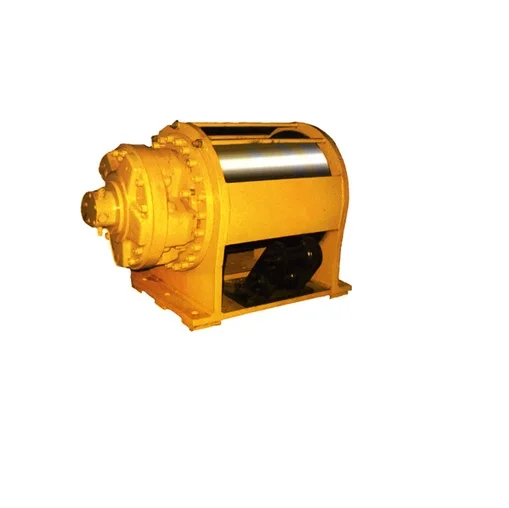

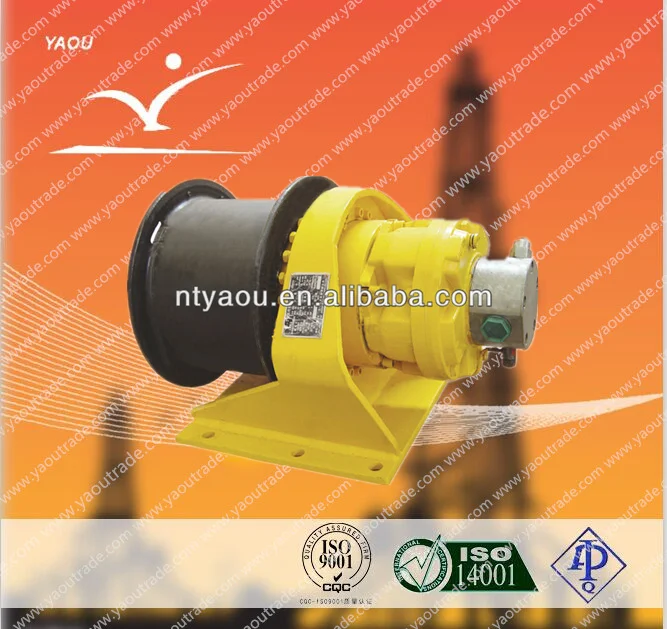

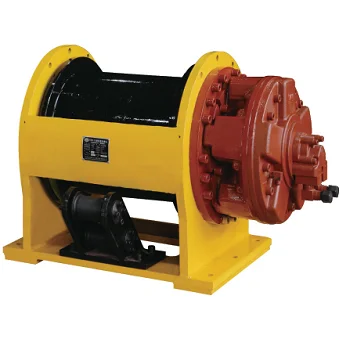

QJ1/120(A) F AIR WINCHES Pneumatic winches are suitable for oil drilling sites, ships, construction, etc.
- Category: >>>
- Supplier: RUGAO YAOU IMPORT & EXPORT TRADE CO. LTD
Share on (496460360):
Product Overview
Description
Products Description

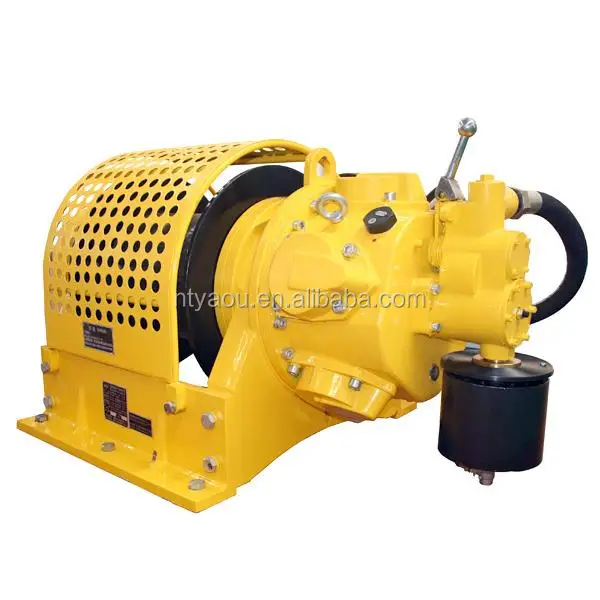

QJ1/120(A)-F AIR WINCHES
QJ series of air winches are powered by piston-type air motor. They have the advantages of compact structure, light weight, safe and easy to operate and they are used for general lifting, hauling and other works in mines, oil fields, on shipboards and etc.
They are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment.
QJ series of air winches are powered by piston-type air motor. They have the advantages of compact structure, light weight, safe and easy to operate and they are used for general lifting, hauling and other works in mines, oil fields, on shipboards and etc.
They are designed and manufactured according to API Spec 7K “Specification for Drilling Equipment.
Product Paramenters
Model | QJL0.5/40(A) | QJ0.5/120(A) | QJ1/120(A) | QJ3/200(B) | QJ5/120(B) | |
Air Pressure | MPa | 0.5-0.9 | ||||
psi | 72-130 | |||||
Max. Pull | kN | 5 | 5 | 10 | 30 | 50 |
US ton | 0.55 | 0.55 | 1.1 | 3.3 | 5.5 | |
Max. Line Speed | m/min | 12 | 12 | 24 | 20 | 35 |
ft/min | 39.3 | 39.3 | 78.7 | 65.6 | 114.8 | |
Rope Storage | m | 40 | 120 | 120 | 200 | 120 |
ft | 131 | 393 | 328 | 656 | 230 | |
Wire Rope Diameter | mm | 8 | 8 | 11 | 15.875 | 15.875 |
in | 5-16 | 5-16 | 7-16 | 5-8 | 5-8 | |
Size | mm | 495*365*380 | 675*343*460 | 825*343*450 | 1340*940*985 | 1300*940*985 |
in | 19.5*14.3*15 | 27*13.5*18 | 32.5*13.5*18 | 53*37*39 | 51*37*39 | |
Weight | Kg | 45 | 117 | 162 | 600 | 580 |
lb | 100 | 258 | 358 | 1320 | 1280 |

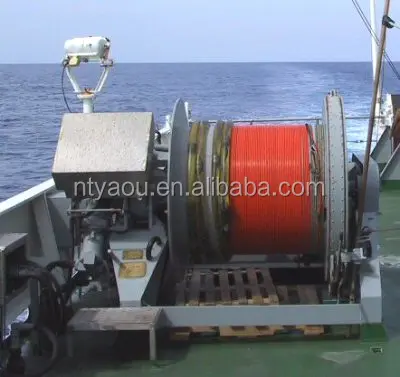

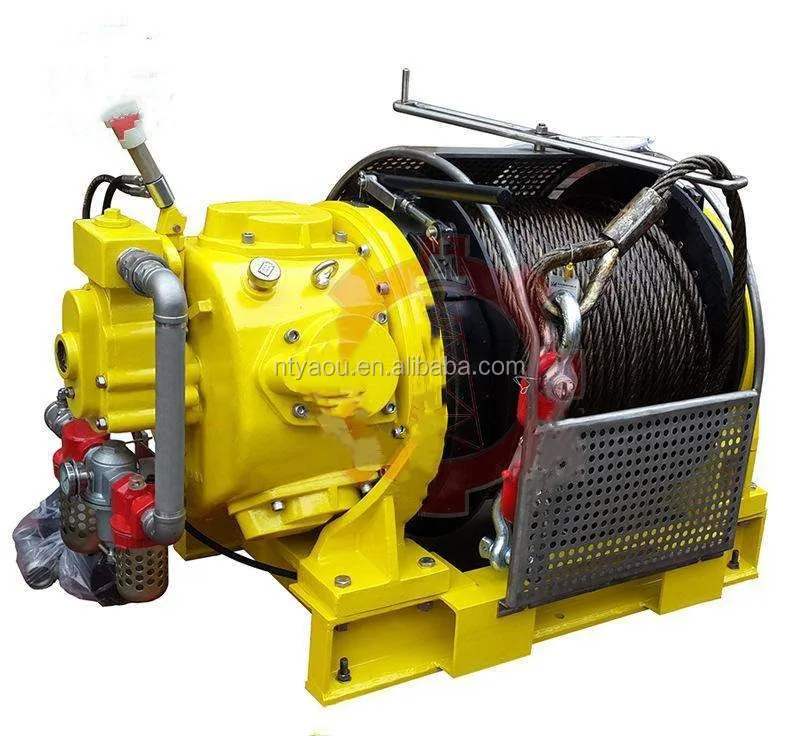

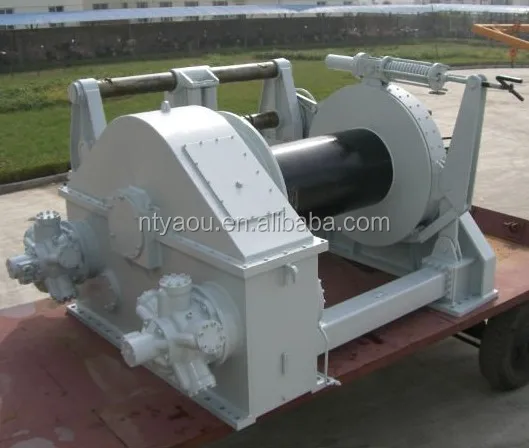

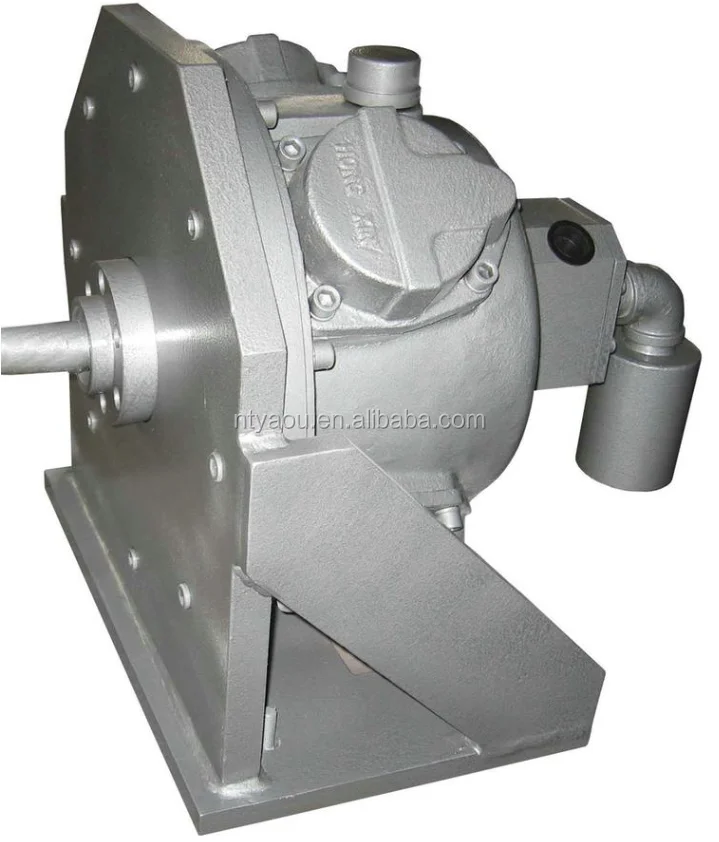

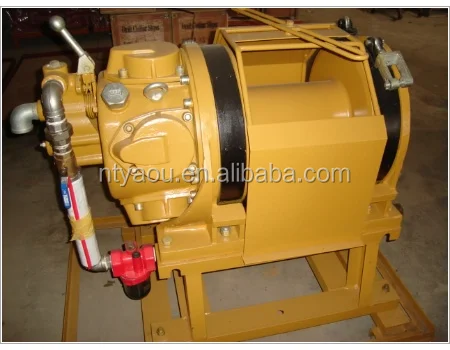

Details Images
Product packaging
According to the volume and weight of the product and export requirements, provide multi-layer boxes and iron box packaging.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
Transportation is based on customers in different regions using steam, rail, road and air transportation.
