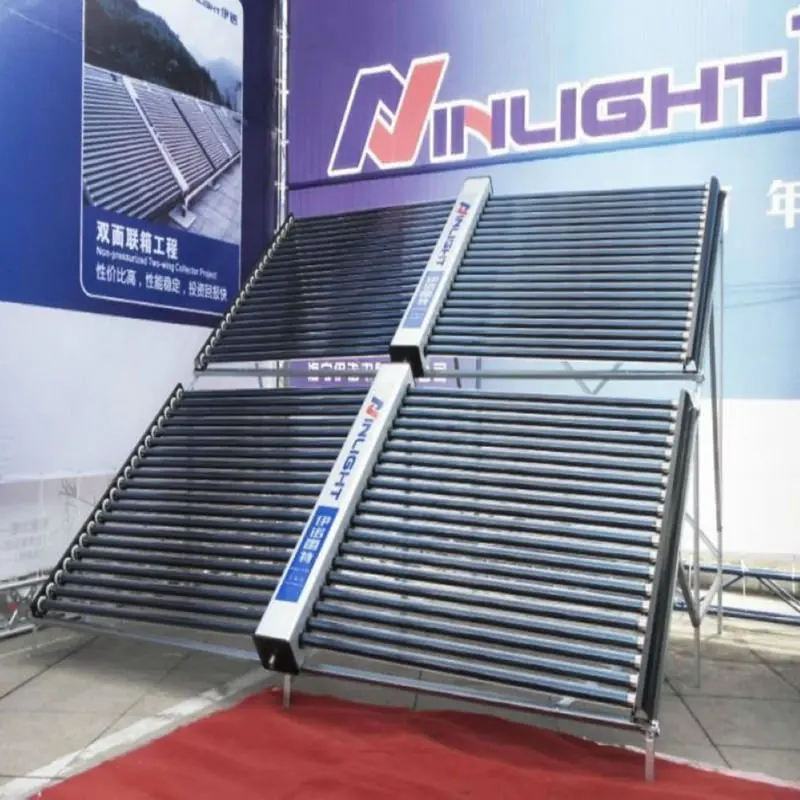

Butterfly type All Glass Tube Solar Collector

Butterfly type All Glass Tube Solar Collector

Category: Solar Collectors >>>
Supplier: Haining,Yinuo,Electric,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

All Glass Tube Solar Collector Technical Parameters

Vacuum tube	Spec.(mm)	Φ47×1500 Φ58×1800
	Tube (pcs)	40 / 50 / 60 / 70
	Material	3.3 Borosilicate glass, magnetron spluttering coating
	Coating	AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Manifold	Dimension	180*160mm, 1.0 inch inlet & outlet
	Inner tank	Food-grade SUS304-2B stainless steel
	Tank shell	Imported color steel / Fluorocarbon (PVDF) plate
	Insulation	High-density polyurethane integrated foam-forming layer
Bracket	Hot-dip galvanized steel plate (powder coating or paint baking)
Accessories	Stainless bolts & nuts, waterproof silicon rubber seal, dustproof rubber seal, plastic tube holder
Working pressure	≤ 1 bar
Tilt angle	0~ 90°
Hail resistance	Φ25mm diameter

All Glass Tube Solar Collector

Features description:

The glass tube solar collector (nonpressurized) consists of glass vacuum tube, nonpressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.

1. Especially designed for large-scale hot water heating system, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools, and some other sites requiring hot water use or house heating.

2. All-glass vacuum tube, most economical and good performance at the same time

3. Processed color steel shell and galvanized bracket make it a long lifespan as vacuum tubes

4. Easy installation and connection and little maintenance needed

Warranty: 3 years international responsibility for integrated collector exchange and 15 years for glass vacuum tube compensation due to original quality problems
