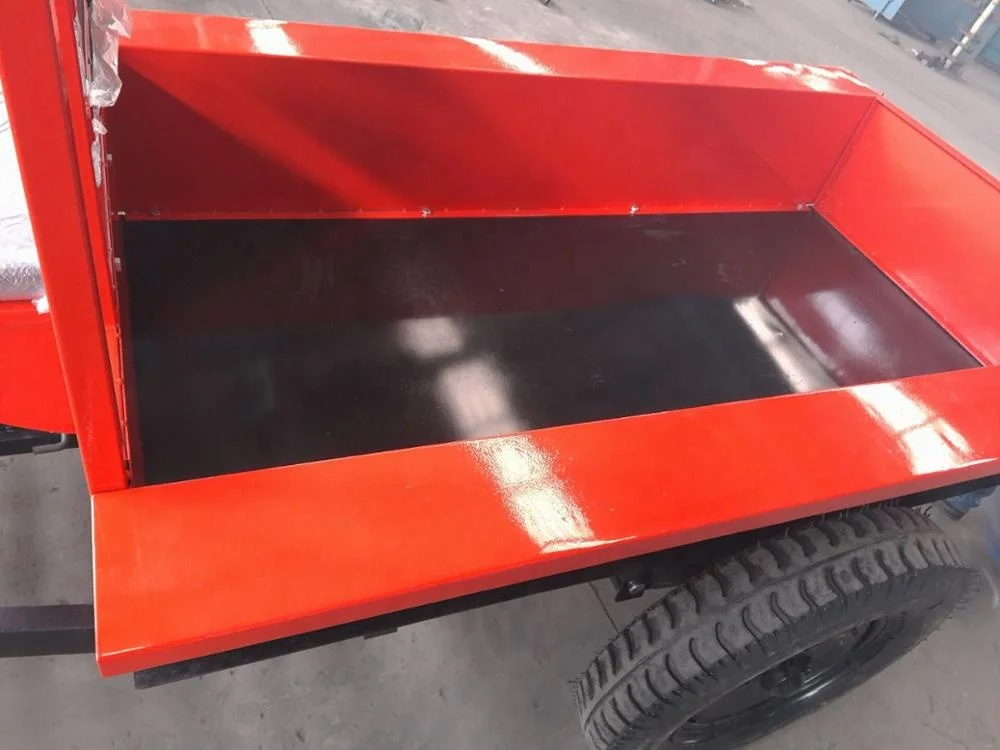

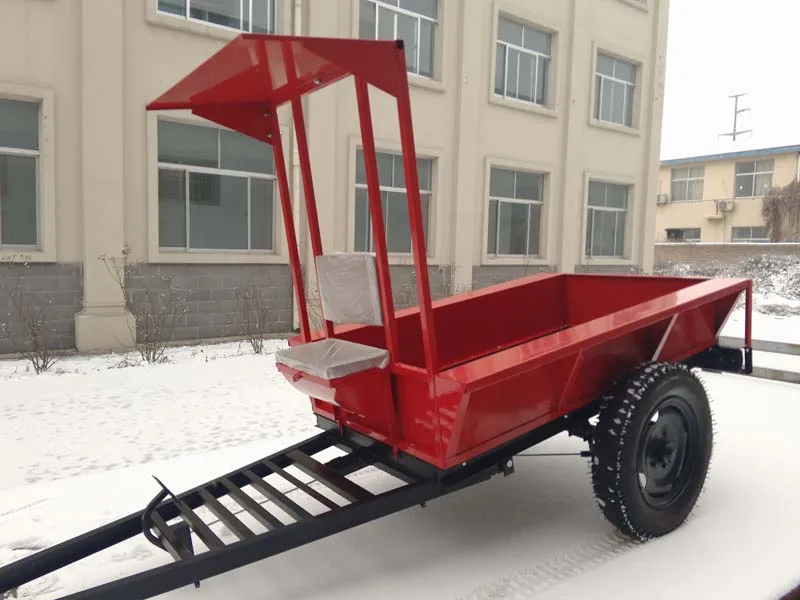

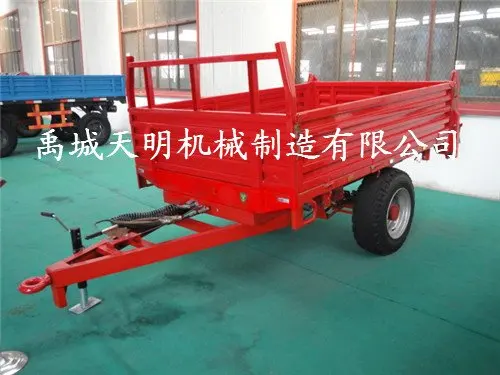

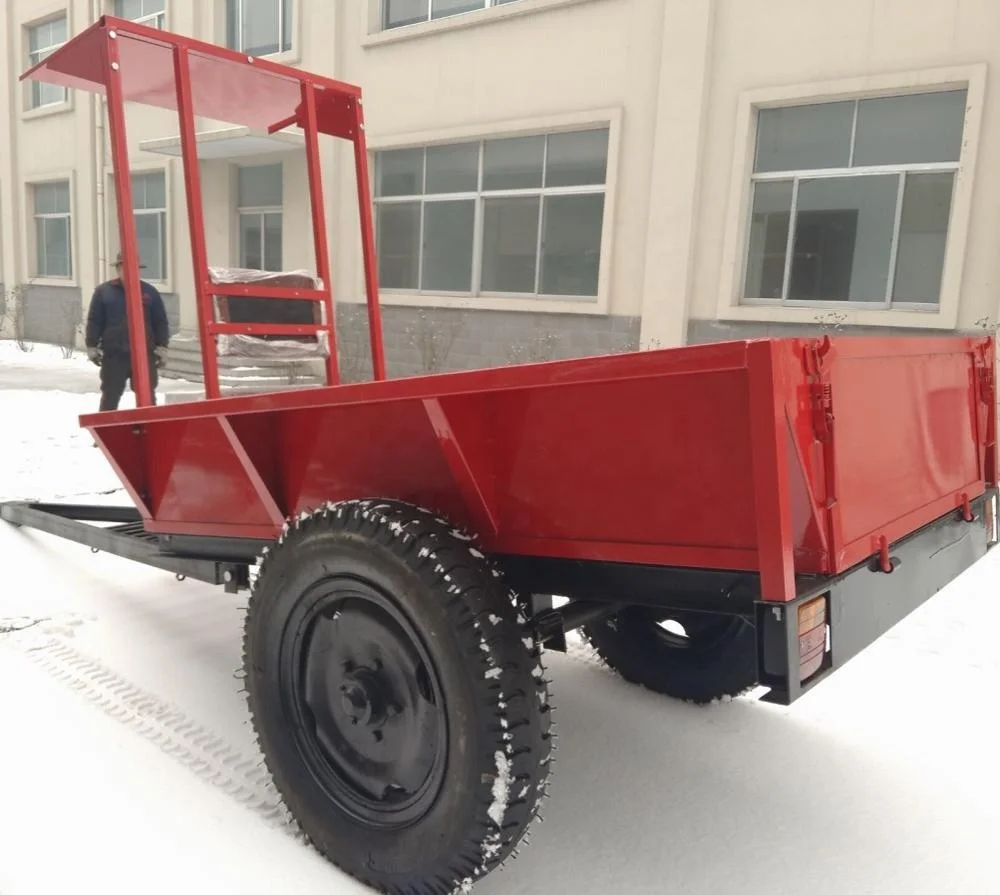

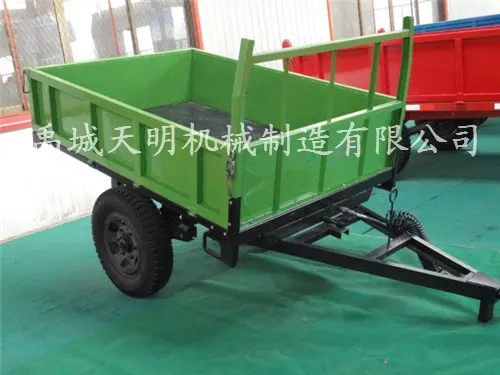

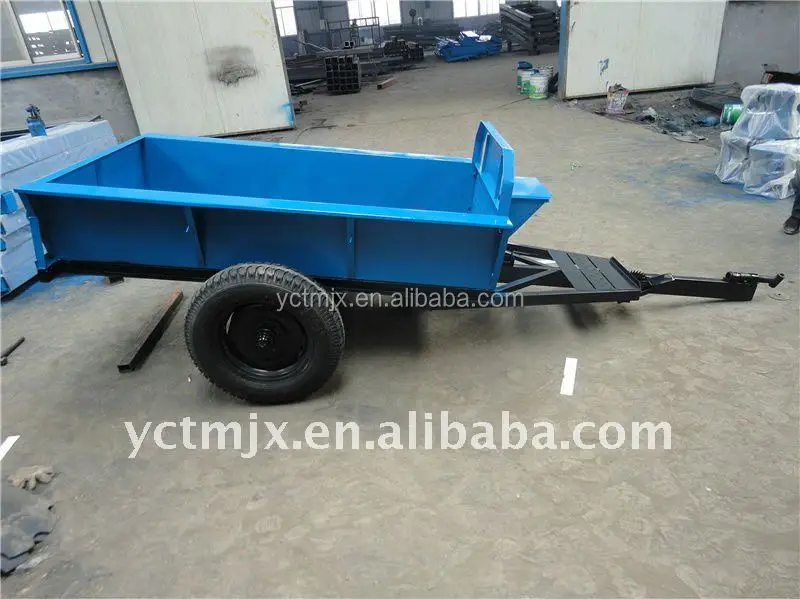

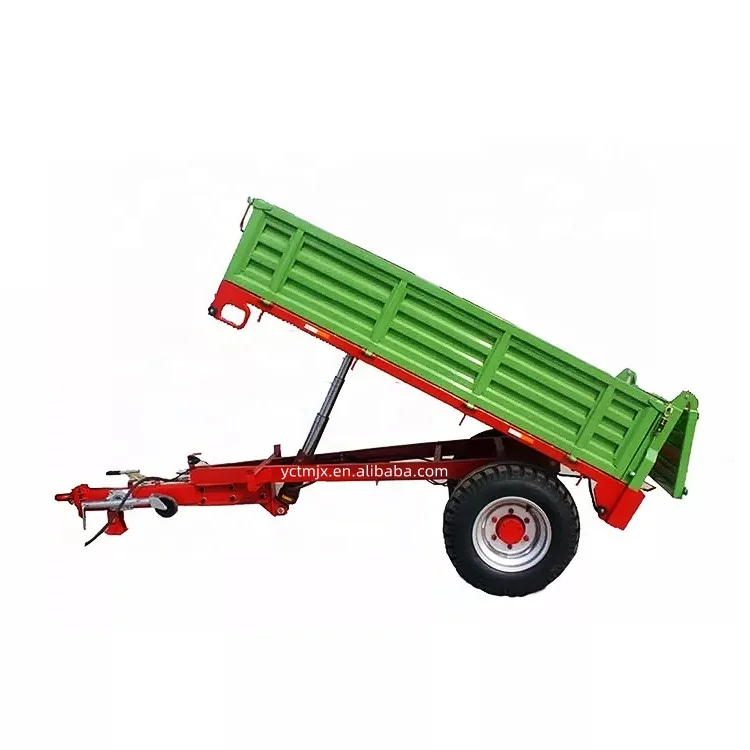

1.5 T Agri machinery walking tractor farm trailer,hand trailer

Product Overview

Description









Main Features:

• The form of damping : leaf spring.


• The form of traction : tripod traction, adjustable traction.


• Surface treatment : derusting with large shot blast machine, to change welding stress.


• The form of transportation : parts and components, flexible packing with the box plate.

Model	7C-0.5	7C-1	7C-1.5
Carriage dimension(mm)	1360*860*330	1800*900*320	2000*1000*450
Overall dimension(mm)	2670*960*1140	2800*1300*1400	3700*1450*1300
Rated weight(kg)	500	1000	1500
Deadweight(kg)	132	198	295
Tire	4.00-12	6.00-16	6.50-16
Unload form	Manual back tipping	no	No
Brake form	Brake by foot
Matched power(hp)	8-18
Quantity(40GP)	150	90	70



Should you are interested in them , feel free to contact me . I am confident that I can quote you a competitive price . Thanks in advance .
