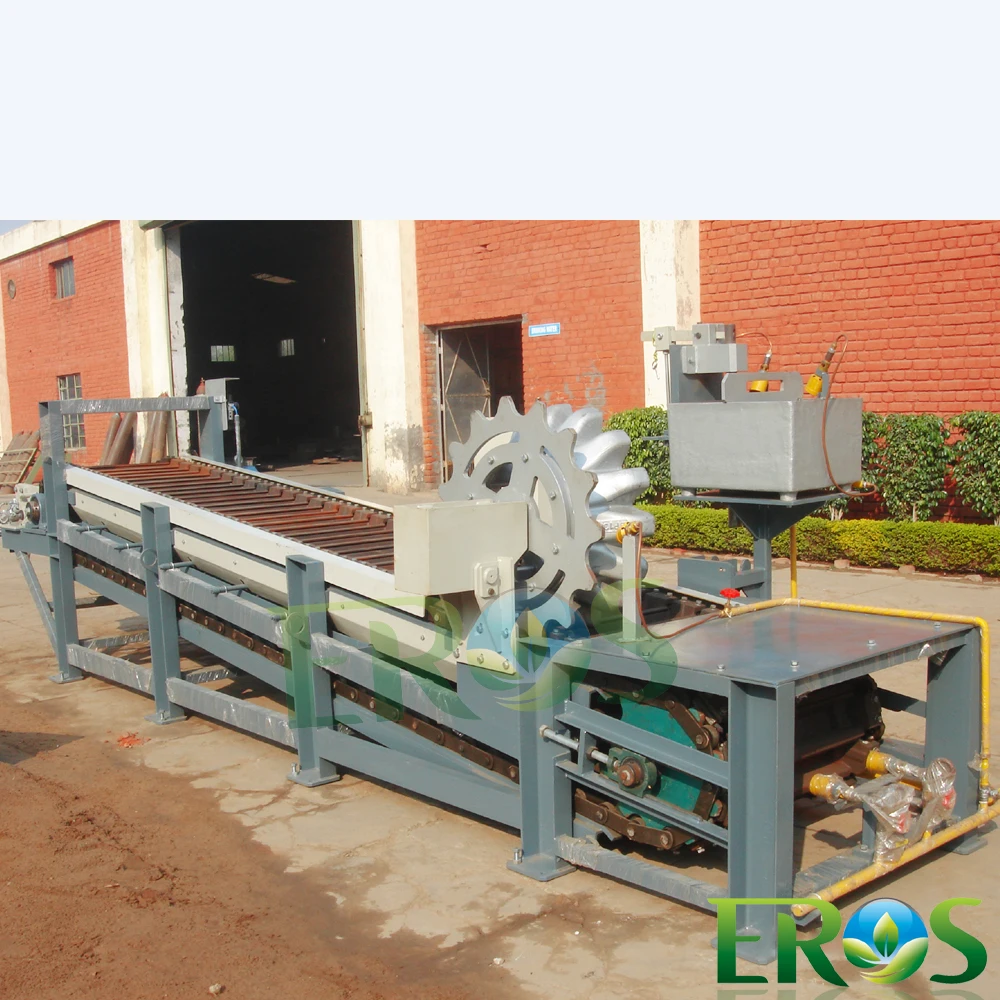

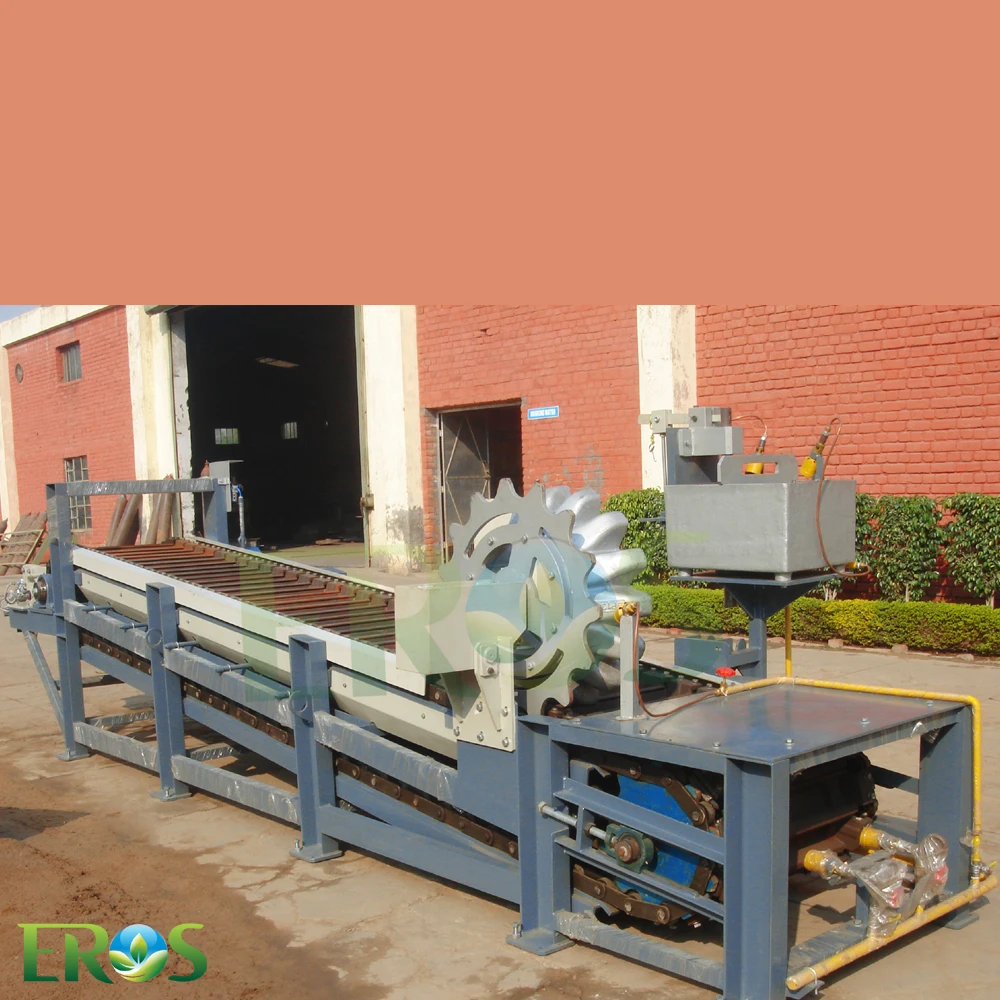

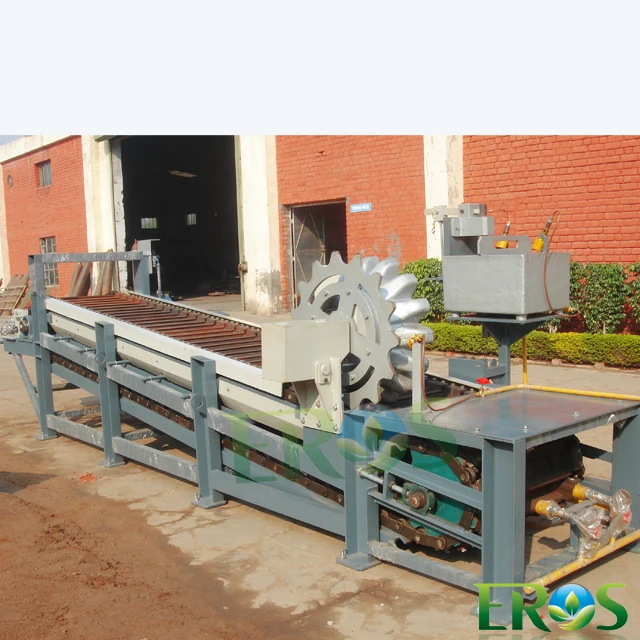

Lead Recycling Lead Ingot Casting Machines

Other details:-

Molds are fitted on an end-less conveyor chain

60 to 150 numbers of molds are fitted in line

The feeding bowl feeds two molds at a time while the conveyor belt is moving

The machine is equipped with 7.5 hp DC motor

The drive to the machine is through double stage reduction gear box

Total reduction ratio is 1:500

RPM of the conveyor is 3(max)

To cool the molds even in running condition, nine rows of inner and outer spray are provided

A knock out hammer is provided to release the ingot from the mold

Specifications:

Material to be cast-Aluminum and its alloy

Casting Rate-4 tons per hour

Ingot weight-10 kg +/- 5% each

Mold width-152 mm

Centre to centre mold distance-160 mm

Number of molds-150

Weight of each mold-40 kg approx

Mold lubrication-Shall be provided

Mold cooling-9 rows each in outer and inner side of the mold. Each nozzle has individual valve

Mold and distributor- Pre heating arrangement shall be provided

Knock out hammer- Two no knock out hammer shall be provided

Speed of Conveyor-3 RPM max/ 1 RPM min

Drive-7.5 HP DC motor

Mold attachment-By bolting in to conveyor chain

Length of the machine-12 meter approx

Width of the machine- 1.5 meter approx

Inclination-13 degree

Height of the machine at pouring-1.2 meter

Gear box-One no worm and wheel type gear box and one no inline helical gear box

Chain- Heavy duty industrial chain

Mold-Heat resistant CI

Features:

Industrial approved design

High operational fluency

Easy to operate
