Product Overview
Description
WEB SITE WWW.CEPITALY.COM
MADE IN ITALY
EQUIPMENT FOR WINE

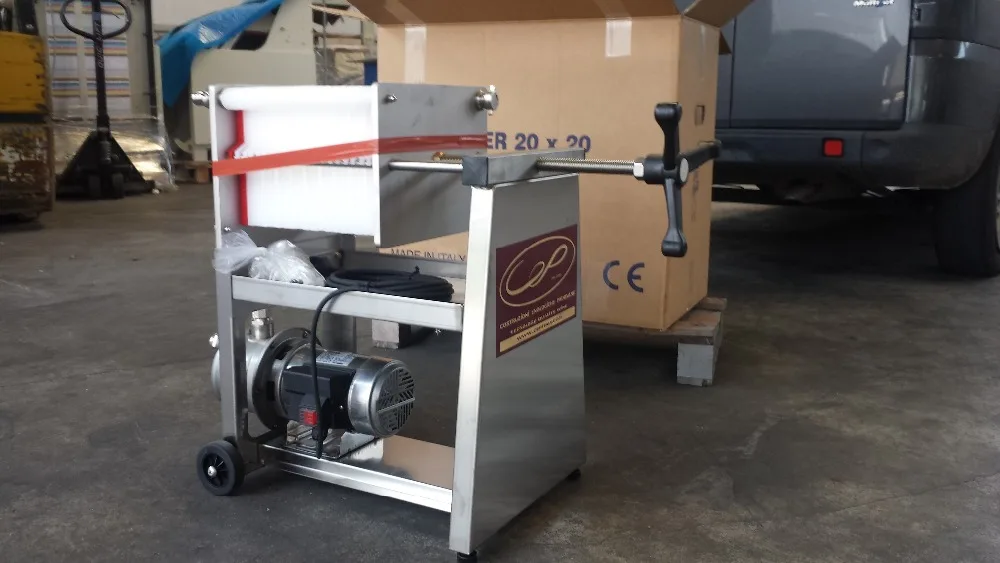

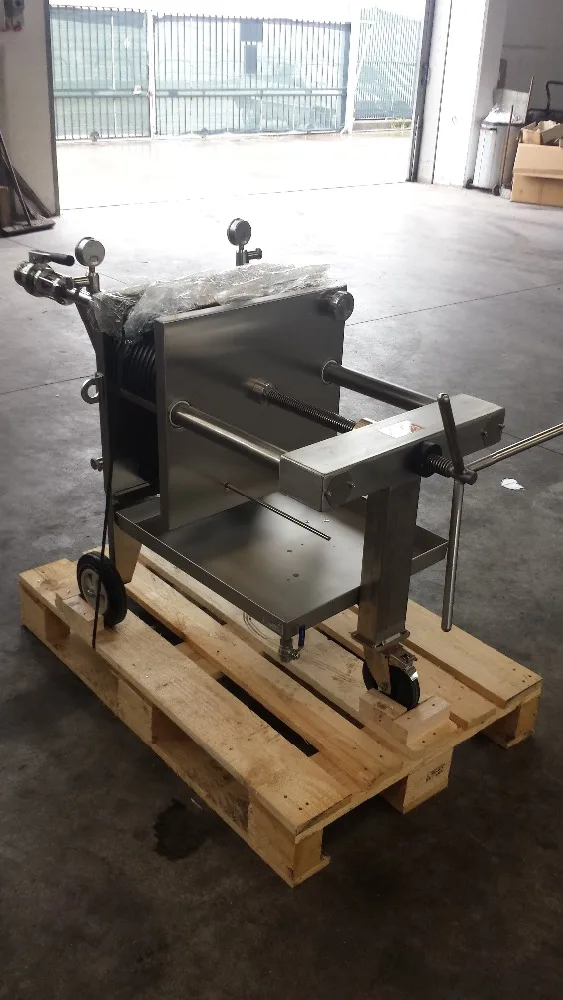

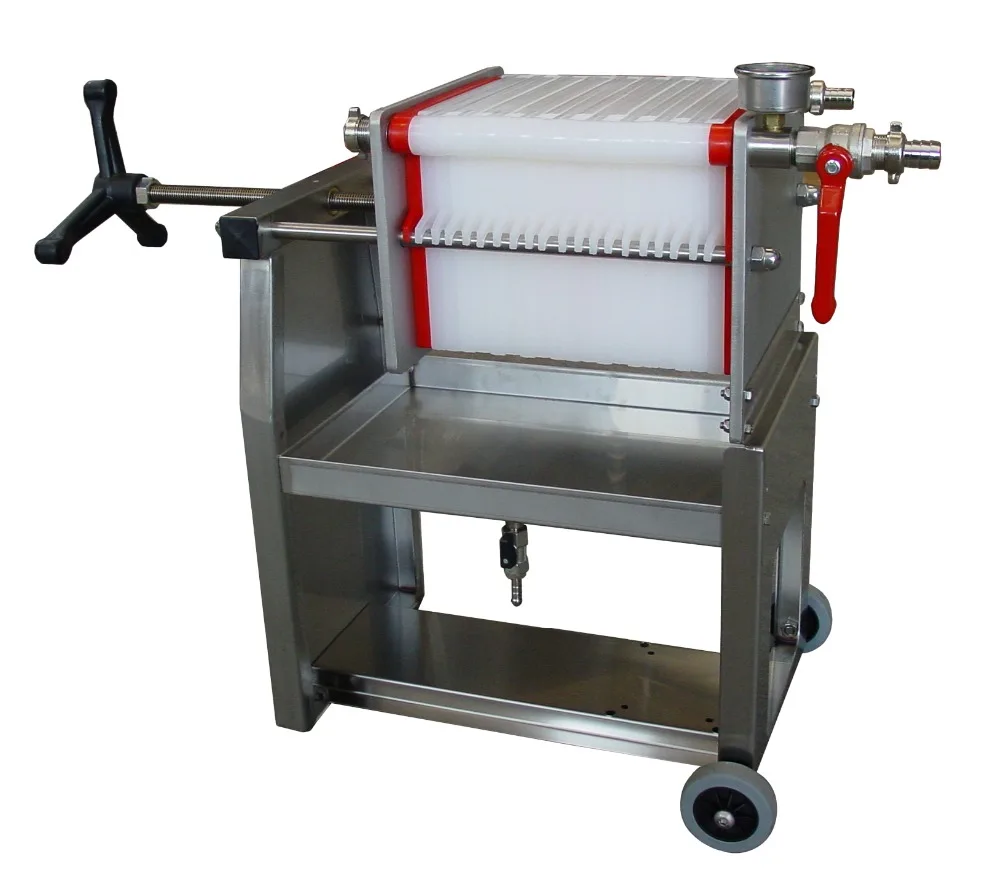

POLISHING FILTERS WITH PLATES 20x20 FOR WINE-LIQUOR-BEER, Etc.
- AISI 304 stainless frame mounted on wheels
- collection tray in Aisi 304 stainless steel
-Standard seals plates silicone food
- The closure of the stack (filtration assembly) takes place by means of central screw stainless
-The plates can be made of polyethylene for wine or standard version for oil polyethylene
-Complete with pressure gauge and connection product inlet / outlet Dn.20 with hose
-Pump Standard Model "E" totally in stainless steel AISI 304 kw 0.5- 2800 rpm 220 volts 50Hz single-phase
279 F.20x20 with 10 platesand seals without pump
m² = 0,4 Capacity (water) 300/700 l / h Meas 400x550xh301 mm 23 kg
280 F.20x20 with 10 platesand seals with pump Mod. E
m² = 0,4 Capacity (water) 300/700 l / h Meas.400x550xh301 mm 23
281 F.20x20 with 10 platesand seals with pump Mod E+By pass
m² = 0, 4 Capacity (water) 300/700 l / h Meas. 400x550xh301 mm 23 kg
282 F.20x20 with 20 platesand seals without pump
m² = 0,8 Capacity (water) 700/1400 l / h Meas. 400x630xh601 mm 36 kg
283 F.20x20 with 20 platesand seals with pump Mod. E
m² = 0,8 Capacity (water) 700/1400 l / h Meas. 400x630xh601 mm 36
284 F.20x20 with 20 platesand seals with pump Mod E+By pass
m² = 0,8 Capacity (water) 700/1400 l / h Meas. 400x630xh601 mm 36 kg
285 F.20x20 with 20 platesand seals w/pump Mod E+By pass+plate for plate
for double filtration st.st. m² = 0,8 Capacity (water) 700/1400 l / h
Meas. 400x630xh601 mm 36 kg
286 F.20x20 with 30 platesand seals without pump
m² =1,2 Capacity (water) 1400/2000 l / h Meas. 400x850xh601 mm 42 kg
287 F.20x20 with 30 platesand seals with pump Mod. E
m² =1,2 Capacity (water) 1400/2000 l / h Meas. 400x850xh601 mm 42 kg.
288 F.20x20 with 30 platesand seals with pump Mod E+By pass
m² =1,2 Capacity (water) 1400/2000 l / h Meas. 400x850xh601 mm 42 kg
289 F.20x20 with 30 platesand seals w/pump Mod E+By pass+plate for plate
for double filtration st.st. m² = 1,2 Capacity (water) 1400/2000 l / h
Meas. 400x850xh601 mm 42 kg
290 F.20x20 with 40 platesand seals without pump
m² =1,6 Capacity (water) 2000/2600 l / h Meas. 400x1050xh601 mm 50 kg
291 F.20x20 with 40 platesand seals with pump Mod. E
m² =1,6 Capacity (water) 2000/2600 l / h Meas.400x1050xh601 mm 50 kg.
292 F.20x20 with 40 platesand seals with pump Mod E+By pass
m² =1,6 Capacity (water) 2000/2600 l / h Meas. 400x1050xh601 mm 50 kg
293 F.20x20 with 40 platesand seals w/pump Mod E+By pass+plate for plate
for double filtration st.st. m² = 1,6 Capacity (water) 2000/2600 l / h
Meas. 400x1050xh601 mm 50 kg
POLISHING FILTERS PLATES with IMPELLER PUMP RUBBER STEEL A 900 rpm 4 bar with by-pass
294 F.20x20 with 10 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
m² = 0,4 Capacity (water) 300/700 l / h Meas. 400x550xh301 mm kg 23
295 F.20x20 with 20 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
m² = 0,8 Capacity (water) 700/1400 l / h Meas. 400x630xh601 mm kg 36
296 F.20x20 with 20 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
+ plate for platefor double filtration st.st.m² = 1,2 Capacity (water) 1400/2000 l / h
Meas. 400x850xh601 mm kg 42
297 F.20x20 with 30 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
m² = 1,2 Capacity (water) 1400/2000 l / h Meas. 400x850xh601 mm kg 42
298 F.20x20 with 30 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
+by pass + plate for platefor double filtration st.st.m² = 1,2 Capacity (water) 1400/2000 l / h
Meas. 400x850xh601 mm kg 42
299 F.20x20 with 40 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
m² = 1,6 Capacity (water) 2000/2600 l / h Meas. 400x1050xh601 mm kg 50
300 F.20x20 with 40 plates and seals w/pump Type 900 rpm 220 volt 1-phase 4bar+by pass
+ plate for platefor double filtration st.st.m² =1,6 Capacity (water) 2000/2600 l/h
Meas. 400x1050xh601 mm kg 50
The filtrating surface depends from the type of filtrating sheet used
Accessories/spare parts
Filter boards CKP O - 4 - 8 -12 – 16 (package of 25)
Filter boards CKP 18 – 20 - 24 (package of 25)
applications
CPK 0 washable layer of support for flour
CPK 4 for coarse filtration
CPK 8 for coarse filtration
CPK 12 for filtration medium brighteners
CPK 16 for brightening filtrations
CPK 18 for filtration semisterilizzanti
CPK 20 for sterilizing filtrations
CPK 24 for sterilizing filtration in critical condition
