Product Overview
Description
Product Description
KBr Die Set
DIE SET

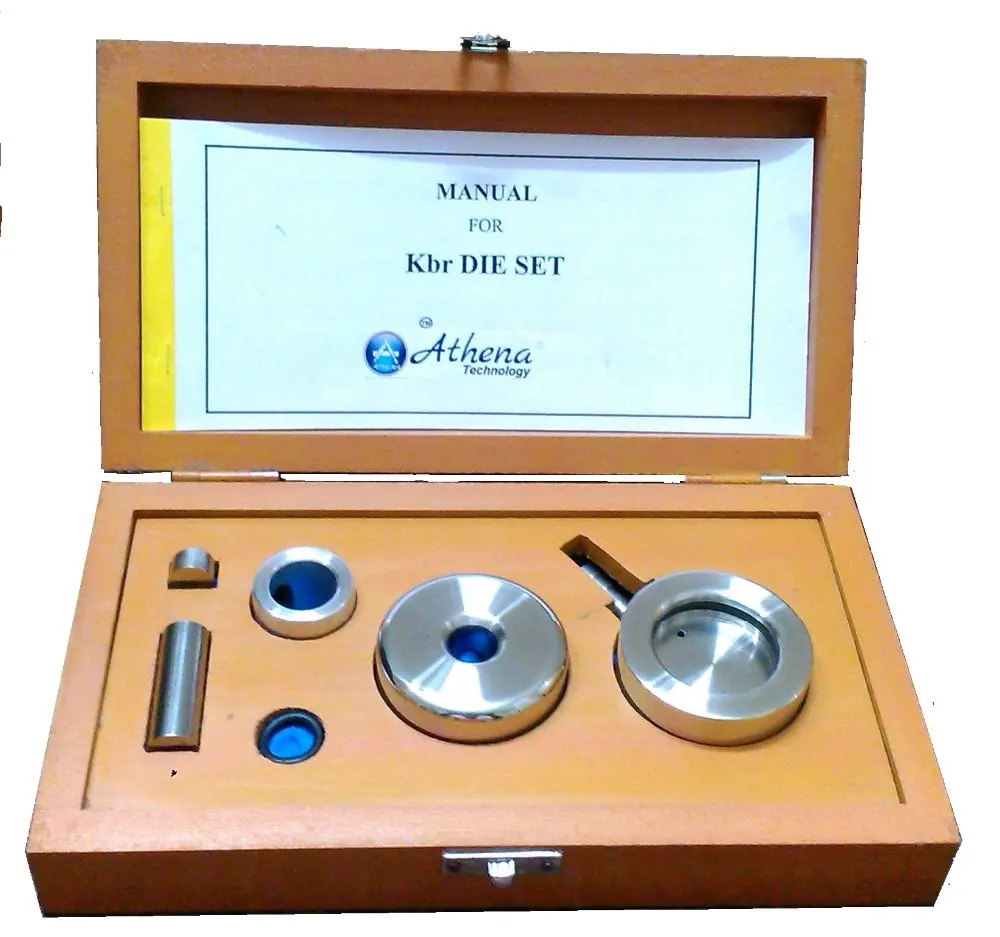

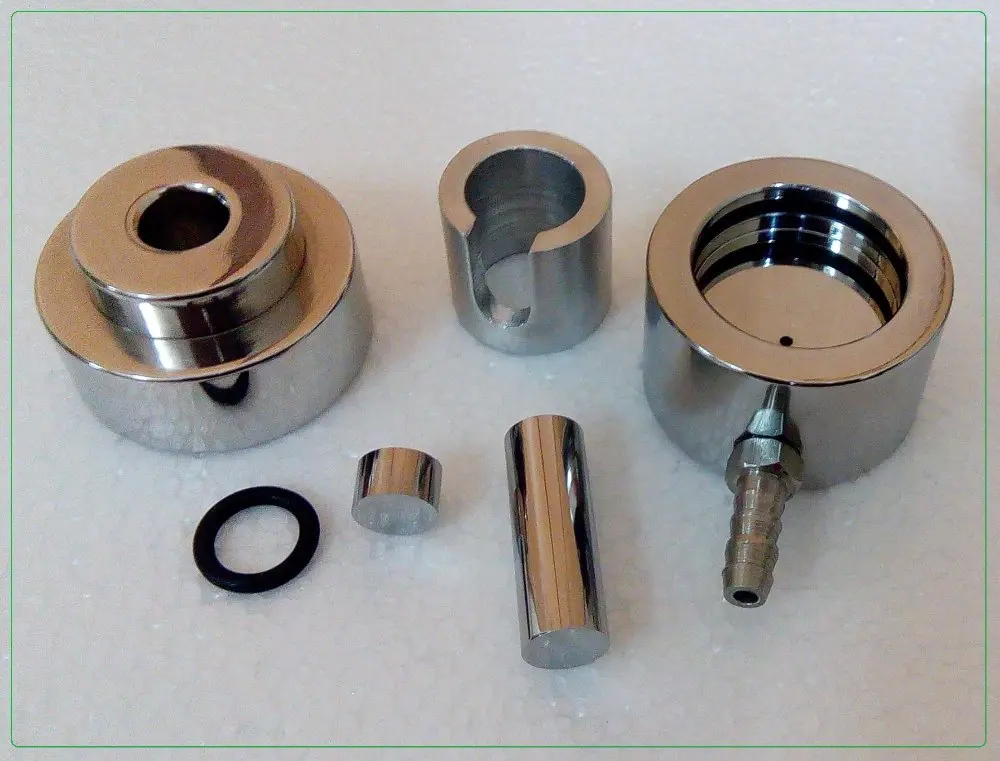

Evacuable KBr Die Set is used to form pellets/circular discs for IR-FTIR Solid Sampling /Analytical Purpose. Most commonly used die is of 13 mm dia. pellet size. 13 mm KBr Die consists of a two-piece outer die, tungsten carbide mirror finished punches (envils), pusher rod and pellet removal ring. Die is fitted with a nozzle for evacuation ( if required ). The die is manufactured from hardened stainless steel and can be easily dismantled for cleaning purposes . The entire set is enclosed in a velvetted teak-wood box , for safety and durability. |
The Die can be subjected to a Max. Load of 15 Tons.
Notes
(1) Each part is separately available for replacement
(2) Tungsten Carbide is brittle in nature & is not guaranteed against breakage.
(3) Spare punches, pushers are sold in pairs only.
Dies are available in the sizes :-
6 mm, 8 mm, 10 mm, 15 mm, 20 mm, 25 mm, 30 mm, 37 mm, 40 mm.
(Pls. refer to Hardened Alloy Steel Dies section)
13 mm KBr Pellet Holder
Pellet Holders to suit the above sizes are manufactured by us, the standard being 13 mm Aluminium Anodized Pellet Holder.
