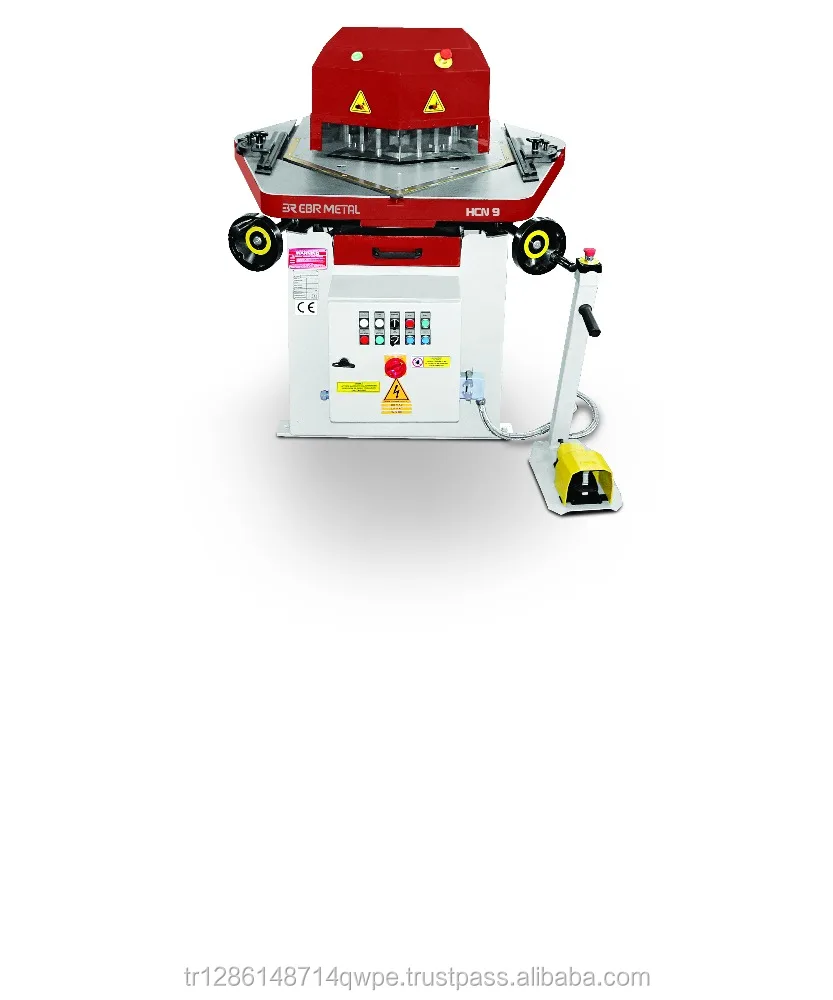

HYDRAULIC CORNER NOTCHING MACHINES
HYDRAULIC CORNER NOTCHING MACHINES
HYDRAULIC CORNER NOTCHING MACHINES

HYDRAULIC CORNER NOTCHING MACHINES

Share on (50037467815):


Price:RUB 654,177.66 - RUB 787,894.63

Quantity:


Product Overview

Description

Product Description

• The SHNM- 6 hydraulic notcher can cut up to 6 mm
• The biggest notcher size is 250x250 mm
• The notching angle fixes in 90° with high notching speed
• The hydraulic notcher has compact structure,small volume and convenient operation
• HCN-9 variable rake hydraulic corner notchers have a strong frame with its statically and dynamically rigid steel table and top beam material.
• T slot top table realizes precise cuttings and there is no need for alignment for different sheet thicknesses by means of automatic blade gap adjustment.
• HCN-9 series perform frequent cutting repeatability via 4 hydraulic hold-down cylinders.

OPTIONAL EQUIPMENTS
• Automatic feeding system

MODEL
HCN 6
HCN 9
Steel
6.5 (90°)
6 (60°-140°)/ 4 (30°-59°)
mm
Stainless
3 (90°)
3 (60°-140°)/ 2.5 (30°-59°)
mm
Motor Power
4
4
kw
Table Dimension
800x750
1150x610
mm
Cutting Angle
90
30-140
degree
Max. Cutting Pieces
25
20
per min.
Blade Length
250x250
200x200
mm
Oil Tank Capacity
35
35
lt
Max. Working Pressure
200
200
bar
Width
850
1150
mm
Length
1010
1000
mm
Height
1400
1200
mm
Weight
630
650
kg
Packing & Delivery
Company Profile

EBR METAL has been producing sheet metal working machines with its production experience accumulated for many years.

Our company started production in 2002 with sheet metal working machines and our production portfolio has expanded at a short notice and our products have started to be sold domestically and abroad.

Our products are sold under the EBR METAL brand, which we derived from engineering, bending and rolling solutions. Our company has determined the concepts of trust, solution creation, problem solving, customer satisfaction, innovation as the strategy of EBR METAL brand.

EBR METAL has chosen to make our high quality products easily accessible for everyone. EBR METAL does not compromise on innovation, ethical behavior, reliability, on-time delivery, high quality and low cost principles to achieve this goal.

Our products are sold to 25 countries in 5 continentals for now and our numbers are growing every year.

We produce:
Sheet metal folding machines
Sheet metal cutting machines
Sheet metal bending machines
Steelworkers and punching machines
