Abrasive Center Grinding Wheel for Sharpening Carbide Tools
- Category: >>>
- Supplier: TOSAMACHINE CO. LTD.
Share on (50038817464):
Product Overview
Description
| Product Brand | kure grinding wheel |
| Product Name | Flexible Depressed Center Wheel |
| Place of Origin | Japan |
Depressed Center Wheel
1. Made in Japan
2. superior cutting ability
3. long wheel life
Application
• Deburring cast iron and others.
• Smoothing weld seams of a wide variety of steels (structural steel, and stainless steel, etc).
• Smoothing weld seams of a wide variety of steels (structural steel, and stainless steel, etc).

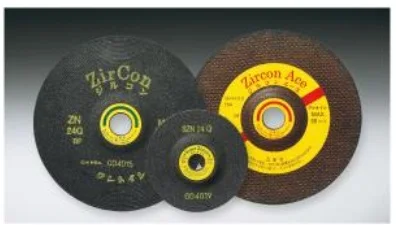

Features and Benefits about Zircon
♦ Super Zircon/Zircon
Employs zirconia abrasive grains to offer superior cutting ability and enhanced long wheel life.
♦ Zircon Ace
Employs zirconia abrasive grains to offer excellent cutting ability and long wheel life. This wheel is designed to more readily
conform to work surfaces than "Super Zircon ", and “Zircon”.
Depressed Center Wheel
| Item name(Abrasive) | Size (mm)(O.D. x Thk. x Hole) | Gritsize | Grade | M.O.S. | PackingL (S x Q)* | Remarks | |||
| N | O | P | Q | ||||||
| Super Zircon (SZN) | 100×6×15 | 24 | - | - | BD8001 | BD8002 | 72 | 200(25×8) | |
| 36 | - | - | BD8003 | BD8004 | 72 | 200(25×8) | |||
| Zircon (ZN) | 125×6×22 | 24 | - | - | - | BD8005 | 72 | 100(25×4) | |
| 180×6×22 | 24 | - | BD8006 | BD8007 | BD8008 | 72 | 50(25×2) | ||
| 36 | - | - | BD8009 | BD8010 | 72 | 50(25×2) | |||
| Zircon (for high speed) (ZN) | 180×6×22.23 | 24 | - | BD8011 | BD8012 | BD8013 | 80 | 50(25×2) | |
| Zircon Ace (ZNA) | 100×6×15 | 24 | - | - | BD8021 | BD8022 | 72 | 200(25×8) | |
| 36 | - | - | BD8023 | BD8024 | 72 | 200(25×8) | |||
| 180×6×22 | 24 | BD8025 | BD8026 | BD8027 | BD8028 | 72 | 50(25×2) | ||
| 36 | - | - | - | BD8029 | 72 | 50(25×2) | |||
| Zircon Ace (for high speed) (ZNA) | 180×6×22.23 | 24 | - | BD8030 | BD8031 | BD8032 | 80 | 50(25×2) | |
| 36 | - | - | BD8033 | - | 80 | 50(25×2) | Made-to-order | ||

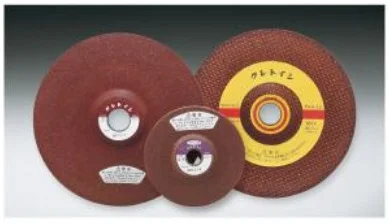

Features and Benefits about WA
♦ A/WA
This wheel is a standard type depressed center wheel, having good grinding performance for structural steel.
♦ For Stainless Steel:
By employing optimal abrasive grains, this depressed center wheel provides enhanced cutting ability for stainless steel.
| Item name(Abrasive) | Size (mm)(O.D. x Thk. x Hole) | Gritsize | Grade | M.O.S. | PackingL (S x Q)* | Remarks | |
| P | Q | ||||||
| A/WA (A/WA) | 100×4×15 | 24 | BD3220 | - | 72 | 200(25×8) | |
| 36 | BD3230 | - | 72 | 200(25×8) | |||
| 100×6×15 | 24 | BD2570 | BD2580 | 72 | 200(25×8) | ||
| 36 | BD2590 | BD2600 | 72 | 200(25×8) | |||
| 125×6×22 | 24 | BD2630 | - | 72 | 100(25×4) | ||
| 36 | BD2640 | - | 72 | 100(25×4) | |||
| 150×6×22 | 24 | BD2650 | - | 72 | 100(25×4) | ||
| 36 | BD2660 | - | 72 | 100(25×4) | |||
| 180×6×22 | 24 | BD2610 | - | 72 | 50(10×5) | ||
| 36 | BD2620 | - | 72 | 50(10×5) | |||
| A/WA (for high speed) (A/WA) | 180×6×22.23 | 24 | BD5010 | - | 80 | 50(10×5) | |
| 36 | BD5020 | - | 80 | 50(10×5) | |||
| Item name(Abrasive) | Size (mm)(O.D. x Thk. x Hole) | Gritsize | Item No. | M.O.S. | PackingL (S x Q)* | Remarks |
| For stainless steel | 100×6×15 | 24 | BD4010 | 72 | 200(25×8) | |
| 36 | BD4020 | 72 | 200(25×8) | |||
| 180×6×22 | 24 | BD4030 | 72 | 50(10×15) | ||
| 36 | BD4040 | 72 | 50(10×15) |
