Floor Heating Film Kit_ENERPIA

Product Overview

Description

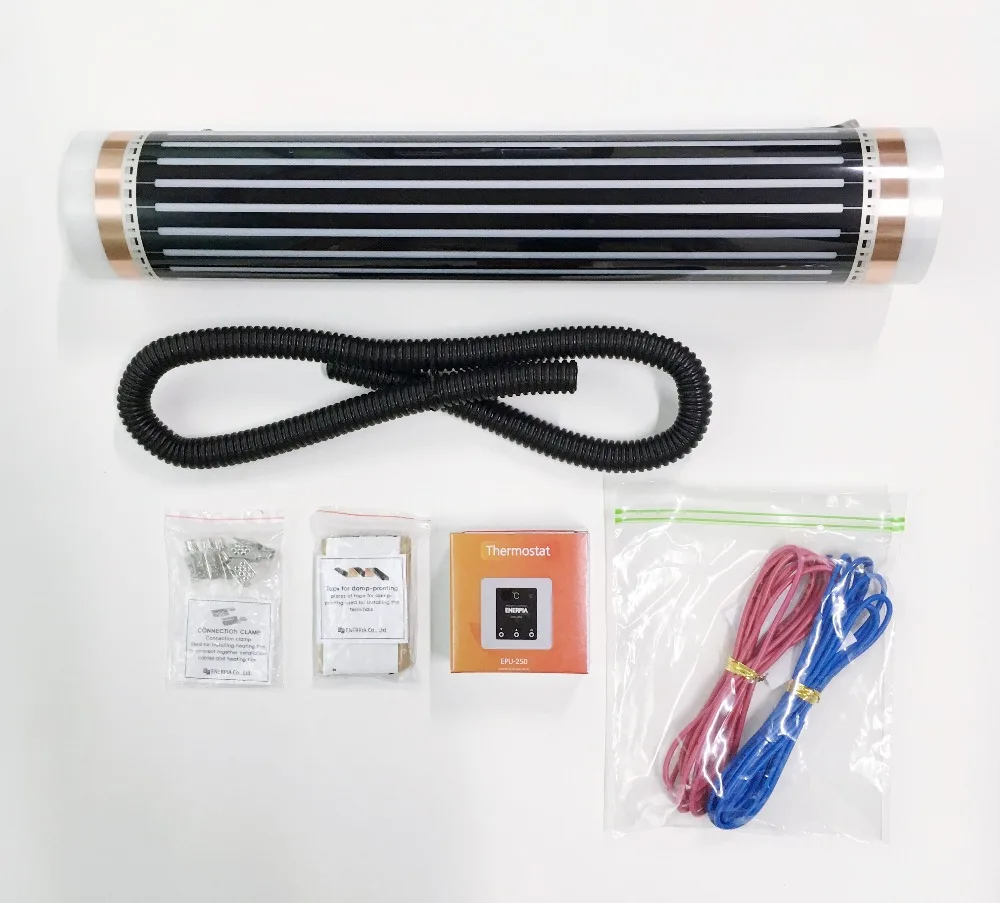

Kit includes

- Heating film, cable, tape for damp-proofing, connection crimps, flexible conduit, manual

Option

- Thermostat, Terminal press pliers

Features

- Easy installation

- Well-being system

- Energy saving

Product Specification


Model no.	Voltage	Power per meter	Squaremeter(w*l)	Output
EP220FM1.0	220	110W/M	0.5m * 2m = 1.0m2	220w/h
EP220FM1.5	220	110W/M	0.5m * 3m = 1.5m2	330w/h
EP220FM2.0	220	110W/M	0.5m * 4m = 2.0m2	440w/h
EP220FM2.5	220	110W/M	0.5m * 5m = 2.5m2	550w/h
EP220FM3.0	220	110W/M	0.5m * 6m = 3.0m2	660w/h
EP220FM3.5	220	110W/M	0.5m * 7m = 3.5m2	770w/h
EP220FM4.0	220	110W/M	0.5m * 8m = 4.0m2	880w/h
EP220FM4.5	220	110W/M	0.5m * 9m = 4.5m2	990w/h
EP220FM5.0	220	110W/M	0.5m * 10m = 5.0m2	1100w/h



Product specification (length), electricity consumption, and heating area can be customized



Subflooring	Concrete, Plasterboard, Chipboard
Floor Material	Wood, Laminate, Plastic matting
Room Type	Only Dry Rooms
Heating Film Thickness	0.388 mm
Width	500 mm
Output	220W/m²
Connection voltage	220 V



Product specification (length), electricity consumption, and heating area can be customized

Technical Information



Subflooring	Concrete, Plasterboard, Chipboard
Floor Material	Wood, Laminate, Plastic matting
Room Type	Only Dry Rooms
Heating Film Thickness	0.338 mm
Width	500 mm
Output	220W/m²
Connection voltage	220 V



For technical customization, please contact us.





1. Design blueprint	2. Install insulating materials for heating film	3. Install far-infrared heating film
4. Connect compression terminal	5. Connect wire	6. Conduct insulation work
7. Performance test	8. Install protection board	9. Install finishing materials
10. Install thermostat
