Mitutoyo high accuracy digimatic micrometer SERIES 293 Range 0 25mm IP65 micrometer with 2mm/rev spindle feed

Product Overview

Description





Product Brand	Mitutoyo
Product Name	Coolant Proof MicrometersSERIES 293-MDE
Place of Origin	Japan



QuantuMike SERIES 293 — IP65 Micrometer with 2mm/rev Spindle Feed

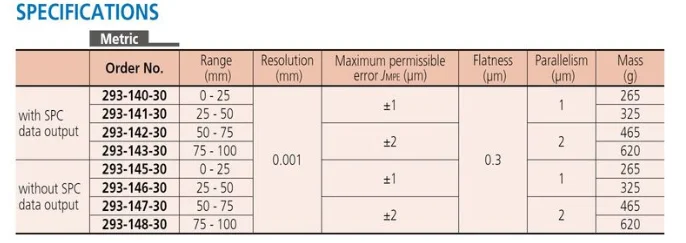

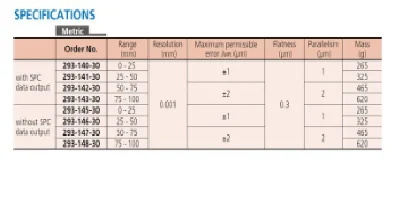

Measurement range

Metric 0-25mm/25-50mm/50-75mm/75-100mm









Fanctions

* Origin point setting (ABS length measurement system):

  pressing the ORIGIN button resets the ABS origin at the current spindle position.        Origin values can be set depending on each  size.

* Zero setting (INC length measurement system):

  A brief press on the ZERO/ABS button sets display to zero at the current spindle            position and switches to the incremental (INC) measuring mode.  A longer press            resets to the ABS measuring mode.

* Hold:

  Pressing the HOLD button freezes the current value in the display.  This function is        useful preserving a measurement in situations of poor visibility when the instrument        must be moved away from the workpiece before the reading can be recorded.

* Function lock:

   This function allows the ORIGIN (original point setting) function and the ZERO (zero setting) function to be locked to prevent these points being reset accidentally.

* Auto power ON/OF:

 The reading on the LCD disappears after this instrument is idel for approx. 20 minutes, but the origin point is retained.  Turning the spindle causes the reading on the LCD to reappear.

* Data output:

Models equipped with this function have an output port for transferring measurement data to a Statistical Process Control (SPC) system.

* Error alarm:

  In case of an overflow on the LCD or a computing error, an error message appears on the LCD, and the measuring function stops. This prevents an instrument from giving an erroneous reading.  Also, when the battery voltage drops to a certain level, the low-battery-voltage alarm indictator appears well before the micrometer becomes unuseable.  (Only for the models with SPC data output)
