Description:

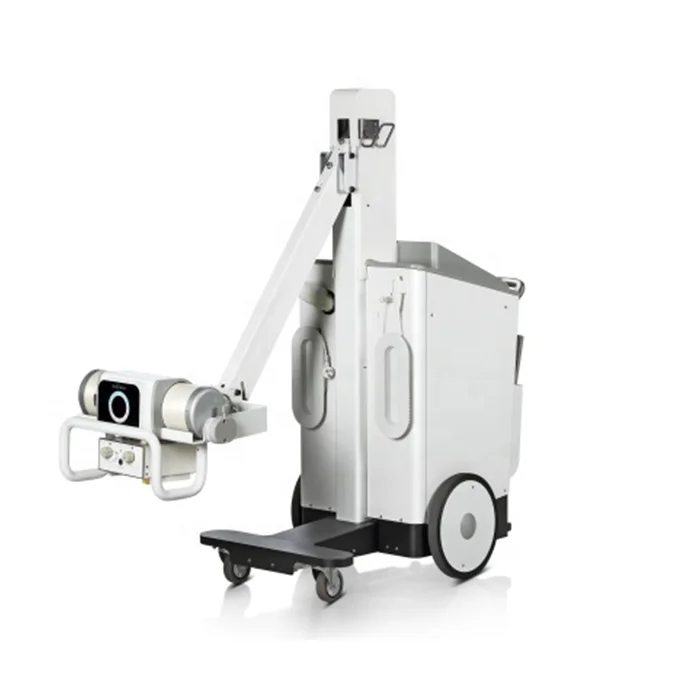

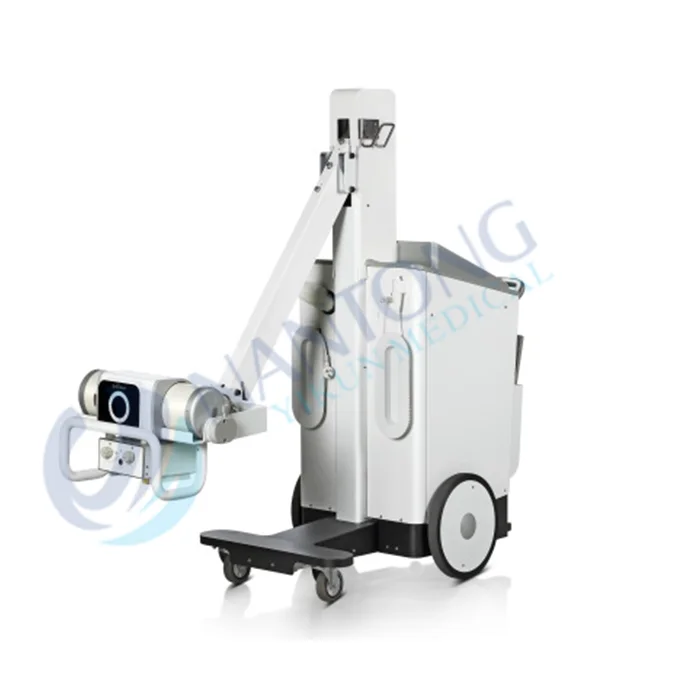

NT-Cooper is an economic and practical mobile digital X-ray system, can be widely used in radiology, orthopedic, medical examination department, emergency room, intensive care unit, operating room and neonatal pediatrics, it fully meet the demand of hospital digital radiography.
Main Festures:
1.High-index Image Chain

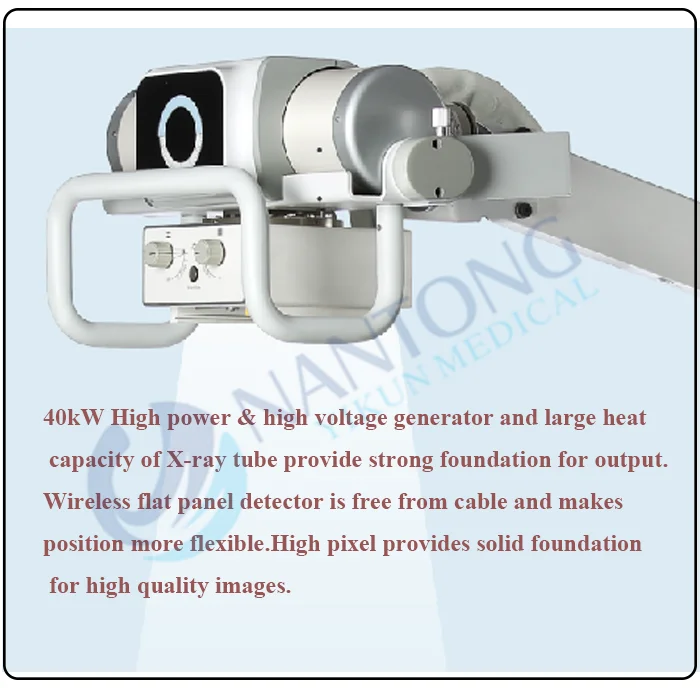

40kW High power & high voltage generator and large heat capacity of X-ray tube provide strong foundation for output.
Wireless flat panel detector is free from cable and makes position more flexible.High pixel provides solid foundation for high quality images.
2.Light Weight and Flexibility
Compact structure, in narow space, MobileCooper can achieve full circle rotation, easy movement.

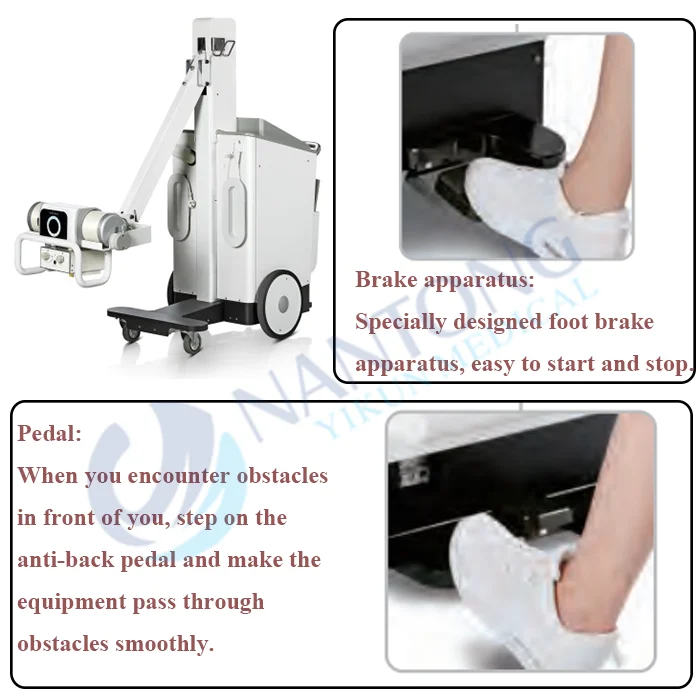

New folding stand design, when radiographer drives the equipment, the line of sight is not covered, can look straight ahead of the road, avoiding collision.
3.New Power Design
Dual power supply, exposure under either wall current or lithium battery.
It is equipped with dynamic lithium battery, which has the advantages of green environment, light weight, small volume, greatly shortened charging time, and increase longevity.

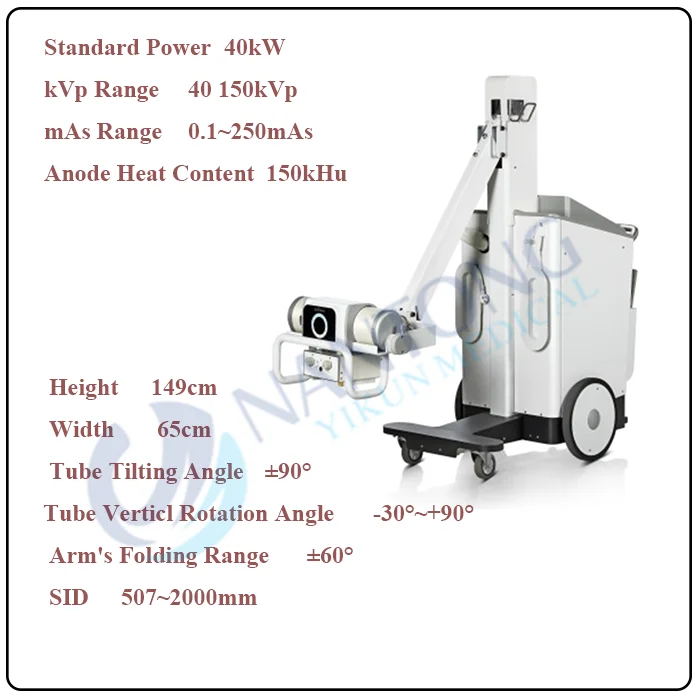

Index:
| Flat Panel Detector | X-ray Sensitive Area | 14× 17inch |
| Generator | Standard Power | 40kW |
| kVp Range | 40 150kVp | |
| mAs Range | 0.1~250mAs | |
| Anode Heat Content | 150kHu | |
| X ray Tube | Weight | 220kg |
| Physical Specification | Height | 149cm |
| Width | 65cm | |
| Tube Tilting Angle | ±90° | |
| Tube Verticl Rotation Angle | -30°~+90° | |
| Arm's Folding Range | ±60° | |
| SID | 507~2000mm |
