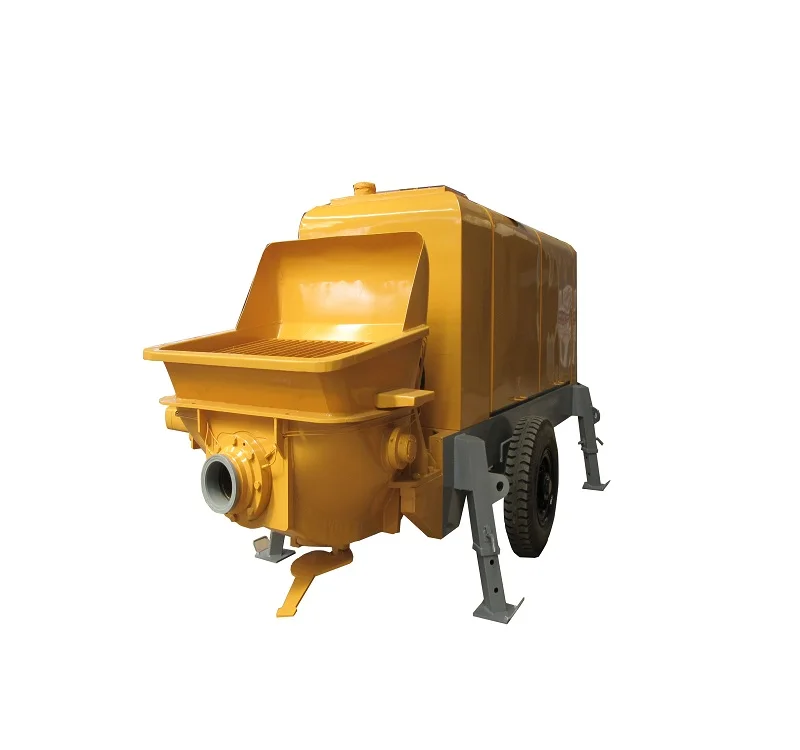

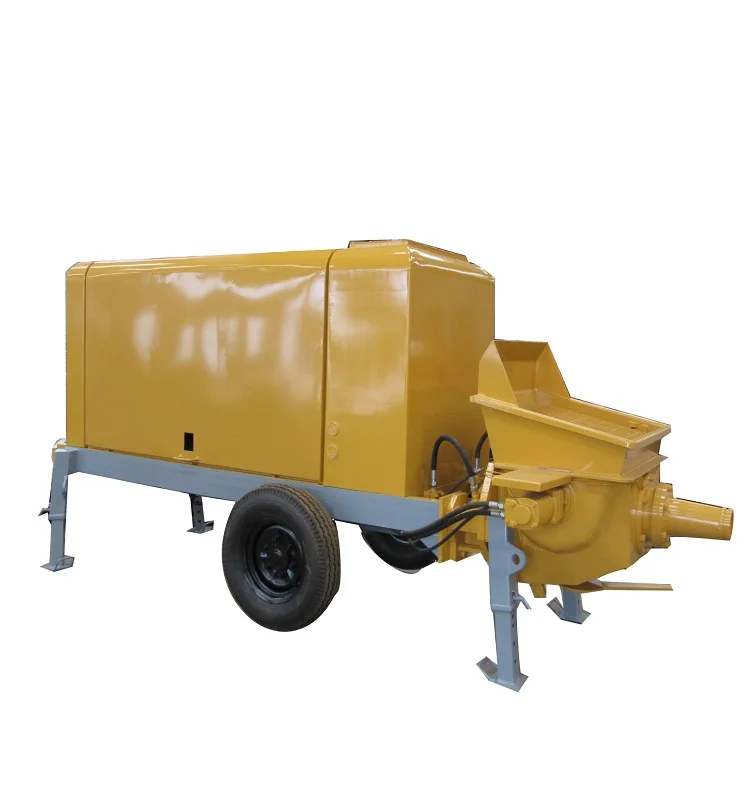

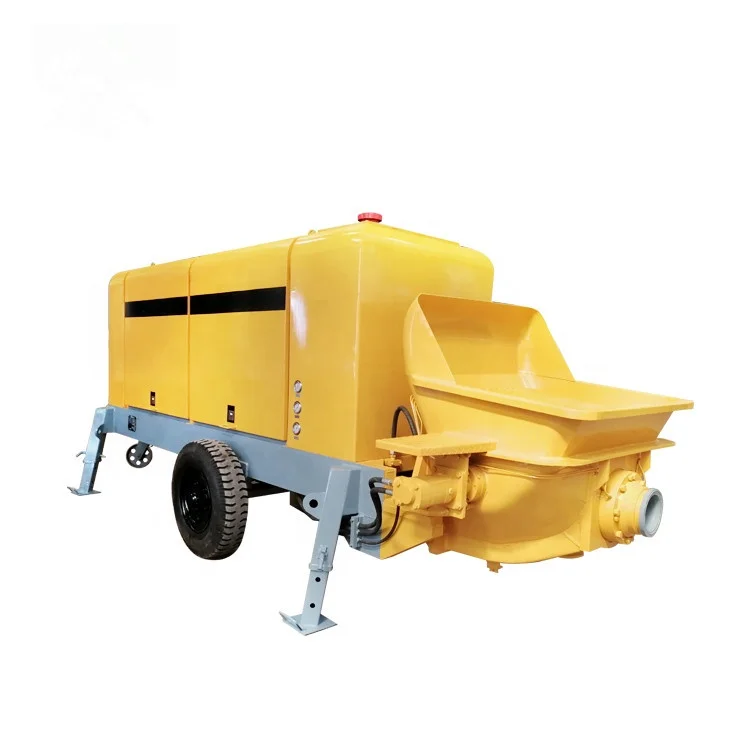

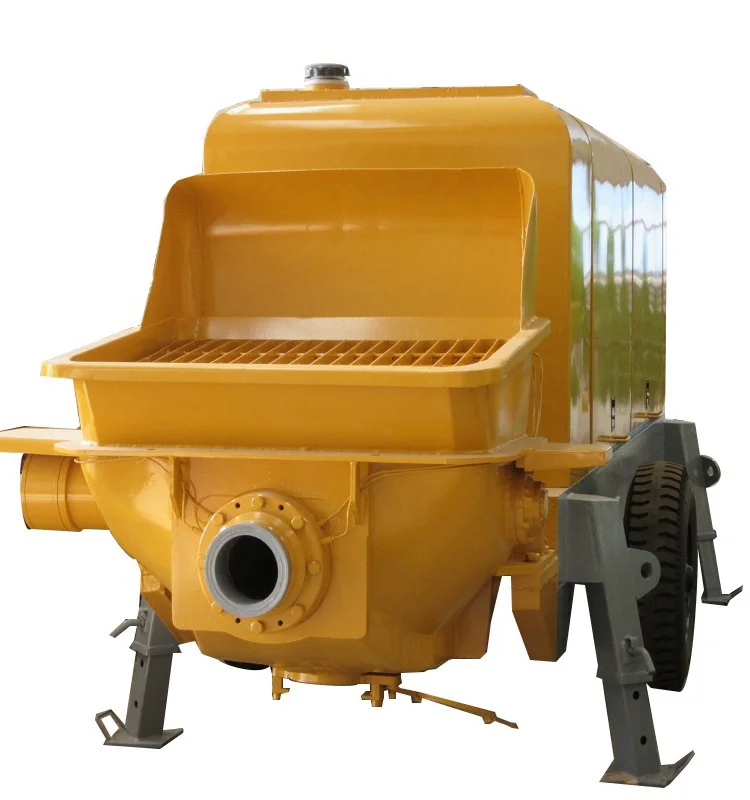

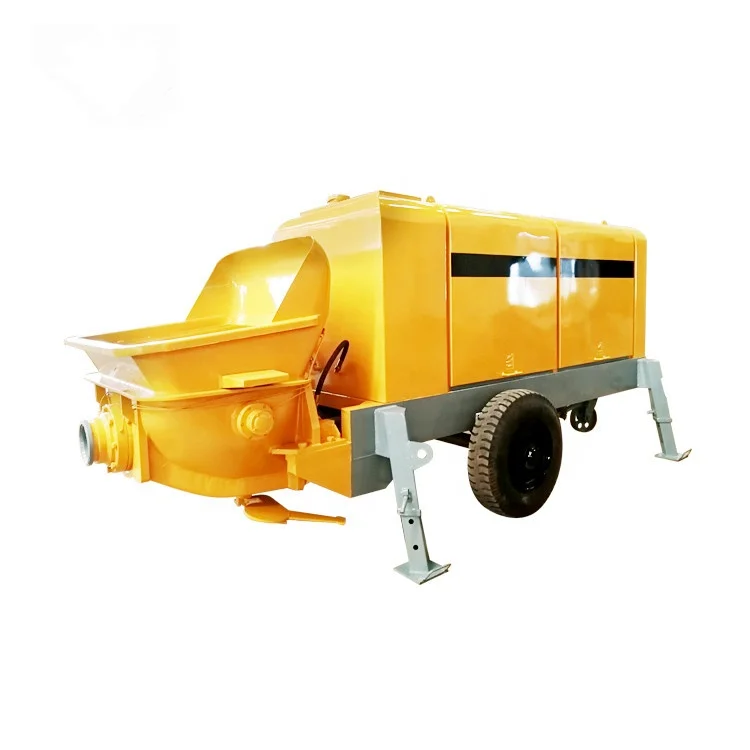

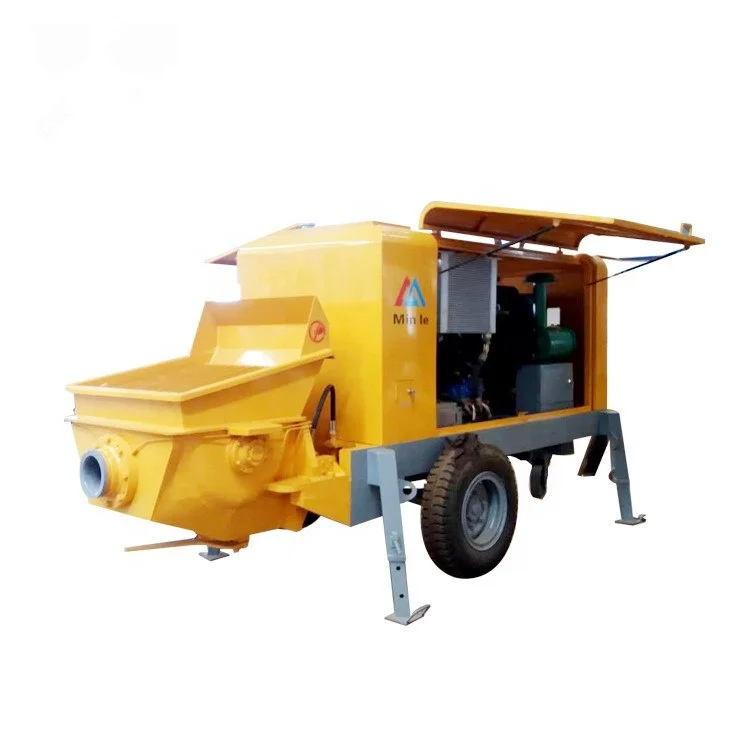

hot sale small portable pumpcrete/stationary concrete pumps for sale
Product Description
Item
HBTS45-13-86R
Max Theoretical Concrete Output (m³/h)
40
Max Concrete outlet Pressure (Mpa)
13
Concrete slump (mm)
120—230
Aggregate Size (mm)
gravel≤30
Powder (KW)
Diesel motor 86
Speed (r/min)
2300
Conveying Cylinder Diameter (mm)
Ø 100/1000
Concrete Cylinder Diameter (mm)
Ø 100/1000
High-Low Pressure Switch
Oil Tank Capacity (L)
200
Hopper Capacity (m³)
0.3
Filling Height (mm)
1100
Maximum Actual Conveying Distance
(vertical Height/Horizontal Distance) (m)
100/300
Pipe Cleaning Mode
Washing
Overall Dimension (mm)
5100*1500*1800
Total Weight (kg)
3500
good operation small portable pumpcrete for sale
good operation small portable pumpcrete for sale
DIESEL 30M3/H OUTPUT TRAILER CONCRETE PUMP/SMALL PORTABLE PUMPCRETE FOR SALE
Main pumping system stationary concrete pumps 1.Using Master Cylinder of HUNAN XIELI and Concrete Cylinder of WUXI ZHONGHONG.
2. Open-loophydraulic circuit, Big fuel tank capacity (560L), Good performance of heat transfer and low temperature of the system effectively protect the entire hydraulic system to work properly. Distribution system stationary concrete pumps 1.using the swing cylinder (Φ80) of CHANGSHA XIELI.
2. using nested S-tube valve.
3. using special glasses plates of wear-resistant materials, cutting ring.
Mixing system stationary concrete pumps 1.Using cycloid motor from NINGBO ZHONGYI.
2. Using super-resistant mixing blade shaft with pedal-style.
3. The hardness of left and right axle HB250-280 after quenched treatment. The thickness of the surface nitride is greater than 0.3mm, and the surface hardness is more than HB550.
Cooling and filtration devices stationary concrete pumps
1.Using oil filter from WENZHOU LEEMIN that Zoomlion used. The filtration accuracy of main pump suction filter is 100μm, and the filtration accuracy of the gear pump suction filter is 80μm, and the filtration accuracy of return oil filter is 20μm. 2.Coolers from airline products are of reliable quality and good heat dissipation.
Hydraulic piping and valve stationary concrete pumps
1. Using imported Italian Ercolina tubing and fittings with good pressure resistance and anti-aging performance. 2. Using hydraulic control valve from the Italian company Atos ,which is a unit of the hydraulic system to ensure long-term stability
Electronic control systems stationary concrete pumps 1. Using Omron programmable controller (PLC) and Mitsubishi's open space. It has the advantages of movement control accuracy, long life and low failure.
2.Using Schneider AC contactors and control buttons (contact). 3.Using Omron's integrated power supply and relay. 4.Using GSK proximity switches from Germany. 5.Using use NEC hydraulic table.
Company Information
good operation small portable pumpcrete for sale
good operation small portable pumpcrete for sale
Tai' an Minle Machine Manufacture Co., Ltd is a large construction engineering machine manufacturing company integrating scientific research, production, sales and after-sales service.
Our company Is mainly specialized in developing and manufacturing construction machines including all kinds of small, medium and large concrete pump machines such as coal mine explosion-proof concrete pumps, metal mine special concrete pumps, fine aggregate concrete pumps,Truck-mounted Concrete Pumps, Electric Concrete Pumps, Diesel Concrete Pumps,Special cement emulsified asphalt mortar pump,wet shotcrete machines, continuous feeding concrete mixers .etc
Why choose us * Help you to choose the suitable concrete pump, Improve construction efficiency; * Customized design according to your request; * Provide complete parts and delivery pipes for you to use; * Resolve the problem online promptly, if necessary we will send our engineer oversea; * You are promised to delivery the goods on time;
* Enough concrete pumps in stock to meet customers' urgent requirements for the regular types; * Plasma automatic cutting machine, ensure the concrete body 30 years not deformation;
* Computerized Numerical control-Production efficiency was greatly impoved, meet the customers' requirements for complex customized models; * Multiple types, complete set of spare parts inventory, satified the customer' various building project usage requirements;
Our Services
1. Help you to choose suitable concrete pump
2. Customized according to your request.
3. We offer full spare parts and delivery pipes for you to use 4. We arrange our engineer to teach you how to operate the machine. 5. We can resolve the problem online. If necessary, We can send our engineer over sea.
6. we promised you to delivery the goods in time
FAQ
Q: do you have diesel concrete pump?
A: yes, electric, diesel fuel both of them is our mainly products;
Q: how can we choose the concrete type?
A: please advise me the vetcial heigh, our techniques will recommend you the suitable one
Q: How can we use the concrete pump?
A: we will send you the manual operation, we can arrange the technique to your side for teaching
