YD 22II Hydraulic Rail Tamping Machine Price

Product Overview

Description

Internal Combustion Rail Tamping Machine Description

YD-22 Travelling Type Internal Combustion Rail Tamping Machine is a hydraulic Tamping Machine adopts new material and technology, this type of machine is our upgrading product. Its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode.

Due to increasing the tine palm inserting depth and the guide pillar stroke stop means, it’s able to to operate on II type concrete sleeper and III type concrete sleeper, and on various concrete sleeper and rail track. Its main technical performance is better than the old type.

It’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed.

Travelling Type Internal Combustion Rail Tamping Machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.

Internal Combustion Rail Tamping Machine Parameter



Engine	Name	Petrol Engine
	Power	9.5kw
	RPM	3600
Hydraulic System Working Pressure	5~6MPa
Vibrating Frequency	66.7Hz
Vibrating Force:	22kN
Max. Inset Force	16kN
Clamping Force	6.5kN×2
Inserting Depth	<110mm±10mm
Efficiency(group/h)	≥260piece
Net Weight:	422kg
Dimension:	1390mm×750mm×1600mm
Operating Form:	(1) Unilateral or bilateral off-track
	(2) Bilateral next two as a group, for single line shoulder a narrow area.
Travel Frame Gauge :	600mm

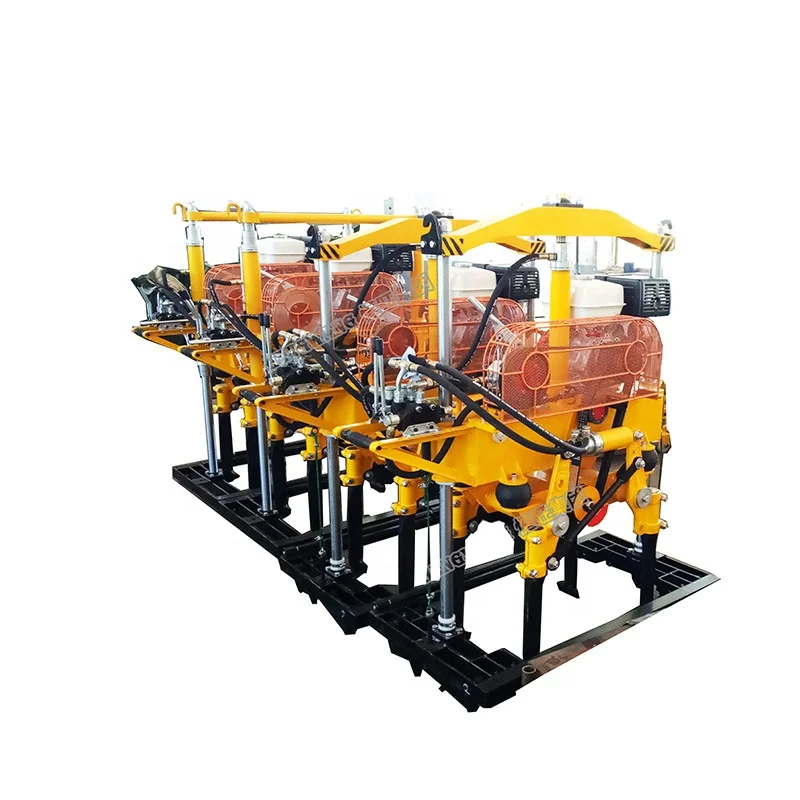

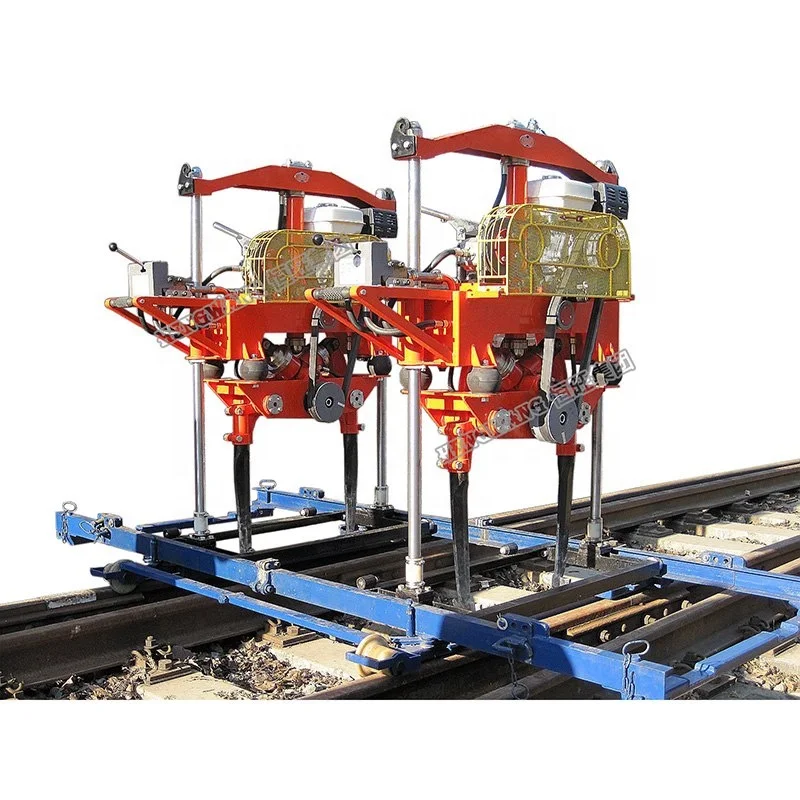

Internal Combustion Rail Tamping Machine Figure Photos
