Multi Processing Copper Aluminum Busbar Cutting Punching Bending Machine
Product Description
This series Multi Processing Copper Aluminum Busbar Cutting Punching Bending Machine has three units:punching, shearing and bending.It is easily to adjust each unit to shorten the processing time and improve the production efficiency. It is used to process copper and aluminum busbars in different specification.
Processing material:
Brass/Copper and Alumimum Busbar.
Functions:
1. Bending at vertical and horizontal direction.
2. Punching for round and oblong hole.
3. Cutting busbar.
4. Special for embossing, knurling, twisting, cable joints pressing.
View Machine Video on YOUTUBE: https://www.youtube.com/watch?v=GBgzK5KbDuE
Detailed Images

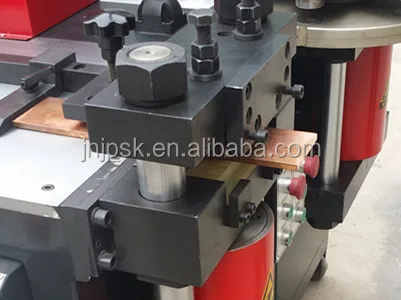

Three working units of Multi Processing Copper Aluminum Busbar Cutting Punching Bending Machine
Cutting unit
Bending unit
Punching unit
Detailed Parameters
Function
Content
Unit
Parameter
JPMX-303ESK
JPMX-503ESK
Punching
Max. force
KN
300
500
Diameter range
mm
4.3 ~ 25
4.3 ~ 34
Max. thickness
mm
12
16
Max. width
mm
150
250
Mold No.
PCS
6
6
Shearing/Cutting/Slitting
Max. thickness
mm
12
16
Max. width
mm
150
250
Horizontal bending
Max. strength
KN
300
500
Max. width
mm
150
250
Max. thickness
mm
12
16
Bending accuracy
Degree
±1
±1
Relocation accuracy
Degree
±0.3
±0.3
Decker no.
PCS
2
2
Vertical bending
Max. thickness
mm
10
10
Max. width
mm
100
120
Min. angle
Degree
90
90
Other
Machine size
mm
1750*1350*1420
1850*1500*1600
Power motor
KW
3 * 4
3 * 5.5
Weight
KG
1350
1950
Trundle
PCS
4
4
Accessories of Multi Processing Copper Aluminum Busbar Cutting Punching Bending Machine:
8 sets of punching die. (Ø7, Ø9, Ø11, Ø13, Ø15, Ø17, Ø13 * 18, Ø17 * 21 or as per customer's requirement)
1 set of shearing die
2 sets of horizontal bending die 2 sets of vertical bending die 1 set of embossing die
1 set of U bending die
1 set of oil filler 1 set of tool for die installing 3 sets of foot switches 1 set of hydraulic system sealing ring 2 pieces of Limit Switch 1 piece punching location pin.
Samples of Multi Processing Copper Aluminum Busbar Cutting Punching Bending Machine:
Applicable Industry
This Multi Processing Copper Aluminum Busbar Cutting Punching Bending Machine is widely used in Switch cabinet, electric control panel manufacturing , high low voltage switchgear, eletric transformer station,Electric panel ,voltage transformer,appliance swich, ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing , Power distribution system product maufacturing.
Main Characteristics
1. The cut surface is smooth and neat, no droop, no burrs, no waste

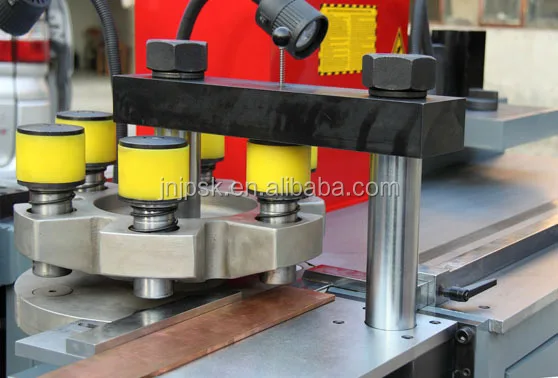

2. Rotary turret punch unit installed 6 dies, less replacing, high efficiency
3. More work space added by double work table, three work positions can be used at the same time.
4. Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree
5. Easily to be moved with four casters
6. Manual button and foot switch are optional
7. Adjustable working stroke
8. On users requirement, special mold for special shape
Advantages
1. We are factory. we can do OEM as per clients request.

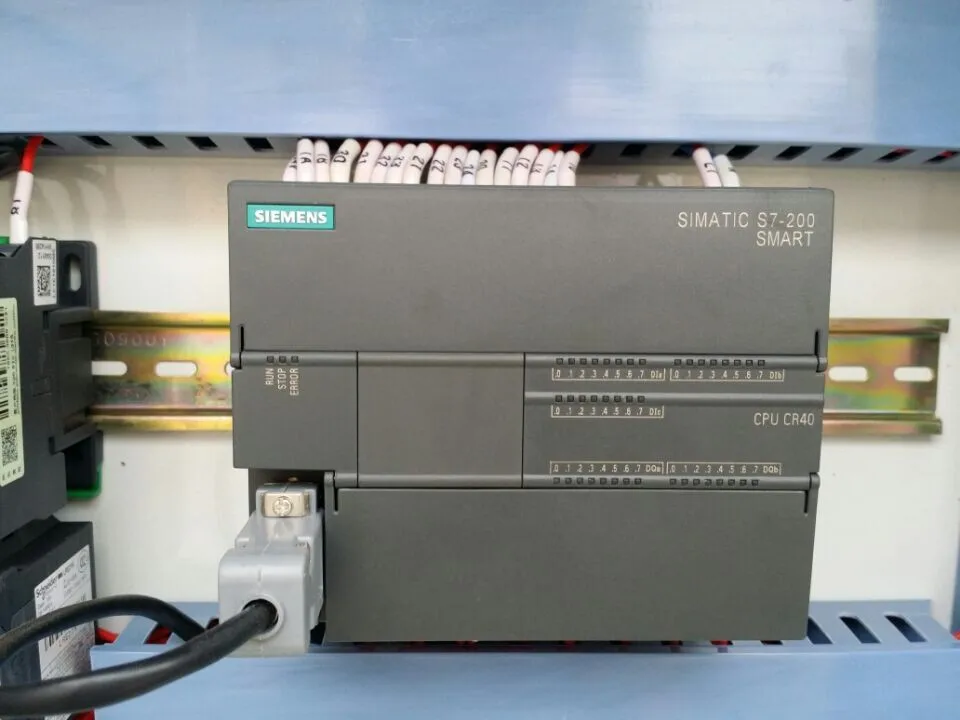

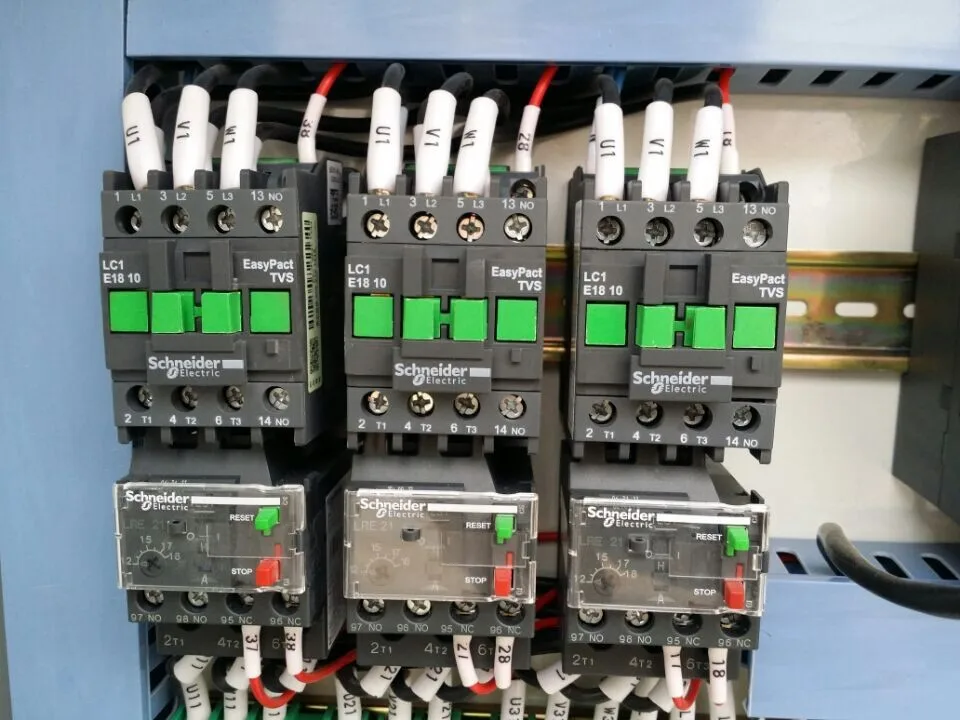

2. Our PLC are from Siemens. Our thermal relays, AC contactors, circuit breakers are from Schneider.
3. We have strong after-sales services team and professional technicians who can gurantee professional guidance after sales.
4. With Certification of CE&ISO 9001.
Certificate : CE & ISO 9001
Packaging & Shipping

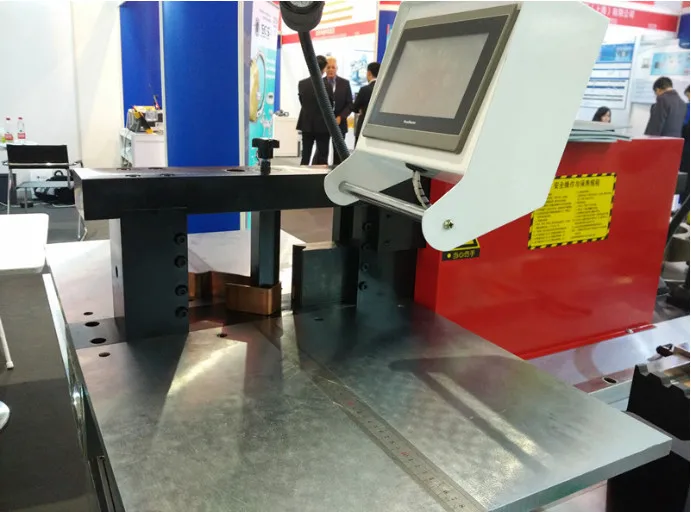

Exhibition
Jinan Jingpeng CNC Machinery have taken part in many exhibitions for Busbar machine in China and worldwide.
After-sale service:
1.One year warranty, unconditional replace accessories according to warranty card.
2.We provide the consumable parts at agent price when you need replacement.
3.We have strong after-sales services team and professional technicians who can gurantee professional guidance after sales.
