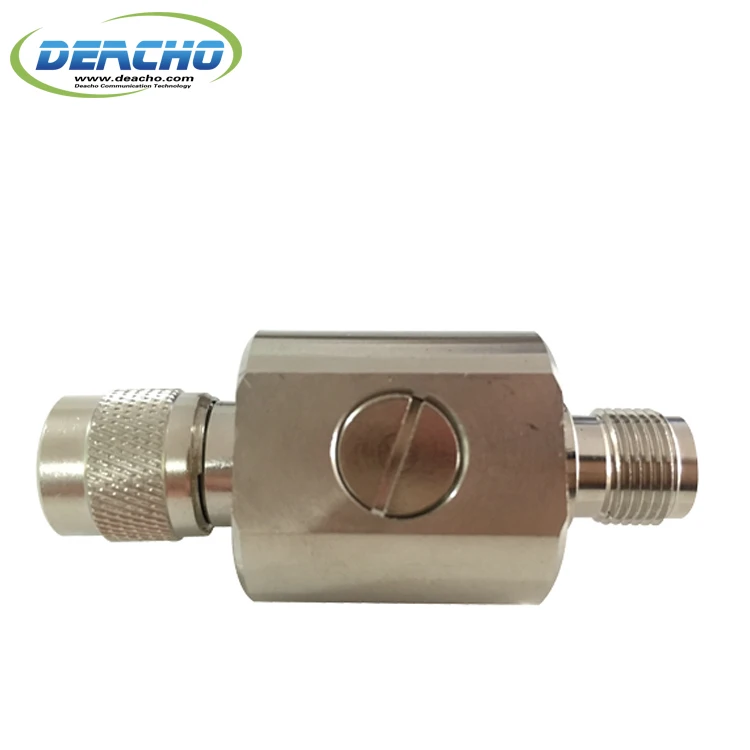

TNC RF surge protector male to female

Description.

Surge protector (or surge arrestor or lightning arrestor) is an  device designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the unwanted voltage supplied to an electric device by either blocking or shorting to ground. Surge arrestor provide excellent lightning protection and outstanding RF performance. All designs have low return loss, low insertion loss and low intermodulation. We offer quarter-wave type and gas discharge tube.




Feature.


● Broad frequency


● Outstanding RF performance


● Complete weatherproof


● Available with N/DIN/4.3-10/BNC/TNC/SMA interface

      ________________________________    SPECIFICATION    ____________________________________

\t
Electrical
\t
Item No.
\t
LAG-TNCMF-G26
\t
Impedance
\t
50 ohm
\t
Frequency
\t
DC-3GHZ
\t
VSWR
\t
≤1.5
\t
Insertion Loss
\t
≤ 0.48 db
\t
Maximum impluse discharge current
\t
20KA(8/20 μ s)
\t
Material and plating
\t
Body
\t
Brass / Ni plating
\t
Center conductor
\t
Brass or  bronze / Au plating
\t
Insulator
\t
PTFE
\t
Environmental
\t
Temperature range
\t
-40℃~+85℃
\t
Watertightness
\t
IP68
\t
Rosh-compliance
\t
Full Rosh-compliance
Related Products

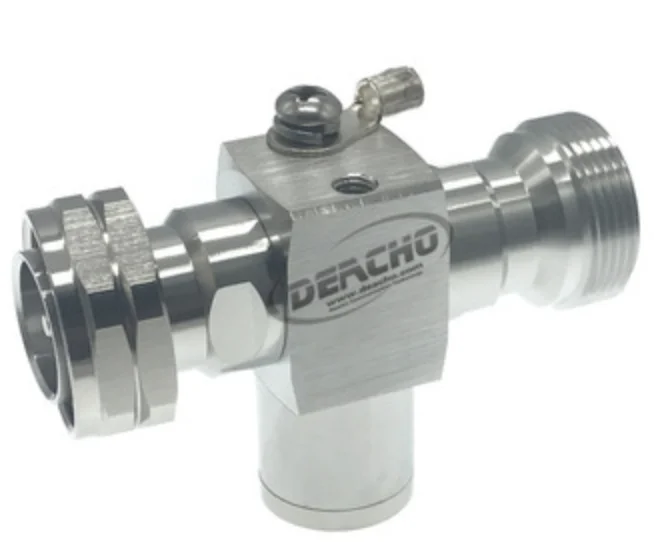

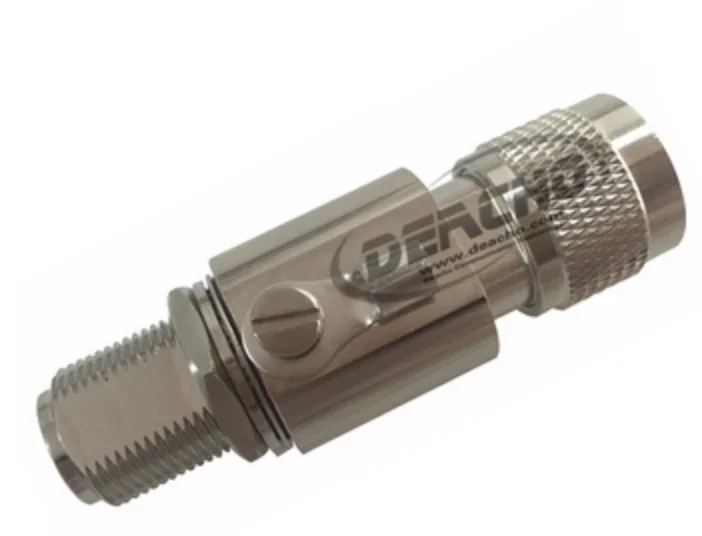

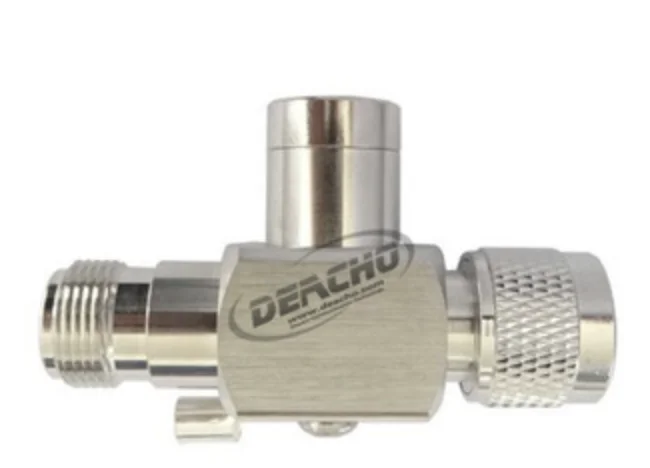

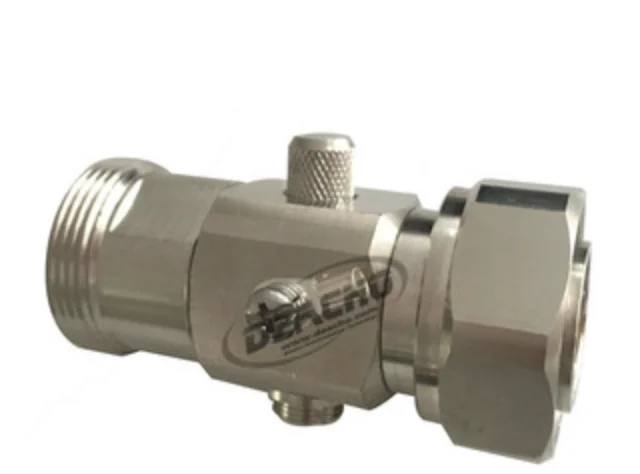

Gas Tube N Male to Female     1/4 Wave N Male to Female    1/4 Wave DIN Male to Female    Gas Tube DIN Male to Female

Contact Us
Our Service

   Pre-Sales Service

  * Inquiry and consulting support.
  * Sample support.
  * Customized is available.

  After-Sales Service

  * Installation and technical support.
  * Product replacement if have quality problem.
  * Customer information is not disclosed.

Company Profile
Packing & Delivery

Our usual packing is export carton with tape and packing belt, pallet packing or other packing is also available by your requirement.

Sample usually delivery by DHL,TNT,FedEx,UPS, batch cargo delivery by air or sea, other transport mode is available .

FAQ

Q1. What is your terms of payment?
A:  Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment (Conventional products).

Q2. What is your terms of delivery?
A:  EXW, FOB, CFR, CIF, DDU.


Q3. How about your delivery time?
A:  Generally it is 3-5 days if the goods are in stock. or it is 7-10 days if the goods are not in stock, it is according to quantity.

Q4. Can you produce according to the samples?
A:  Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. What is your sample policy?
A:  Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q6. Do you test all your goods before delivery?
A:  Yes, we have 100% test before delivery

Q7: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
     2. We respect every customer as our friend and we sincerely do business and make friends with them,  no matter where they come from.


If you have another question, pls feel free to contact us.
