Residential Solar Panel Off Grid System Price 1000W 2000W 3000W 4000W 5000W Solar Power System Cost For Home
- Category: Solar Energy Systems >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (50045782873):
Product Overview
Description
Product Description

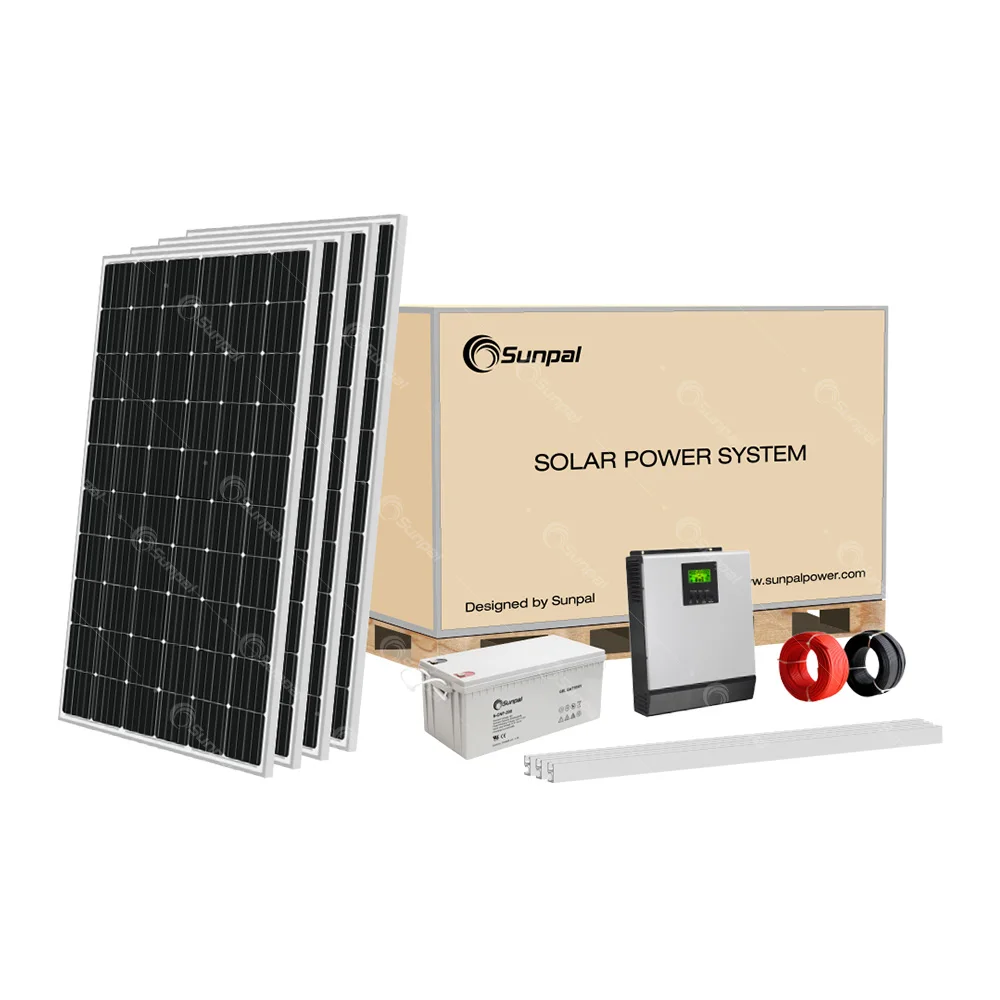

What's Included:
Components | SP1KW-OFF | SP2KW-OFF | SP3KW-OFF | SP4KW-OFF | SP5KW-OFF | ||||
300W Mono Solar Panel | 2 Piece | 4 Piece | 6 Piece | 9 Piece | 12 Piece | ||||
MC4 Y Branch | 1 Pair | 1 Pair | 2 Pair | / | / | ||||
Combiner Box | / | / | / | 3 in 1 out | 4 in 1 out | ||||
Off Grid Inverter | 1KW | 2KW | 3KW | 4KW | 5KW | ||||
12V 200AH Battery | 1 Piece | 2 Piece | 4 Piece | 4 Piece | 8 Piece | ||||
DC Cable | 100 Meters | 100 Meters | 200 Meters | 200 Meters | 200 Meters | ||||
MC4 Connector | 4 Pair | 4 Pair | 6 Pair | 6 Pair | 8 Pair | ||||
Mounting System | Standards Pitched Roof ( Customized Optional) | ||||||||
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

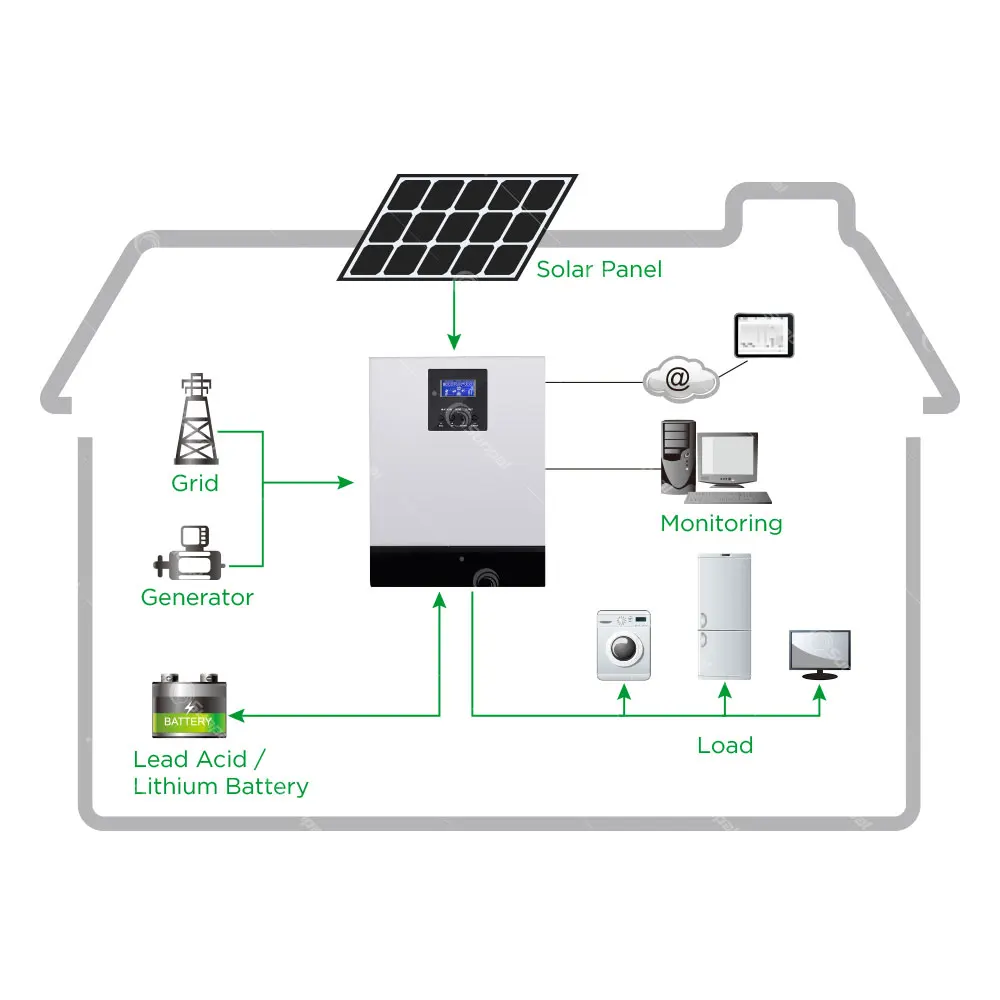

Off Grid System Configuration
Mono Solar Panels
Peak Power Watts: 300W (SP300M-60)
Maximum Power Voltage: 32.2V
Maximum Power Current: 9.33A
Open Circuit Voltage: 39.5V
Short Circuit Current: 9.84A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
Off Grid Inverter
The Off Grid Inverter is Integrated with a MPPT Solar Charger Controller,a High Frequency Pure Sine Wave Inverter and a UPS Fuction Module in One Machine.Remote Monitoring is Available by Using Wifi Monitoring Kit.
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

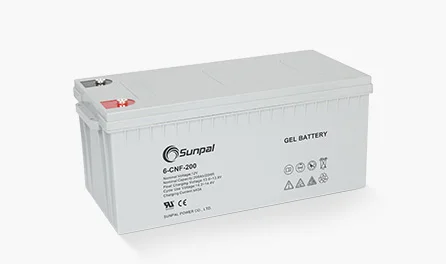

Lead Acid GEL Battery
Capacity(kWh): 2.4
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Nominal Voltage(Vdc): 12
Nominal Capacity(AH): 200
Depth of Discharge: 70%
Main Disconnect Box
DC Disconnect
AC Disconnect
Battery Disconnect
PV Combiner
Flexible Inputs Optional
IP65 Protection Degree
DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 600VDC/1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,32A
DC Cable & MC4 Connector & Y Branch
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

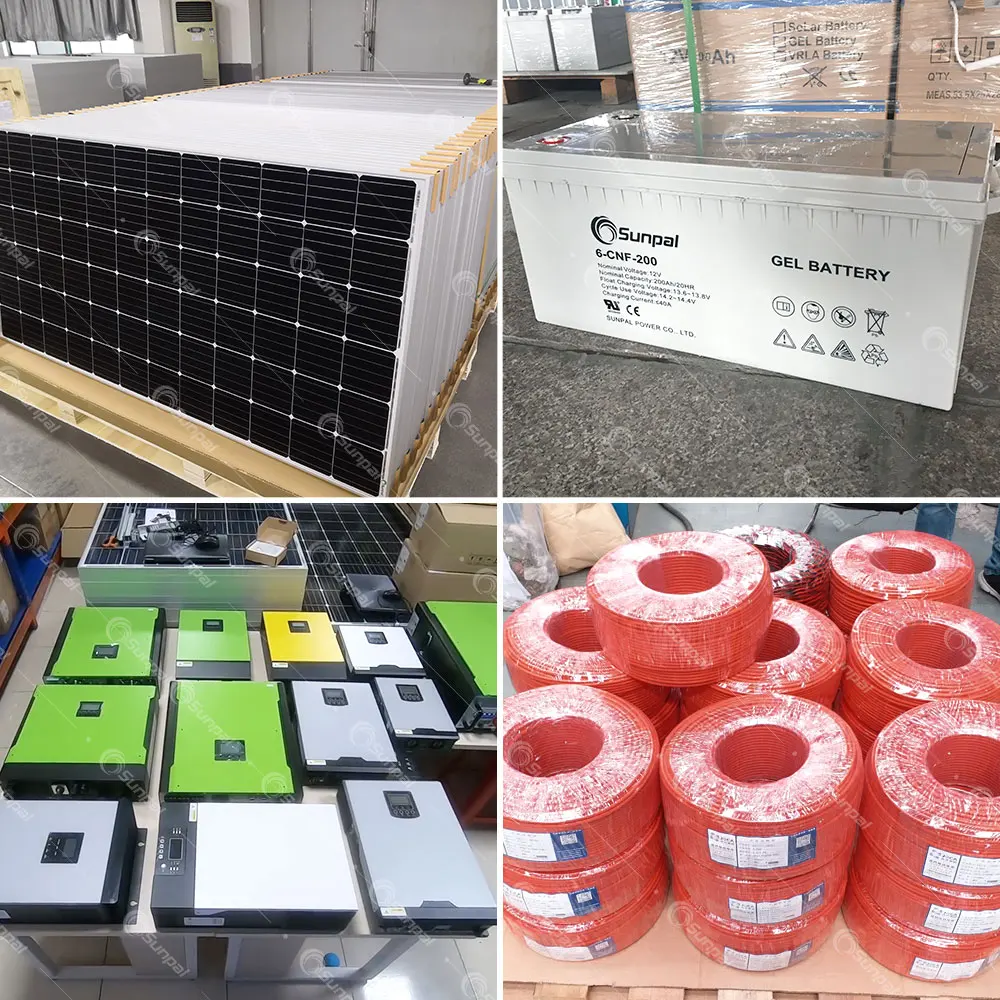

Our Factory
Packing & Delivery
Model | Single Set | 20' Container Load | 40' Container Load |
SP1KW-OFF | 1.7*0.45*1 | 30 Sets | 70 Sets |
SP2KW-OFF | 1.7*0.6*1 | 12 Sets | 28 Sets |
SP3KW-OFF | 1.7*0.6*1 | 12 Sets | 28 Sets |
SP4KW-OFF | 1.7*0.75*1 | 10 Sets | 24 Sets |
SP5KW-OFF | 1.7*0.75*1 | 5 Sets | 12 Sets |
Note: The Above packing information contained in this web is subject to change without notice.

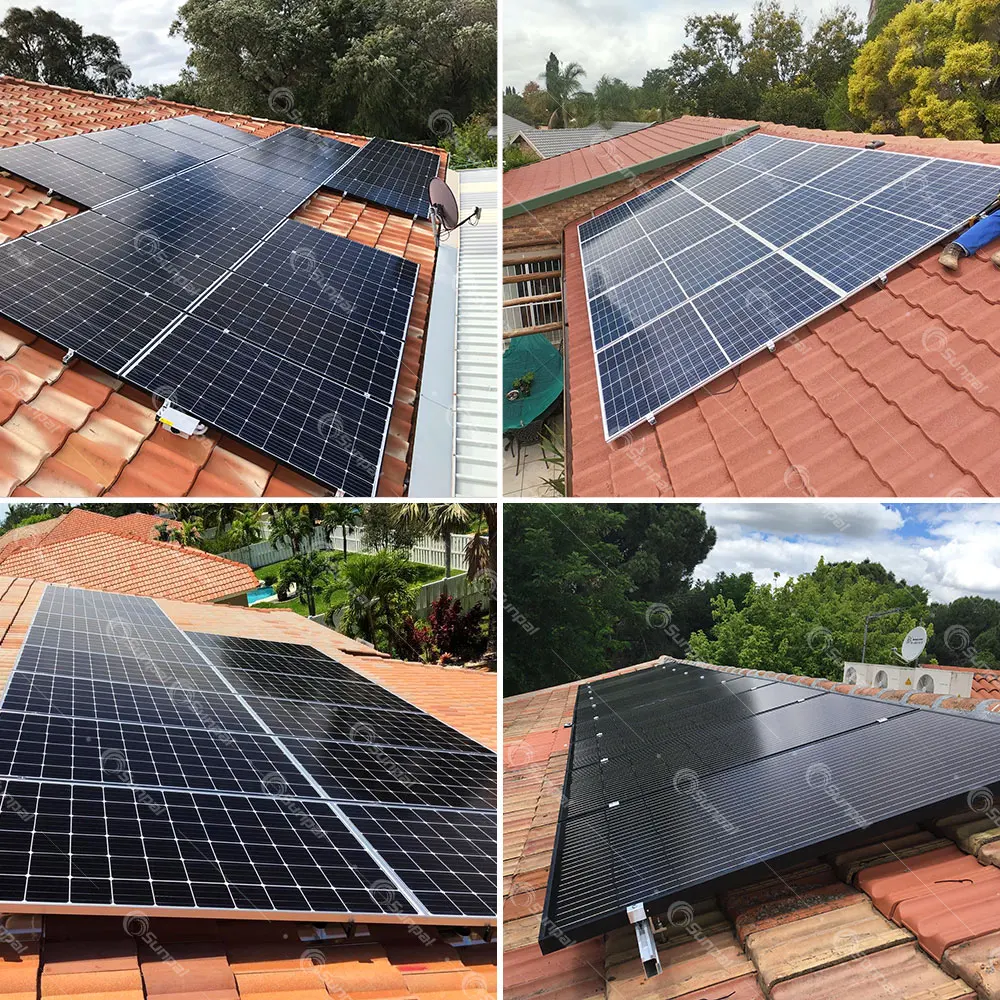

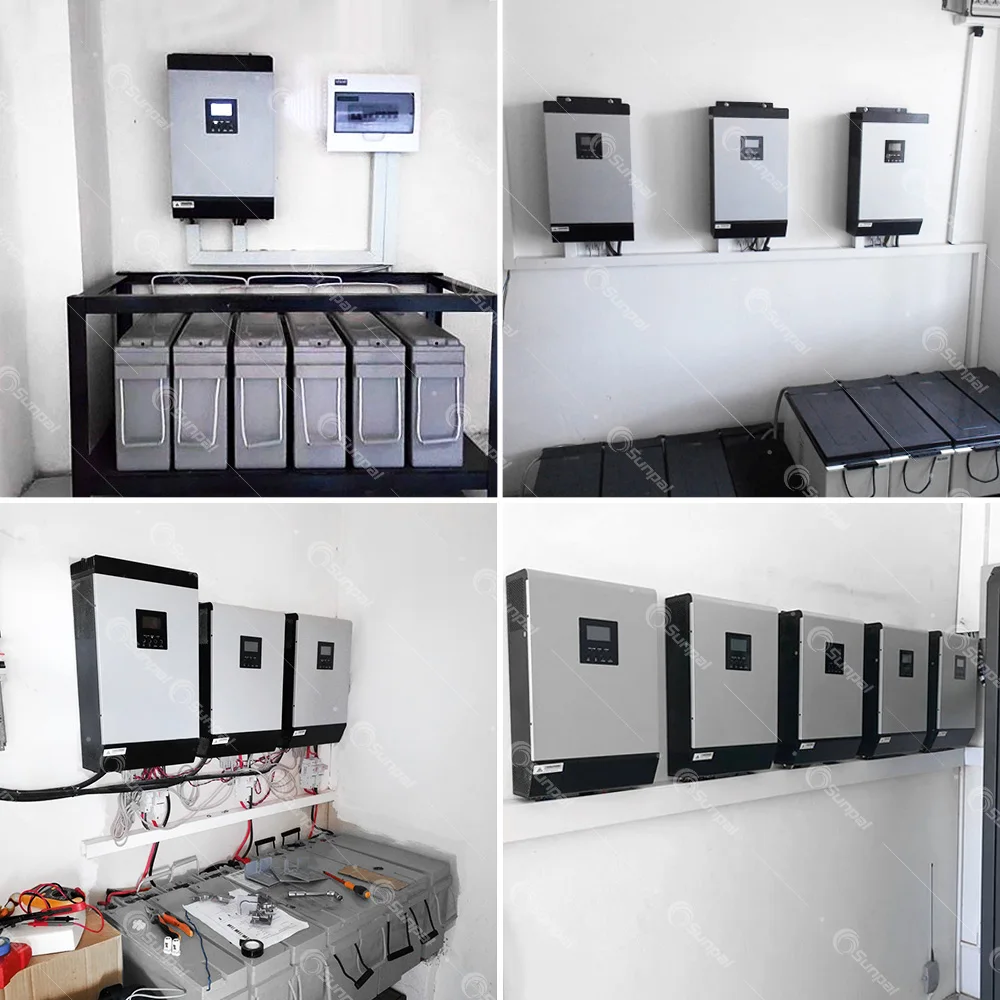

Applications
Become A Distributor
What Our Distributor Receive | ||
System Design and Support | Technical Support | |
Installer Training Seminars | Solar PV Best Practices Documentation | |
Marketing & Sales Support | Samples Assets | |
Preferential Pricing | Exhibition Support | |
