10-30mm Rubber mulch making system from waste tire
Specially designed to remove wire steel from tire.

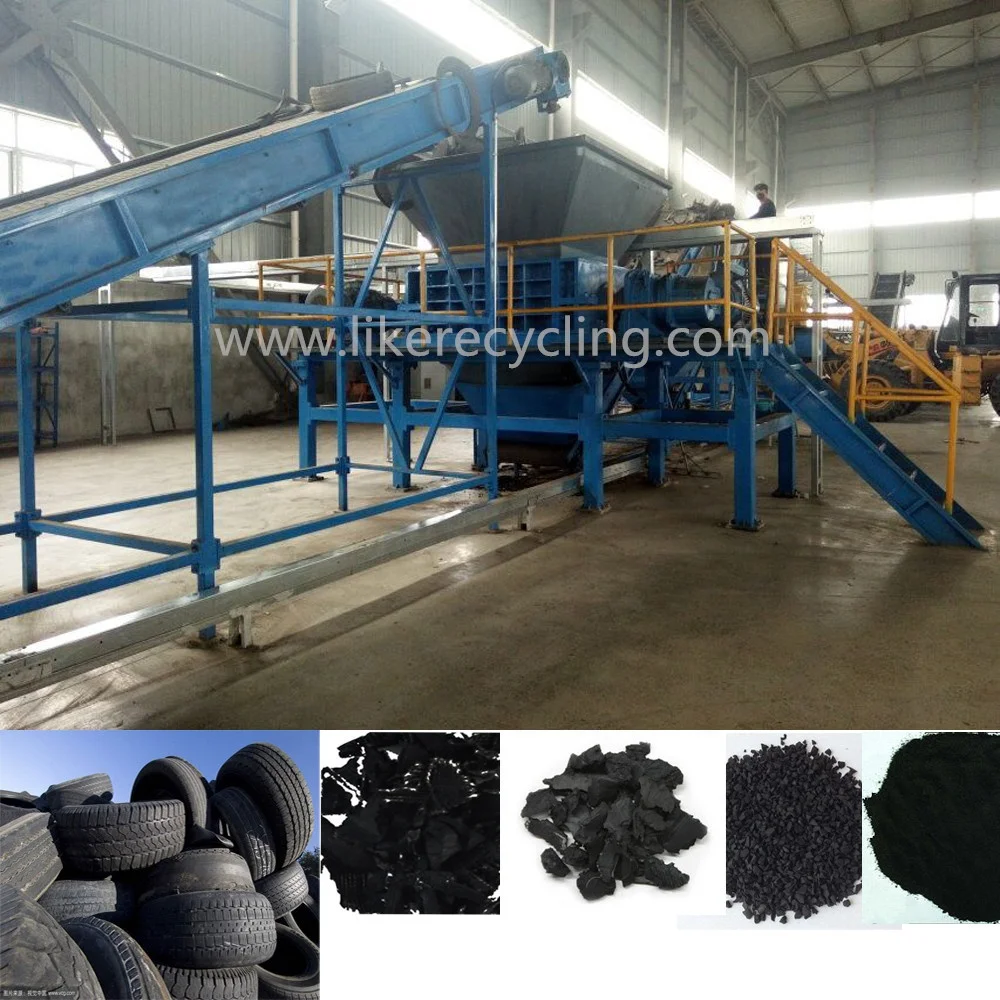

Rubber mulch production line include tire shredder--rasper machine. The first step tire shredder is to shred whole tire into rubber chips 50-150mm as request, then suitable size rubber chips will be conveyed to rasper machine to shred into smaller size rubber mulch 10-30mm, the wire steel was be separated in this step. The output rubber mulch is clean.
Main Features
1) Siemens PLC control system tire recyclig line
2) High quality design,advanced technology
3) Processing blades, shafts, parts,etc
4) Famous brand motor
Detailed Images

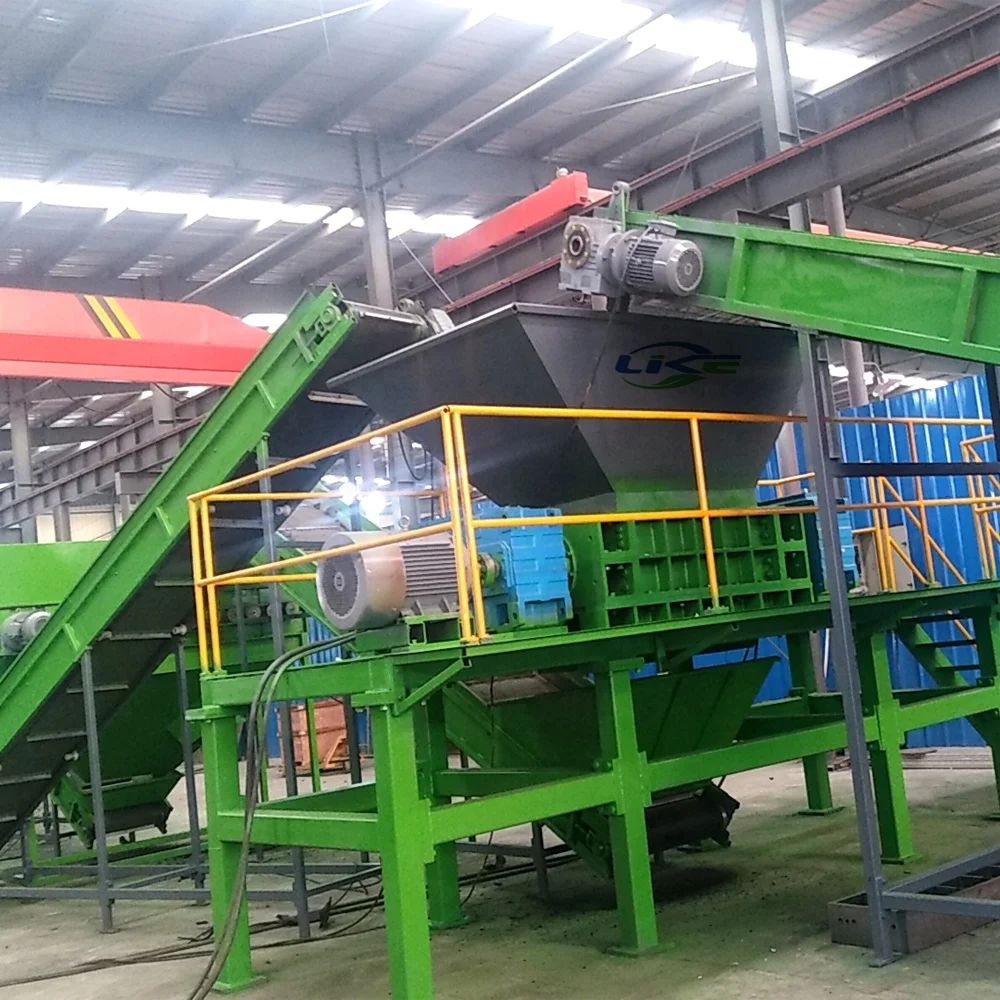

Tire shredder
Type: double shaft
Motor: siemens
Original: China
The first step, to shred the waste tire into rubber chips as required size
Model
Capacity
Motor
Input size
Output size
Blades quantity
TS-800
1-2t/h
2*22kw
800mm
50*50mm
16pcs
TS-1200
3-5t/h
2*37kw
1200mm
60*60mm
20pcs
TS-1600
6-8t/h
2*45kw
1600mm
50-150mm
16-30pcs
TS-1800
7-10t/h
2*55kw
1800mm
50-150mm
20-24mm
TS-2000
10-15t/h
2*75kw
2000mm
75-200mm
20-30pcs

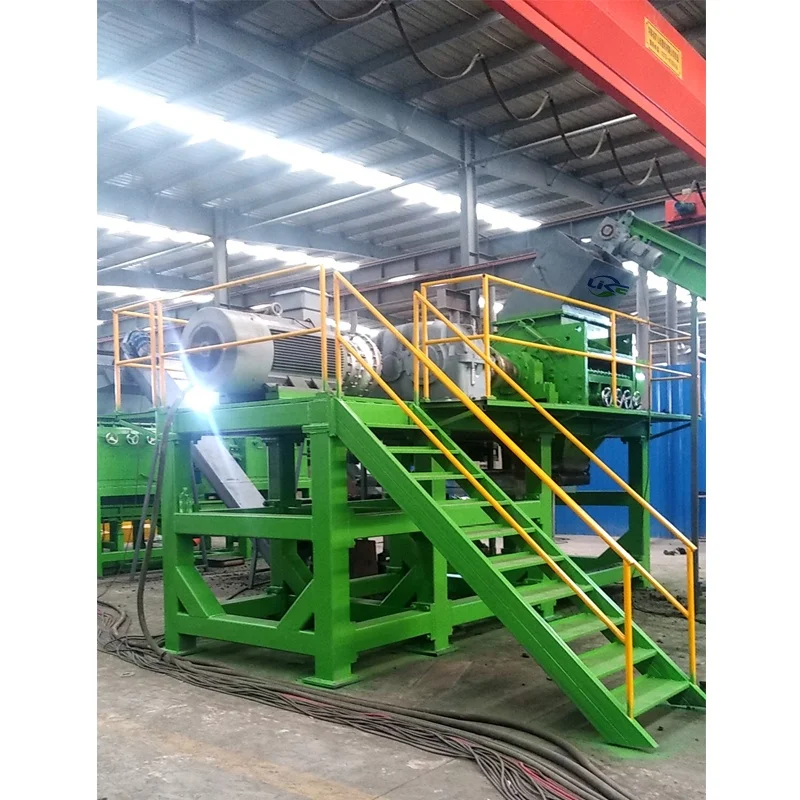

Rasper
Motor: Siemens The second step, to shred the rubber blocks from first tire shredder into rubber mulch 10-30mm as request, and the steel of tire will be removed by rasper machine and attracted by magnetic separator.
The output rubber mulch is clean. That can be collect or continue processed into smaller rubber size in next step
Rasper
LK-R315
LK-R132
LK-R90
LK-R75
LK-R55
LK-R45
Powder
315kw
132kw
90kw
75kw
55kw
45kw
Voltage
As request
As request
As request
As request
As request
As request
Capacity
3-6t/h
1.5-3t/h
1-1.5t/h
700-1t/h
500-700kg/h
300-500kg/h
Related Products

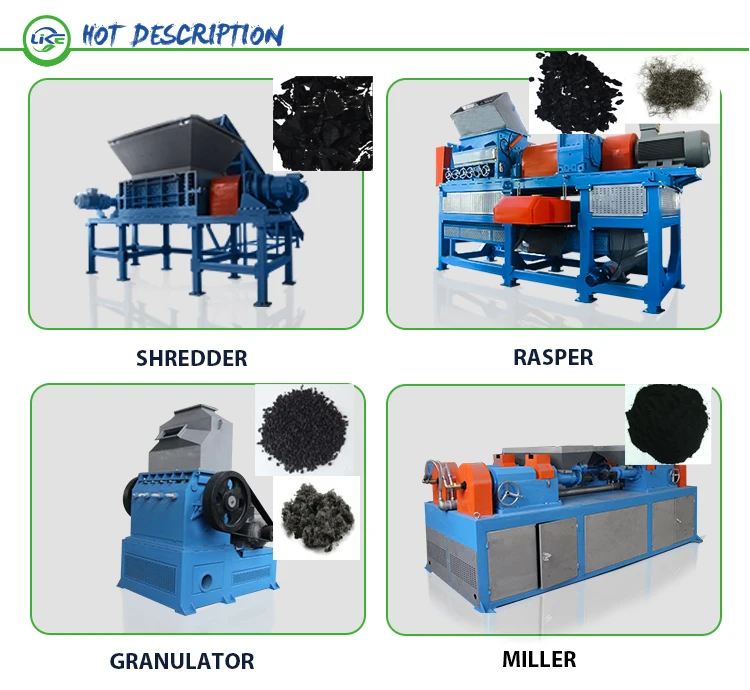

The whole tire recycling milling production line includes tire shredder, rasper, granulator and miller system, etc

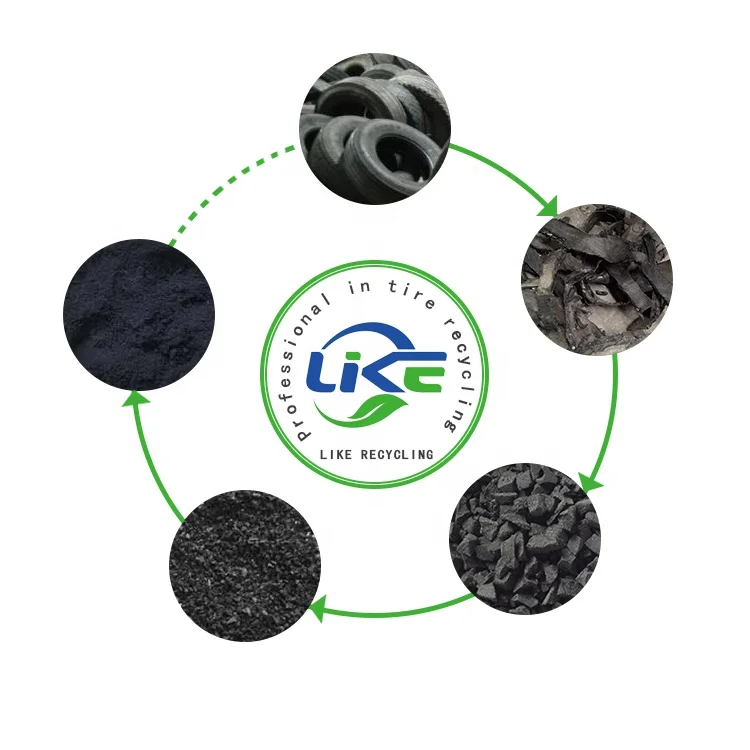

Each step, you will get different size of rubber as your requirement. such as 50-150mm rubber blocks, 10-30mm wire-free rubber mulch, 1-5mm rubber granule, 30-120mesh rubber powder.
Application
Our Company
FAQ
1) Are you a factory or trade company?
We are professional recycling line machine factory, professional design engineer, experienced production team, advanced manufacturing and processing facility. You can get good technical support from us.
2) How can I trust your company?
a. famous brand component as our standard configuration, like Siemens Motor, Tongli or SEW reducer, Siemens PLC and Schneider component. All parts use high quality material and precise processing .
b. Assessed by third party-national test centre. national patents,SGS, CE, ISO certificate
c. Welcome to visit our factory to check at any time
3) How about the test running & installation?
Before delivery, welcome you to come to testing all machines in our factory.
Before shipping out your machines, we will invite you to come to test your machines, when you are satisfied; we start to pack and delivery.
We will dispatch our enginne to your country to help you to install and debug the machine, as well as training your workers.
4) How about the warranty?
Under the proper usage, 1-3 year for whole machine, we provide long-time after sales service for our customer.
