4 cavity Semi automatic PET bottle blowing Machine

Product Overview

Description

Product introduction

L-BS510-4(4-cavity) Semi-automatic PET bottle blowing machine is suitable for producing bottles from 100ml-1.5L in 4 cavities. It is suitable for  PET/PP material  and is widely be applied to produce mineral water, carbonated drink, beverage,medicine, cosmetic,detergent ,oil bottles etc.

A complete production line of L-BS510-4(4-cavity) includes:
-Blower

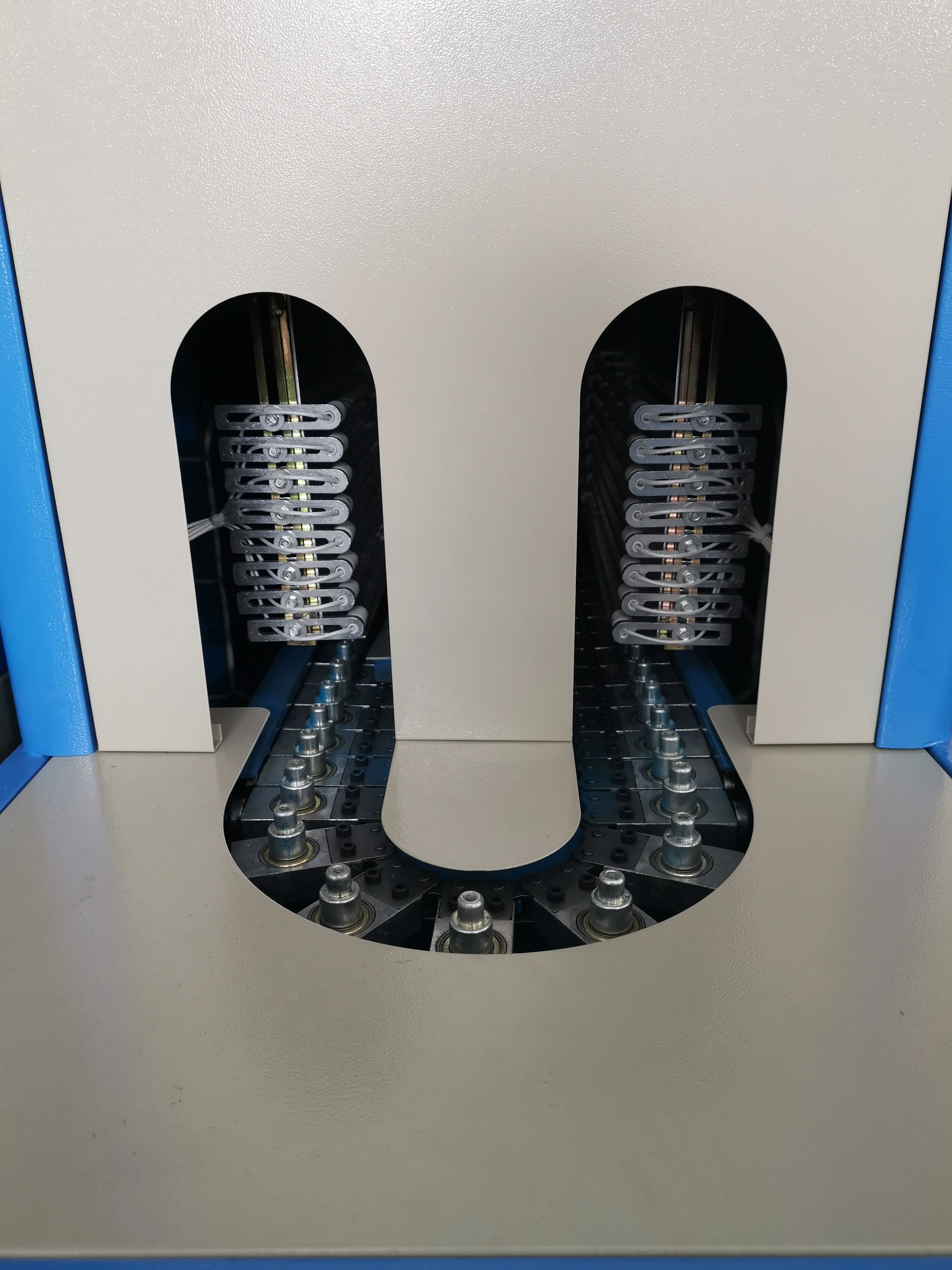

-heater
-air filter(2pcs)
-High pressure air compressor(1.65cbm/3.0Mpa)
-Bottle mould(500ml)







Technical parameter

Output	1800-2200pcs/hr
Bottle size	100ml-1.5L
Max length of bottle	340mm
Max diameter of bottle	100mm
Max mould plate size	500*380mm
Max mould thickness	110*220mm
Clamping force	180KN
Mould openning stroke(adjustable):	200mm

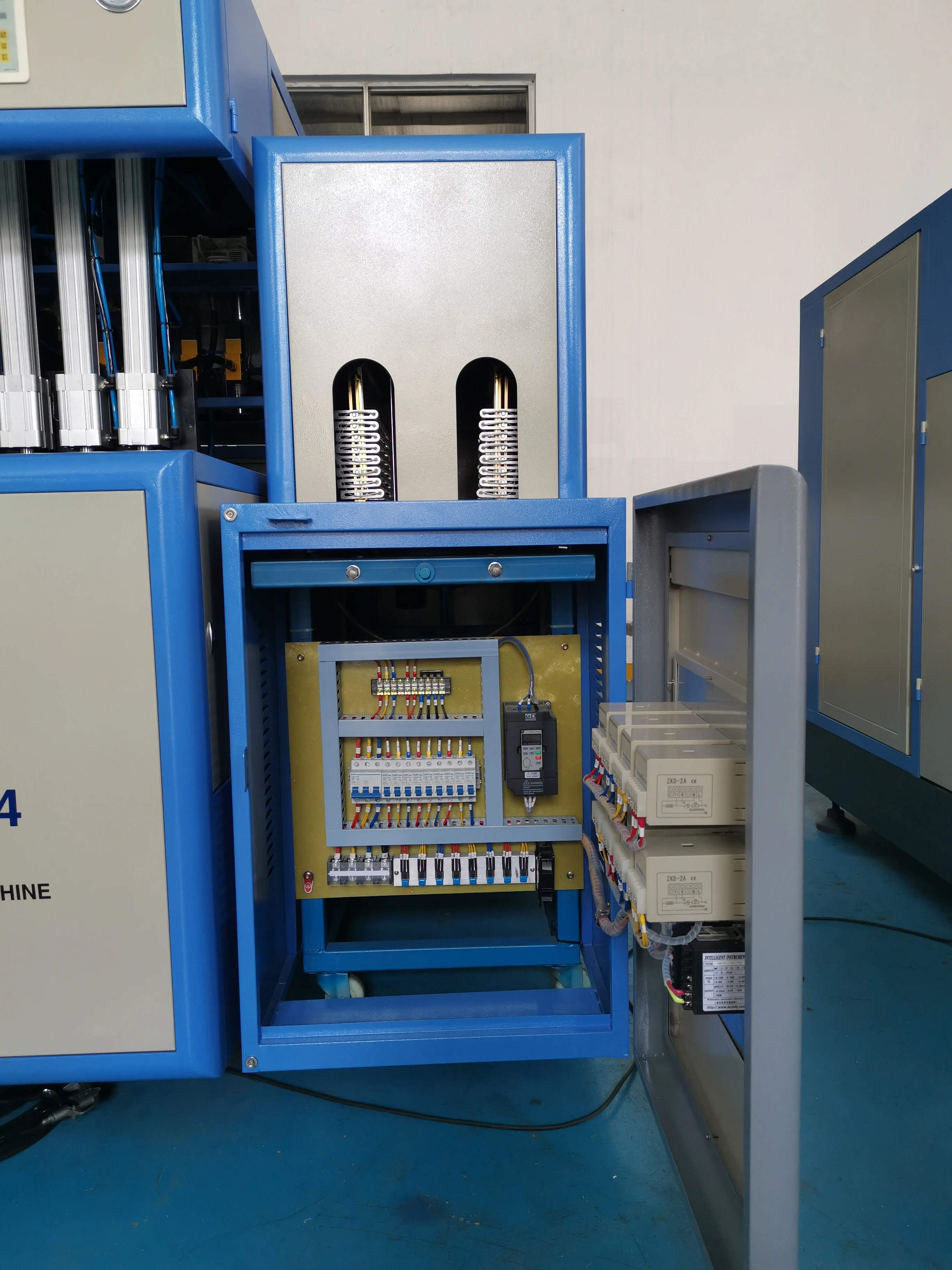

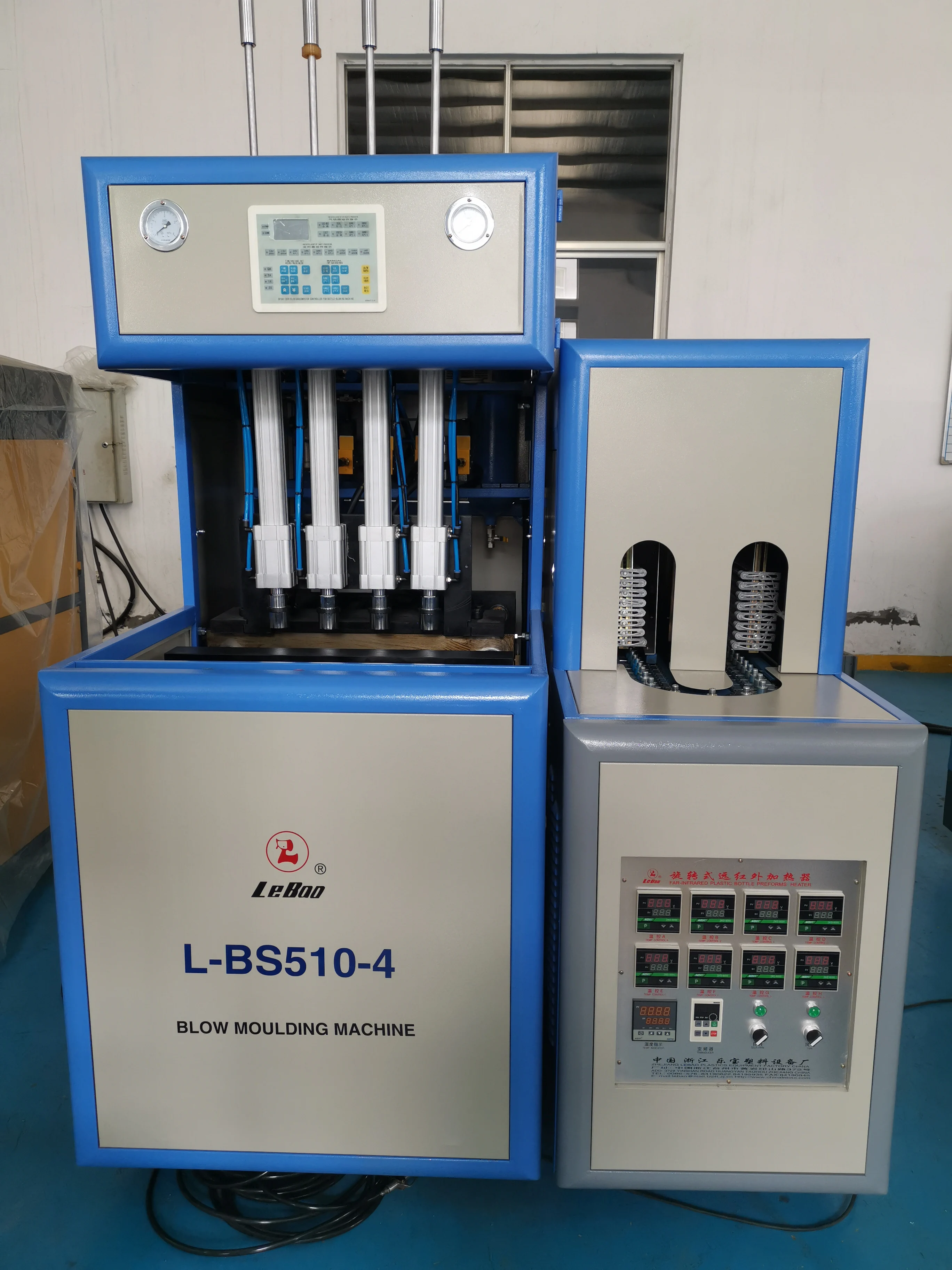

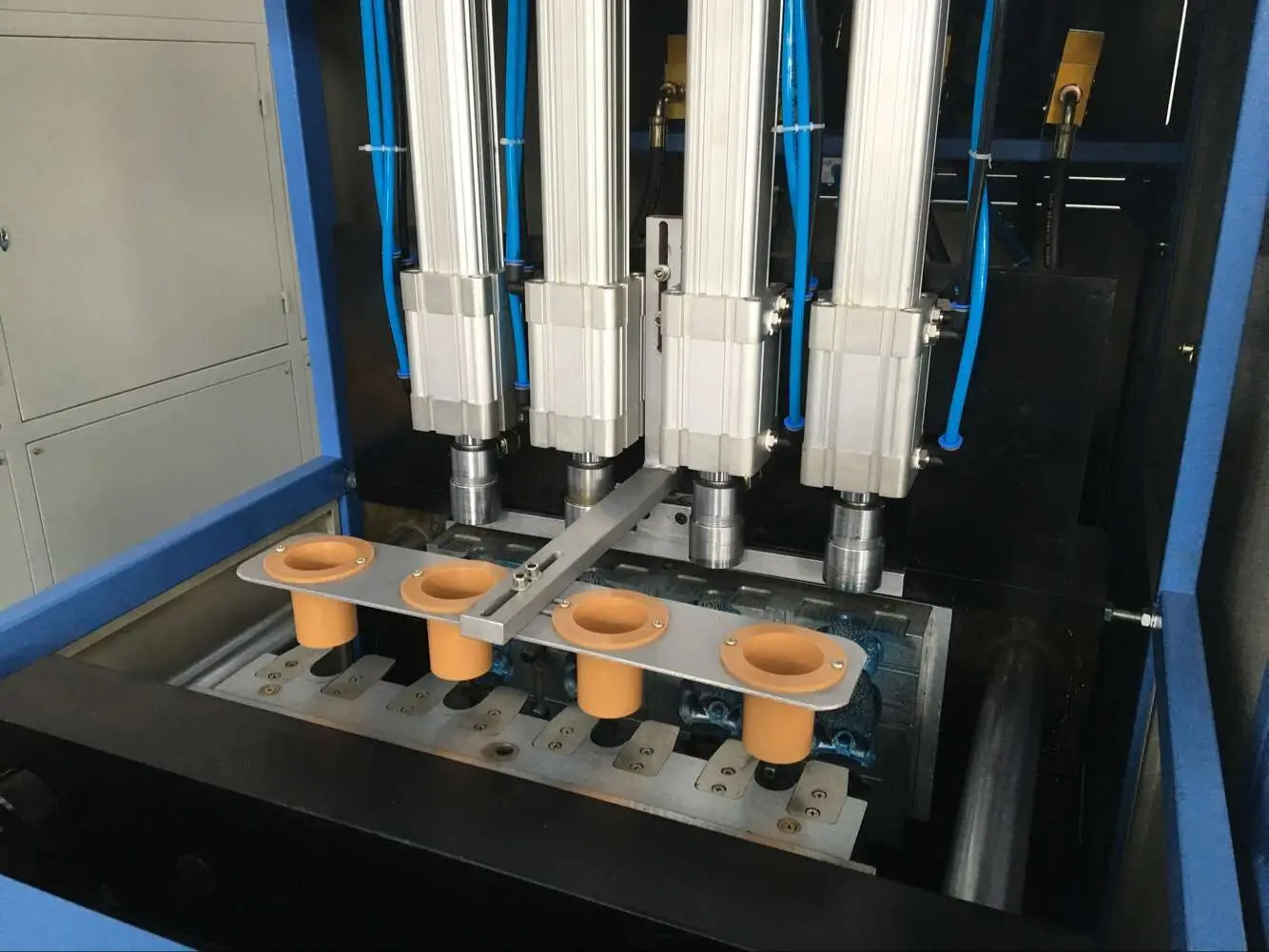

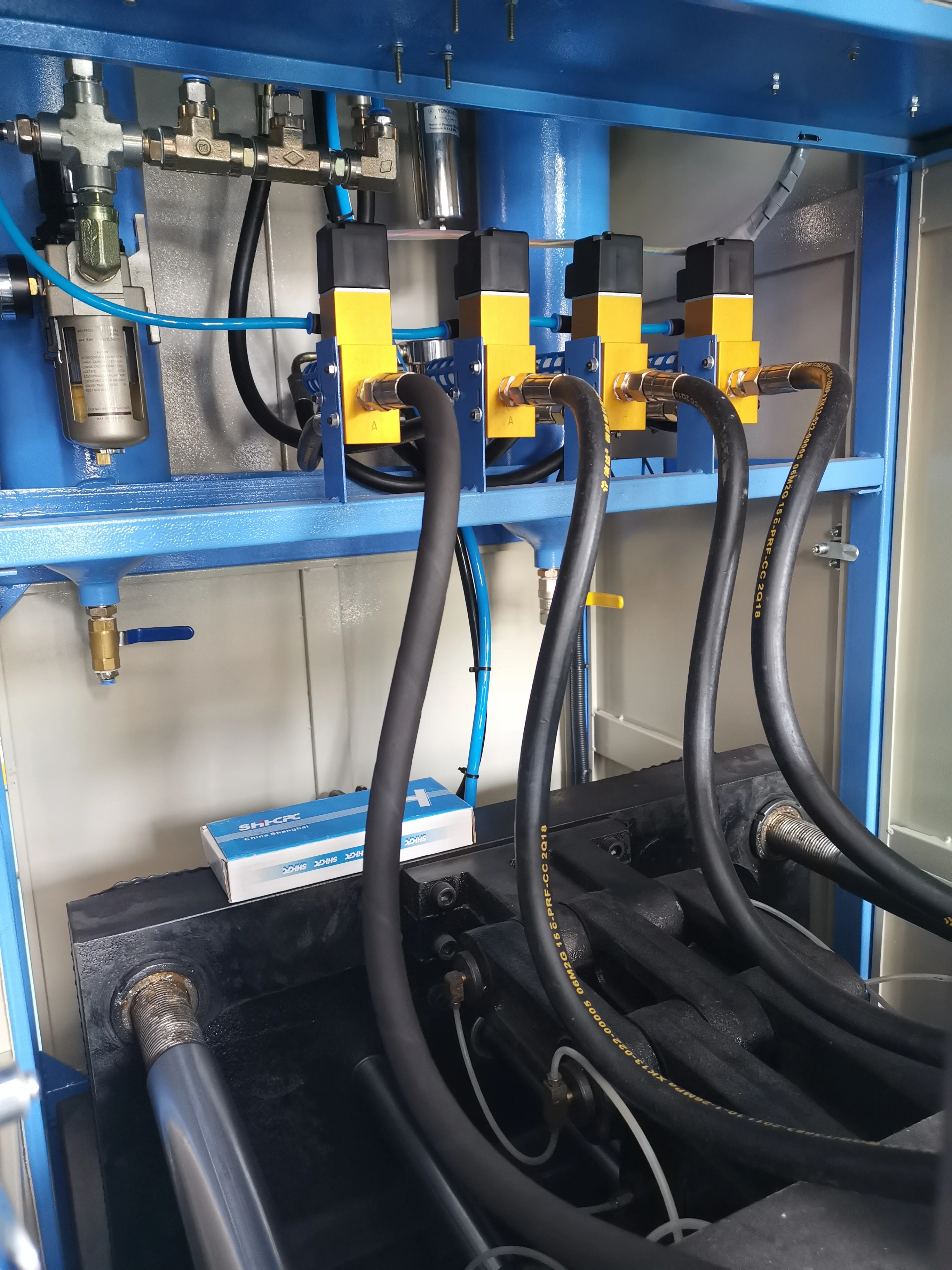

Photos
