Foam concrete pump squeeze pump
- Category: Concrete Pumps >>>
- Supplier: Zhengzhou Anjit New Equipment Co. Ltd.
Share on (506765363):
Product Overview
Description
Product Description

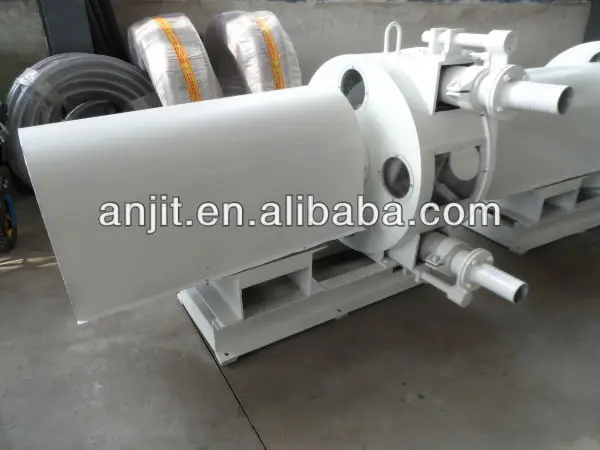

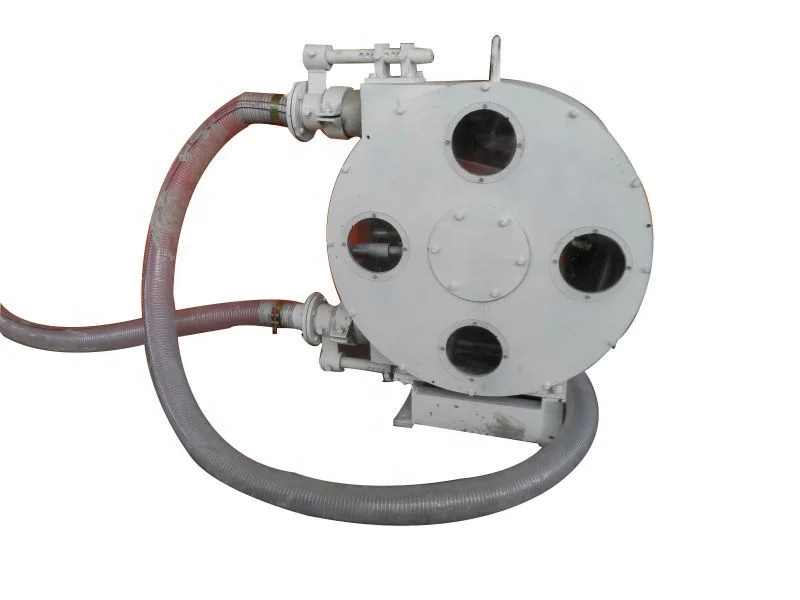

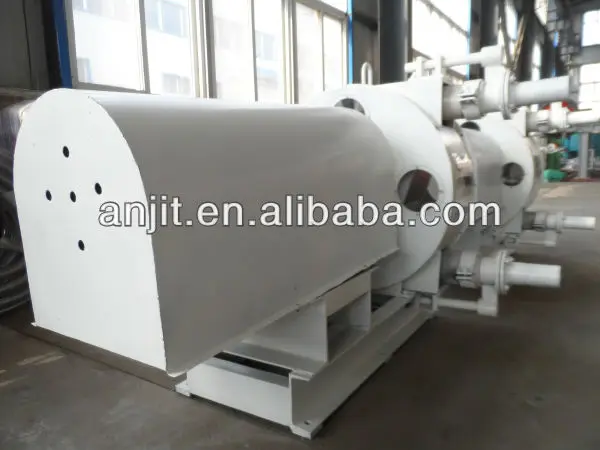

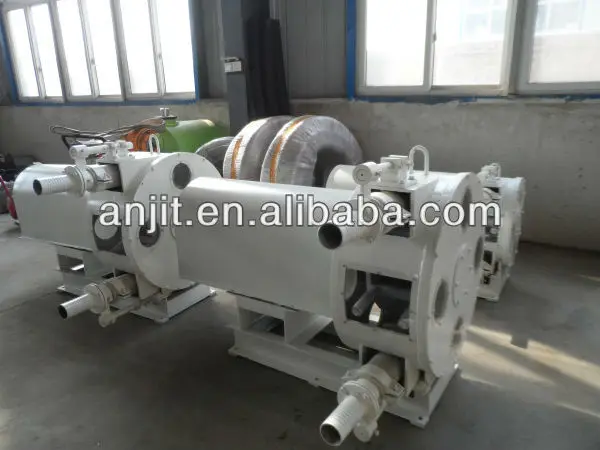

Peristaltic pump
The peristaltic pump could be used for pumping the grout, mortar, slurry, or pulp etc.
Technical data:
Model | IHP75 | IHP65 | IHP50 |
Rate power | 7.5kw | 5.5kw | 5.5kw |
Rate of flow | 15m3/h | 10m3/h | 5m3/h |
Rate pressure | 0.8Mpa | 1.0Mpa | 1.0Mpa |
Rotate speed | 42r/min | 42r/min | 42r/min |
Dimension(L*W*H) | 1400*1100*1030mm | 1250*1000*930mm | 1150*700*800mm |
Working temperature | 0-60° | 0-60° | 0-60° |
Horizontal transport distance | 500m | 500m | 600m |
Vertical transport distance | 20m | 35m | 80m |
Hosepipe | 30m | 30m | 30m |
Weight | 650kgs | 630kgs | 600kgs |
Packaging & Shipping
Plywood case for foam concrete block cutting machine price if LCL;
Plastic film for foam concrete block cutting machine price if FCL.
Our Services
We offer installation service as per customers requirements and needs;
Clients can also study technology in our factory freely.
Related Products
Mass block mould
| CLC block moulds Block mould combined Mould Frame and Mould Bottom Trolley together. |
| Steel thickness: 4mm |
| Mould Bottom height: 240mm |
| Overall Dimension: 1300*1300*840mm |
Two kinds of block moulds for your choice: one kind made by steels, the other kind made by wooden plastic boards.
Interlock block mould (Litebulit block mould)
Manual Block mould
